Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

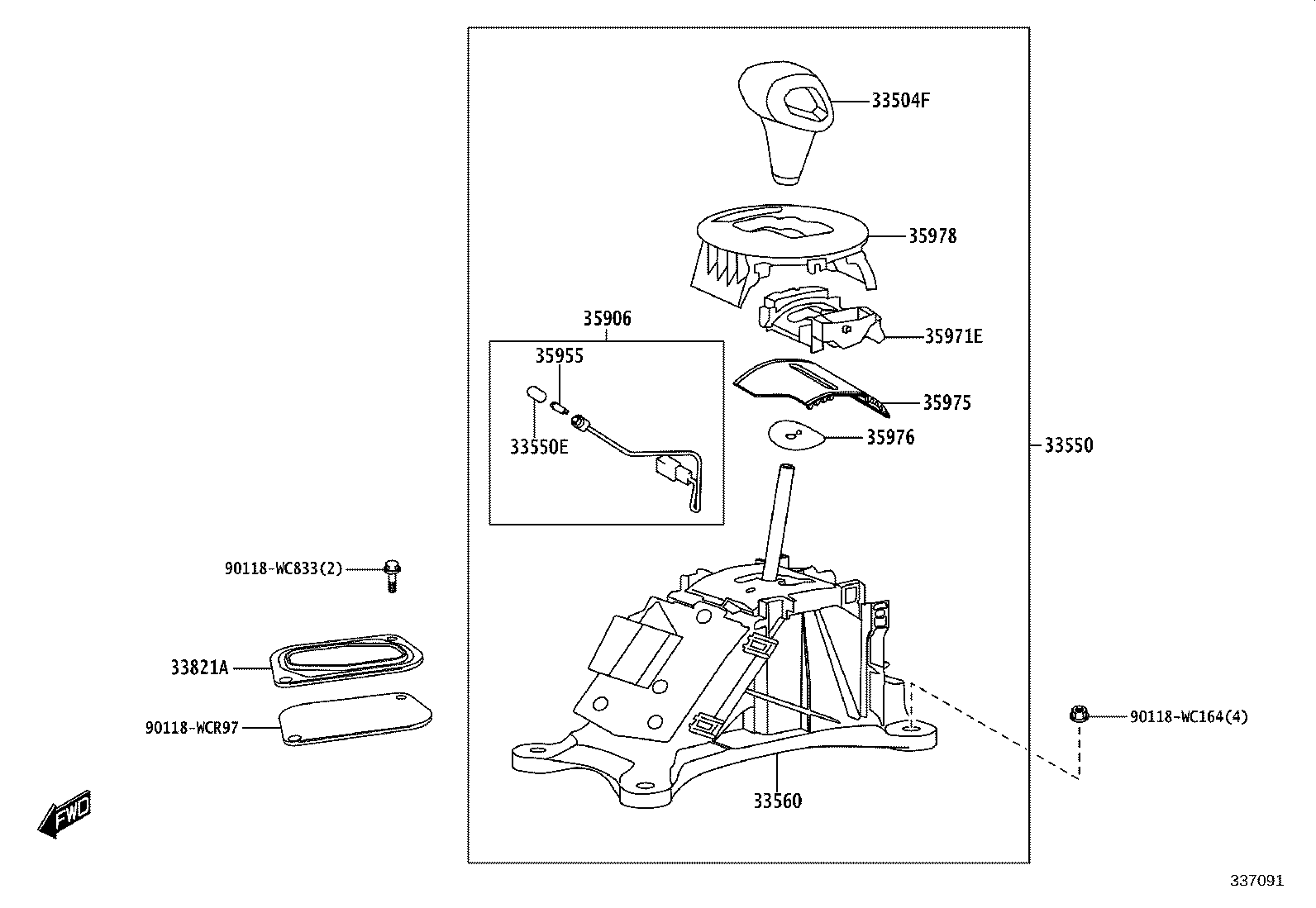

Shift Lever & Retainer
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33550E | Cap, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33560 | Unit Assy, Shift Lock Control |
| 33820B | Cable Assy, Transmission Control |
| 33821A | Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35955 | Bulb, Position Indicator Lamp |
| 35971E | Housing, Position Indicator |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
| 35978 | Indicator, Shift Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
