Factory parts data · Europe

Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

3 part groups · 3 illustrations

Illustrations

458572 2023-01 → —

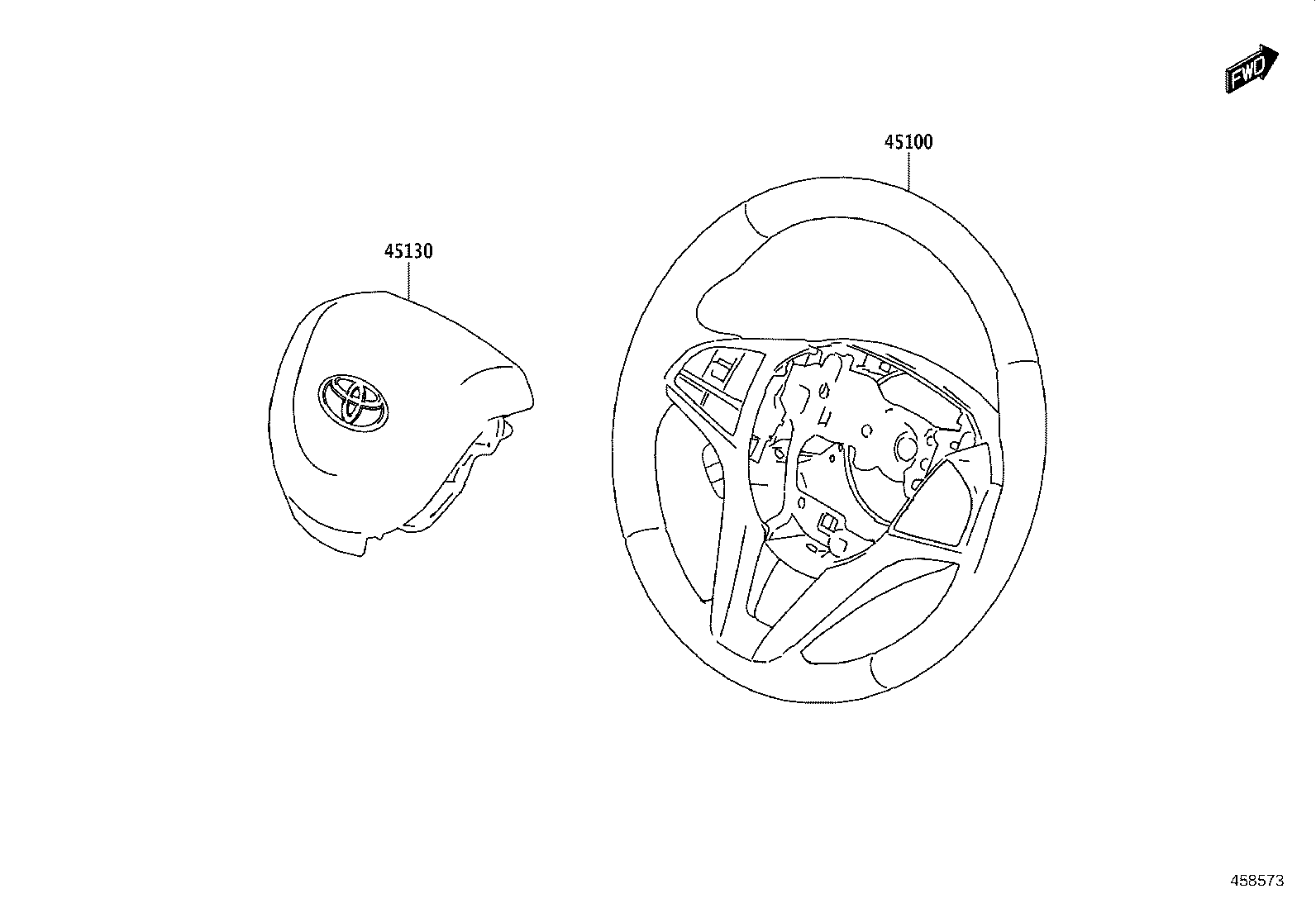

458573 2023-01 → —

458574 2023-01 → —

Part groups

PNC	Description
45100	Wheel Assy, Steering
45130	Button Assy, Horn
45201P	Nut, Steering Wheel Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
