Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

7 part groups · 2 illustrations

Illustrations

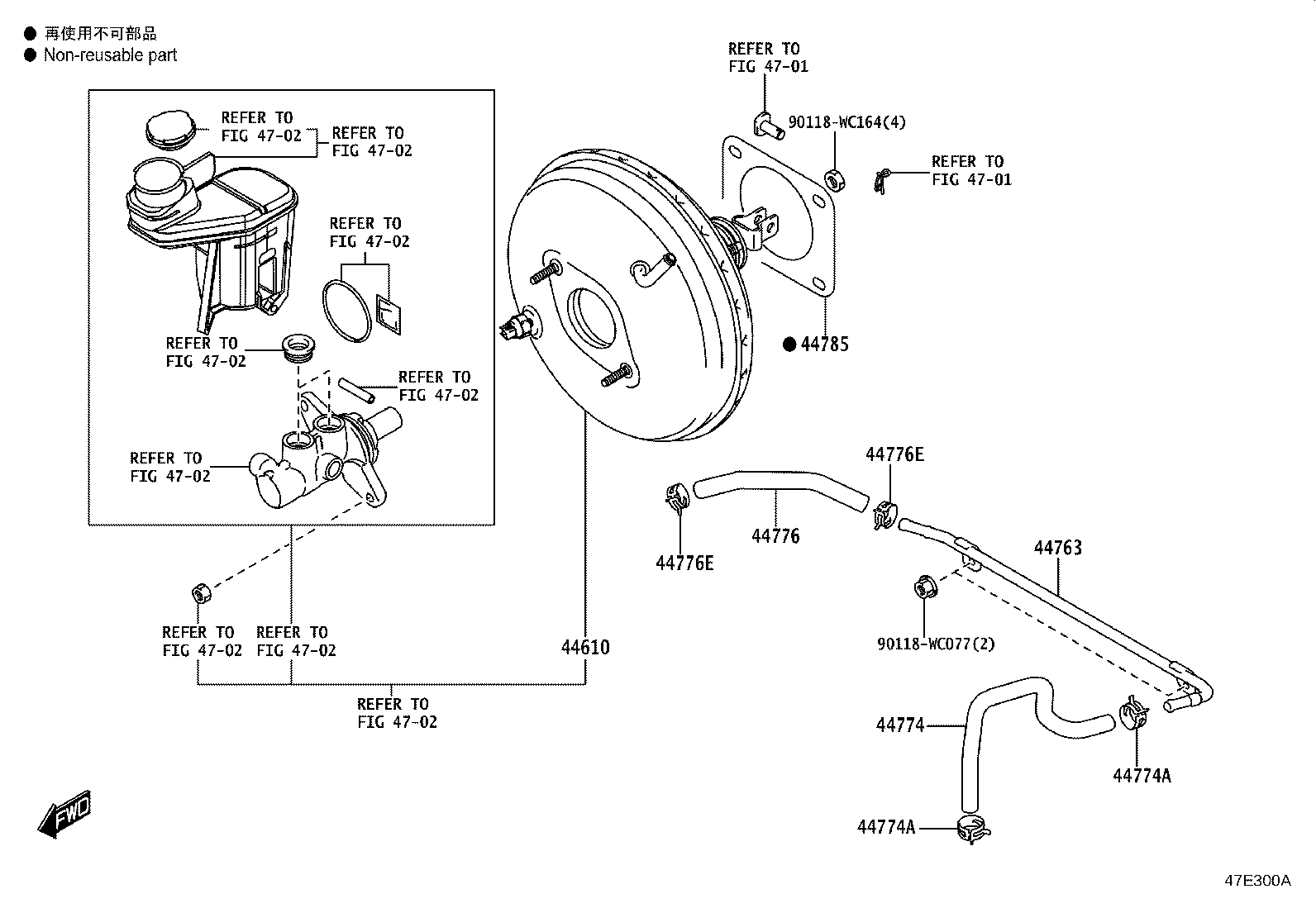

Figure 47E299A 47E299A 2023-01 → — Figure 47E300A 47E300A 2023-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44763 Tube, Booster Vacuum
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44776 Hose, Brake Booster
44776E Clip(FOR BRAKE BOOSTER HOSE)
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
