Brake Tube & Clamp

21 part groups · 3 illustrations

Illustrations

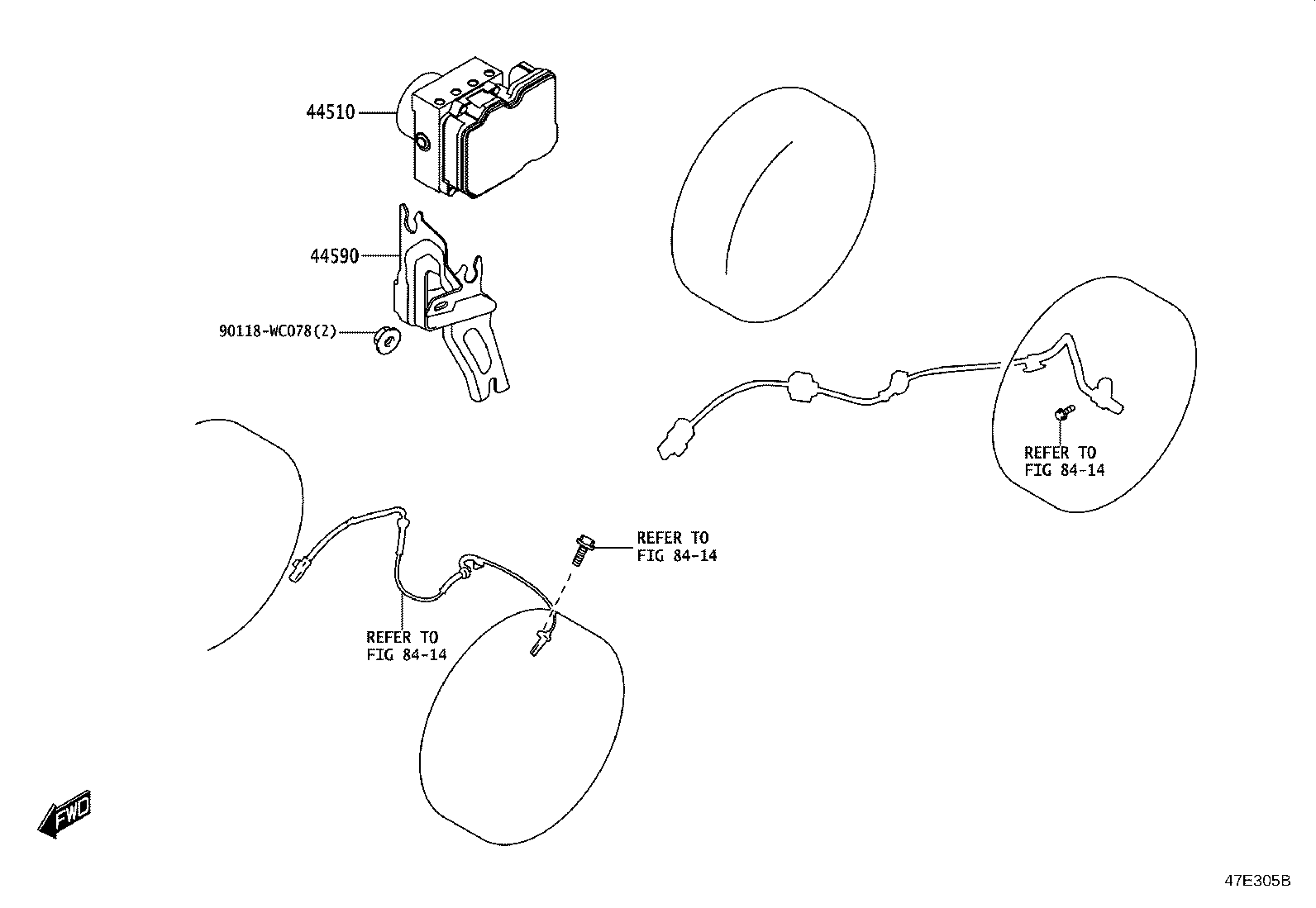

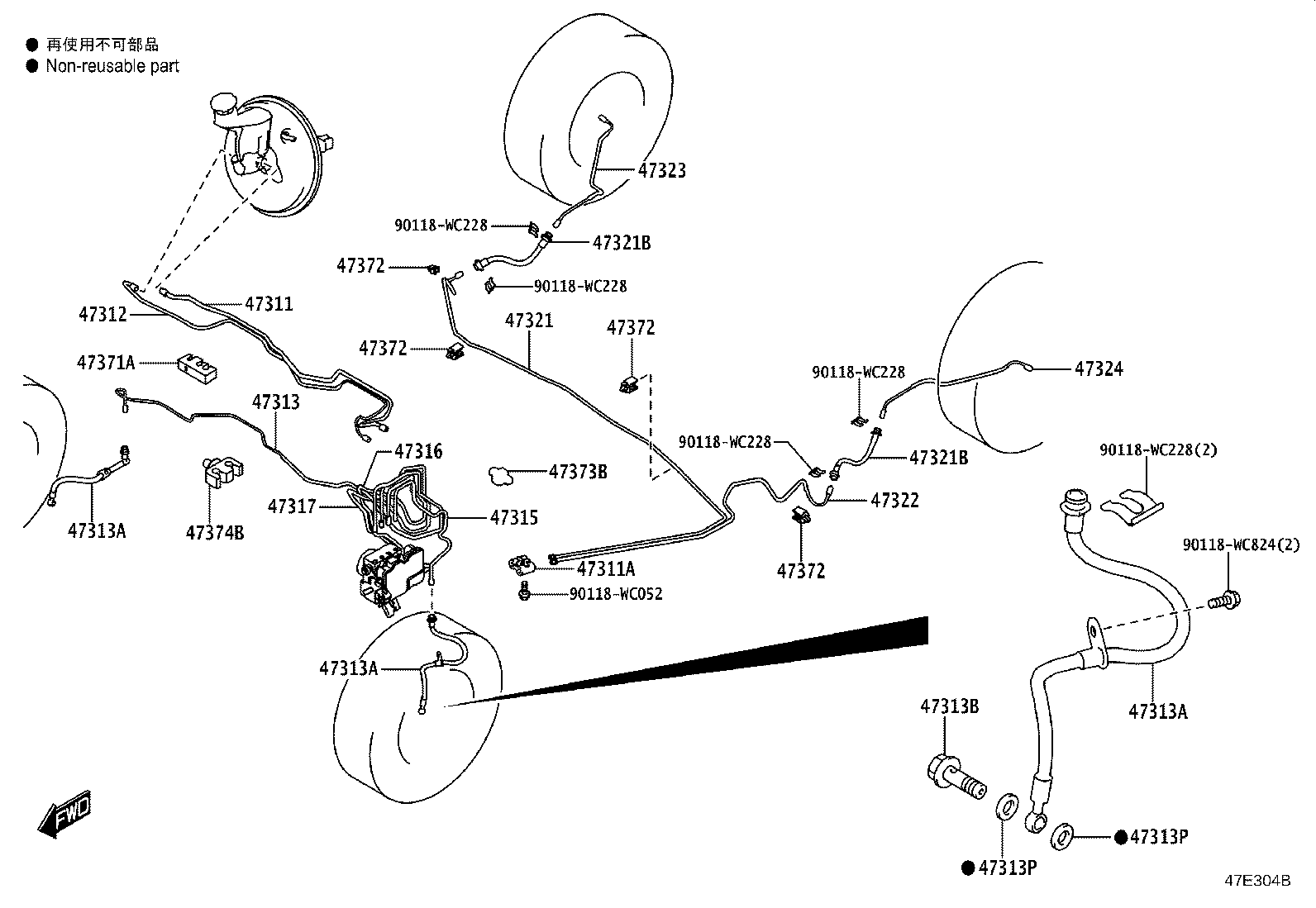

Figure 47E303C 47E303C 2023-01 → — Figure 47E304B 47E304B 2023-01 → — Figure 47E305B 47E305B 2023-01 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
