Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

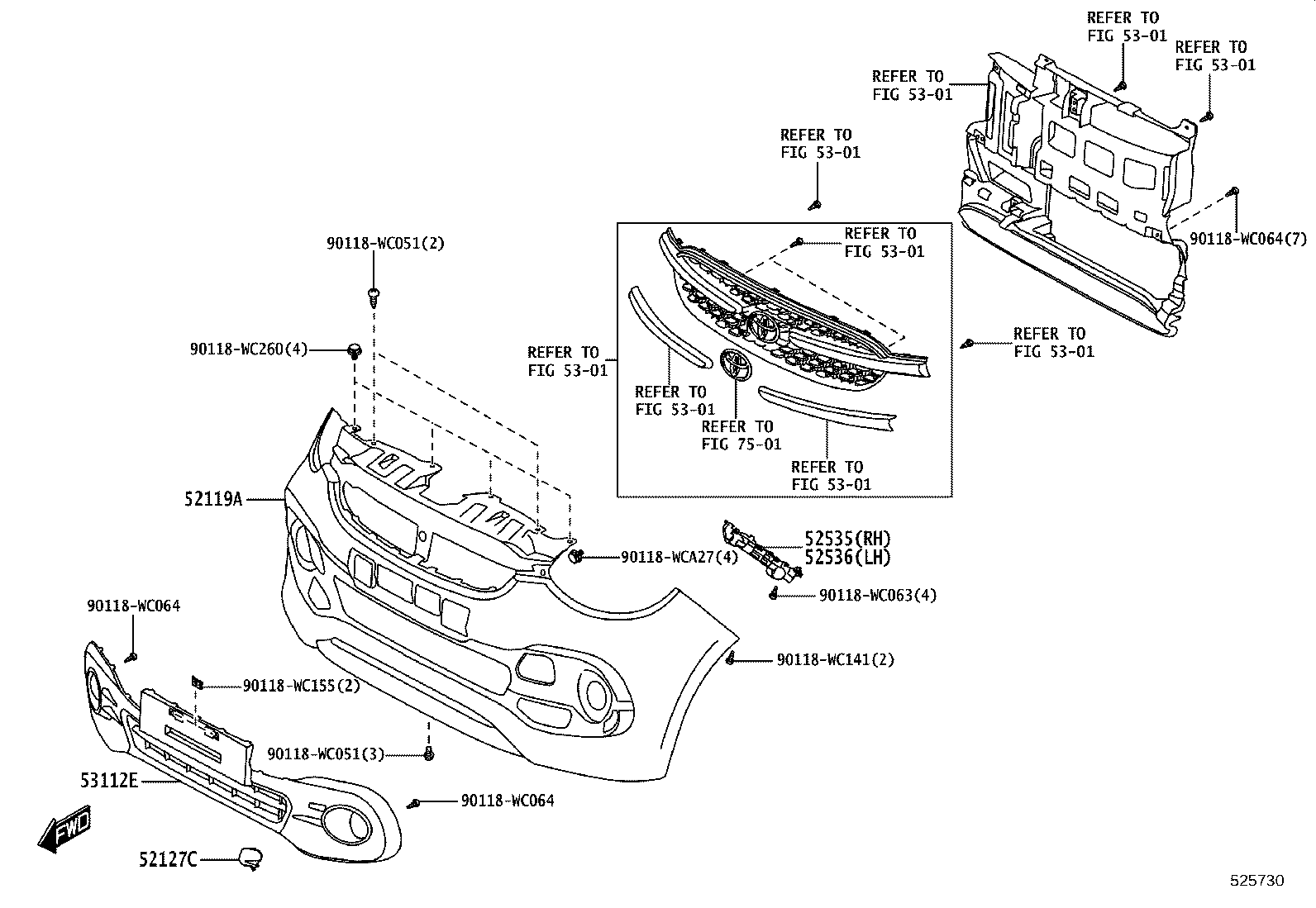

Front Bumper & Bumper Stay
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52131A | Reinforcement, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 53112E | Grille, Radiator, Lower NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
