Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

24 part groups · 9 illustrations

Illustrations

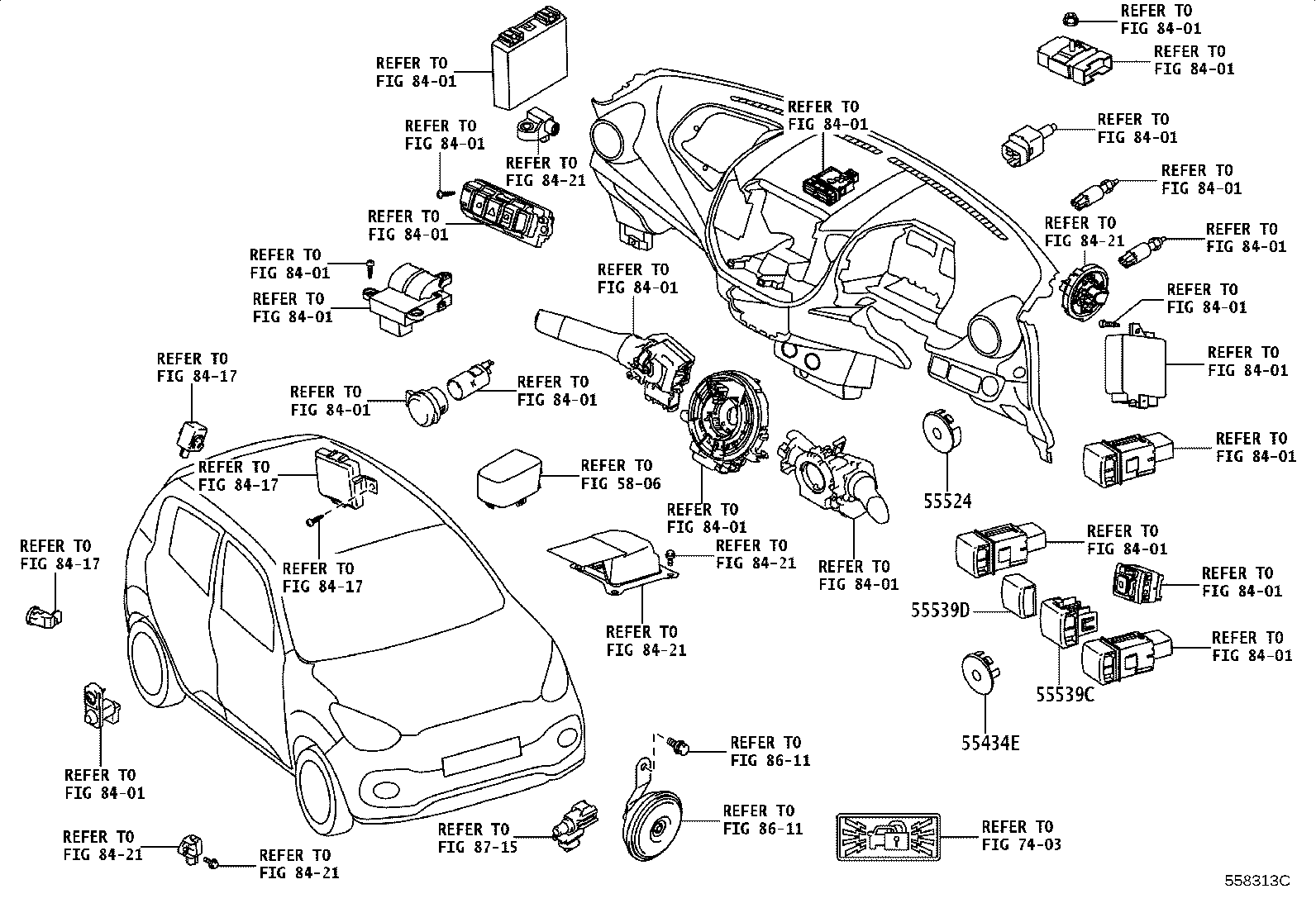

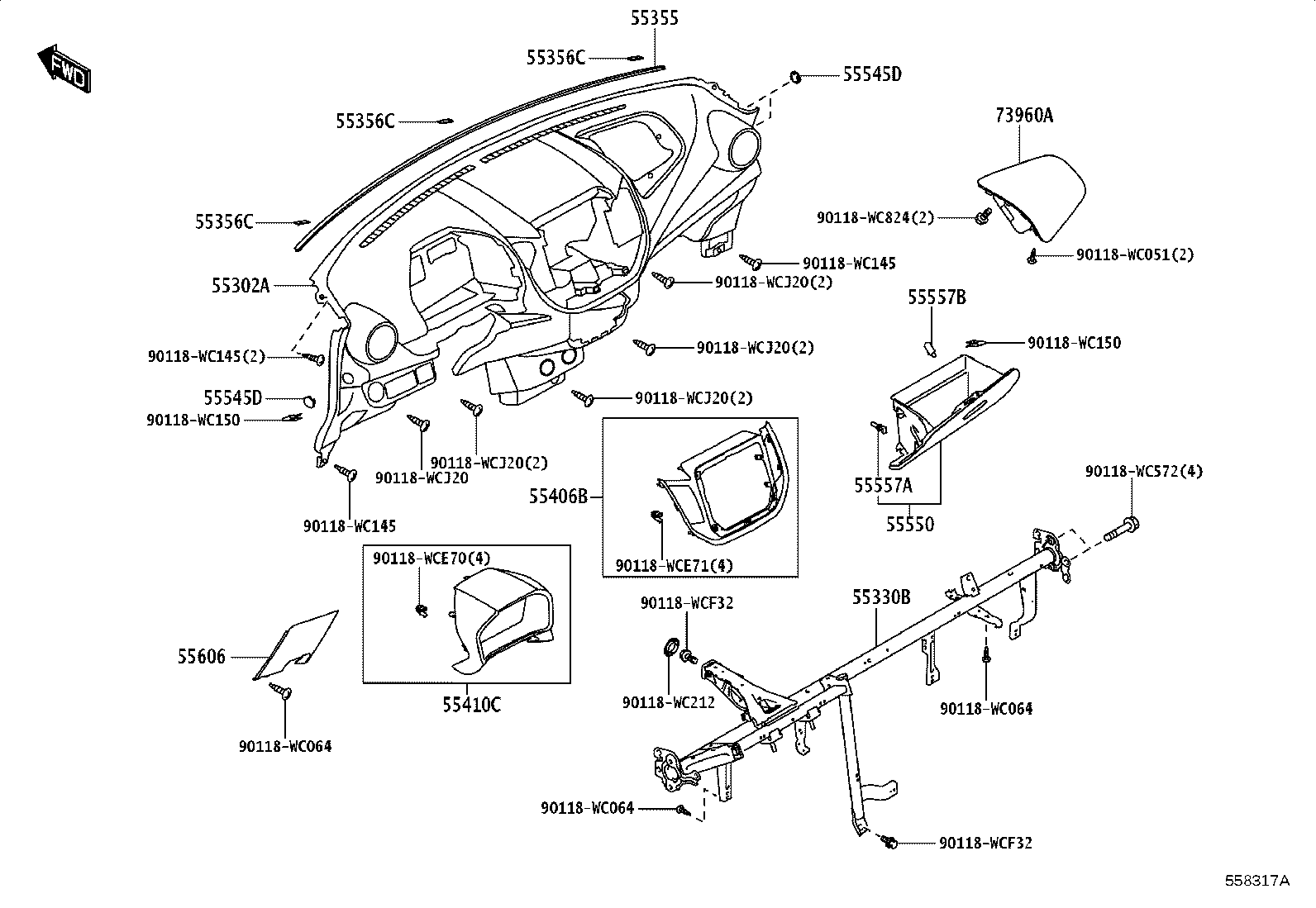

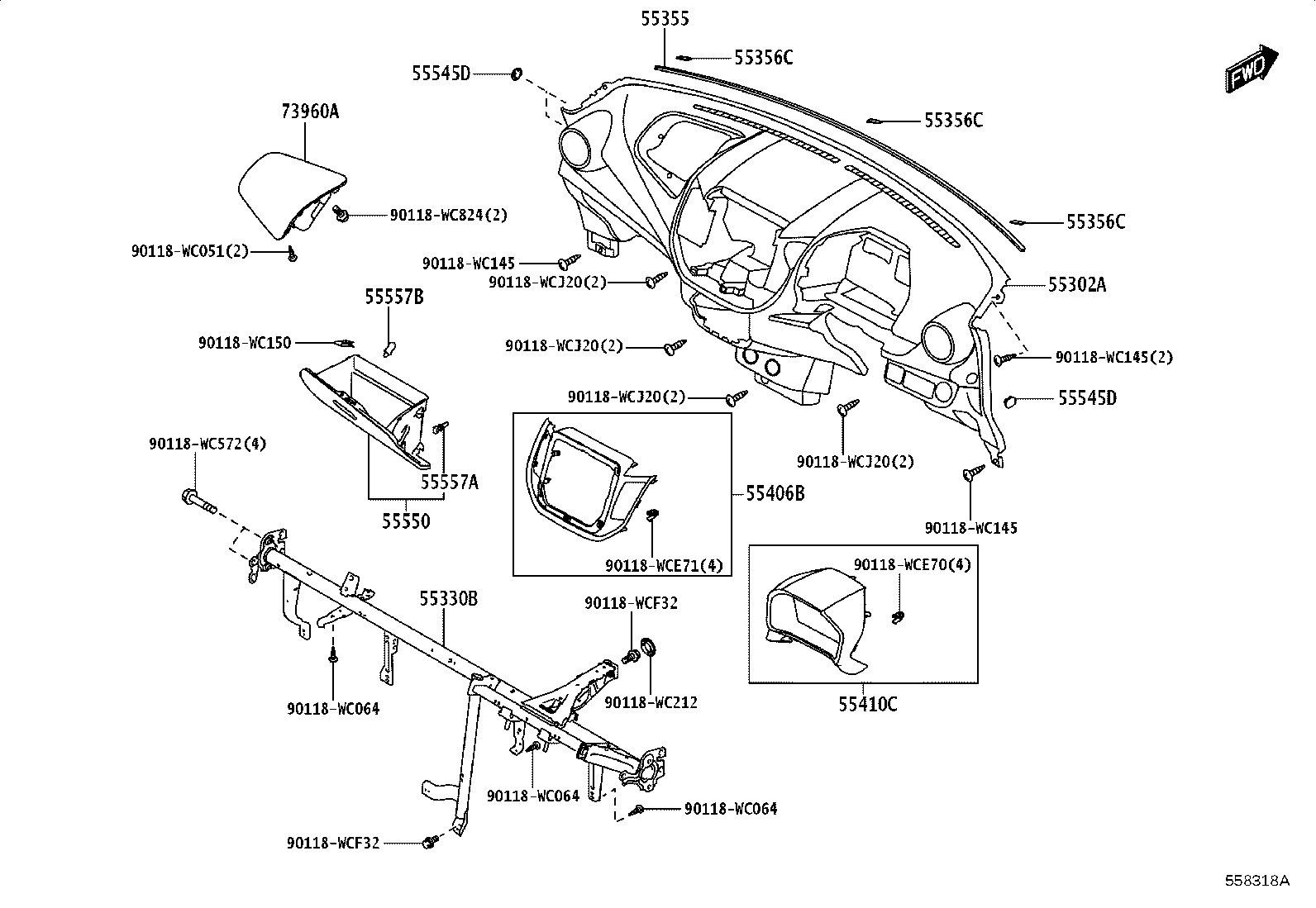

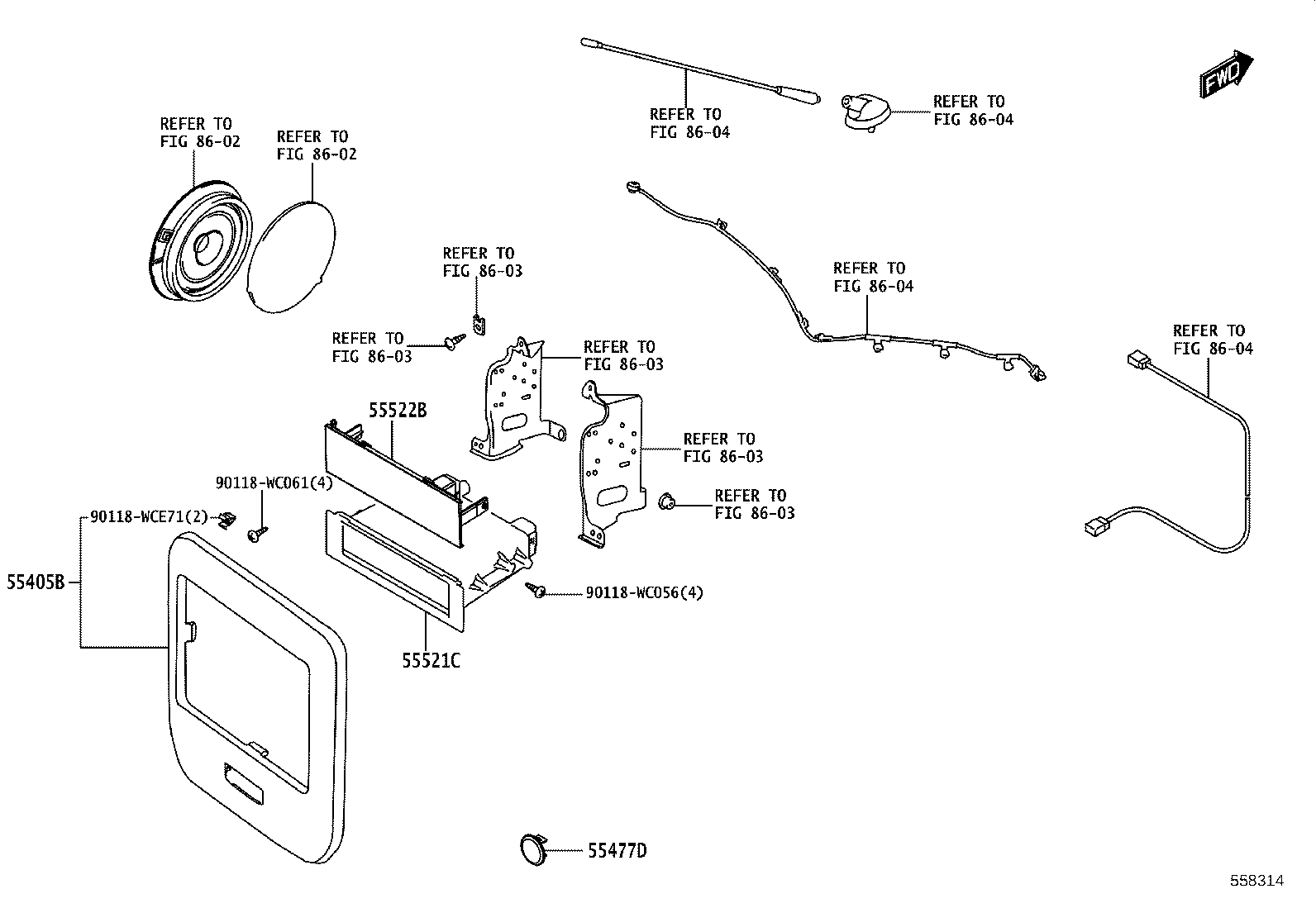

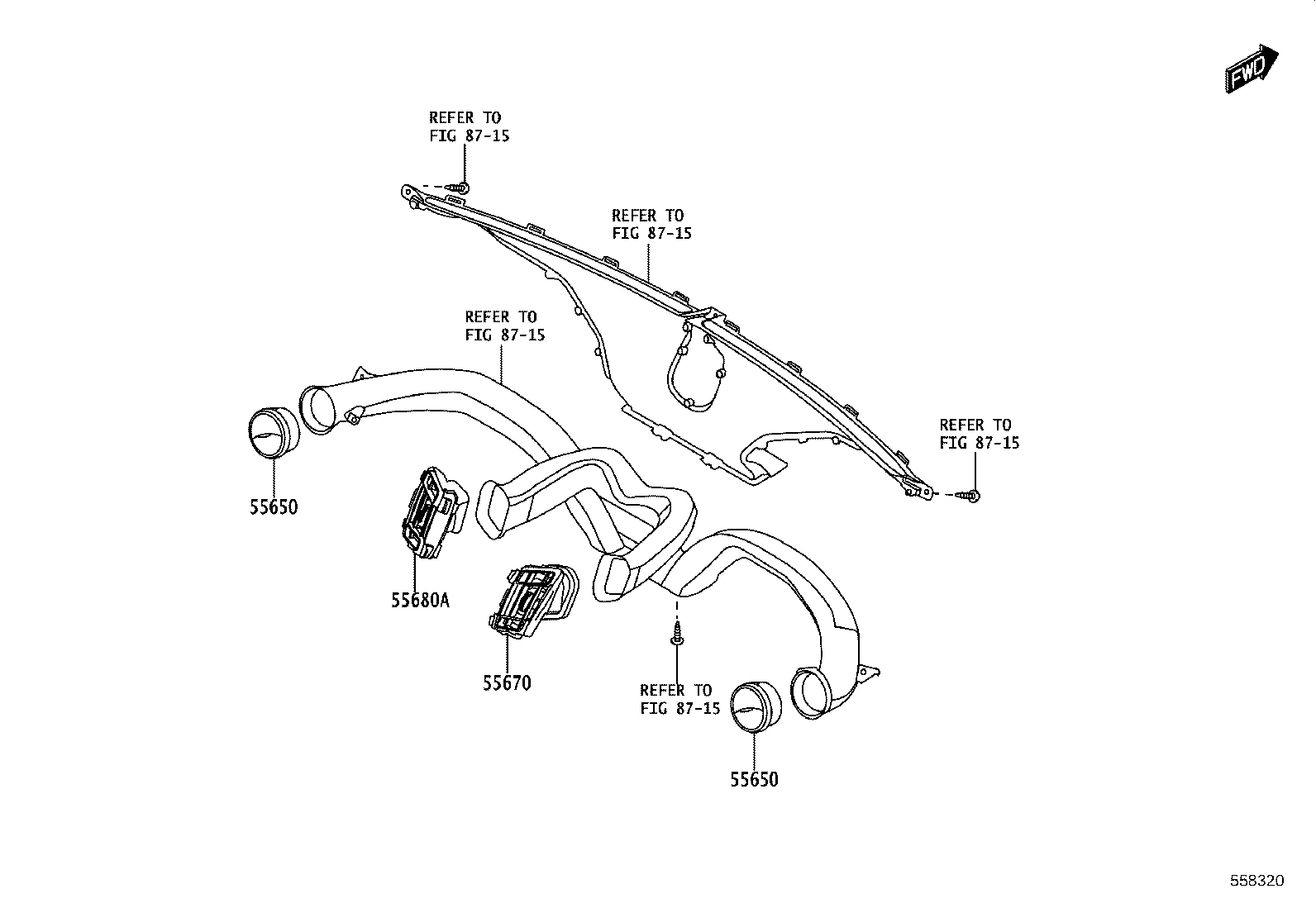

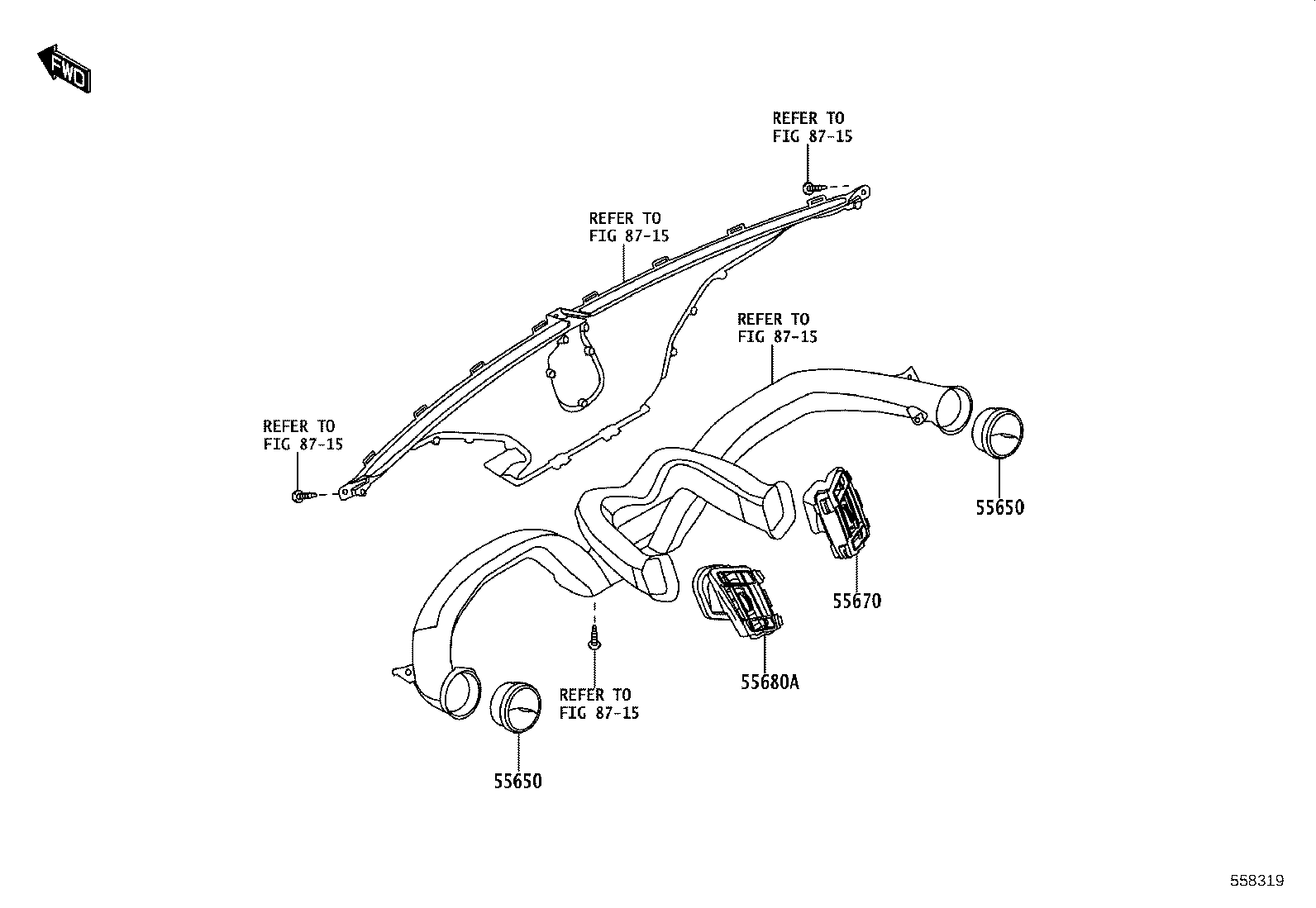

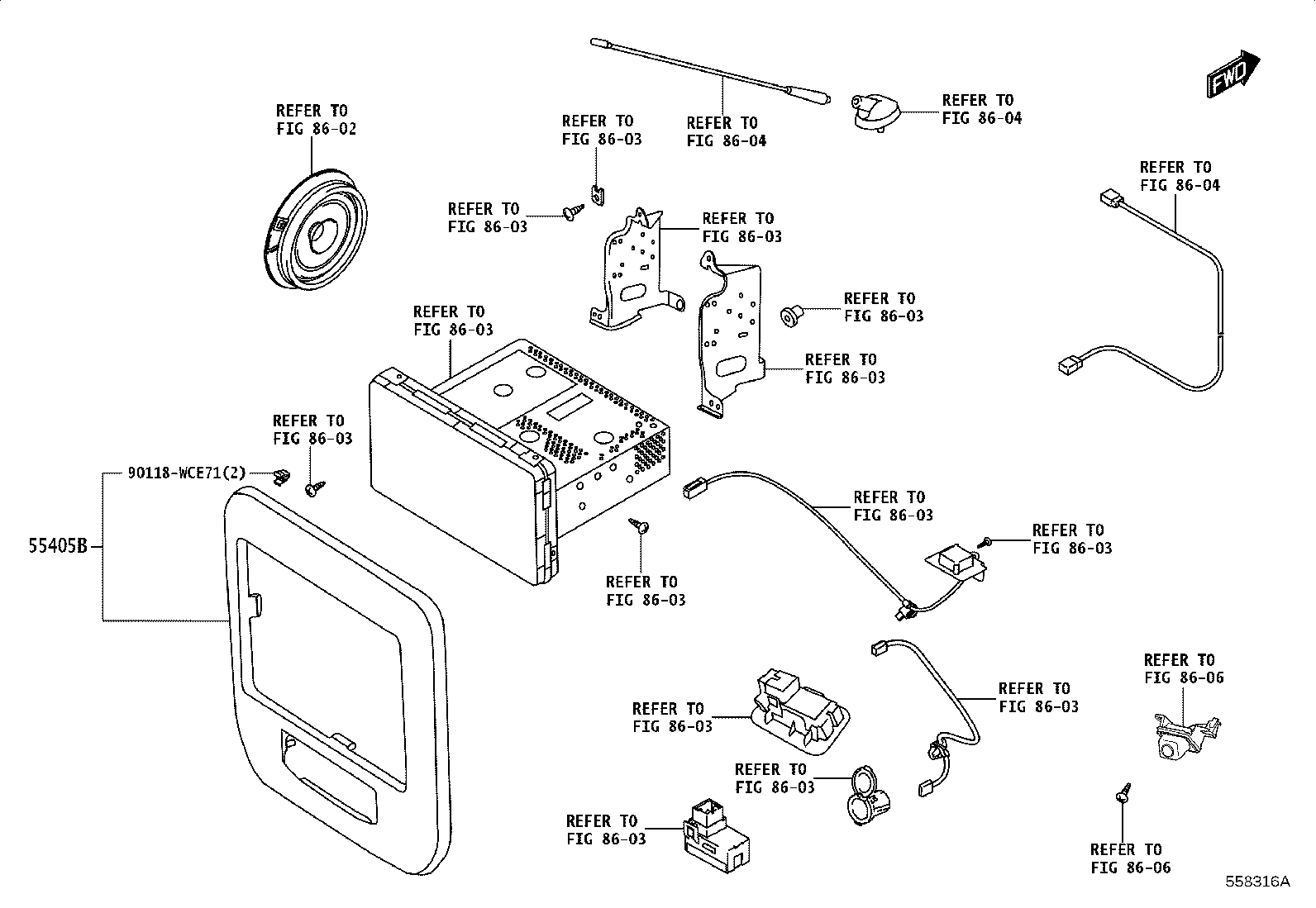

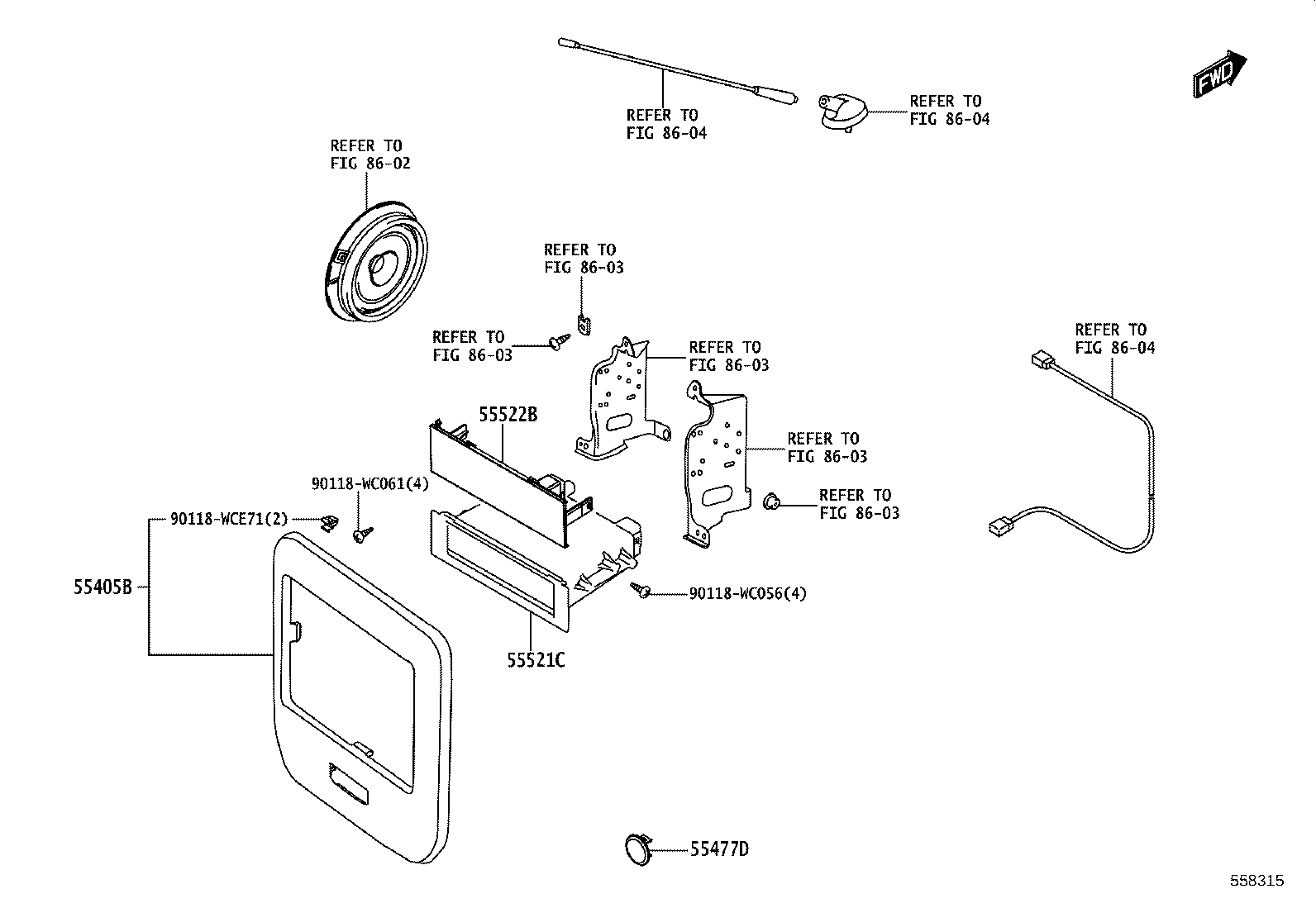

Figure 558312A 558312A 2023-01 → — Figure 558313C 558313C 2023-01 → — Figure 558314 558314 2023-01 → — Figure 558315 558315 2023-01 → — Figure 558316A 558316A 2023-01 → — Figure 558317A 558317A 2023-01 → — Figure 558318A 558318A 2023-01 → — Figure 558319 558319 2023-01 → — Figure 558320 558320 2023-01 → —

Part groups

PNCDescription
55302A Panel Sub-assy, Instrument, Upper
55330B Reinforcement Assy, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55410C Panel Assy, Instrument Cluster Finish
55434E Cap
55477D Cover, Cigarette Lighter Hole
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55524 Cover, Switch Bace Hole
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55545D Cover, Instorument Panel Hole, NO.1
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55557B Stopper, Glove Compertment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55650 Register Assy, Instrument Panel, NO.1
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
