Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01
Cowl Panel & Windshield Glass
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53866J | Seal, Front Fender TO Cowl Side, RH |
| 53867H | Seal, Front Fender TO Cowl Side, LH |

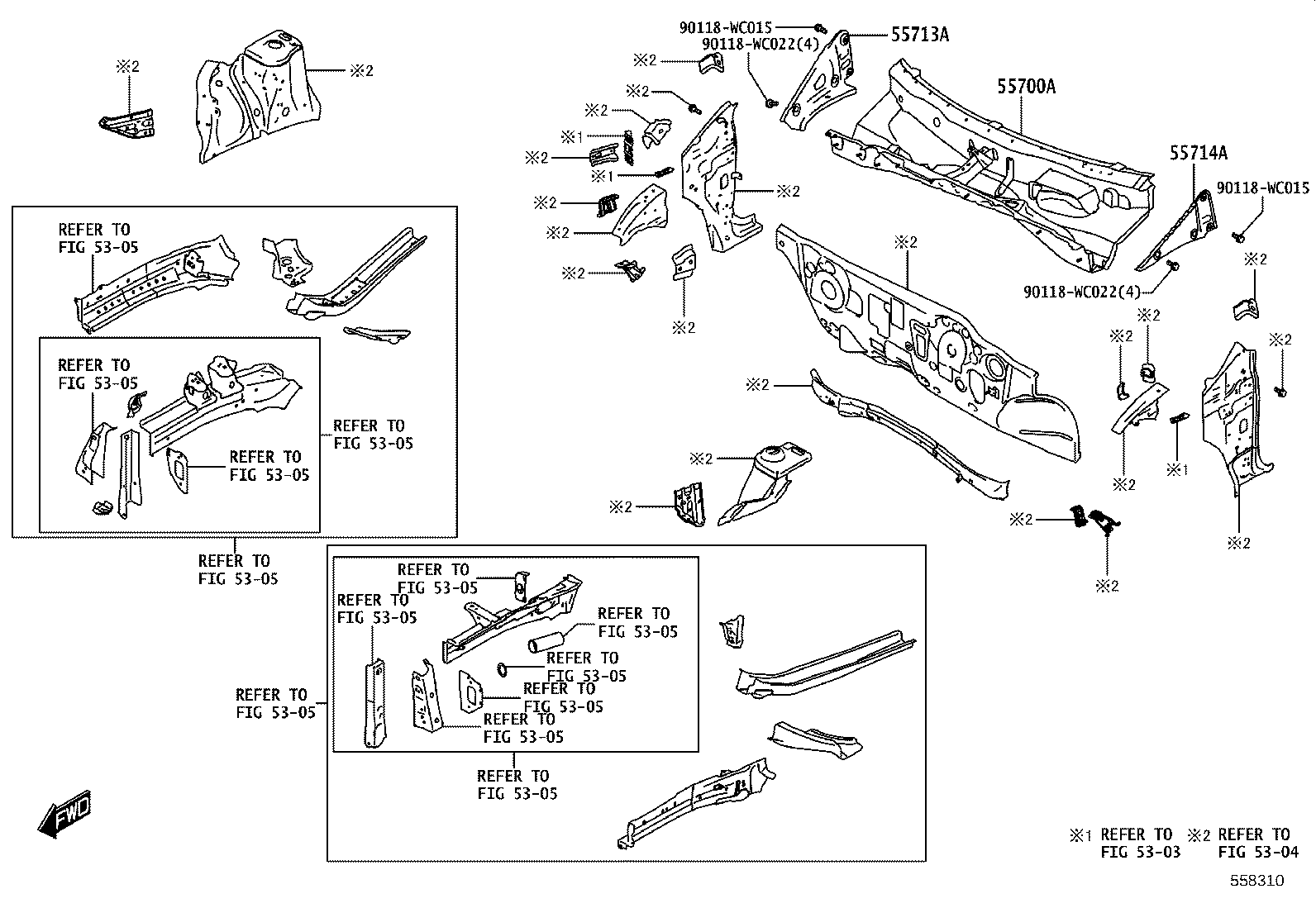

| 55700A | Panel Assy, Cowl Top |
| 55708 | Louver Sub-assy, Cowl Top Ventilator |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |

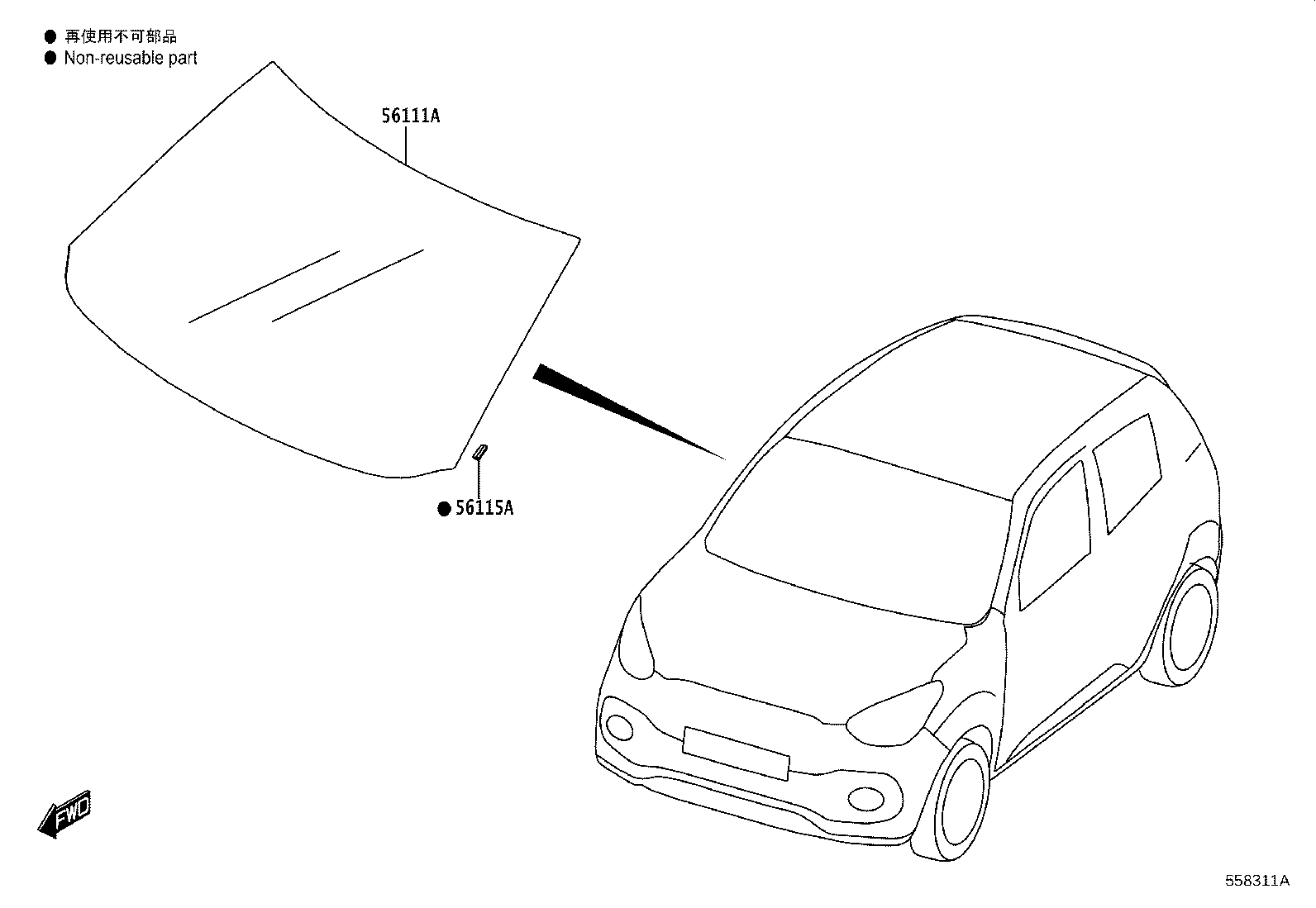

| 56111A | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
