Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

19 part groups · 2 illustrations

Illustrations

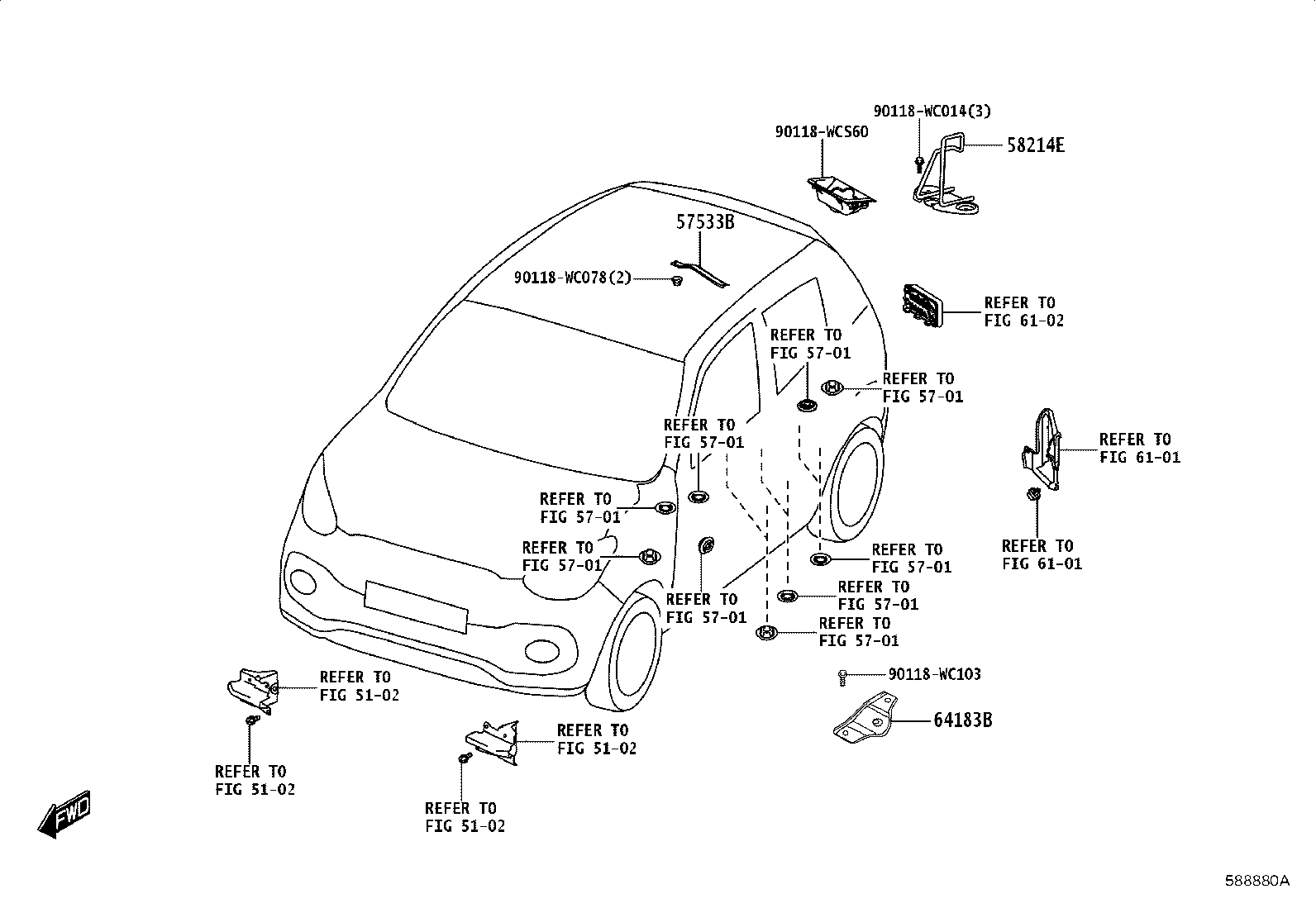

Figure 588879A 588879A 2023-01 → — Figure 588880A 588880A 2023-01 → —

Part groups

PNCDescription
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57417D Reinforcement, Floor Side, Inner RH
57455C Bracket, Front Seat Mounting, Outside RH
57456B Bracket, Front Seat Mounting, Outside LH
57533B Brace, Front Floor, Center
57803B Reinforce Sub-assy, Belt Anchor, NO.2 RH
57804A Reinforce Sub-assy, Belt Anchor, NO.2 LH
58111A Pan, Front Floor, RH
58112A Panel, Front Floor, LH
58113A Panel, Front Floor, Center
58211H Pan, Center Floor
58213D Reinforcement, Center Floor Panel
58214E Bracket, Jack Support
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58374A Reinforcement, Back Door Lock Striker
58386B Bracket, Rear Bumper Cover, NO.2
64183B Reinforcement, Rear Seat Belt Anchor, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
