Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01
Deck Board & Deck Trim Cover
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

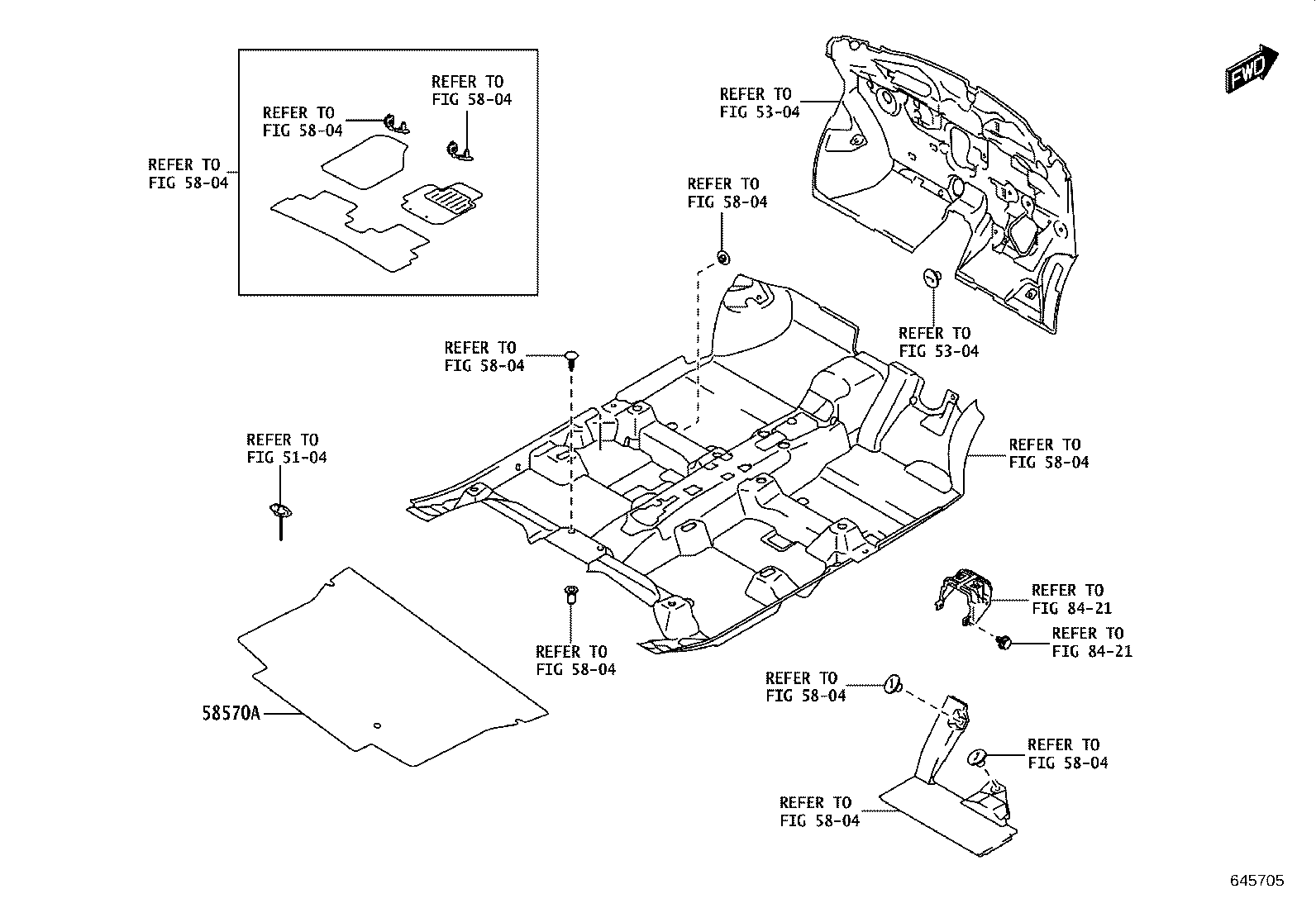

| 58570A | Mat Assy, Rear Floor |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64335 | Pad, Package Tray Trim Silencer, Rear |
| 64361 | Hinge, Package Tray Trim, RH |
| 64362 | Hinge, Package Tray Trim, LH |
| 64377 | Cushion, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |

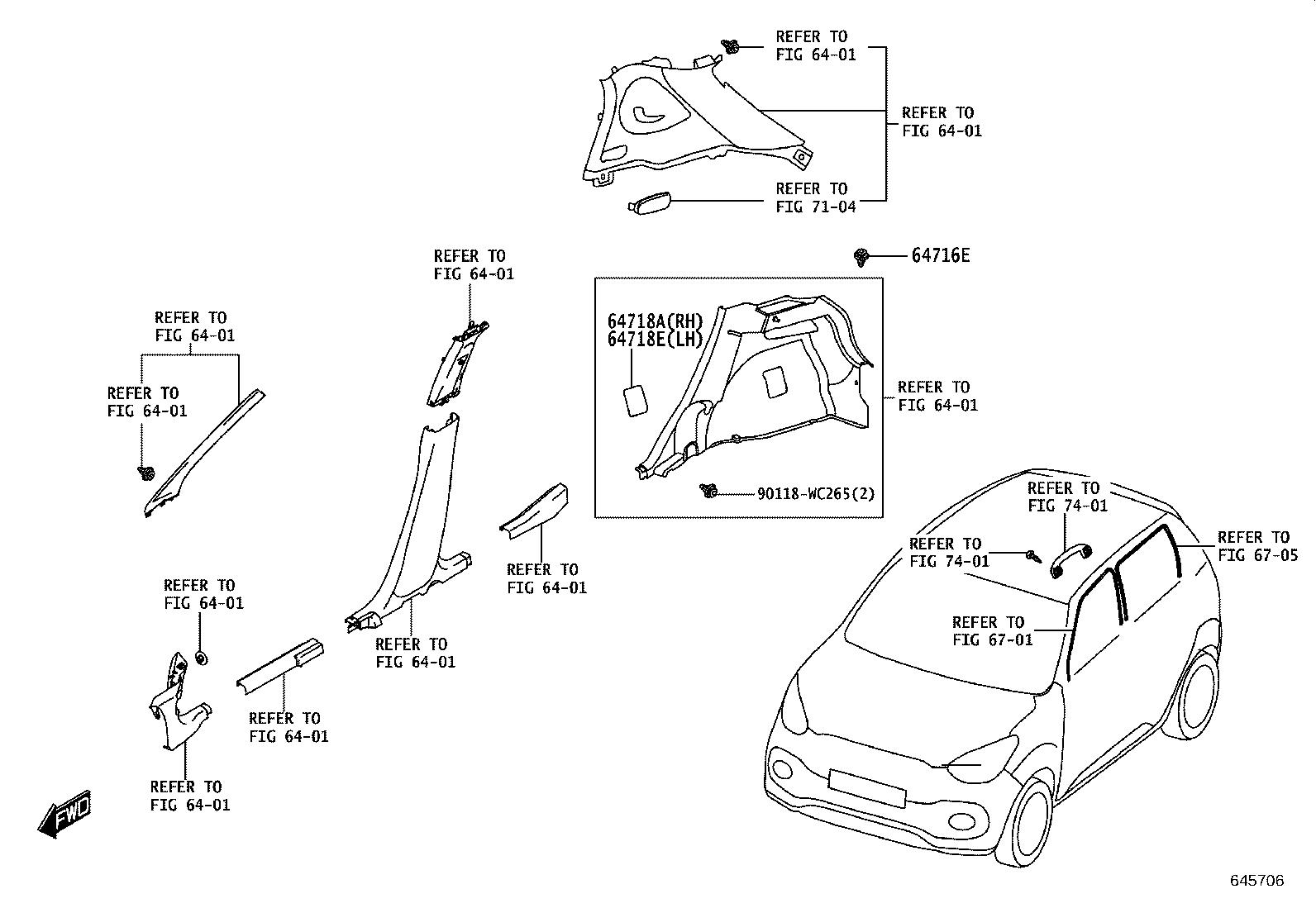

| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64718A | Cover, Deck Trim Service Hole |
| 64718E | Cover, Deck Trim Service Hole, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
