Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

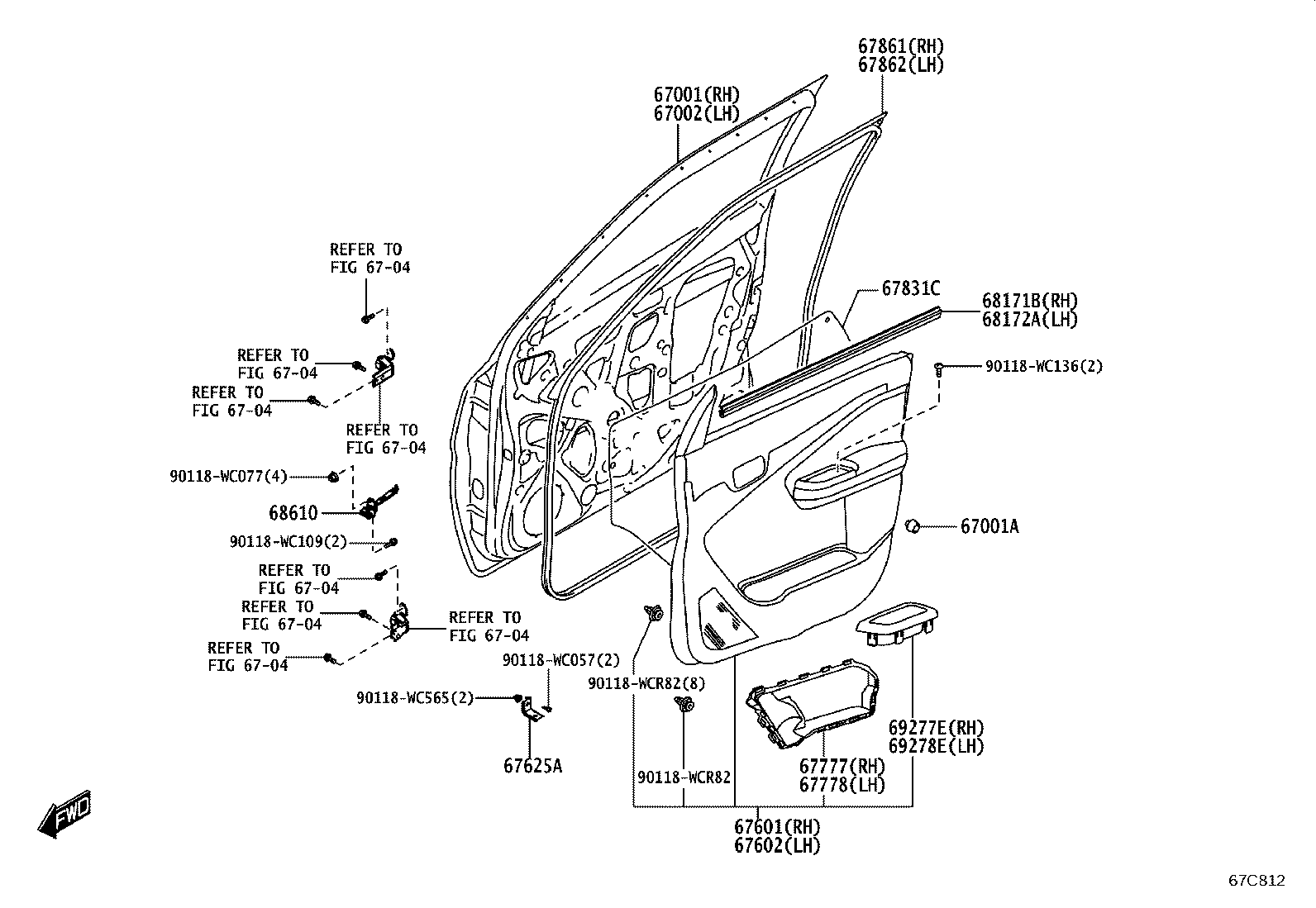

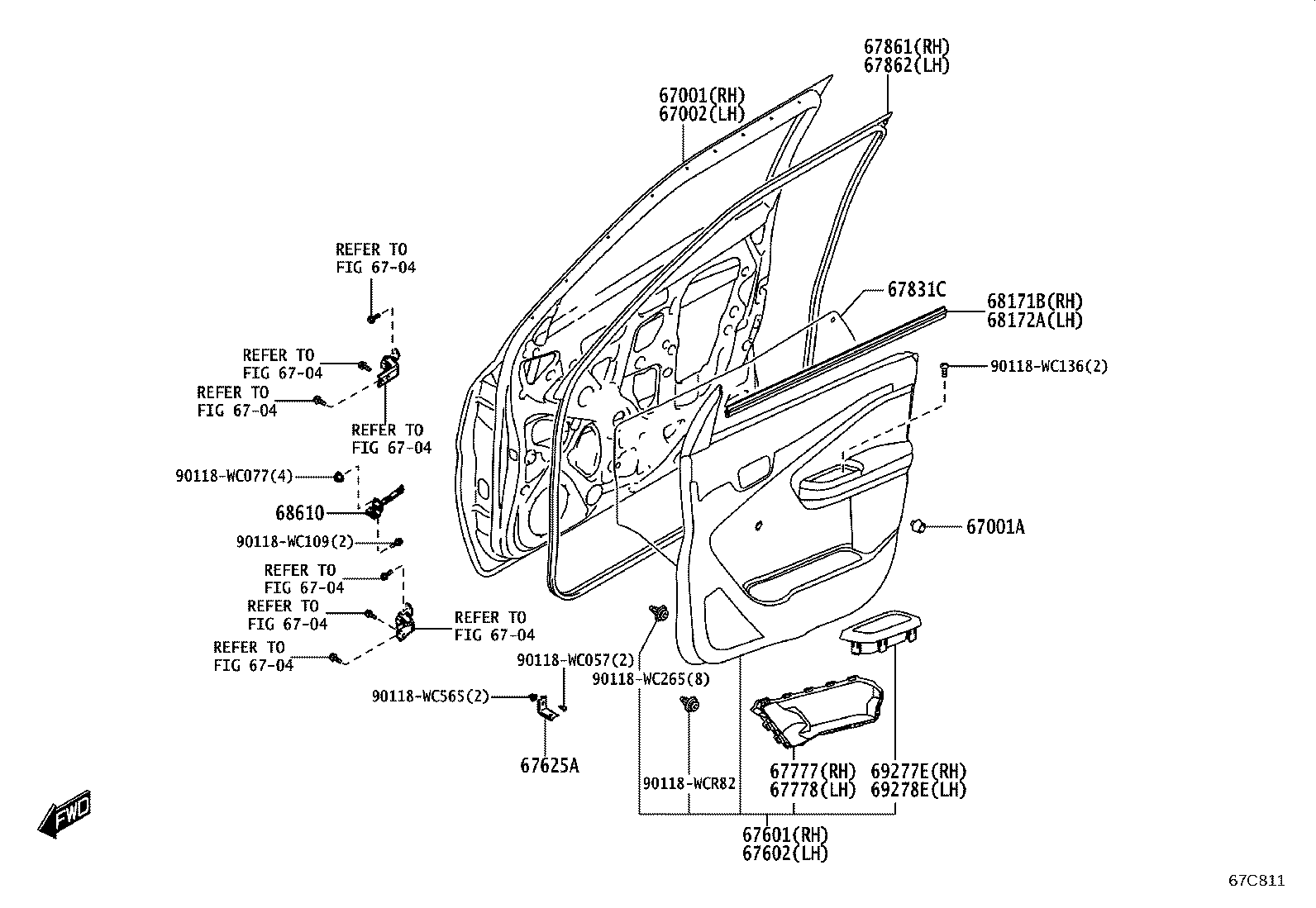

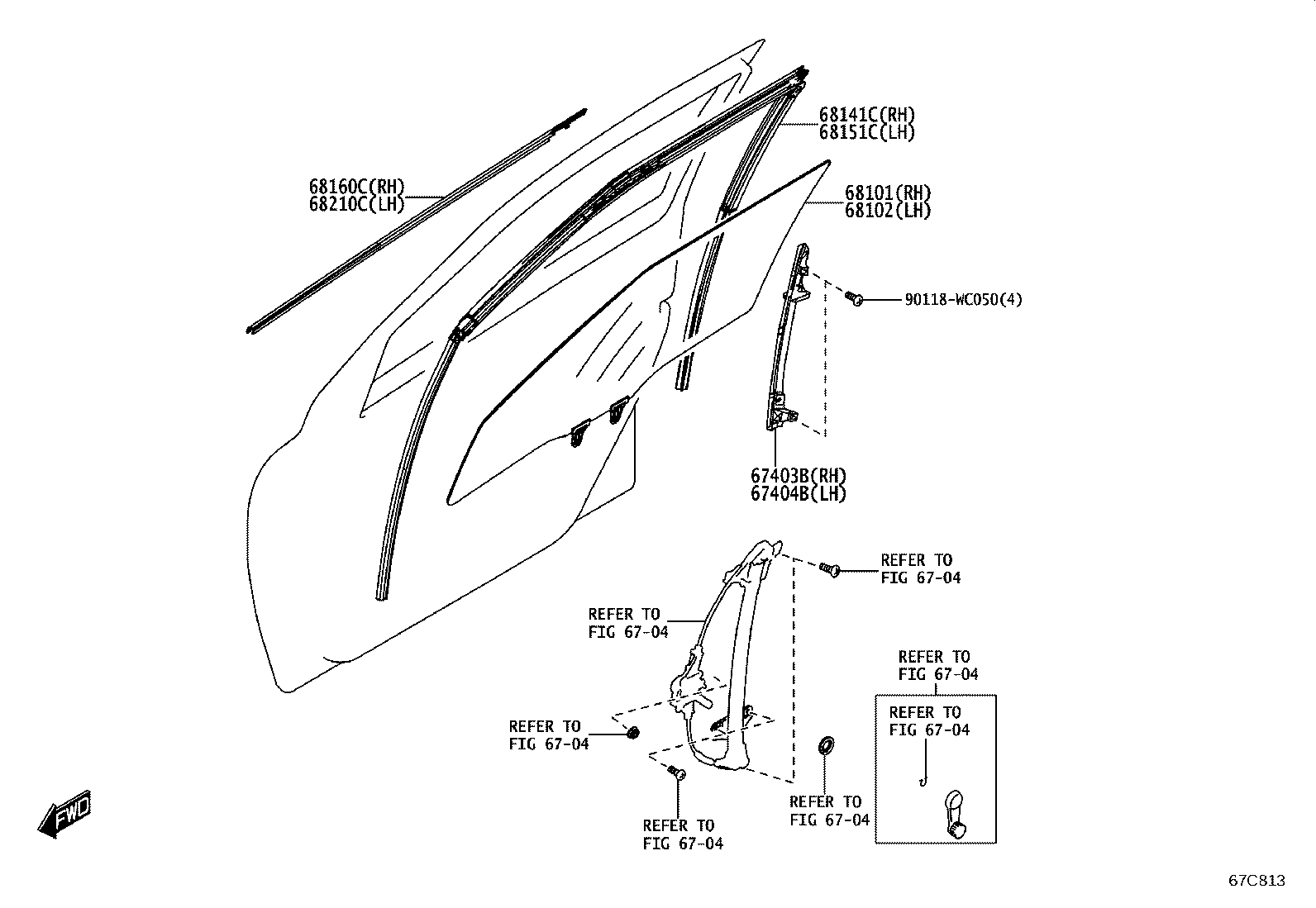

Front Door Panel & Glass
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62311C | Weatherstrip, Front Door Opening Trim, RH |
| 62312C | Weatherstrip, Front Door Opening Trim, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403B | Guide Sub-assy, Front Door Window, Rear RH |
| 67404B | Guide Sub-assy, Front Door Window, Rear LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831C | Cover, Front Door Service Hole |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610 | Check Assy, Front Door |
| 69277E | Bezel, Front Door Inside Handle, RH |
| 69278E | Bezel, Front Door Inside Handle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
