Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

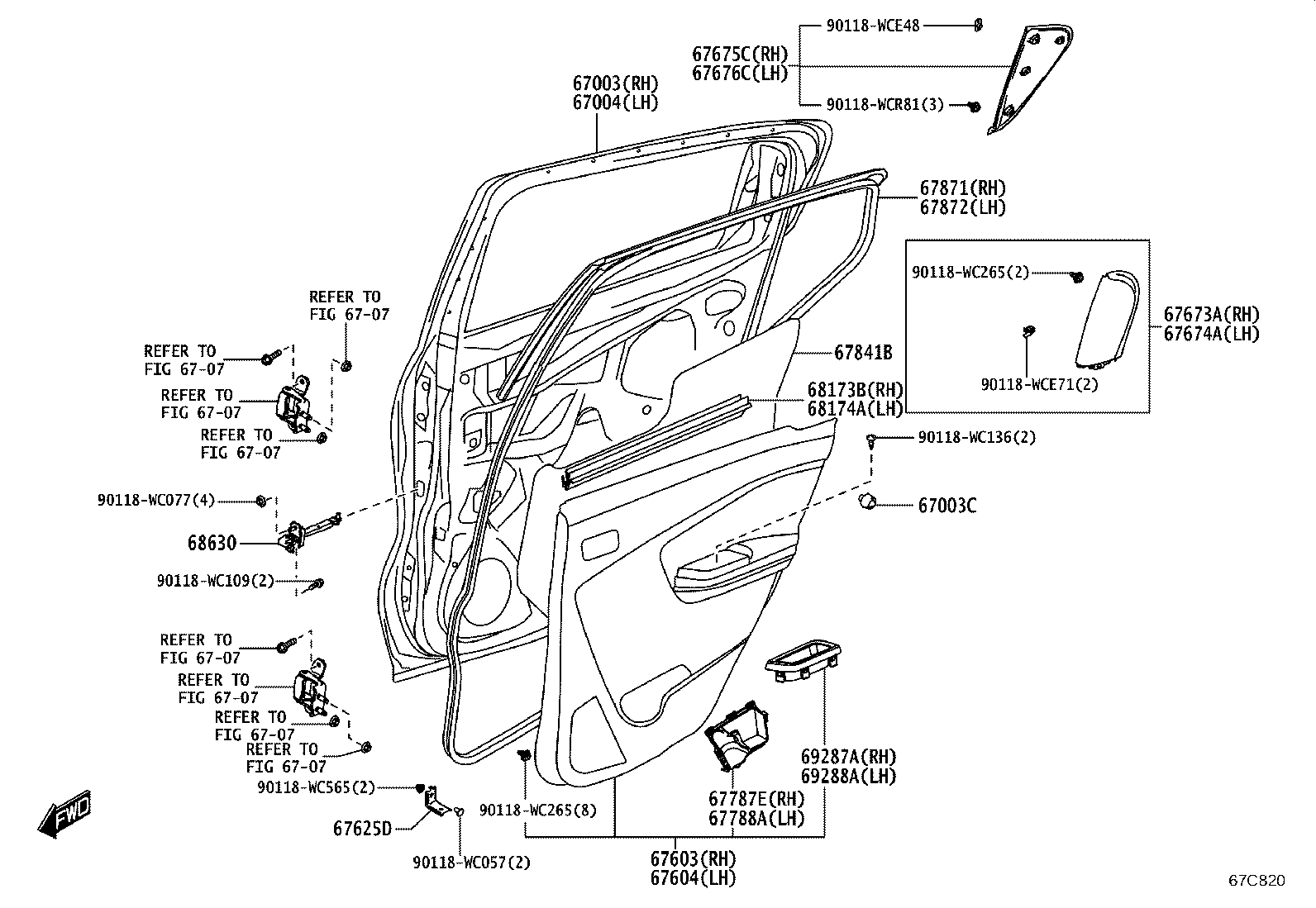

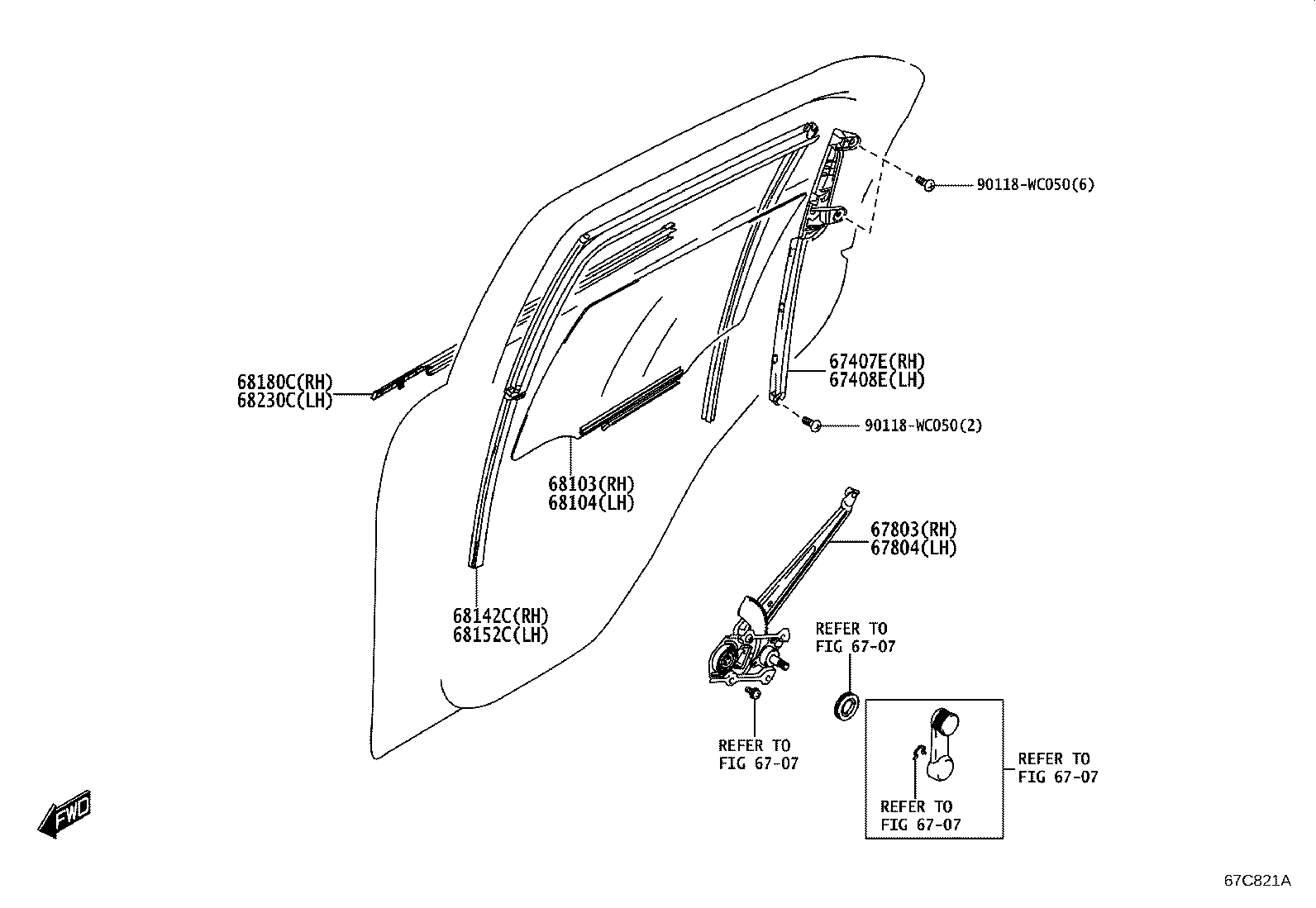

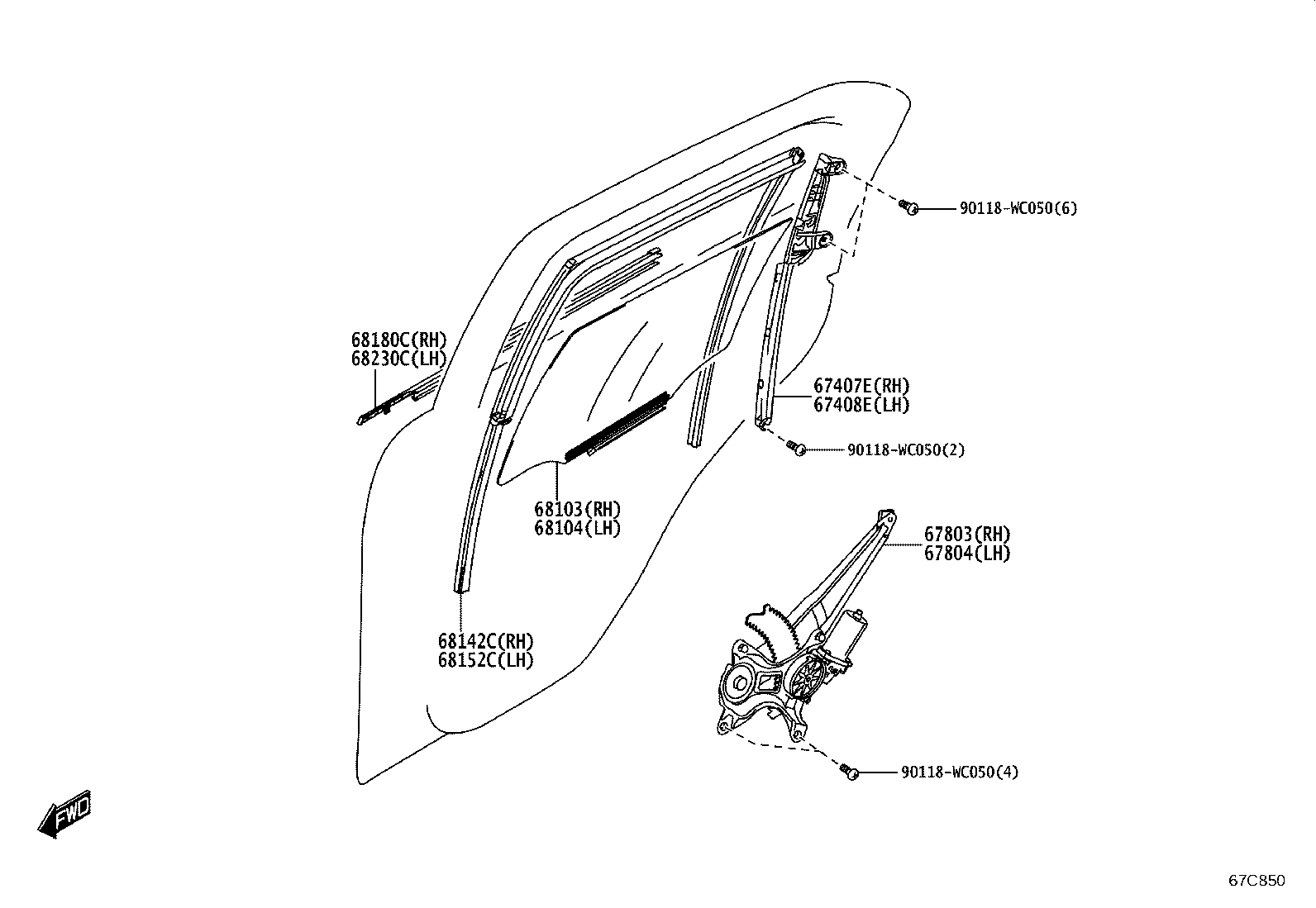

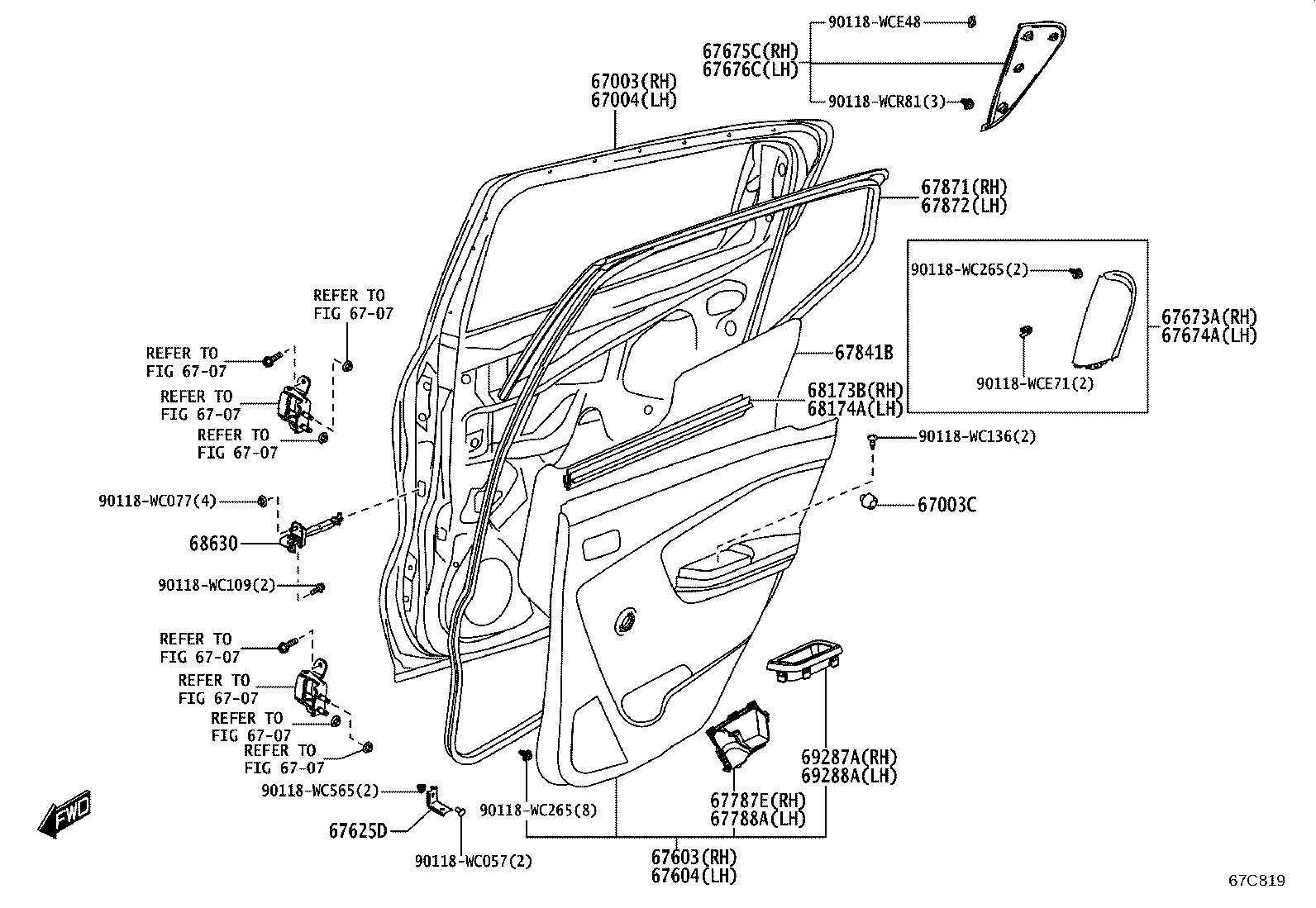

Rear Door Panel & Glass
32 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62331B | Weatherstrip, Rear Door Opening Trim, RH |
| 62332B | Weatherstrip, Rear Door Opening Trim, LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67625D | Bracket, Rear Door Trim |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67787E | Pocket, Rear Door Trim, RH |
| 67788A | Pocket, Rear Door Trim, LH |
| 67803 | Cover Sub-assy, Rear Door Service Hole, RH |
| 67804 | Cover Sub-assy, Rear Door Service Hole, LH |
| 67841B | Cover, Rear Door Service Hole |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68630 | Check Assy, Rear Door |
| 69287A | Bezel, Rear Door Inside Handle, RH |
| 69288A | Bezel, Rear Door Inside Handle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
