Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

50 part groups · 8 illustrations

Illustrations

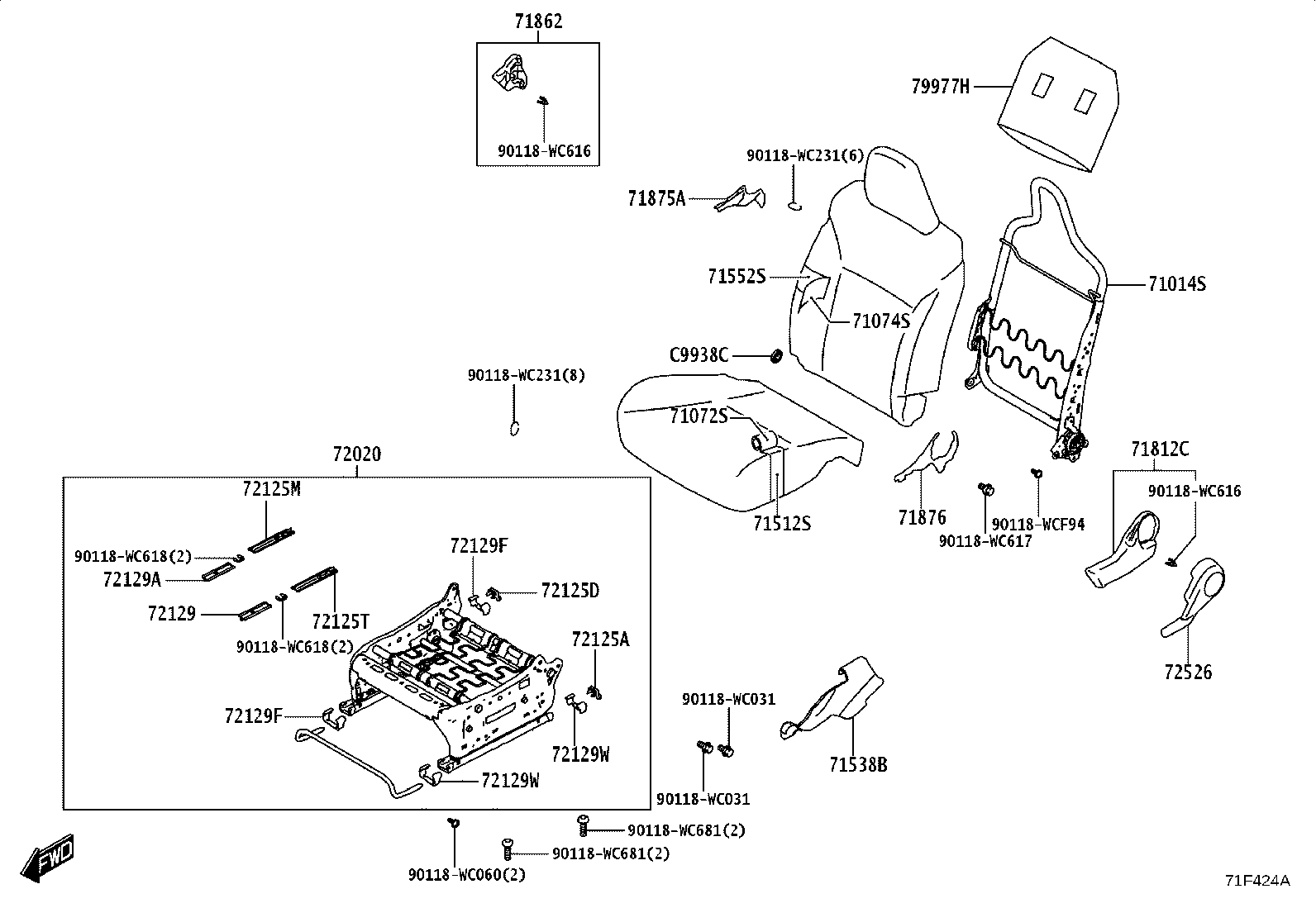

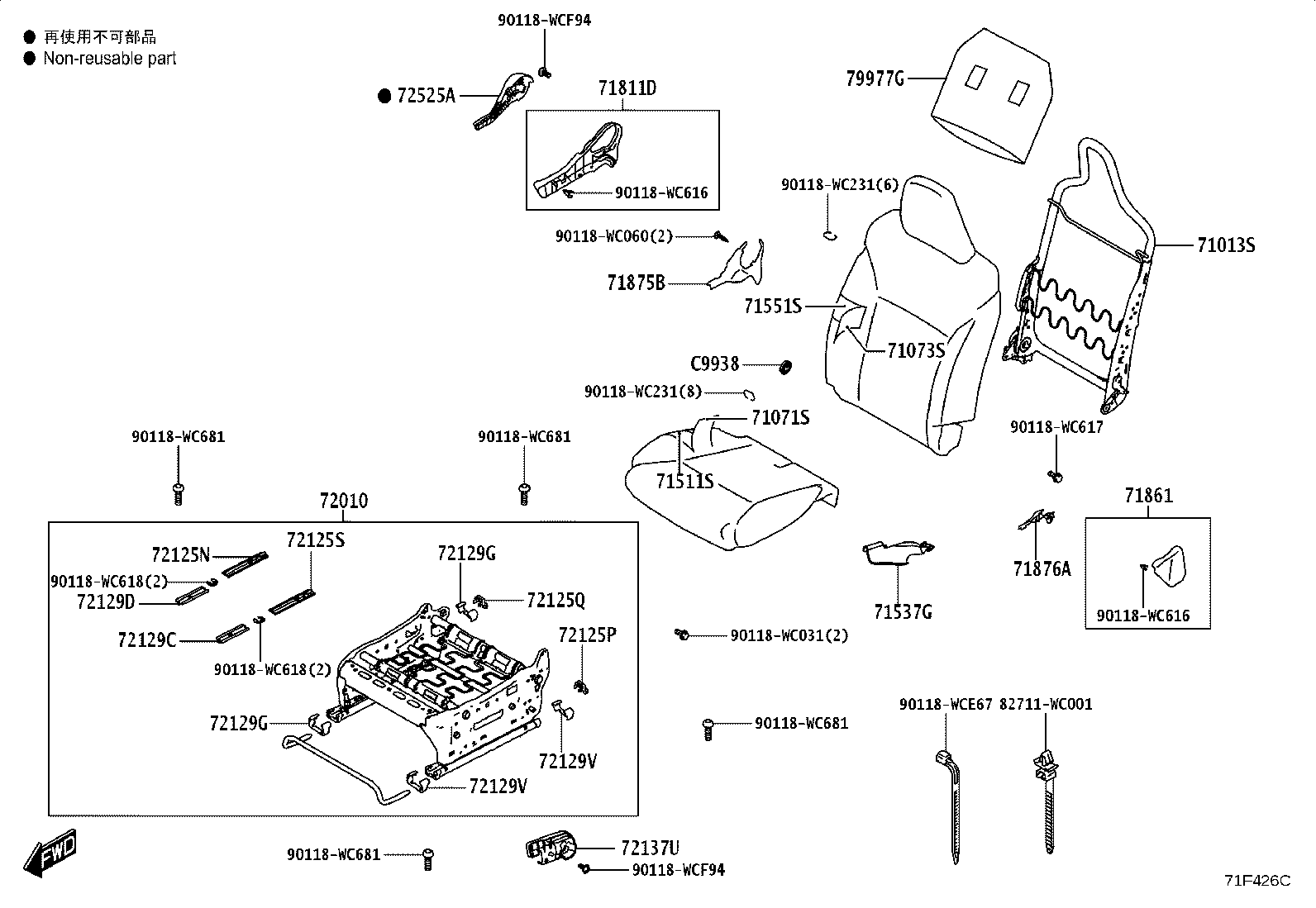

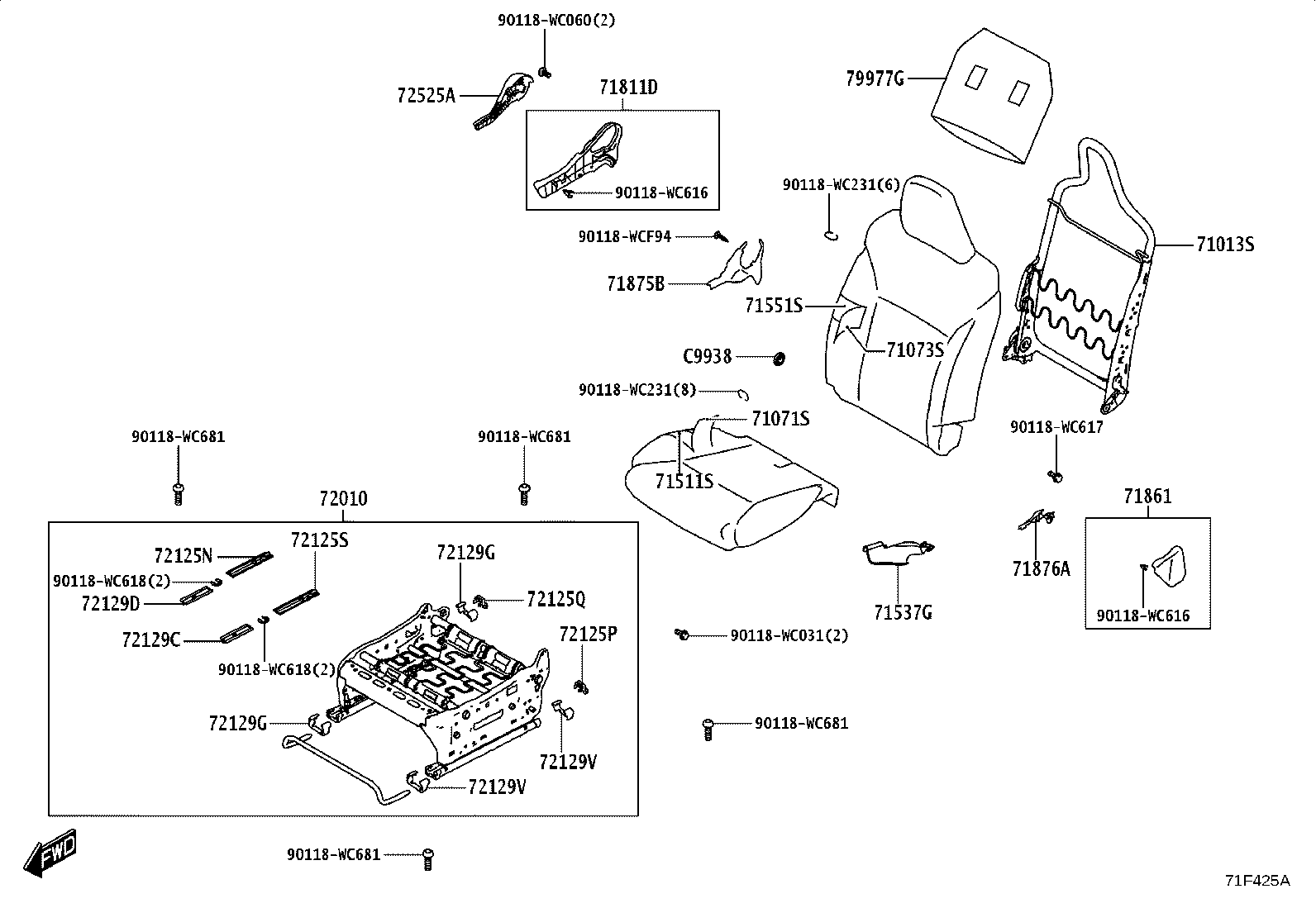

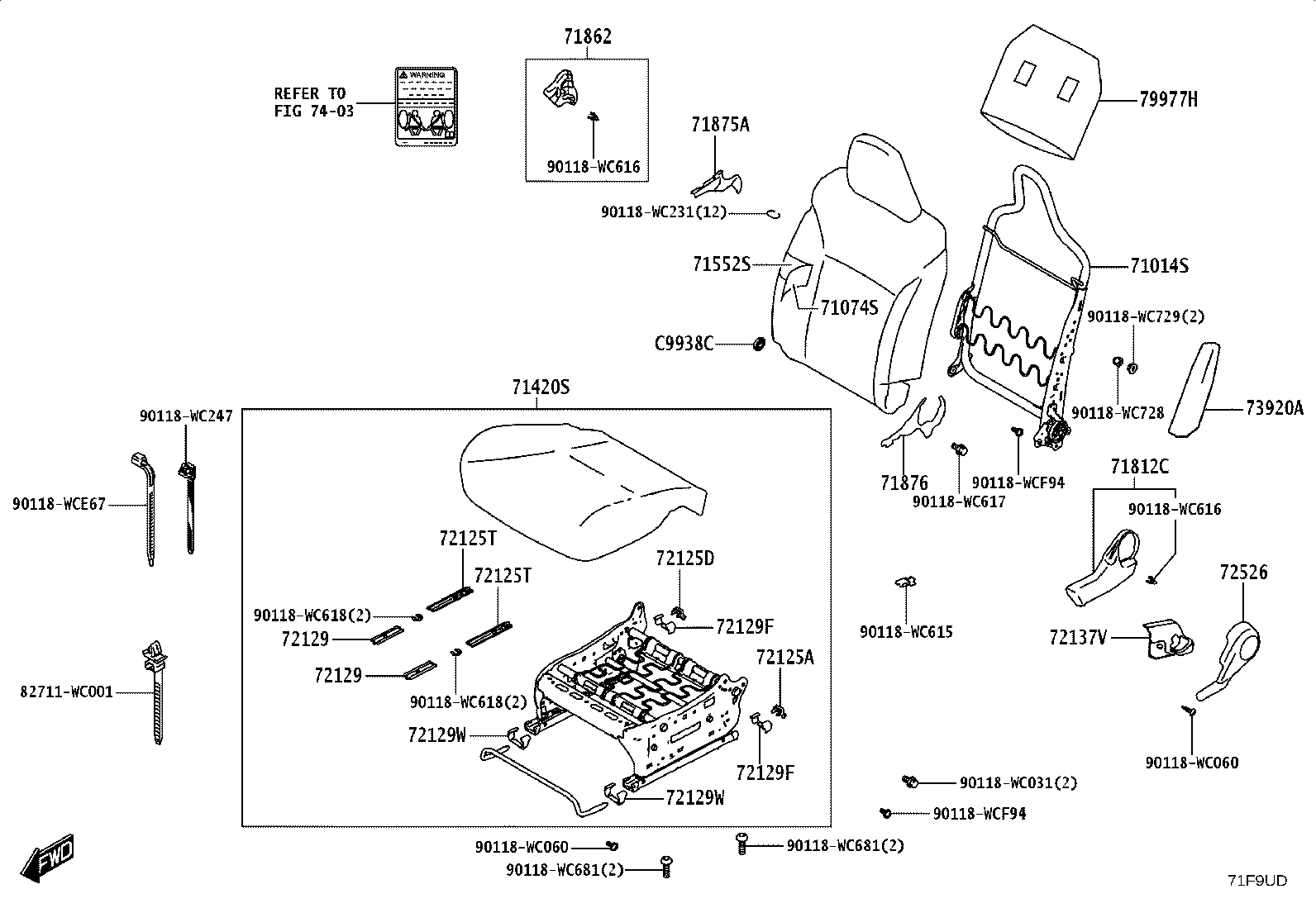

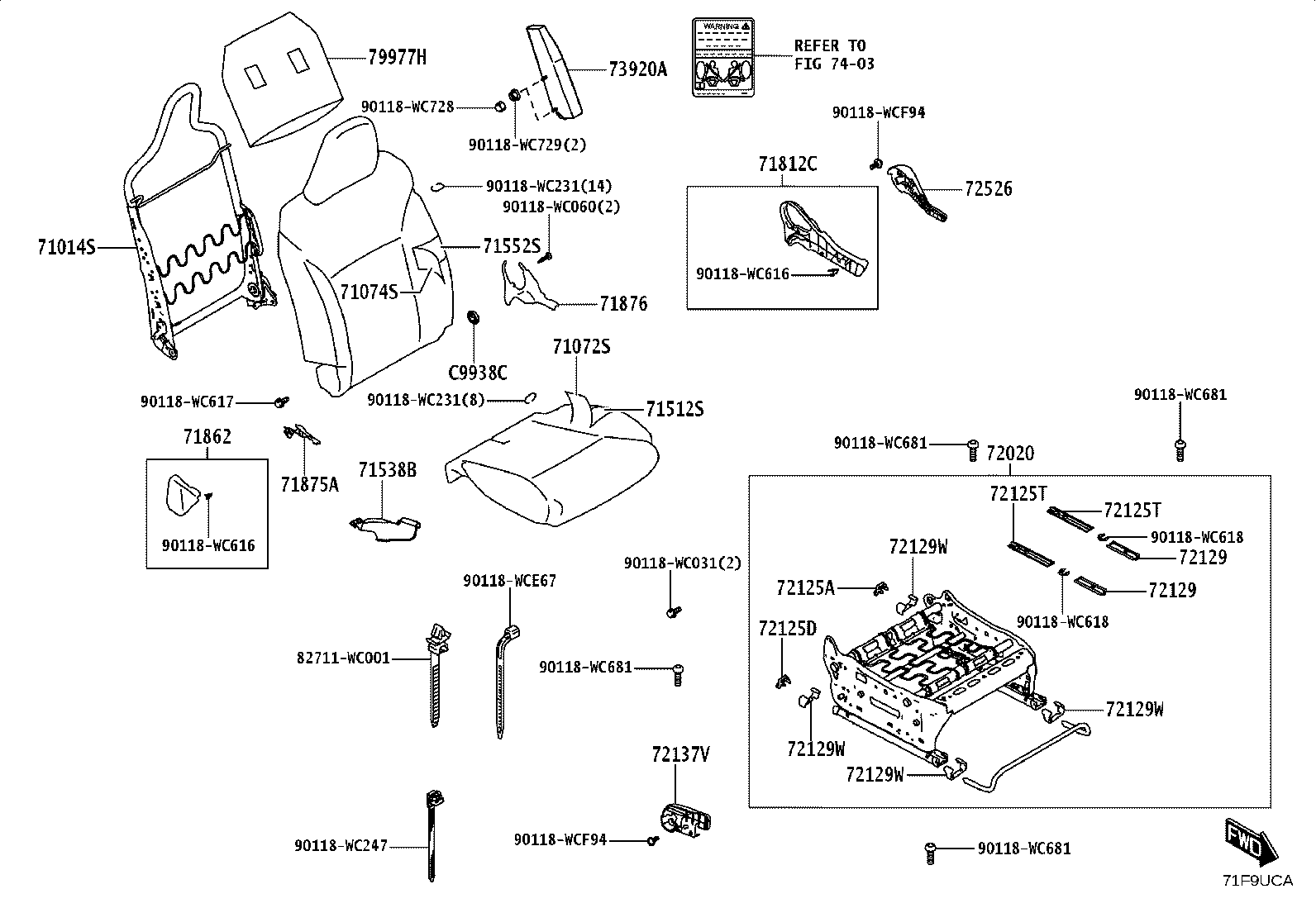

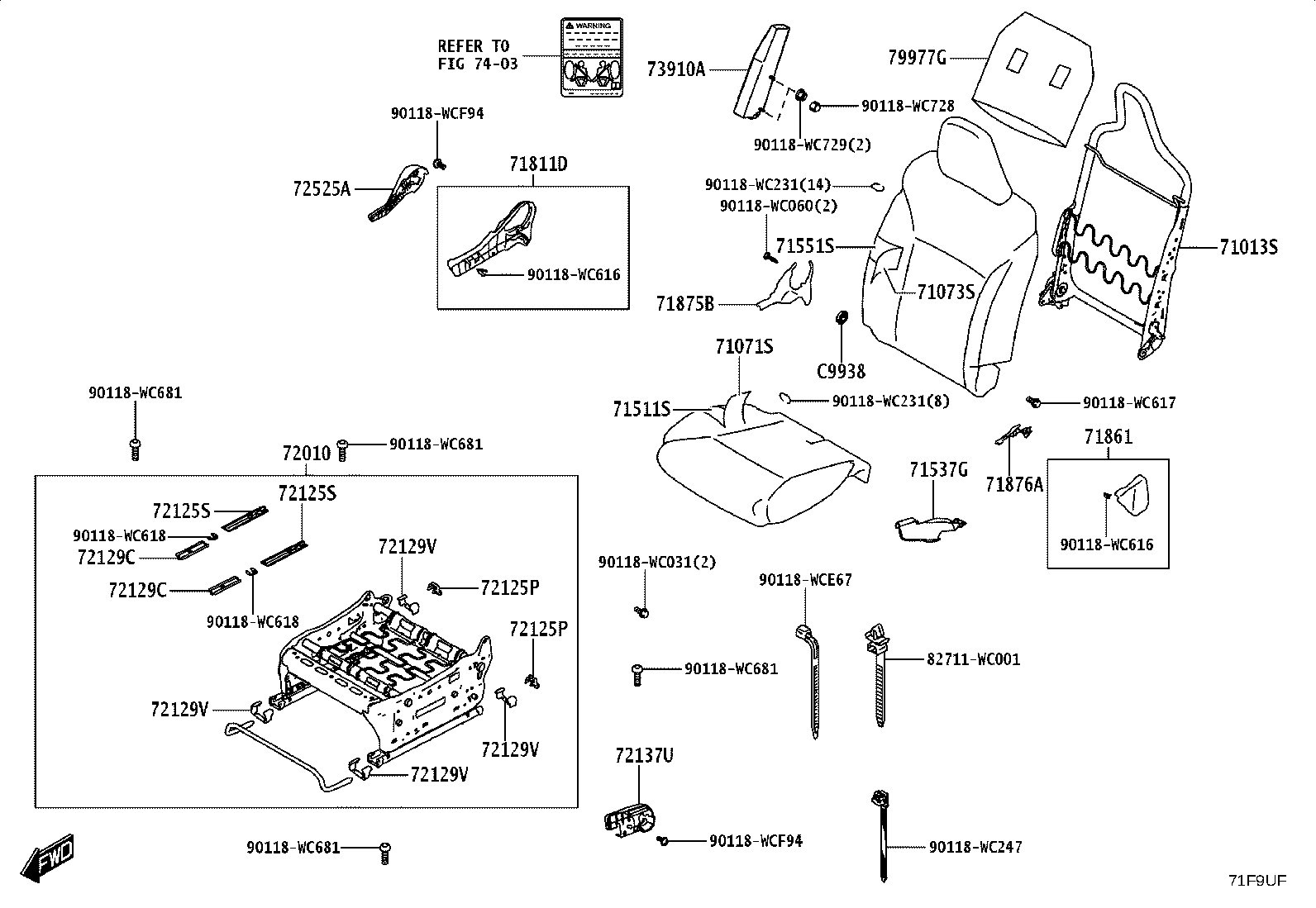

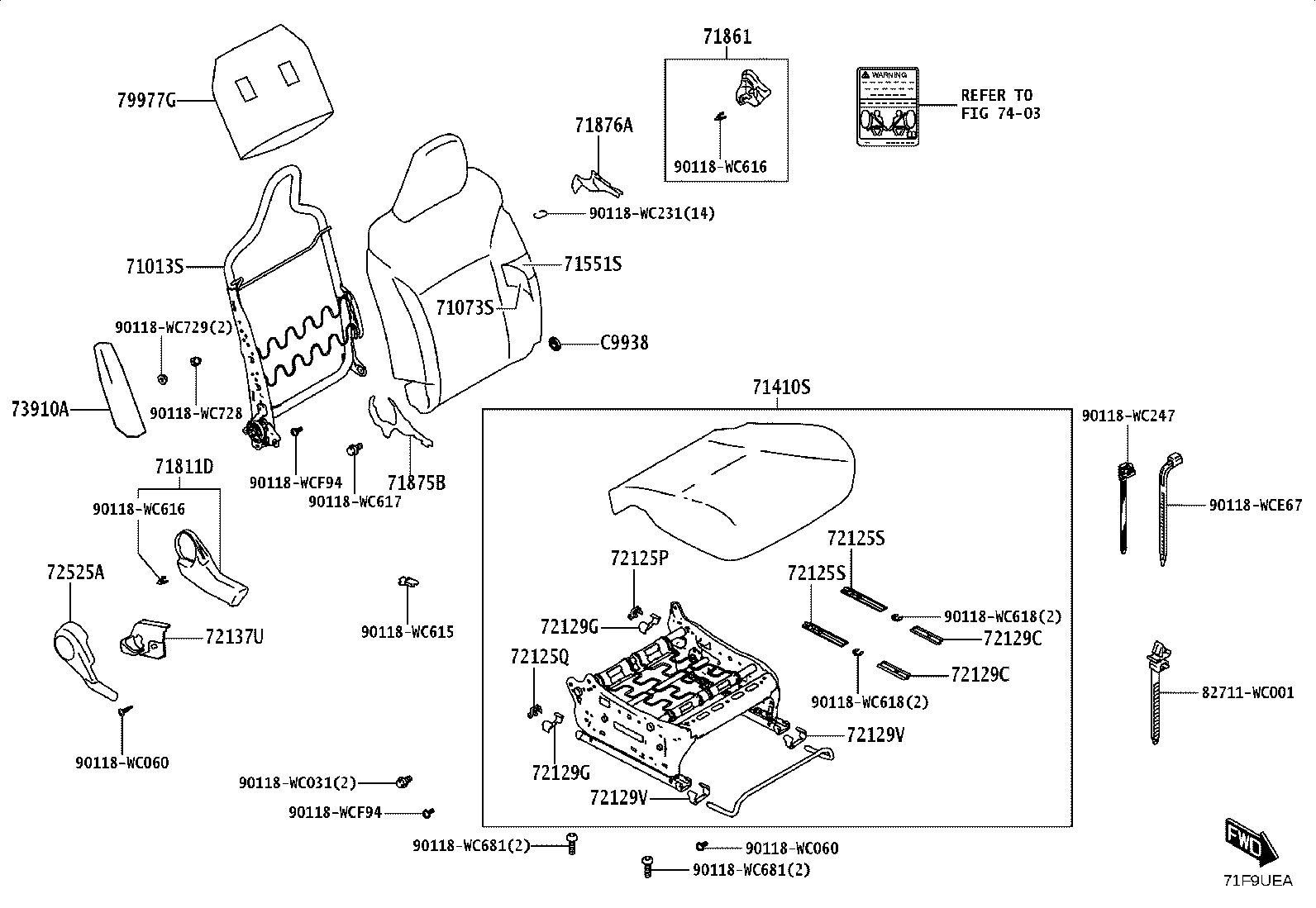

Figure 71F423A 71F423A 2023-01 → — Figure 71F9UCA 71F9UCA 2024-09 → — Figure 71F424A 71F424A 2023-01 → — Figure 71F9UD 71F9UD 2024-09 → — Figure 71F425A 71F425A 2023-01 → — Figure 71F9UEA 71F9UEA 2024-09 → — Figure 71F426C 71F426C 2023-01 → — Figure 71F9UF 71F9UF 2024-09 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72125A Cover, Seat Track, Upper Rear
72125D Cover, Seat Track, Upper Rear NO.2
72125M Cover, Seat Track, Upper NO.3
72125N Cover, Seat Track, Upper NO.4
72125P Cover, Seat Track, Upper Rear NO.3
72125Q Cover, Seat Track, Upper Rear NO.4
72125S Cover, Front Seat Track, Upper Rear RH
72125T Cover, Front Seat Track, Upper Rear LH
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129C Protector, Seat Track Lower Rail, NO.3
72129D Protector, Seat Track Lower Rail, NO.4
72129F Protector, Seat Track Lower Rail, NO.5
72129G Protector, Seat Track Lower Rail, NO.6
72129V Protector, Seat Track Lower Rail, RH
72129W Protector, Seat Track Lower Rail, LH
72137U Cover, Front Seat Track, RH
72137V Cover, Front Seat Track, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
C9938 Bush
C9938C Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
