Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

7 part groups · 2 illustrations

Illustrations

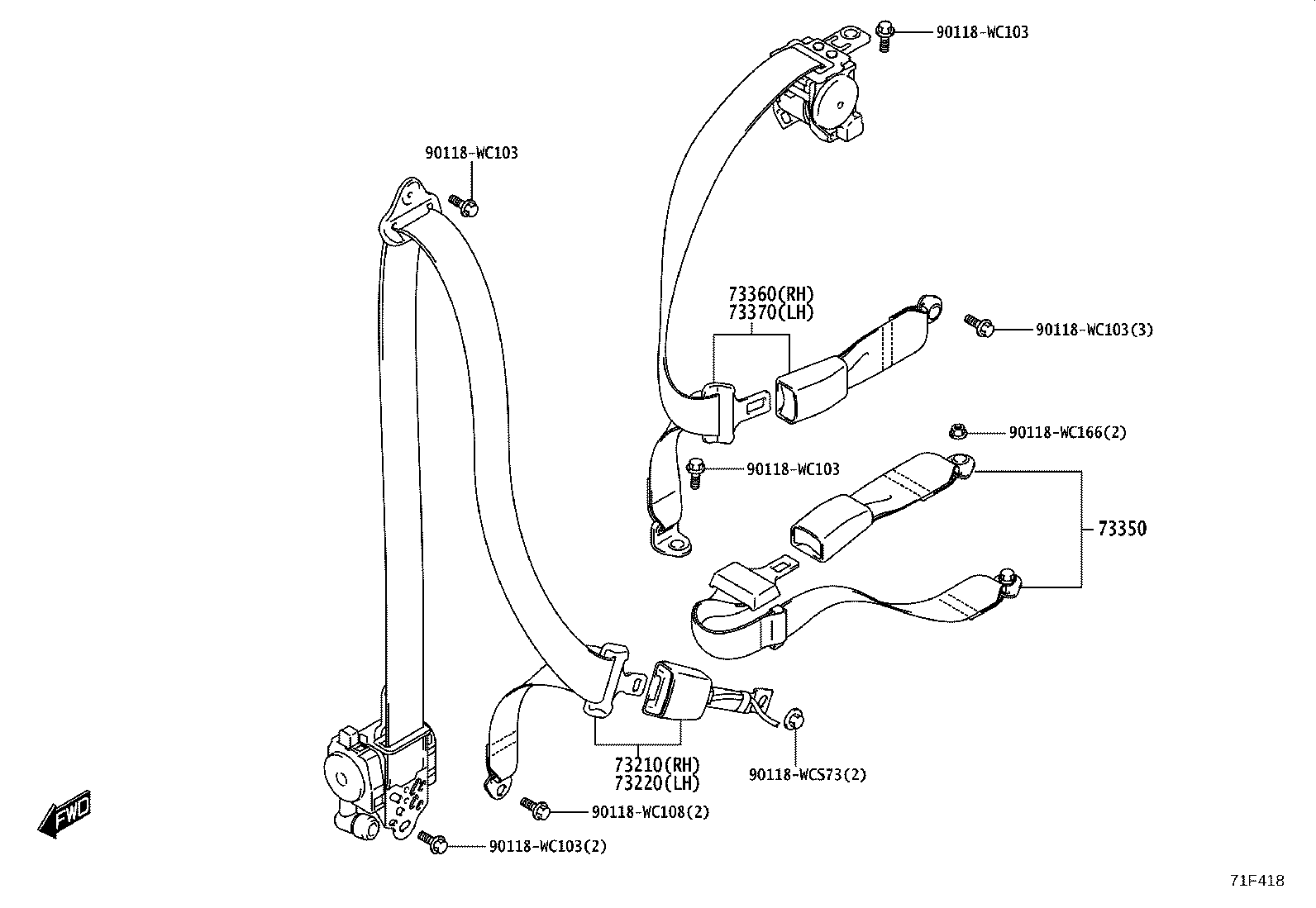

Figure 71F417 71F417 2023-01 → — Figure 71F418 71F418 2023-01 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
