Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

4 part groups · 4 illustrations

Illustrations

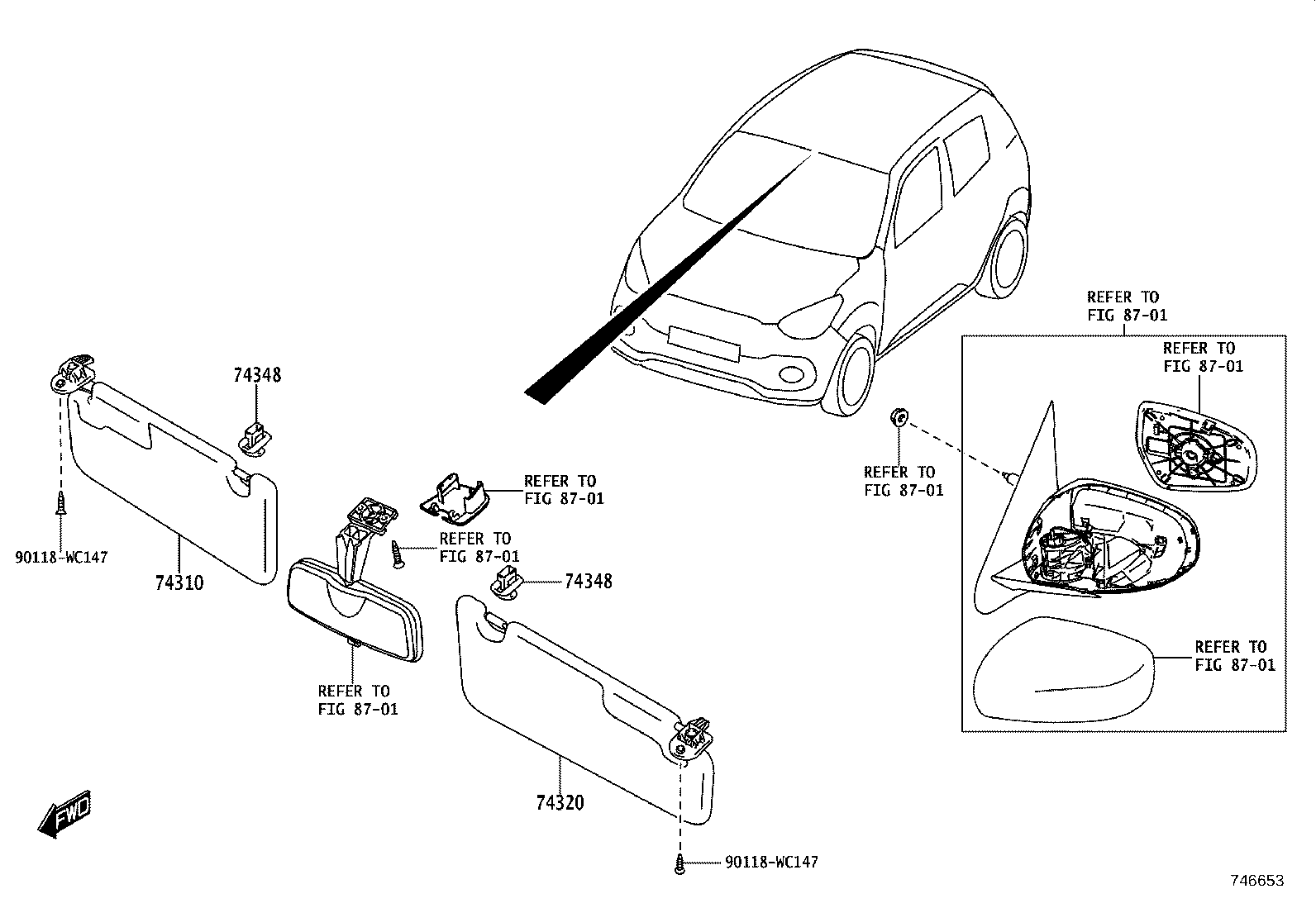

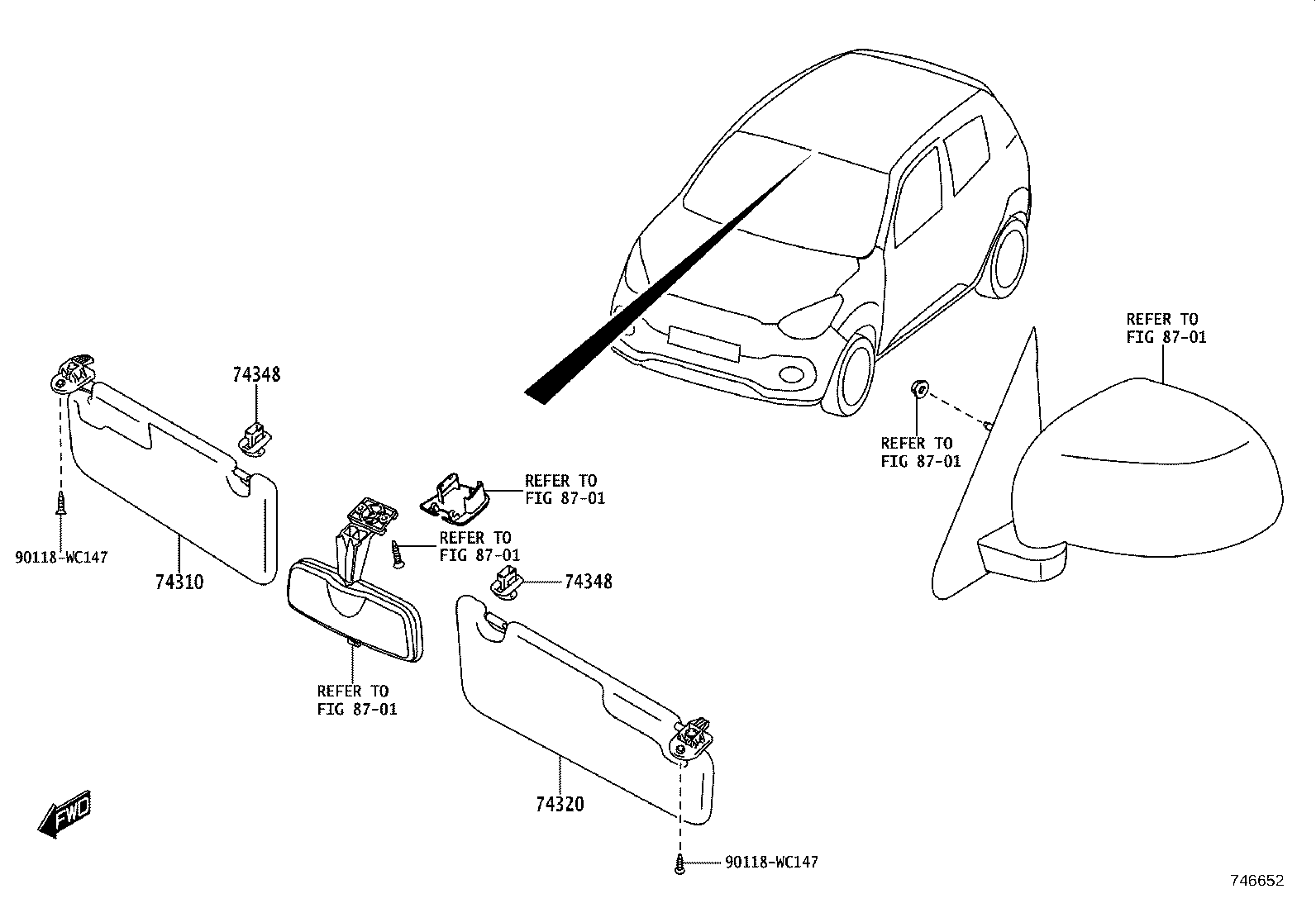

Figure 746651 746651 2023-01 → — Figure 746652 746652 2023-01 → — Figure 746653 746653 2023-01 → — Figure 746654 746654 2023-01 → —

Part groups

PNCDescription
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
