Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

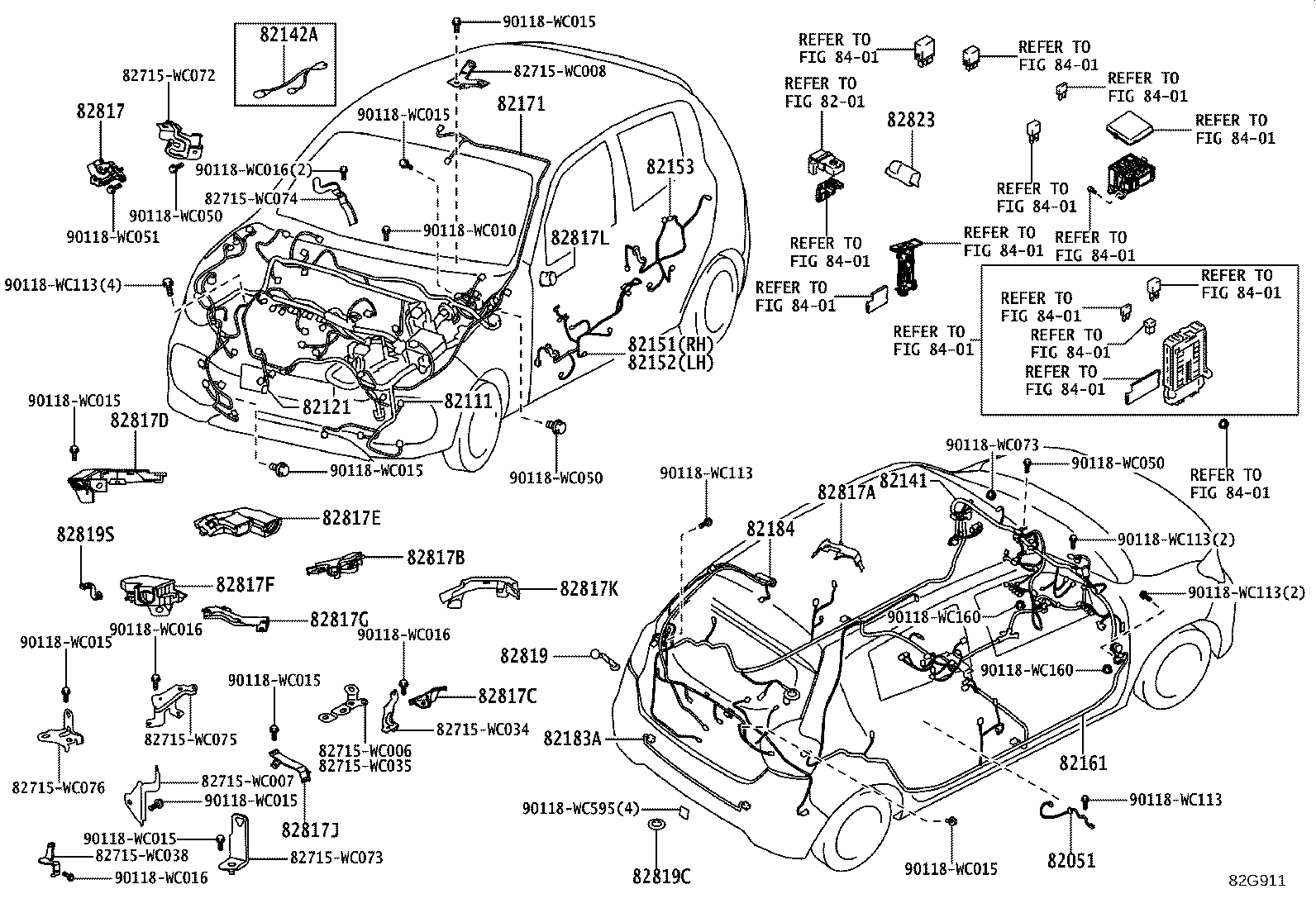

Wiring & Clamp
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82051 | Harness Assy, Fuel Control |
| 82111 | Wire, Engine Room Main |
| 82121 | Wire, Engine |
| 82141 | Wire, Instrument Panel |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82183A | Wire, Rear Bumper |
| 82184 | Wire, Back Door, NO.1 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82819 | Grommet, Wiring Harness |
| 82819C | Grommet, Wiring Harness |
| 82819S | Grommet, Wiring Harness, NO.2 |
| 82823 | Cap, Terminal, NO.1 |
| G9242D | Cable, Main Battery, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
