Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

46 part groups · 16 illustrations

Illustrations

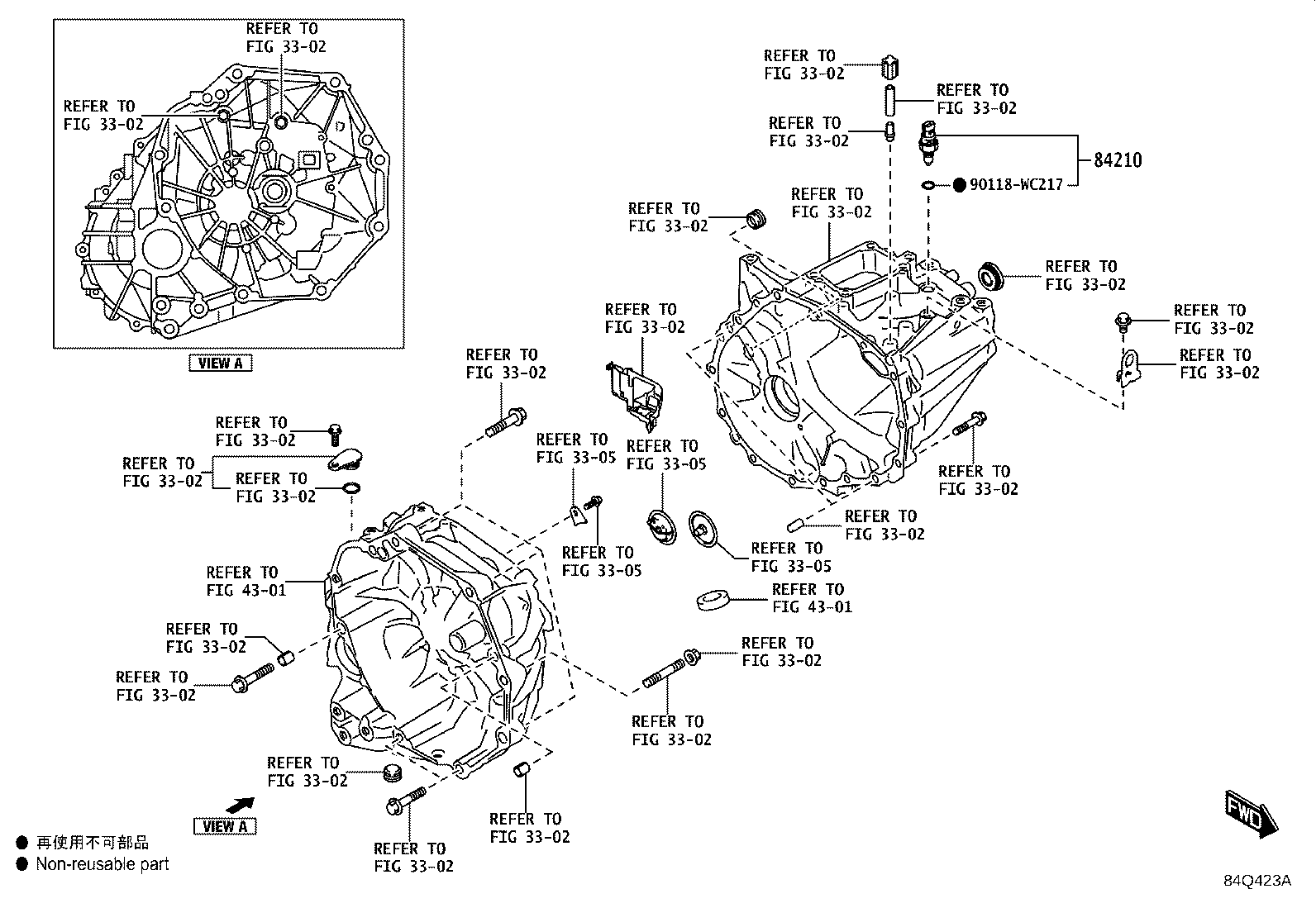

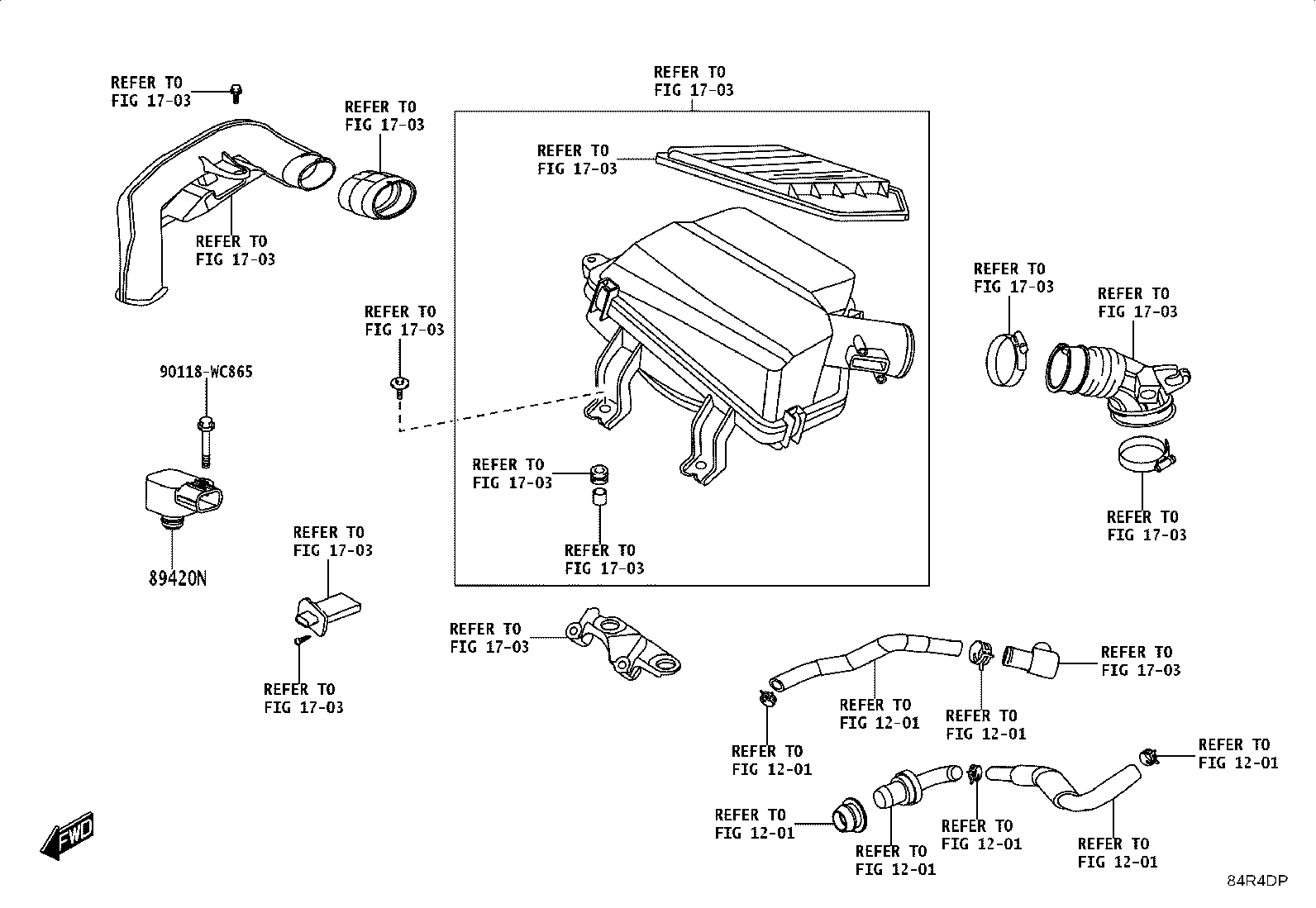

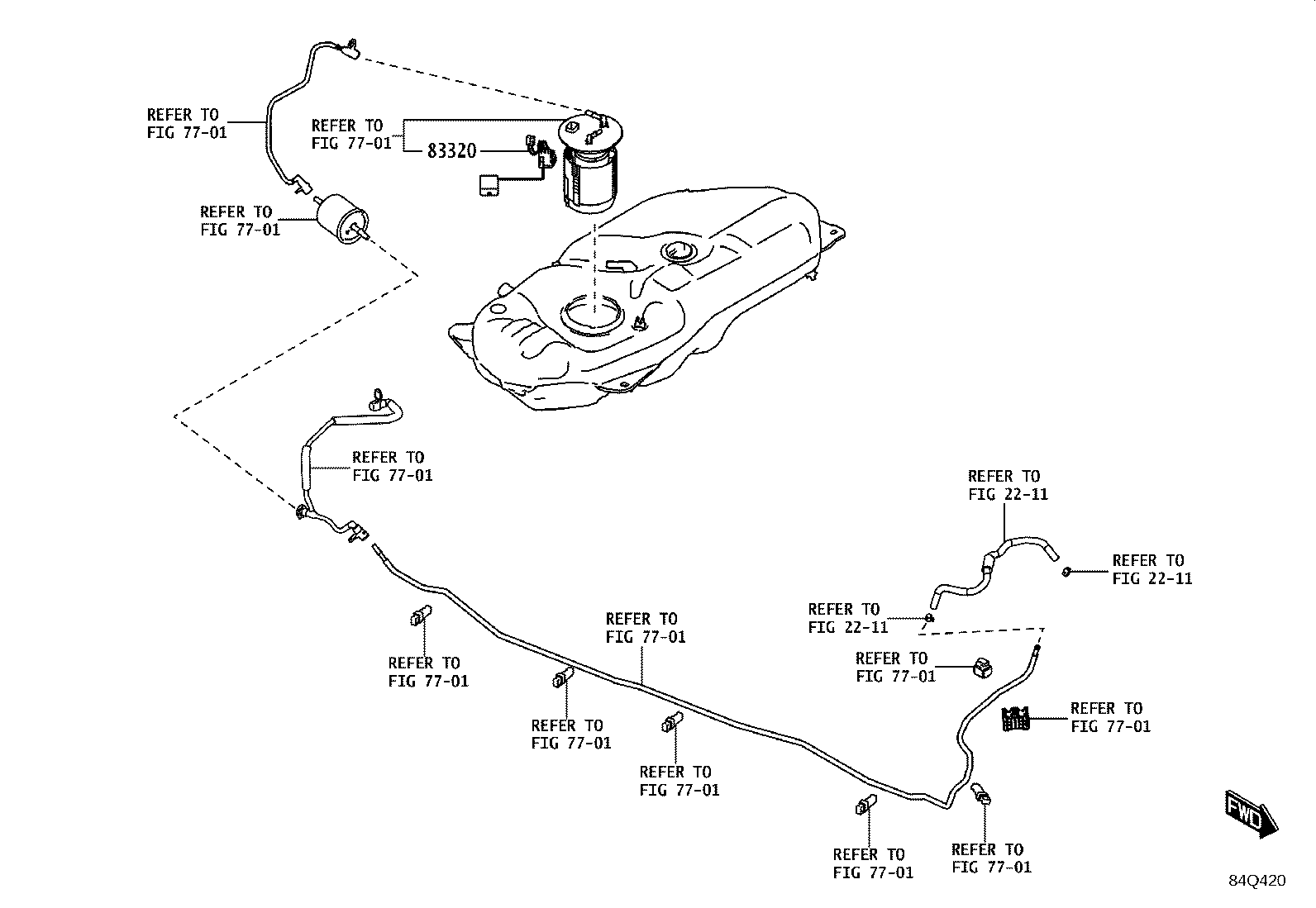

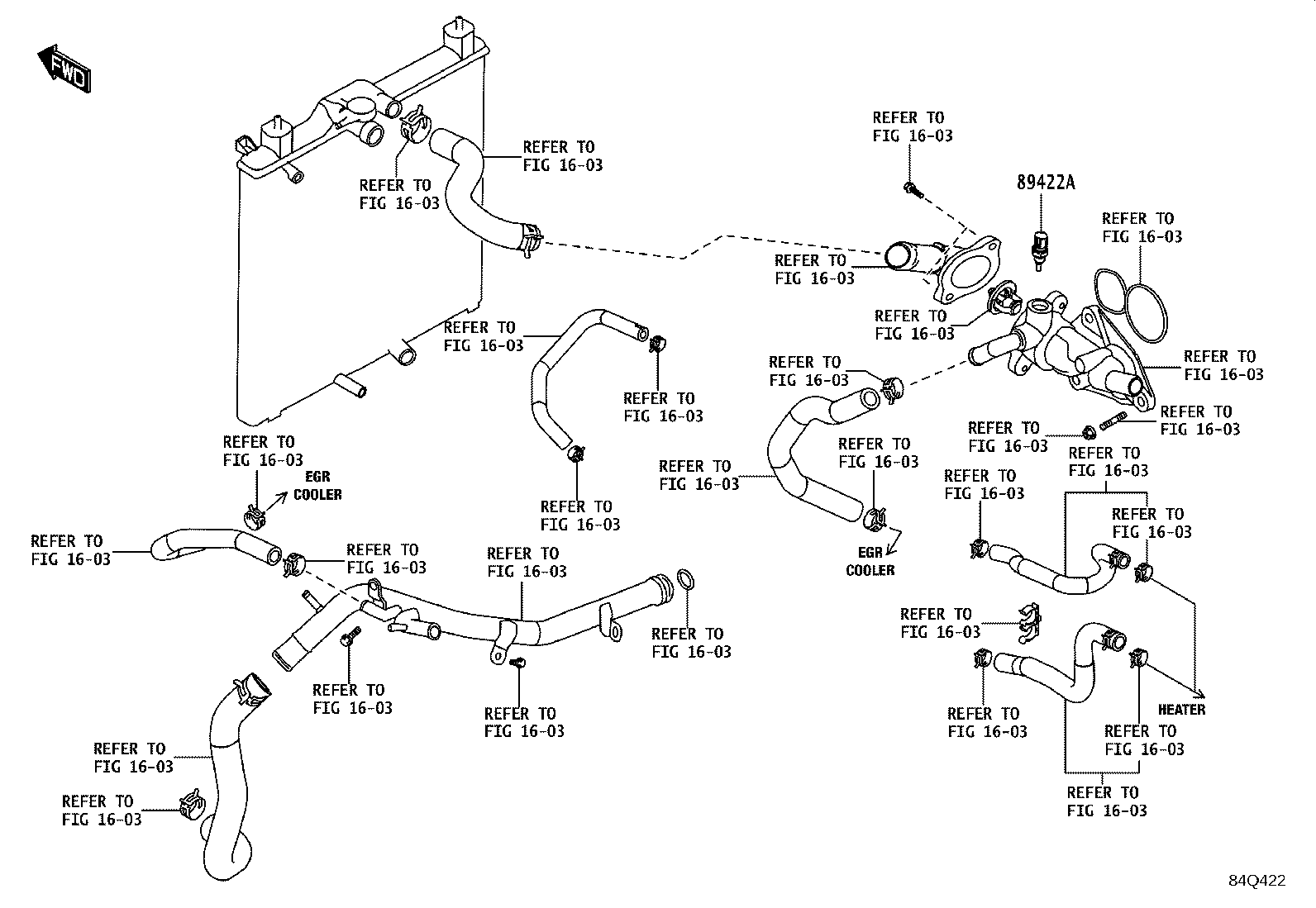

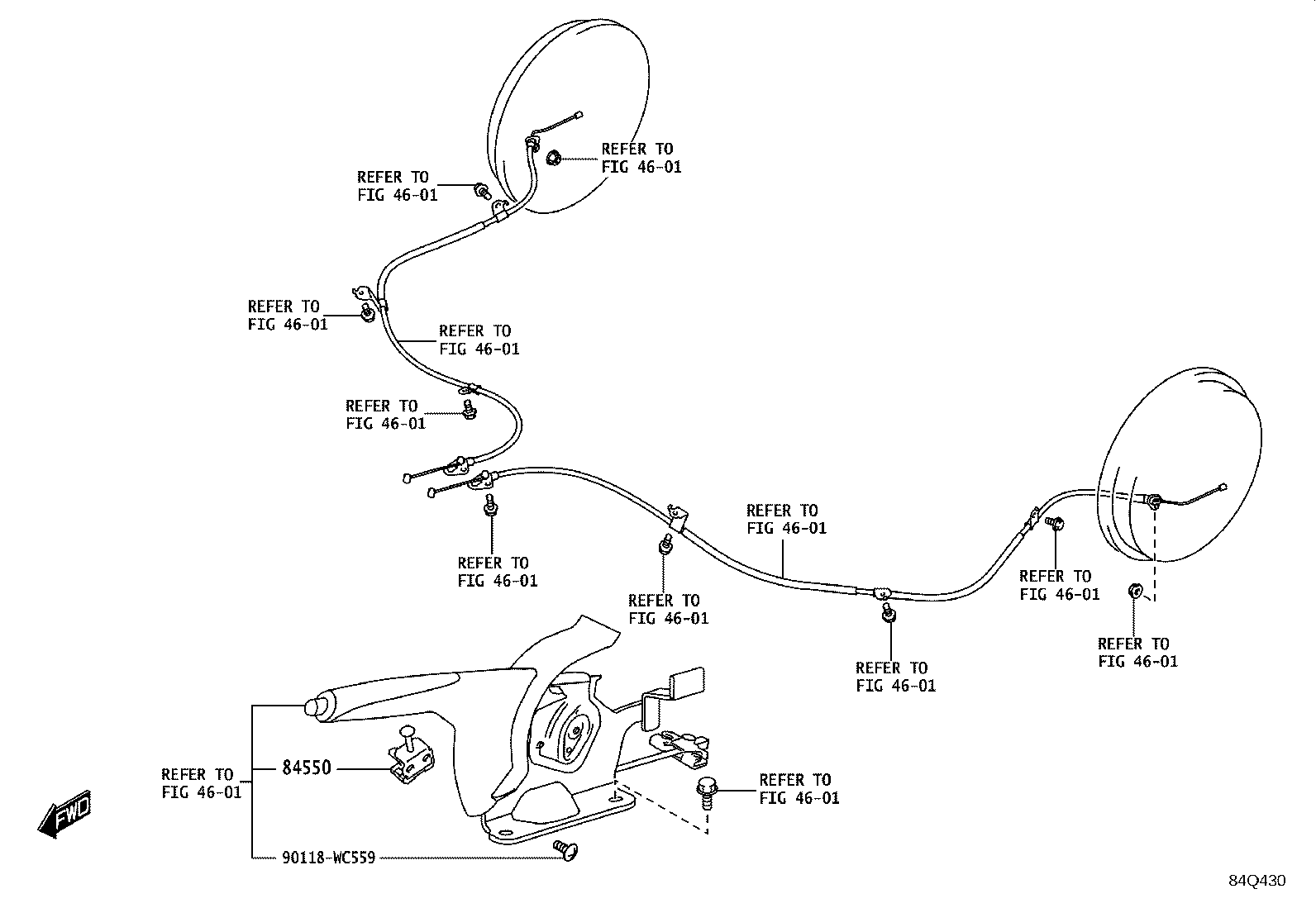

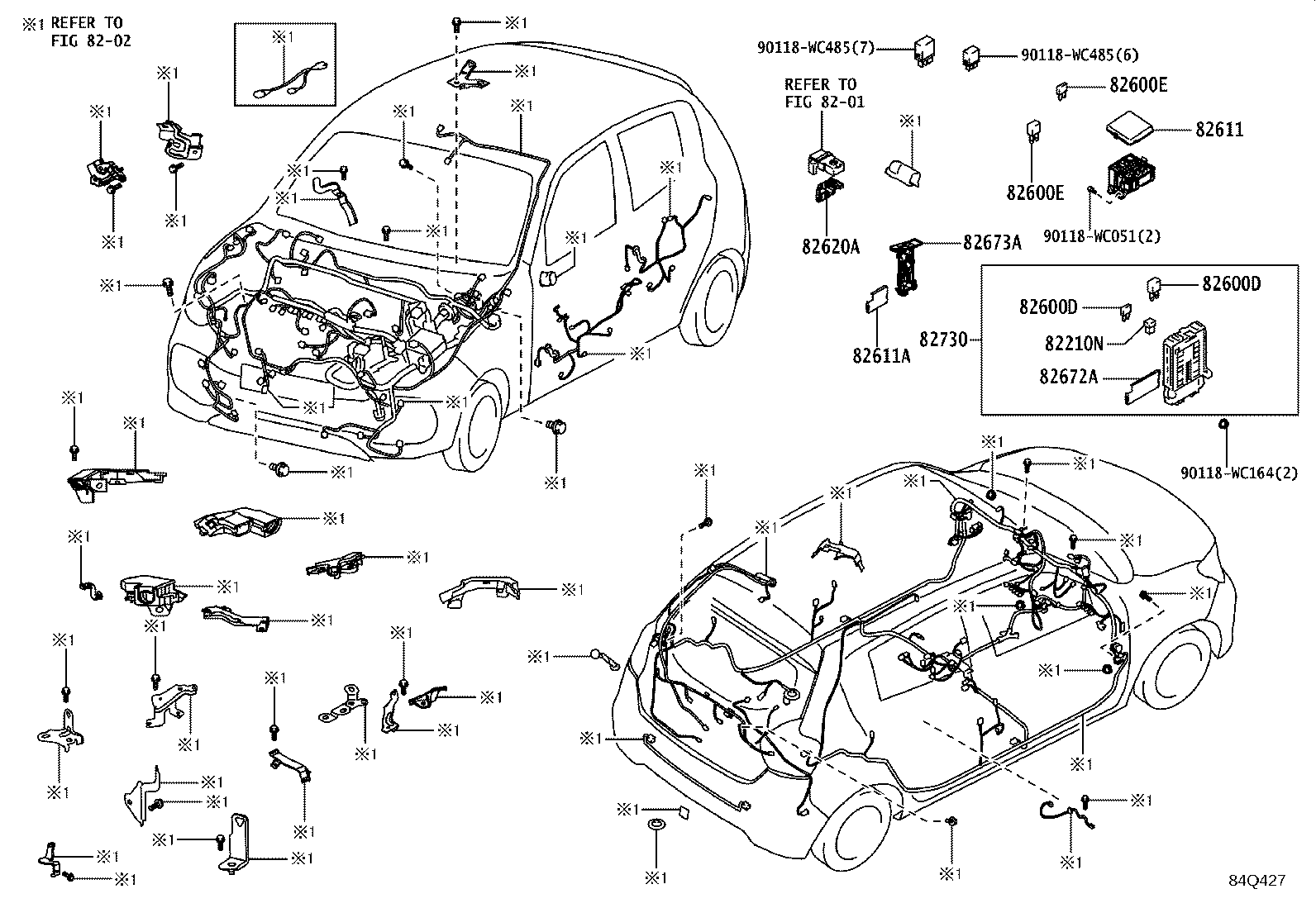

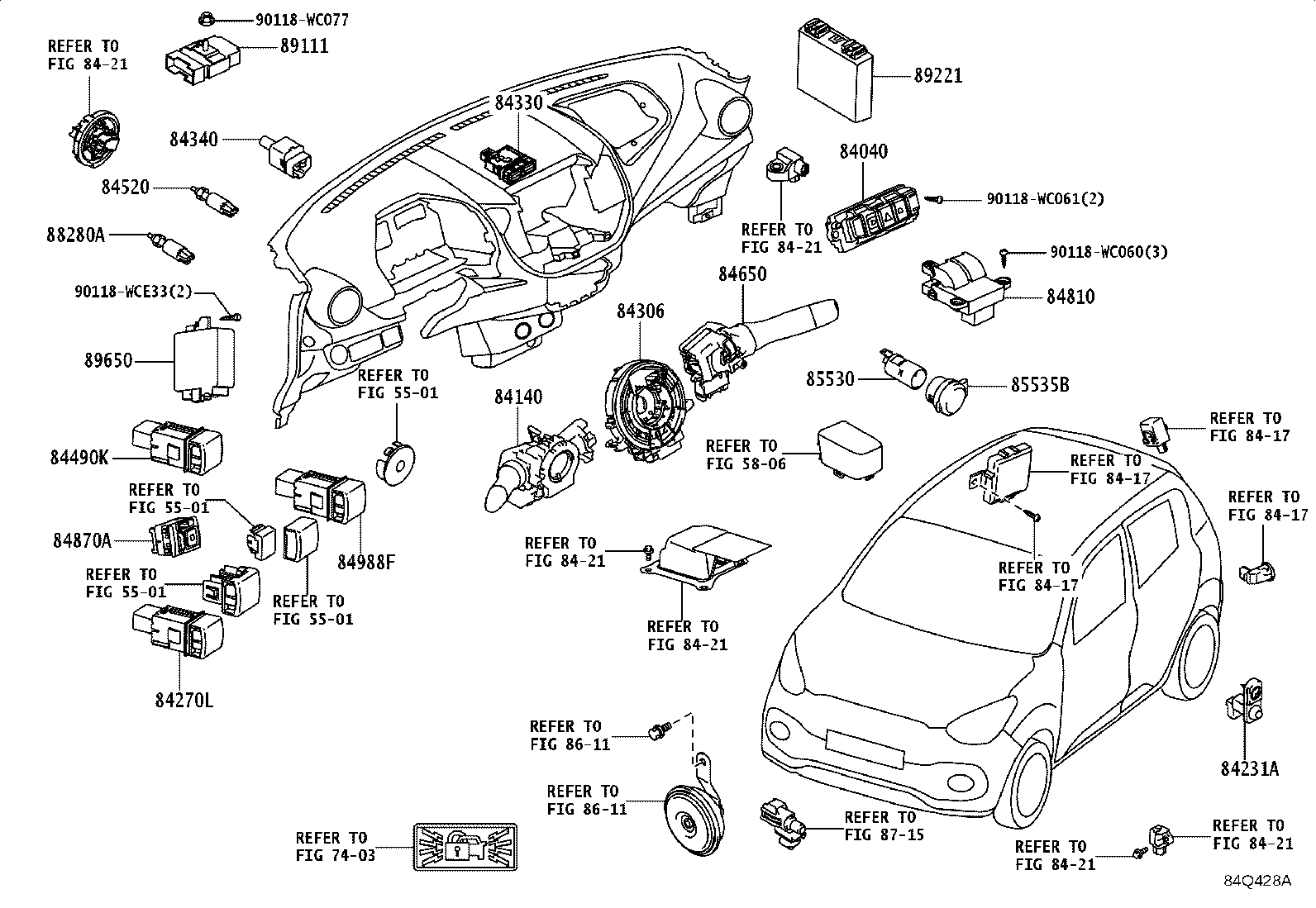

Figure 84Q417A 84Q417A 2023-01 → — Figure 84Q418 84Q418 2023-01 → — Figure 84R4DP 84R4DP 2024-09 → — Figure 84Q419 84Q419 2023-01 → — Figure 84Q420 84Q420 2023-01 → — Figure 84Q421 84Q421 2023-01 → — Figure 84Q422 84Q422 2023-01 → — Figure 84Q423A 84Q423A 2023-01 → — Figure 84Q424 84Q424 2023-01 → — Figure 84Q425 84Q425 2023-01 → — Figure 84Q426A 84Q426A 2023-01 → — Figure 84Q427 84Q427 2023-01 → — Figure 84Q428A 84Q428A 2023-01 → — Figure 84Q429A 84Q429A 2023-01 → — Figure 84Q430 84Q430 2023-01 → — Figure 84Q431 84Q431 2023-01 → —

Part groups

PNCDescription
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82611 Cover, Fuse Block
82611A Cover, Fuse Block, NO.2
82620A Block Assy, Fusible Link
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82730 Block Assy, Instrument Panel Junction
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84270L Switch Assy, Idle Stop
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84490K Switch Assy, Back Sonar
84520 Switch Assy, Clutch Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84988F Switch, Traction Control
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
86206D Converter Sub-assy, Voltage
86245C Bracket, Voltage Converter
88280A Switch Assy, Clutch
88630G Relay Assy, Cooler
89111 Computer, Network Gateway
89221 Computer, Multiplex Network Body
89411B Sensor, Speed
89420M Sensor Assy, Air Pressure
89420N Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89429 Sensor, Oil Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
G4283B Sensor, Battery Current
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
