Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

11 part groups · 2 illustrations

Illustrations

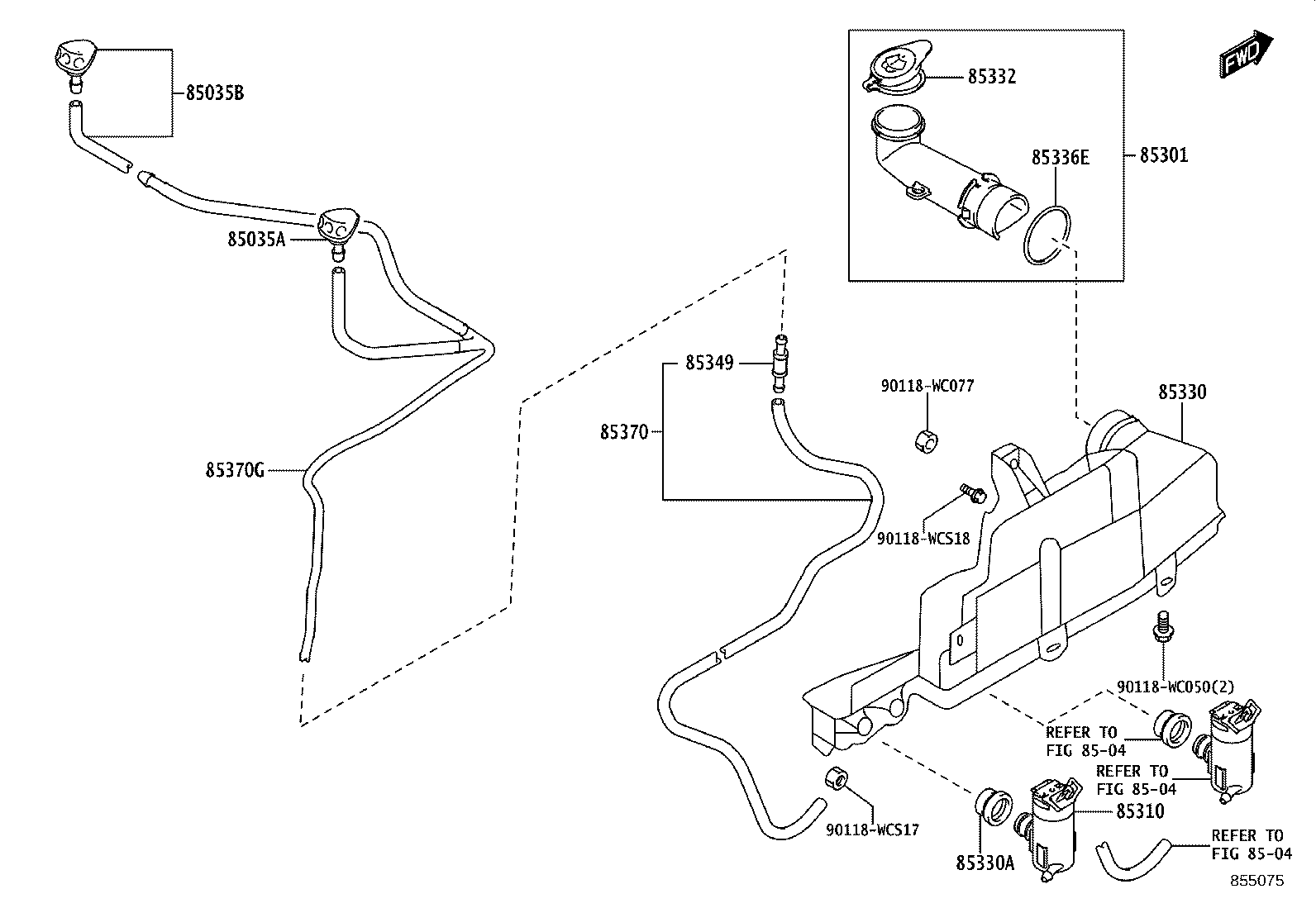

Figure 855074 855074 2023-01 → — Figure 855075 855075 2023-01 → —

Part groups

PNCDescription
85035A Nozzle, FR Washer, RH
85035B Nozzle, Front Washer, LH
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85349 Joint, Windshield Washer Hose, NO.1
85370 Hose Assy, Windshield Washer
85370G Hose Assy, Windshield Washer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
