Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01
Navigation & Front Monitor Display
8 part groups · 3 illustrations

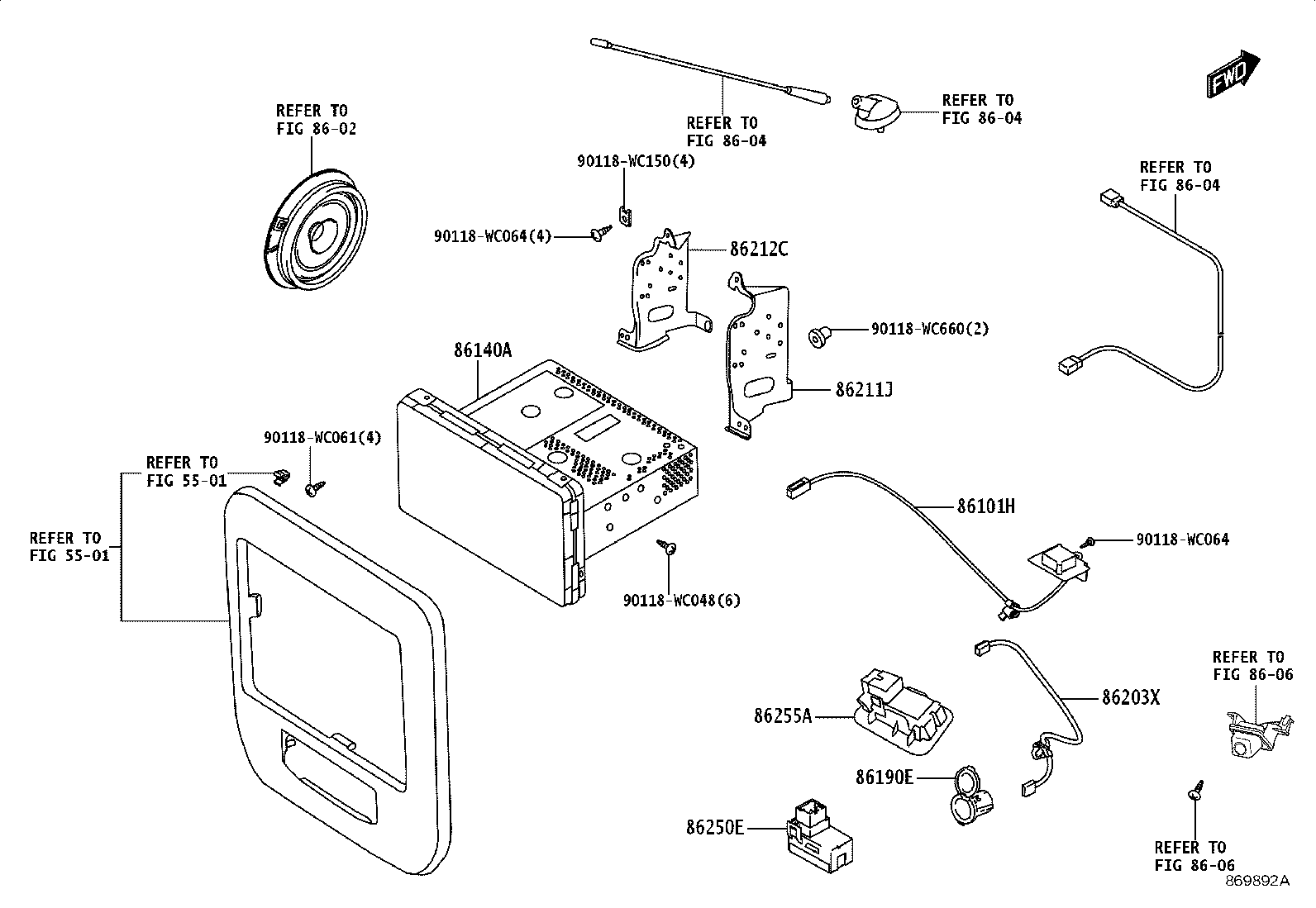

Part groups
| PNC | Description |
|---|---|
| 86101H | Cord Sub-assy, Antenna |
| 86140A | Receiver Assy, Radio & Display |
| 86190E | Adapter Assy, Stereo Jack |
| 86203X | Wiring Sub-assy, Radio |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86250E | Microphone Assy, Amplifier |
| 86255A | Case, Microphone, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
