Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 8 illustrations

Illustrations

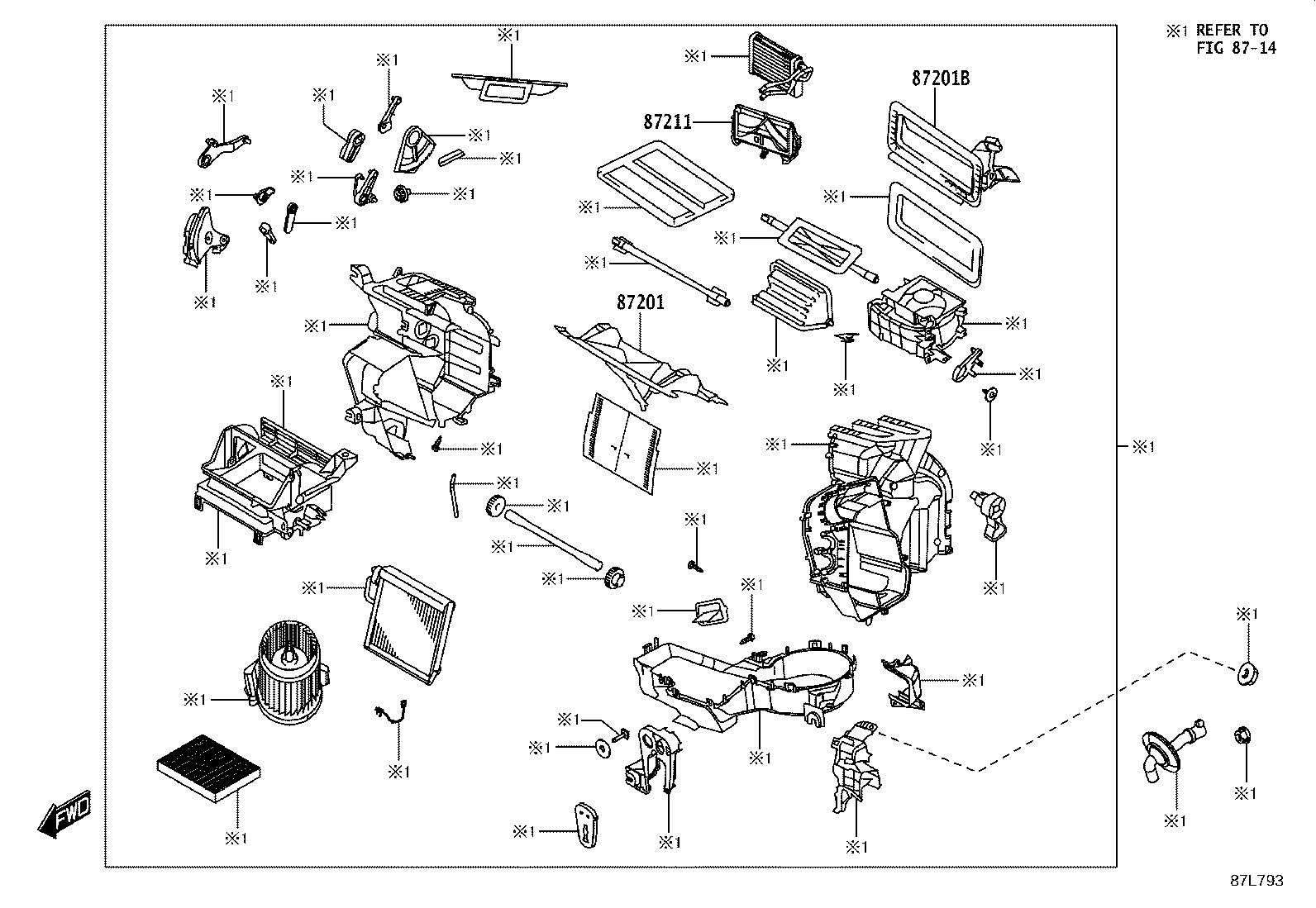

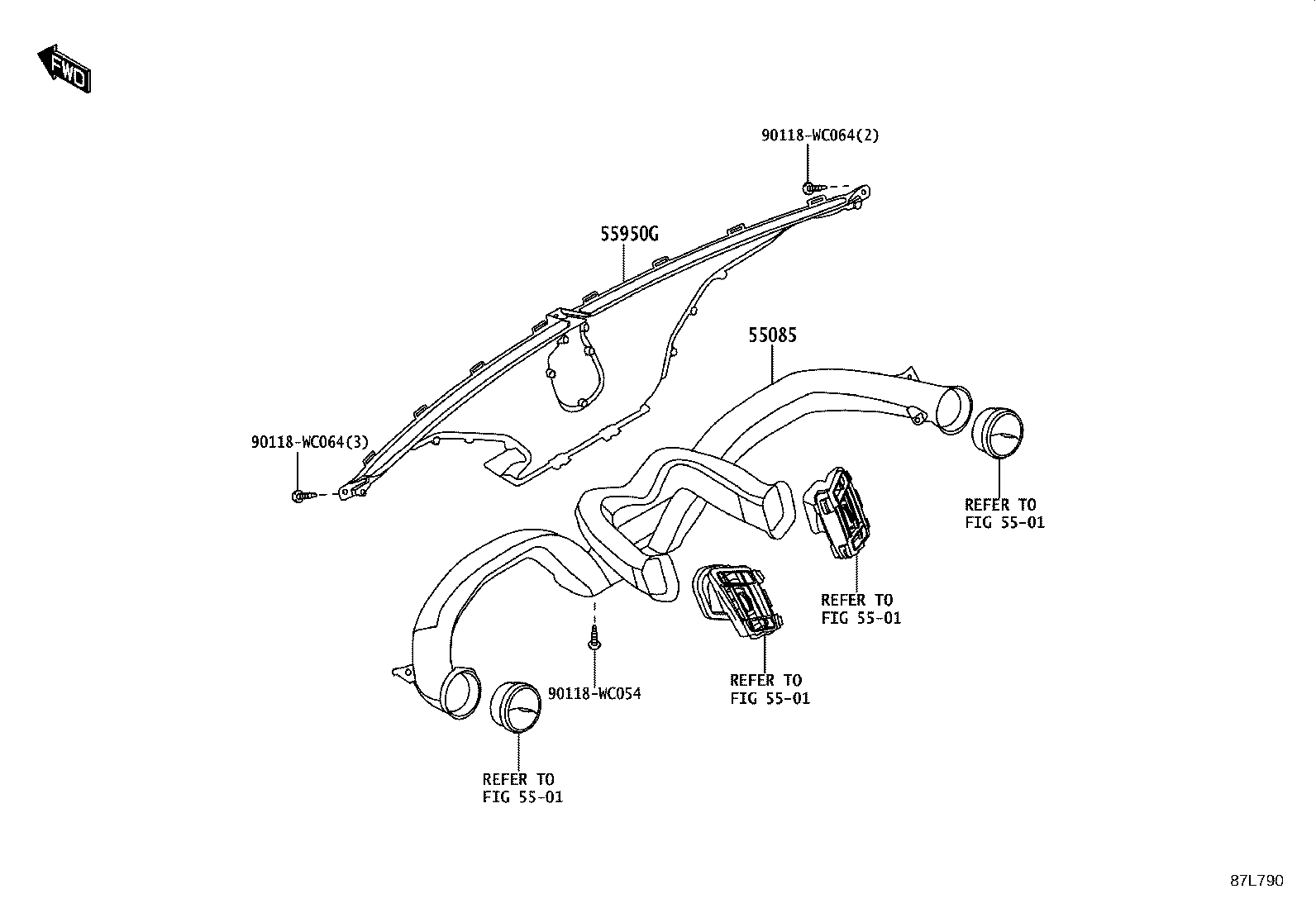

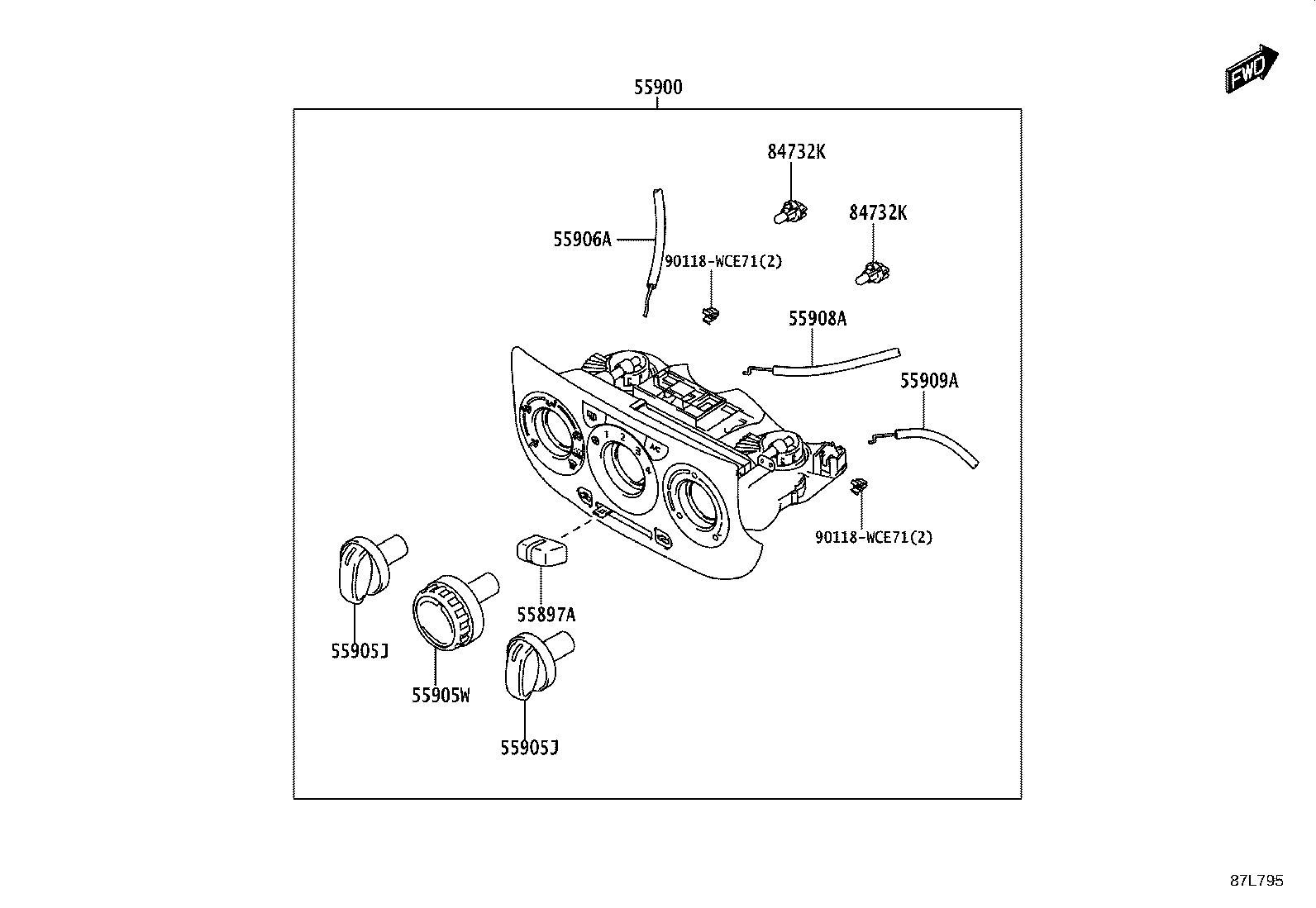

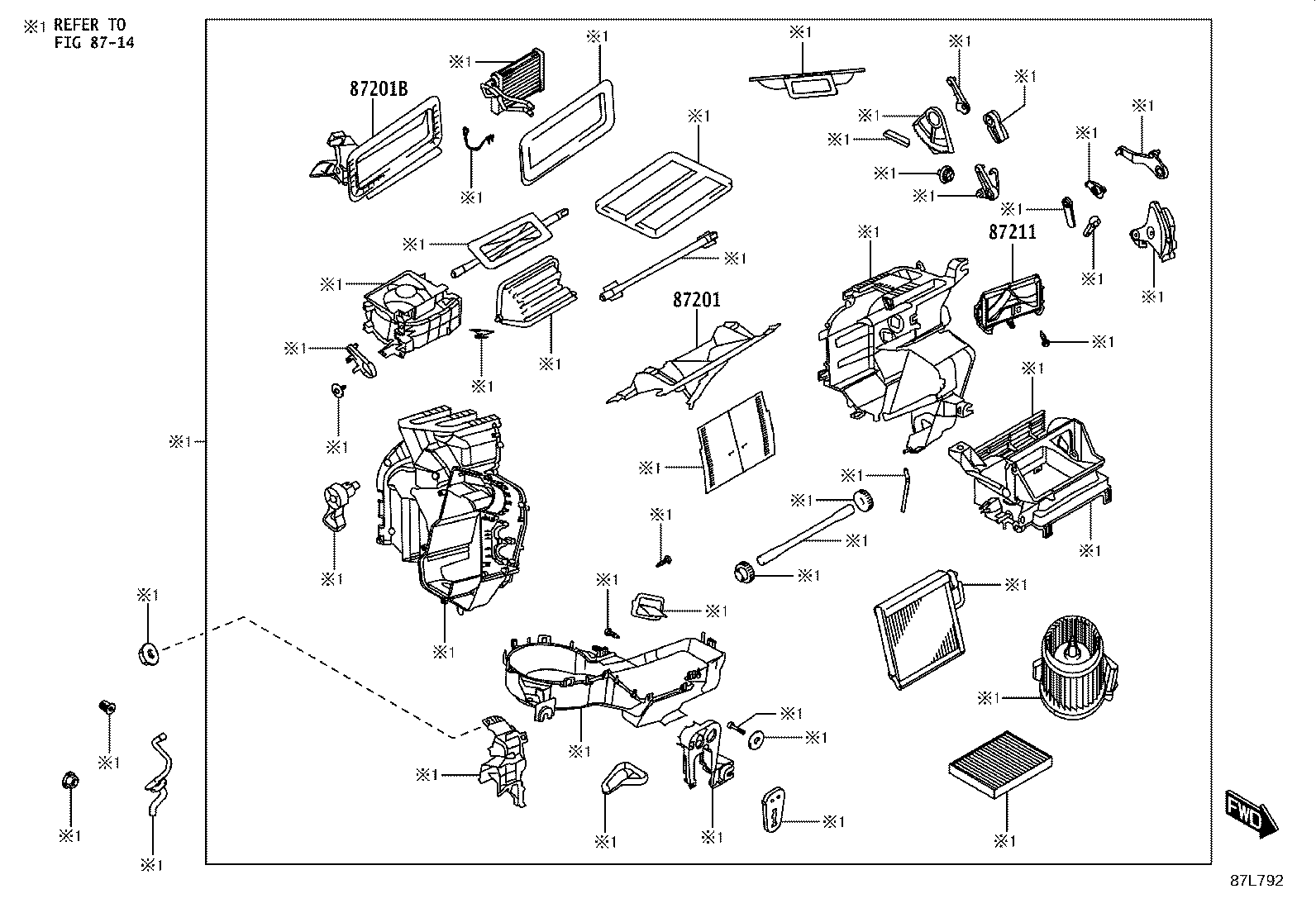

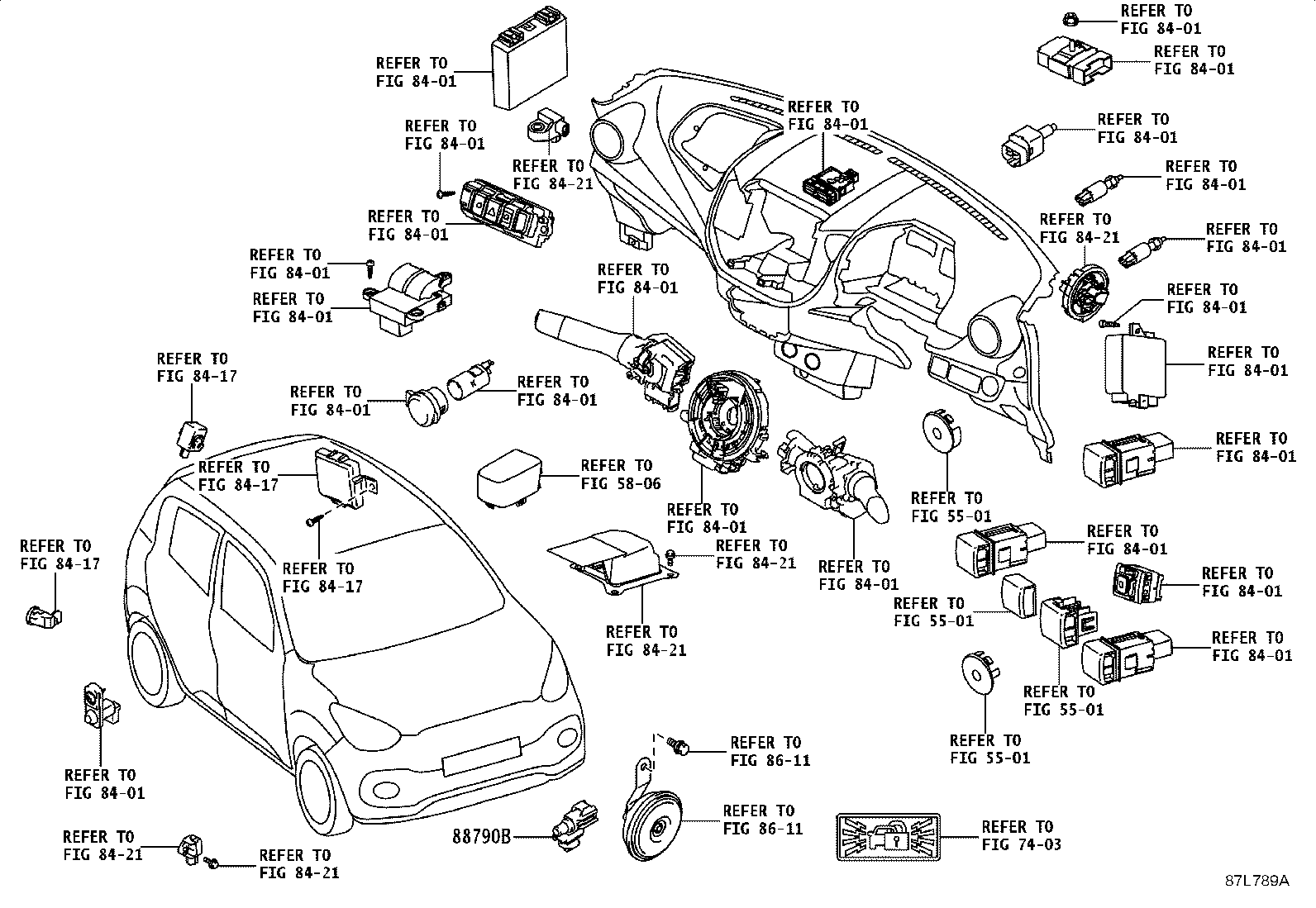

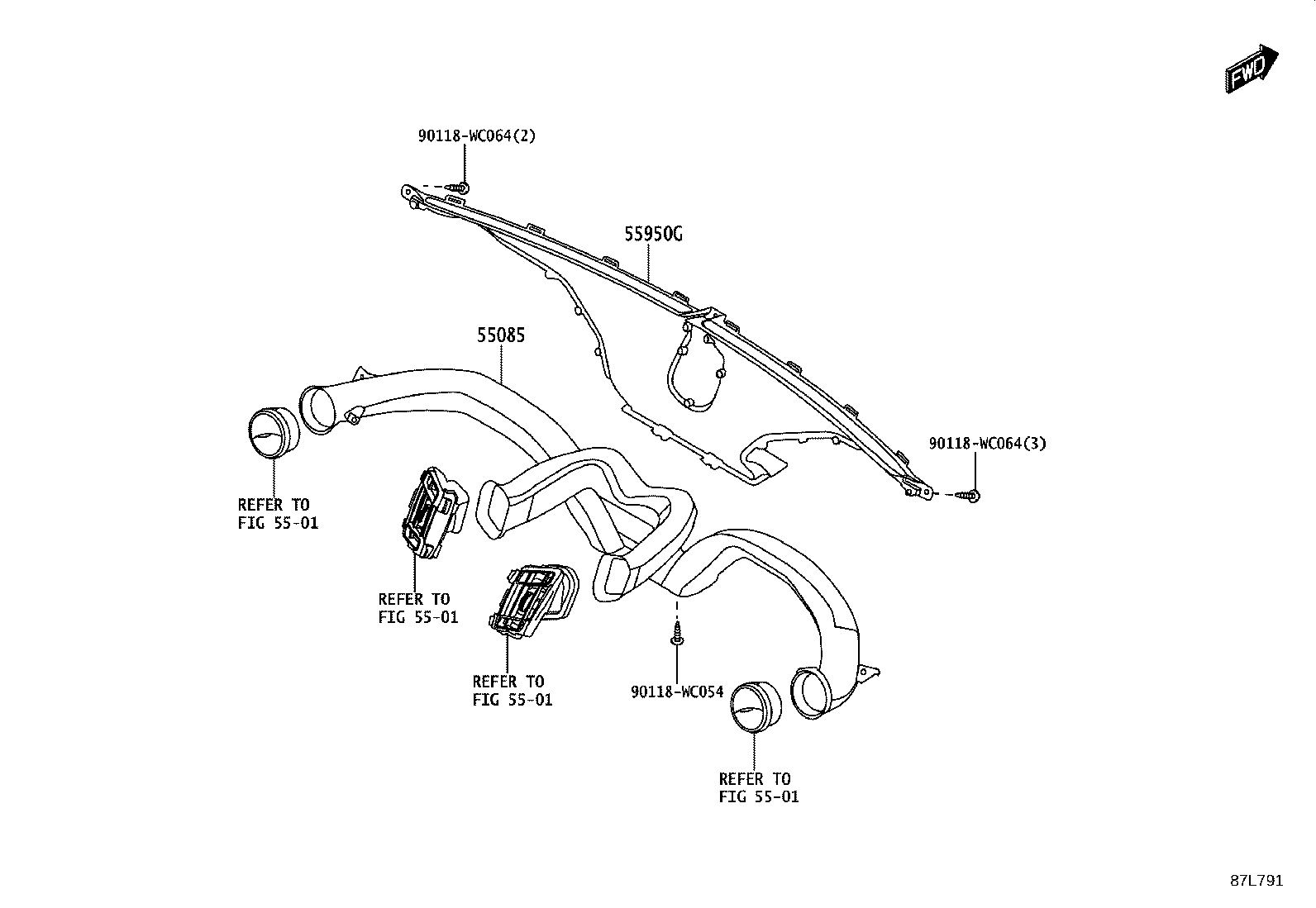

Figure 87L788A 87L788A 2023-01 → — Figure 87L789A 87L789A 2023-01 → — Figure 87L790 87L790 2023-01 → — Figure 87L791 87L791 2023-01 → — Figure 87L792 87L792 2023-01 → — Figure 87L793 87L793 2023-01 → — Figure 87L794 87L794 2023-01 → — Figure 87L795 87L795 2023-01 → —

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55897A Knob, Air Damper Control Lever
55900 Control Assy, Air Conditioner
55905J Knob Sub-assy, Control
55905W Knob Sub-assy, Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
84732K Bulb, Heater Blower Switch
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87211 Duct, Air, NO.1
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
