Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

23 part groups · 5 illustrations

Illustrations

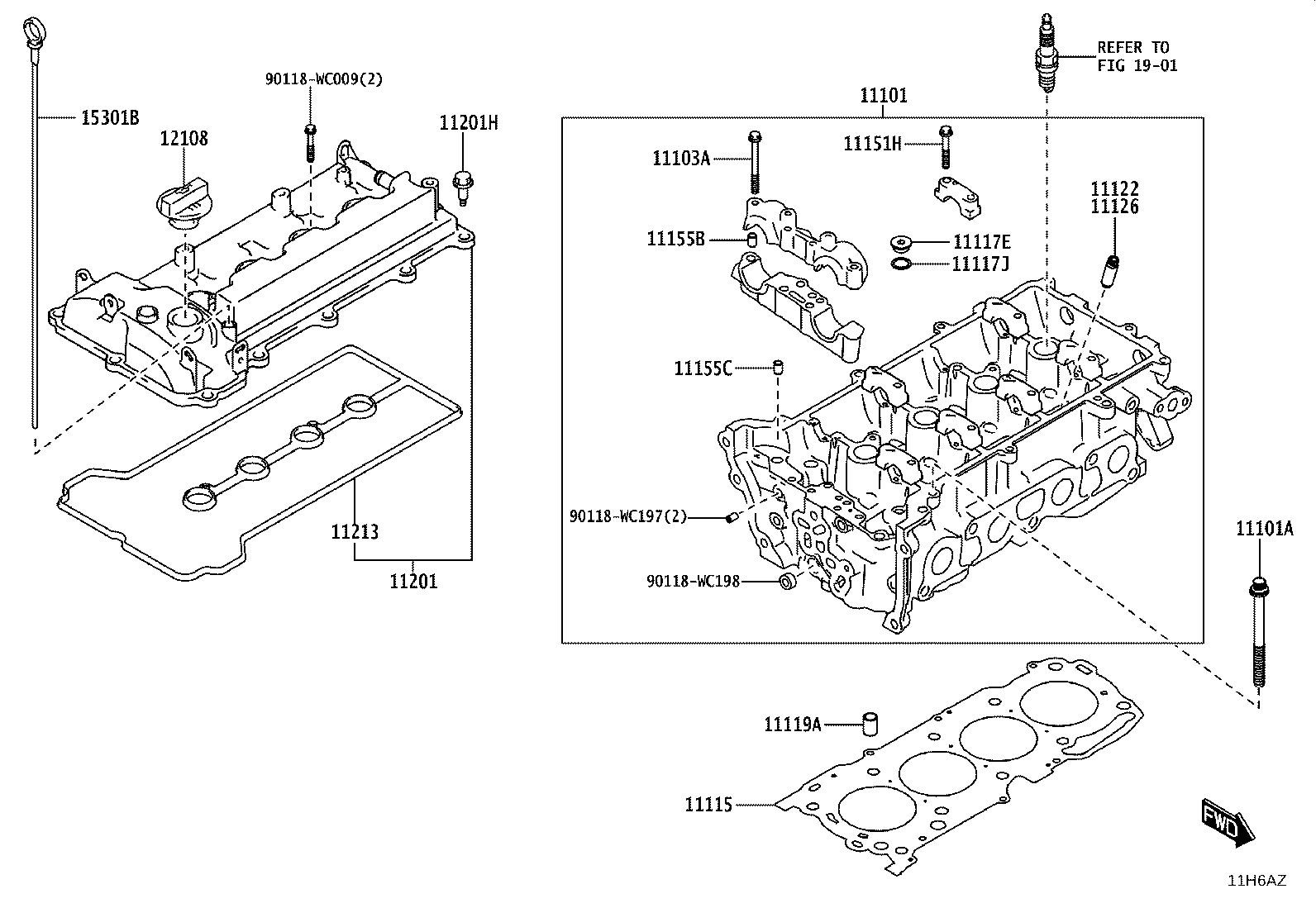

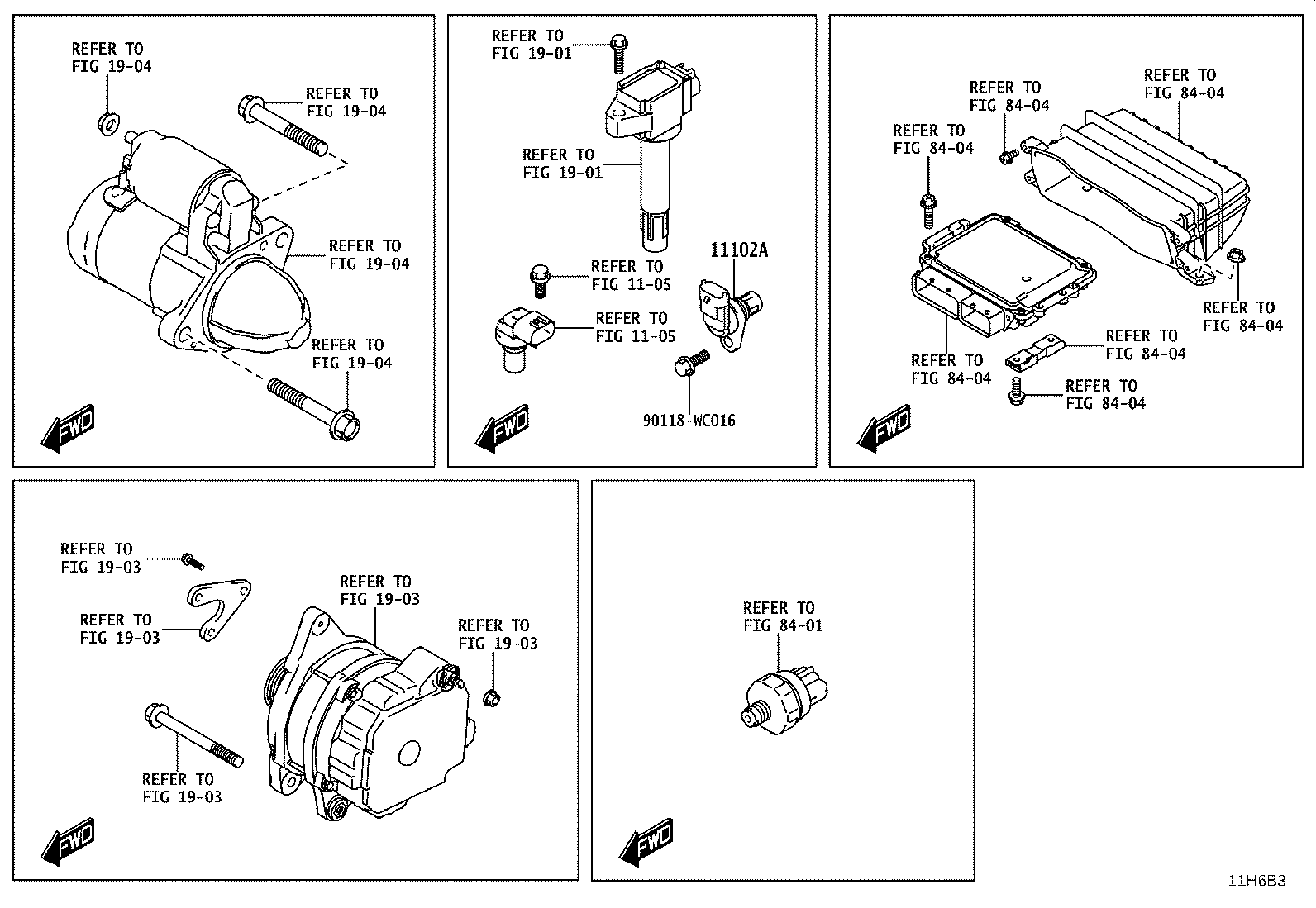

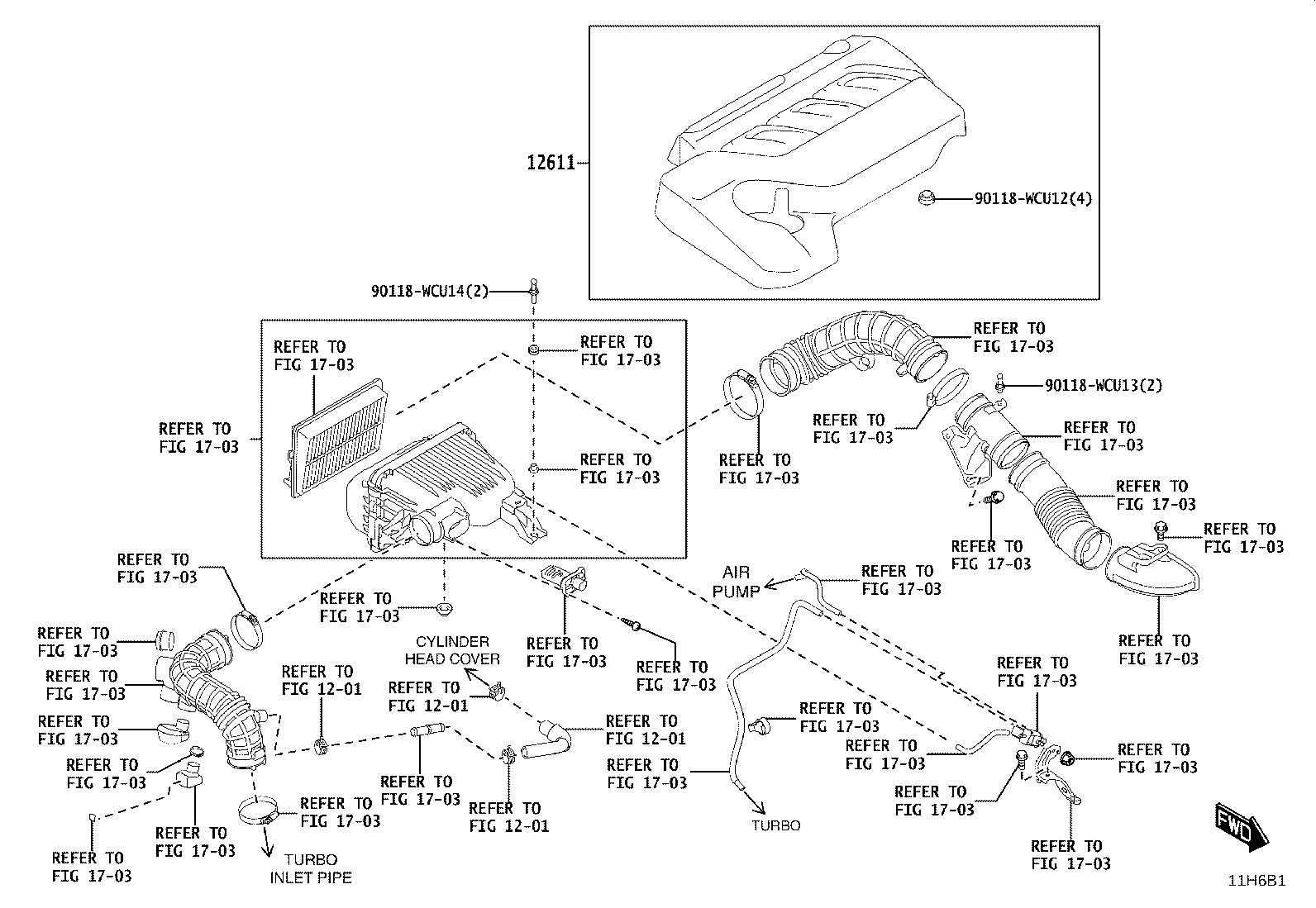

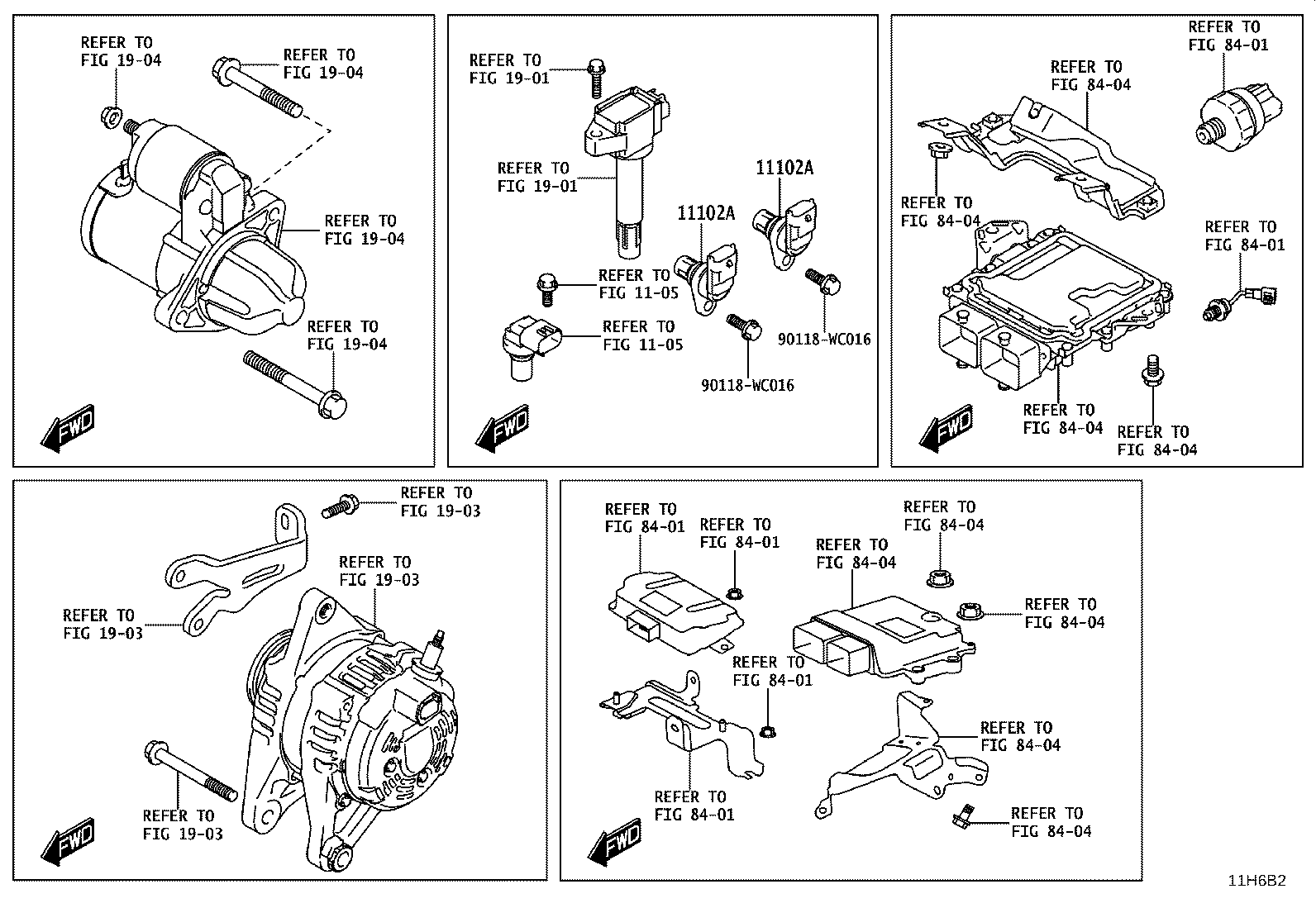

Figure 11H6B0 11H6B0 2024-04 → — Figure 11H6B1 11H6B1 2024-04 → — Figure 11H6B3 11H6B3 2024-04 → — Figure 11H6AZ 11H6AZ 2024-04 → — Figure 11H6B2 11H6B2 2024-04 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11102A Sensor, Camshaft Position
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11115 Gasket, Cylinder Head
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11117N Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11151H Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155B Pin, Ring
11155C Pin, Ring NO.2
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12611 Cover, Engine, NO.1
15301B Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
