Toyota Urban Cruiser Taisor
2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General
Supported model
Data version 2024-04

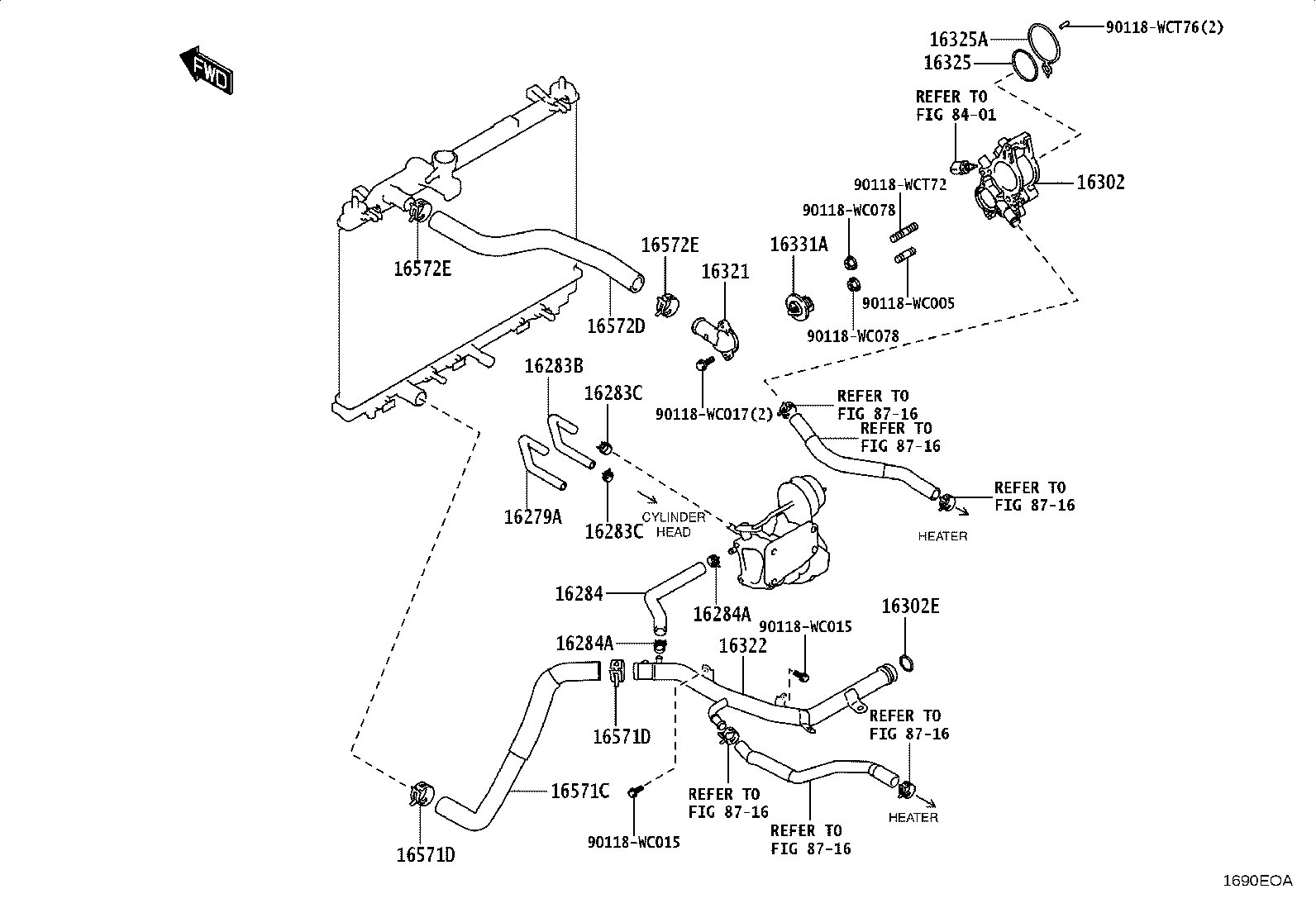

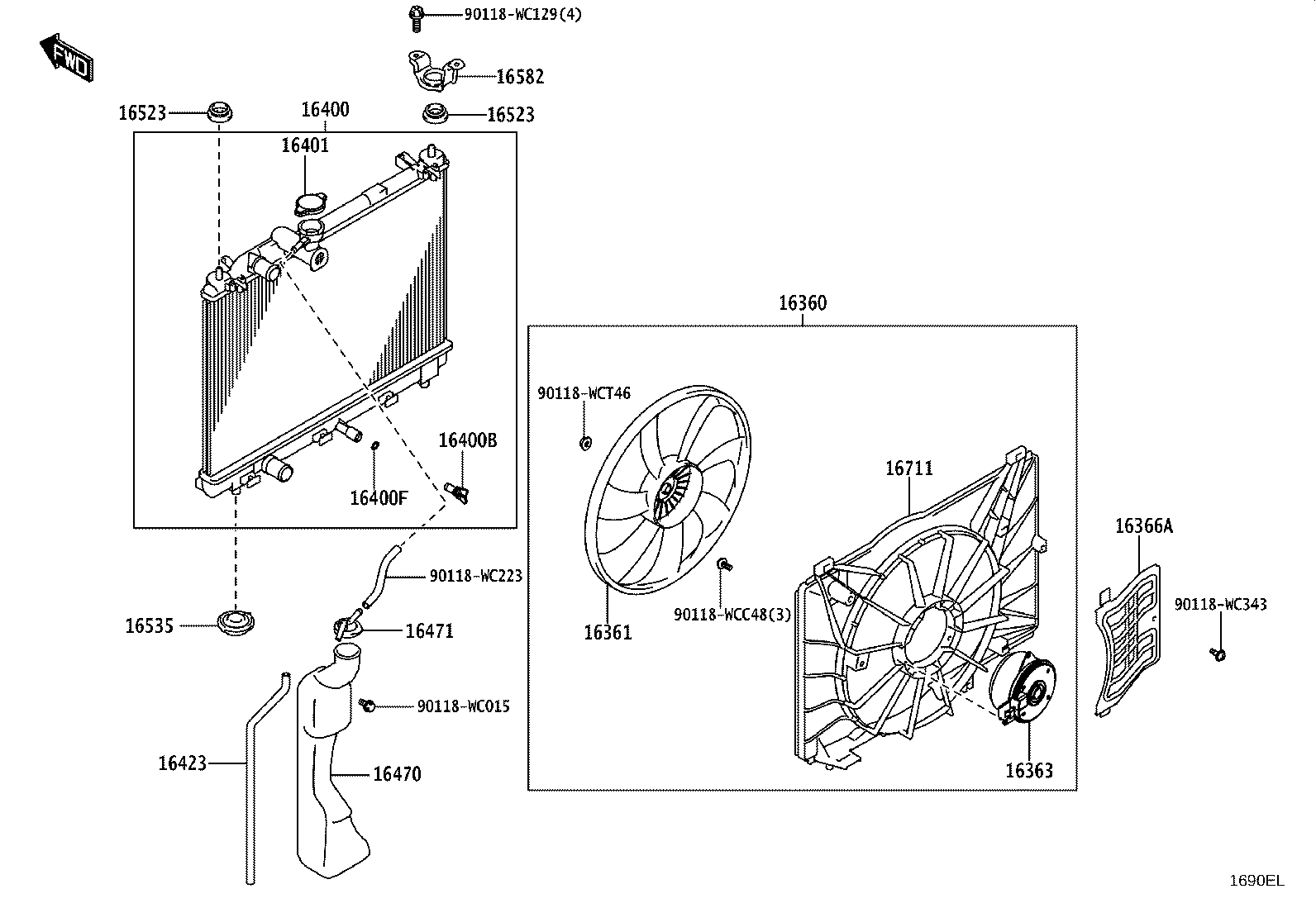

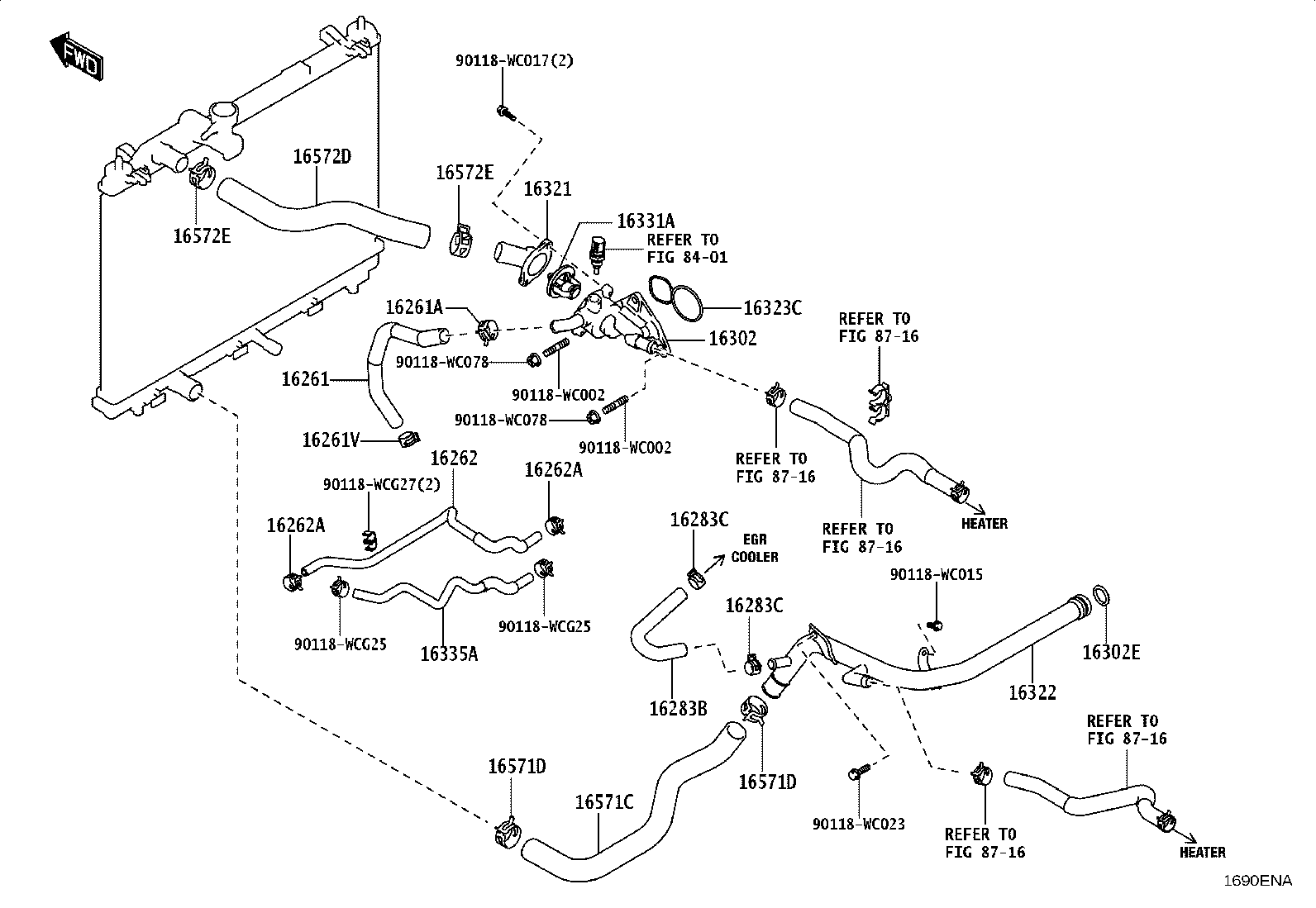

Radiator & Water Outlet
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16279A | Protector, Hose Heat |
| 16283B | Hose, Water By-pass |
| 16283C | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16302 | Housing Sub-assy, Water Inlet |
| 16302E | Ring, O(FOR WATER INLET PIPE) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323C | Ring, O(FOR WATER INLET HOUSING) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16325A | Gasket, Water Inlet Housing |
| 16331A | Thermostat |
| 16335A | Hose, Water Outlet |
| 16360 | Blower Assy, W/Shroud |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16366A | Insulator, Cooling Fan Motor |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16423 | Hose, Radiator Tank |
| 16470 | Tank Assy, Radiator Reserve |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16523 | Cushion, Sub-radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16582 | Bracket, Radiator, NO.1 |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
