Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

V-belt

2 part groups · 3 illustrations

Illustrations

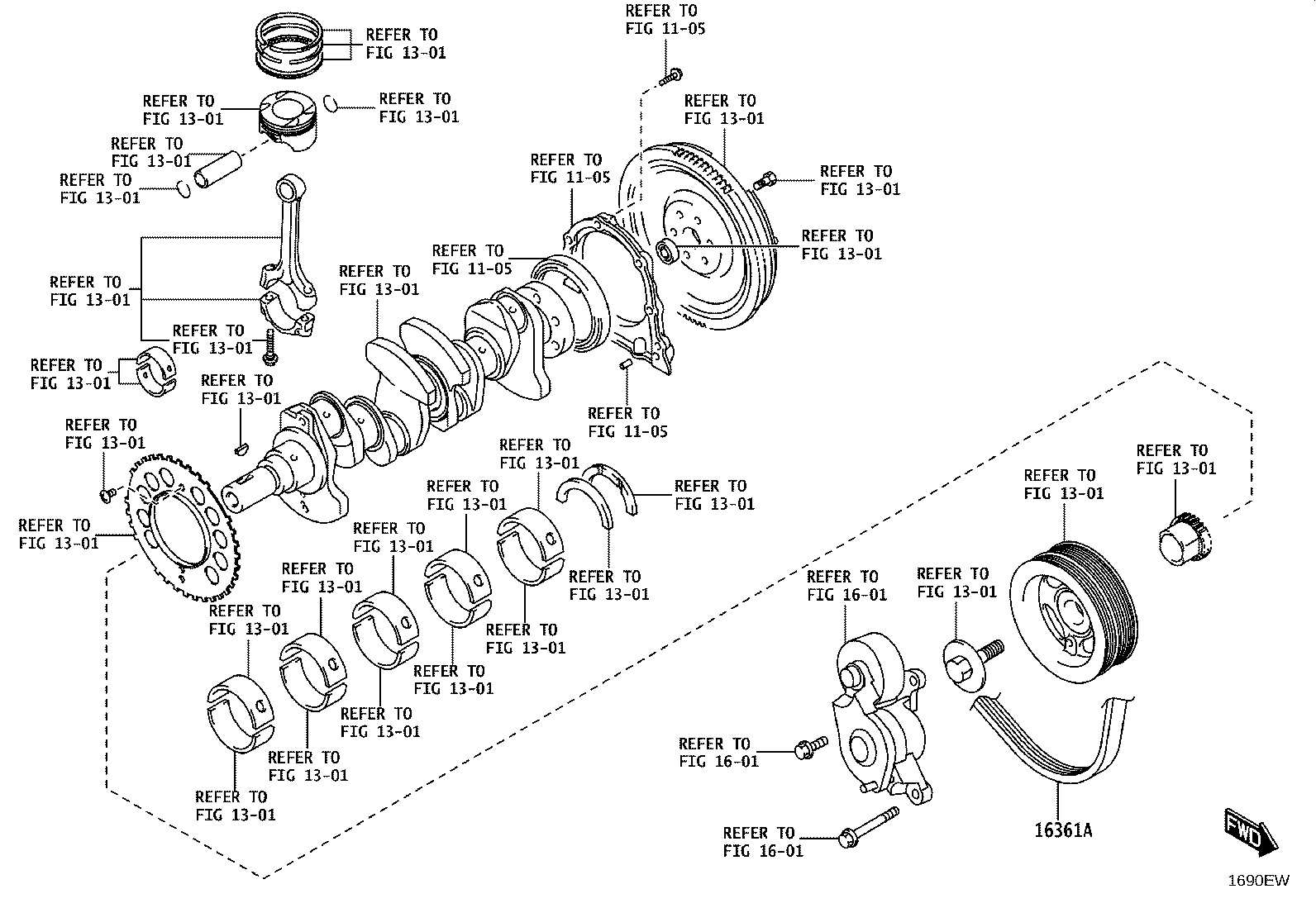

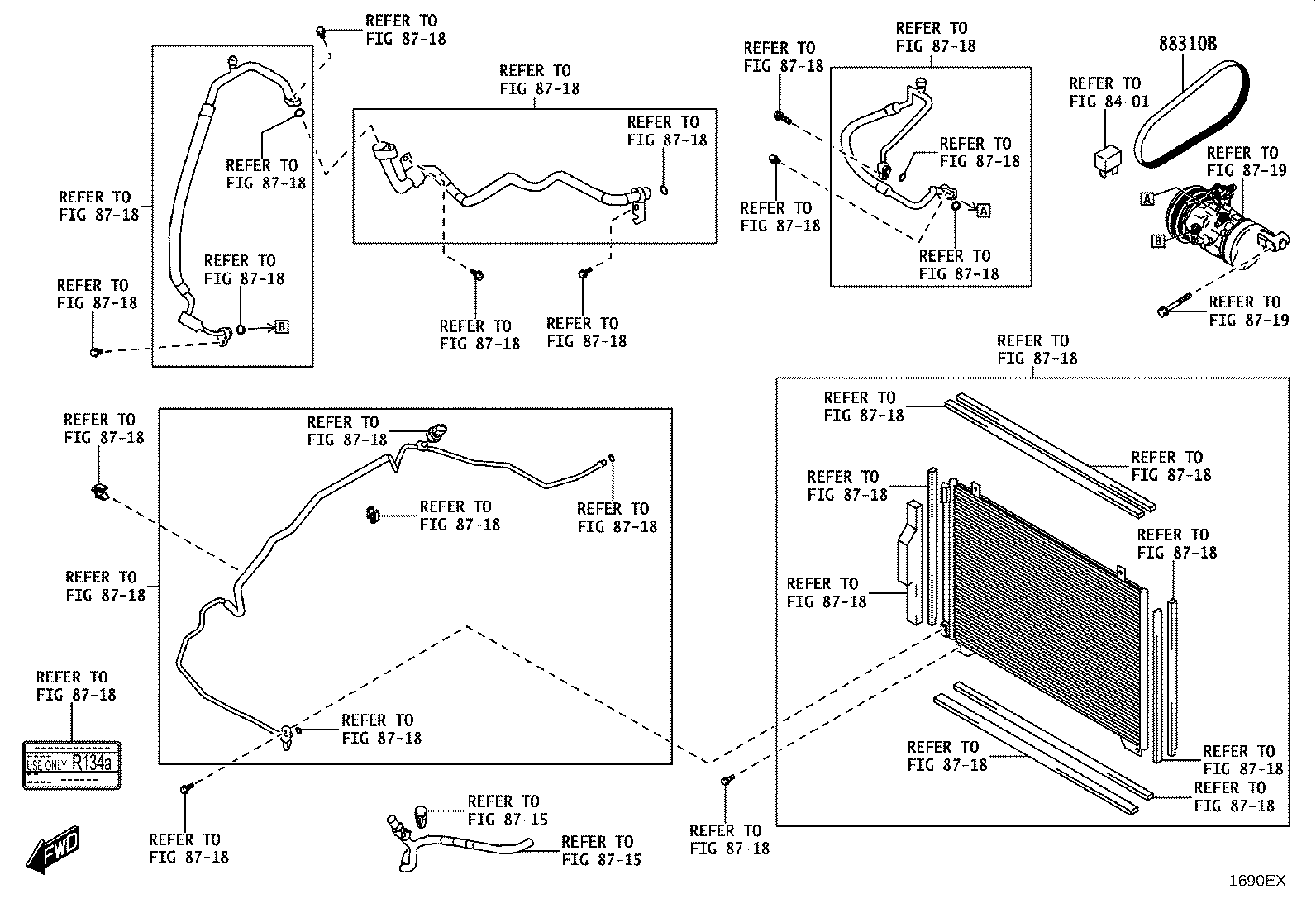

Figure 1690EV 1690EV 2024-04 → — Figure 1690EW 1690EW 2024-04 → — Figure 1690EX 1690EX 2024-04 → —

Part groups

PNCDescription
16361A Belt, V(FOR FAN & ALTERNATOR)
88310B Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
