Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

32 part groups · 6 illustrations

Illustrations

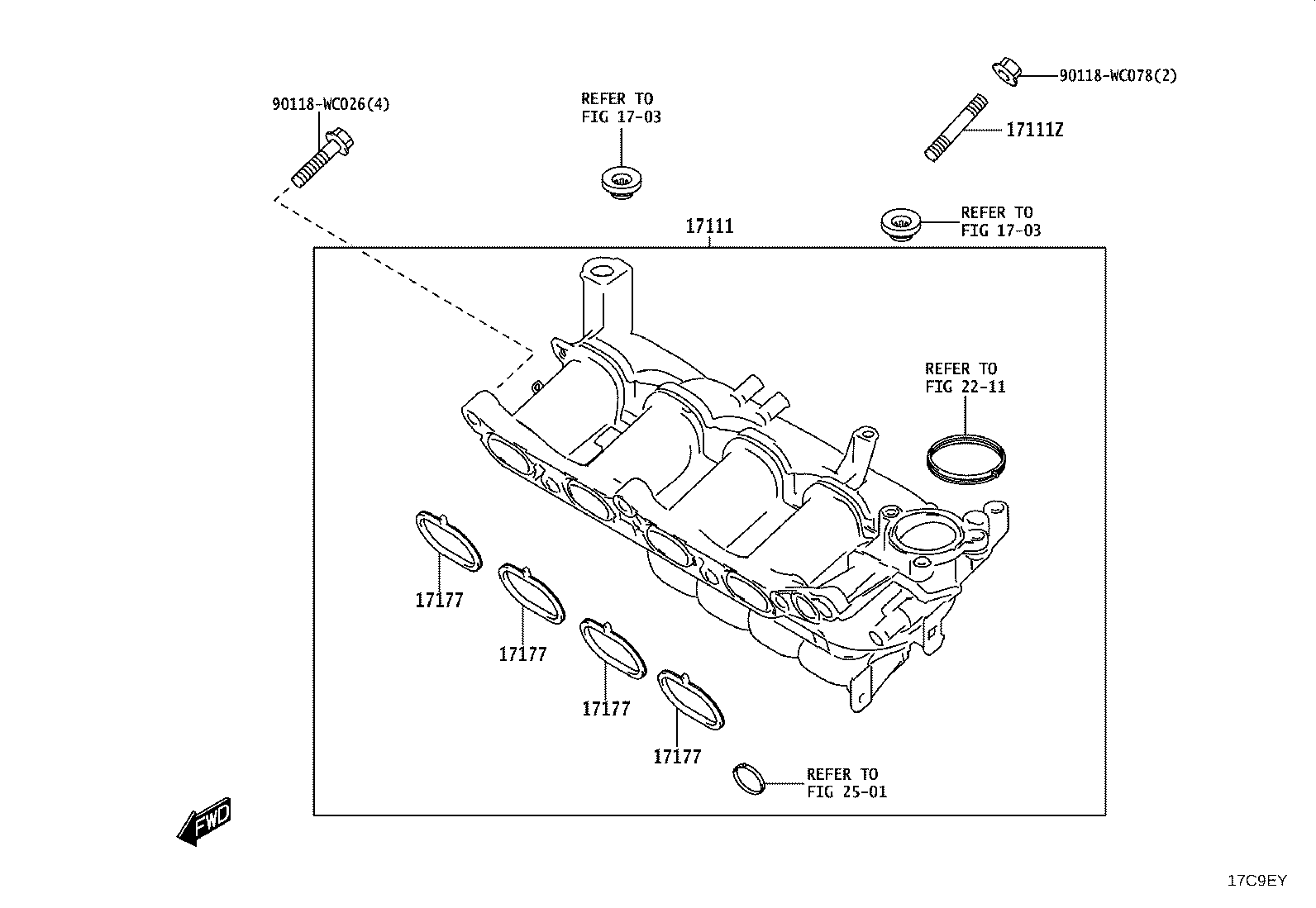

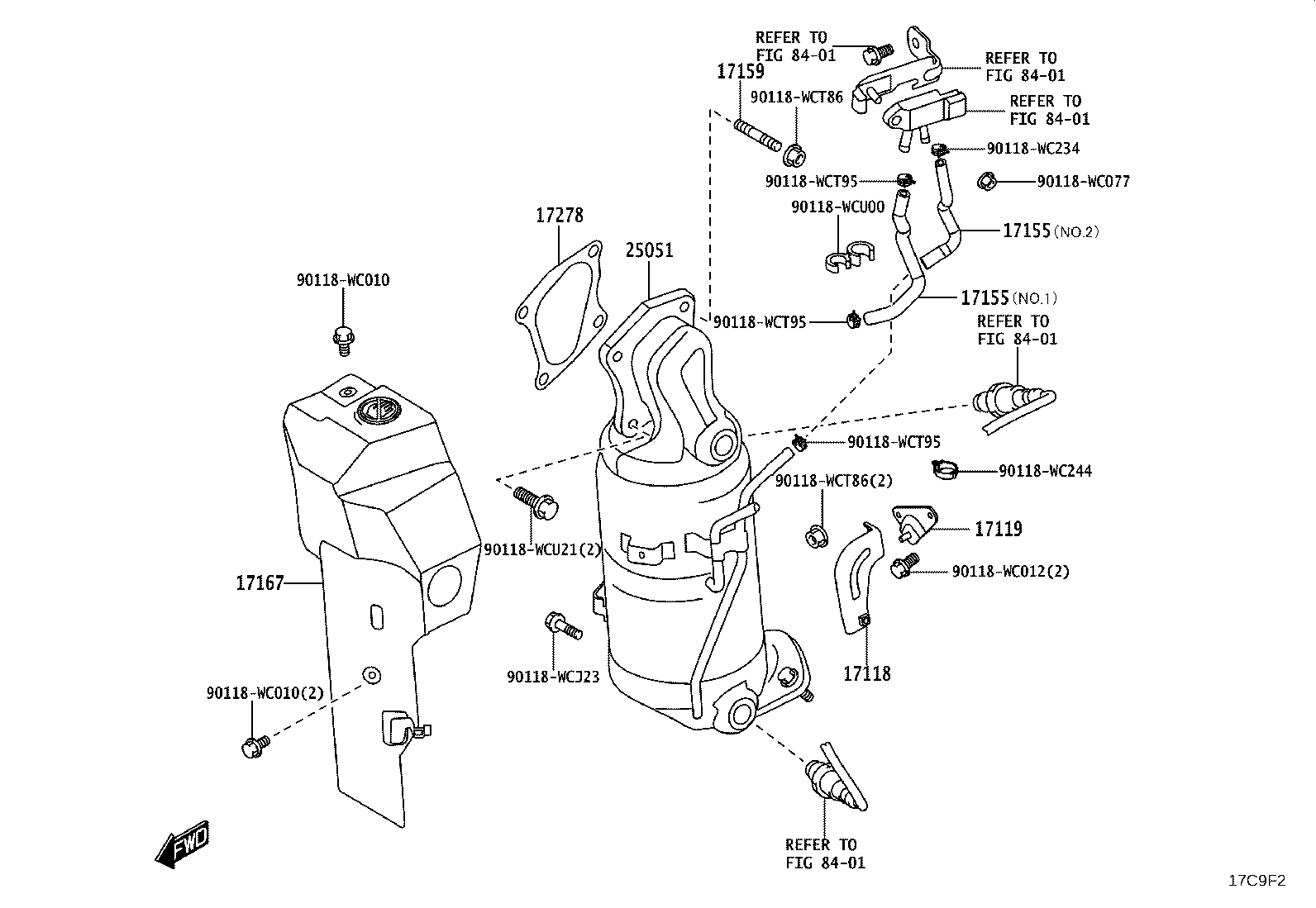

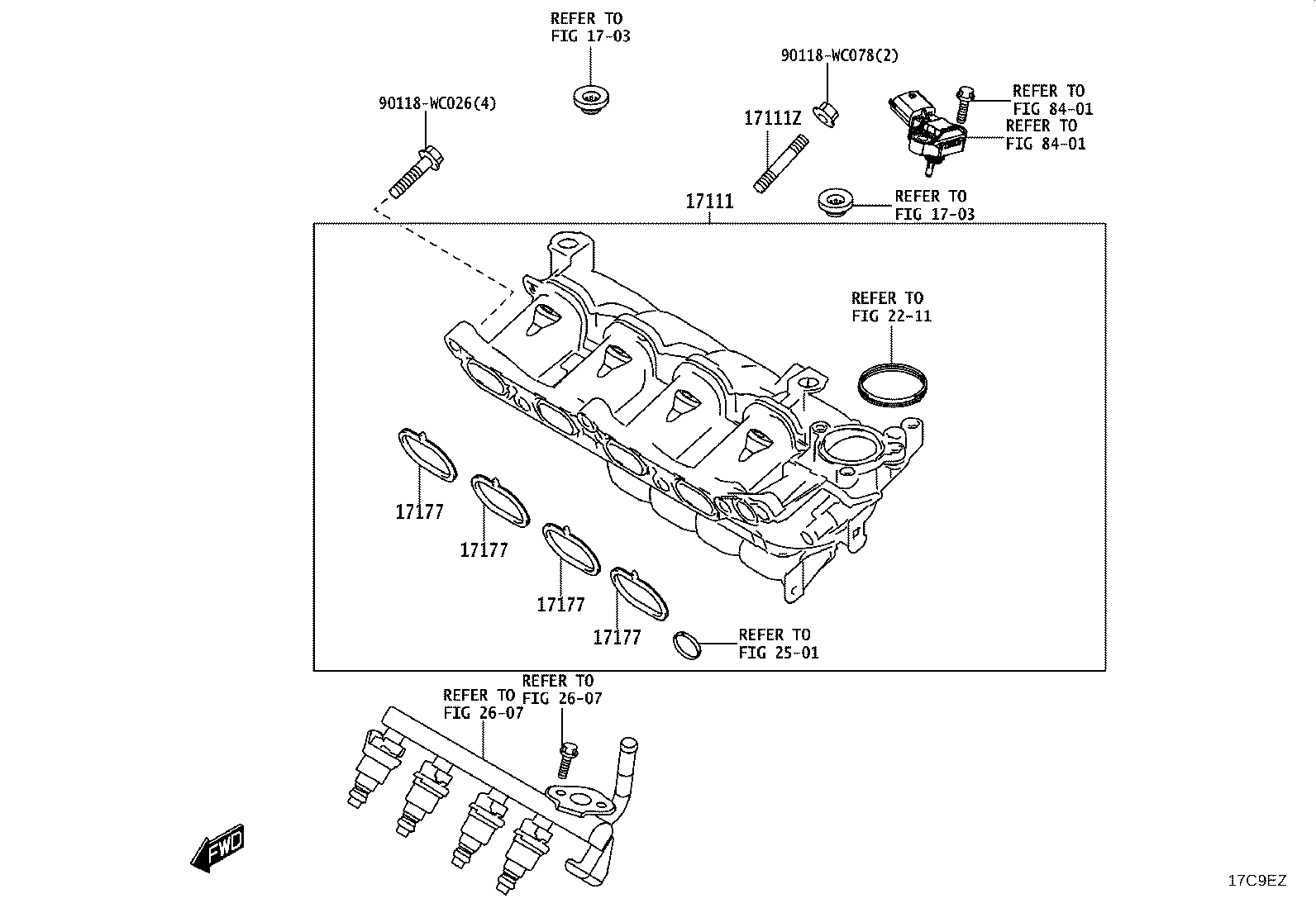

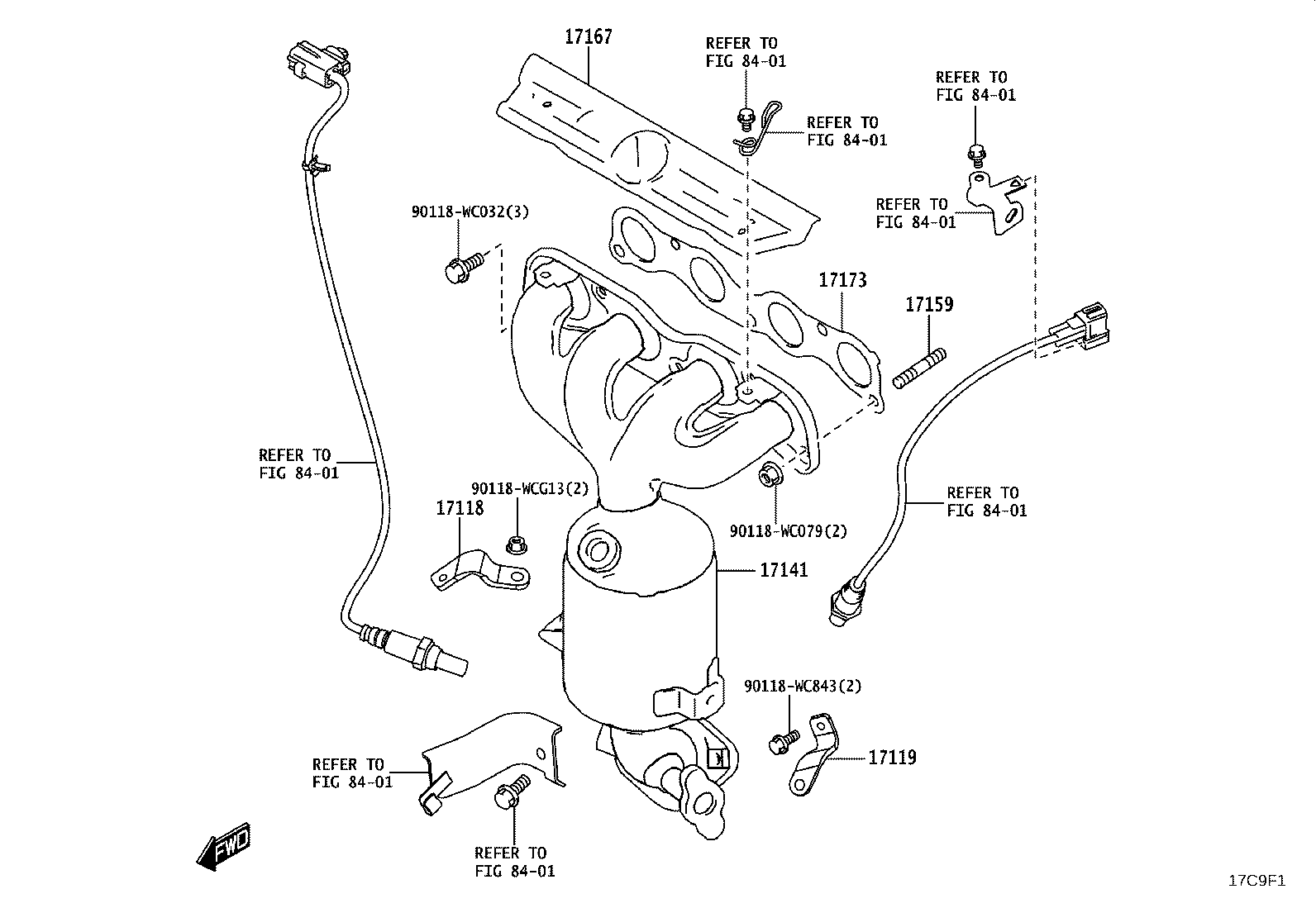

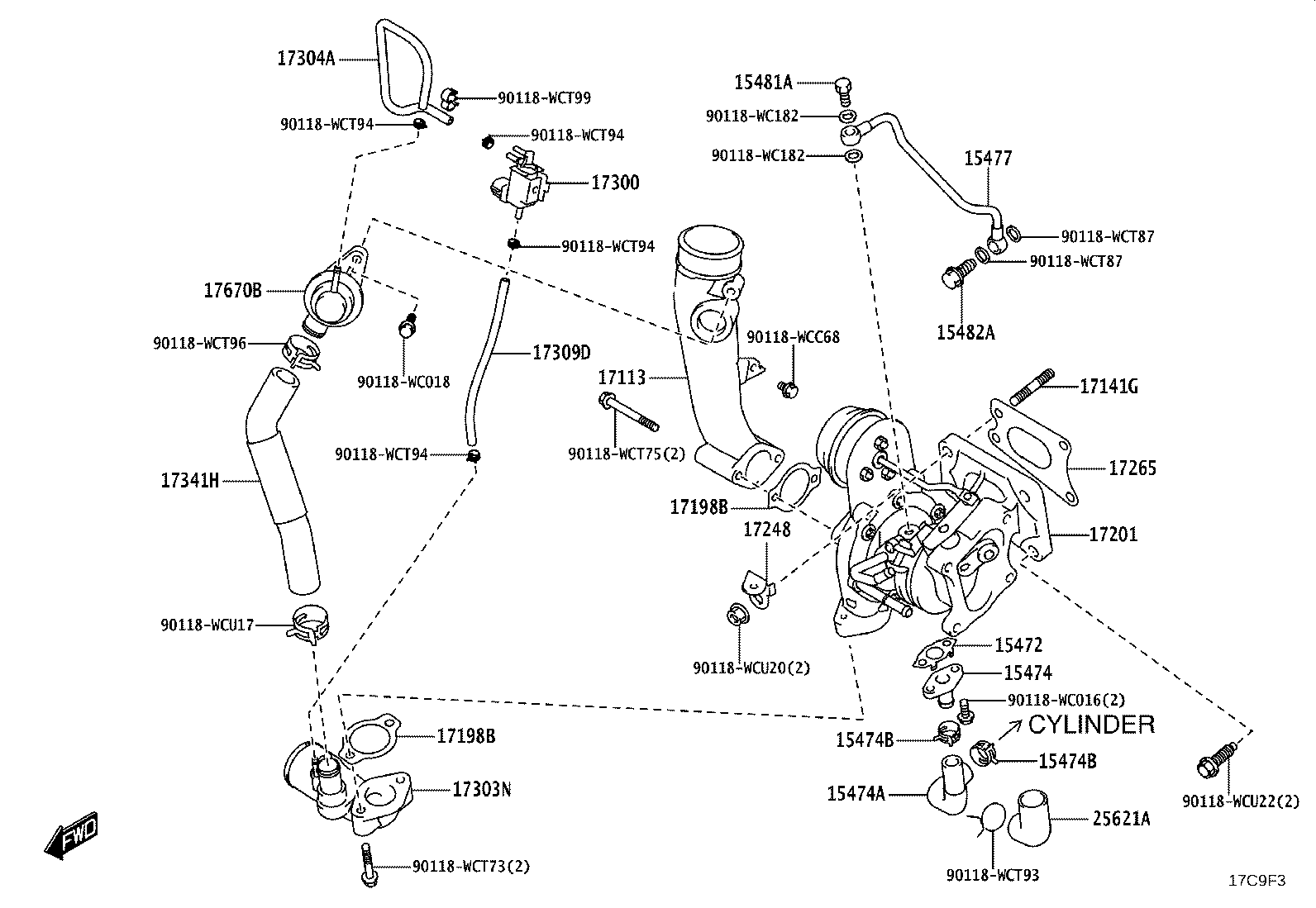

Figure 17C9F0 17C9F0 2024-04 → — Figure 17C9F2 17C9F2 2024-04 → — Figure 17C9F3 17C9F3 2024-04 → — Figure 17C9EY 17C9EY 2024-04 → — Figure 17C9EZ 17C9EZ 2024-04 → — Figure 17C9F1 17C9F1 2024-04 → —

Part groups

PNCDescription
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15477 Pipe, Turbo Oil Inlet
15481A Bolt, Union, NO.1
15482A Bolt, Union, NO.2
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17113 Pipe, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17155 Hose(FOR MANIFOLD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17198B Gasket(FOR TURBOCHARGER SUB-ASSY NO.1)
17201 Turbocharger Sub-assy
17248 Bracket, Turbocharger, NO.1
17265 Gasket, Turbocharger
17278 Gasket, Turbo TO Exhaust Manifold
17300 Valve Assy, Intake Air Control
17303N Pipe Sub-assy, Air
17304A Tube Sub-assy, Air, RH
17309D Tube Sub-assy, Air, LH
17341H Hose, Air
17670B Valve Assy, Air By-pass
25051 Converter Sub-assy, Exhaust Manifold
25621A Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
