Toyota Urban Cruiser Taisor
2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General
Supported model
Data version 2024-04
Vacuum Piping
9 part groups · 4 illustrations
Part groups

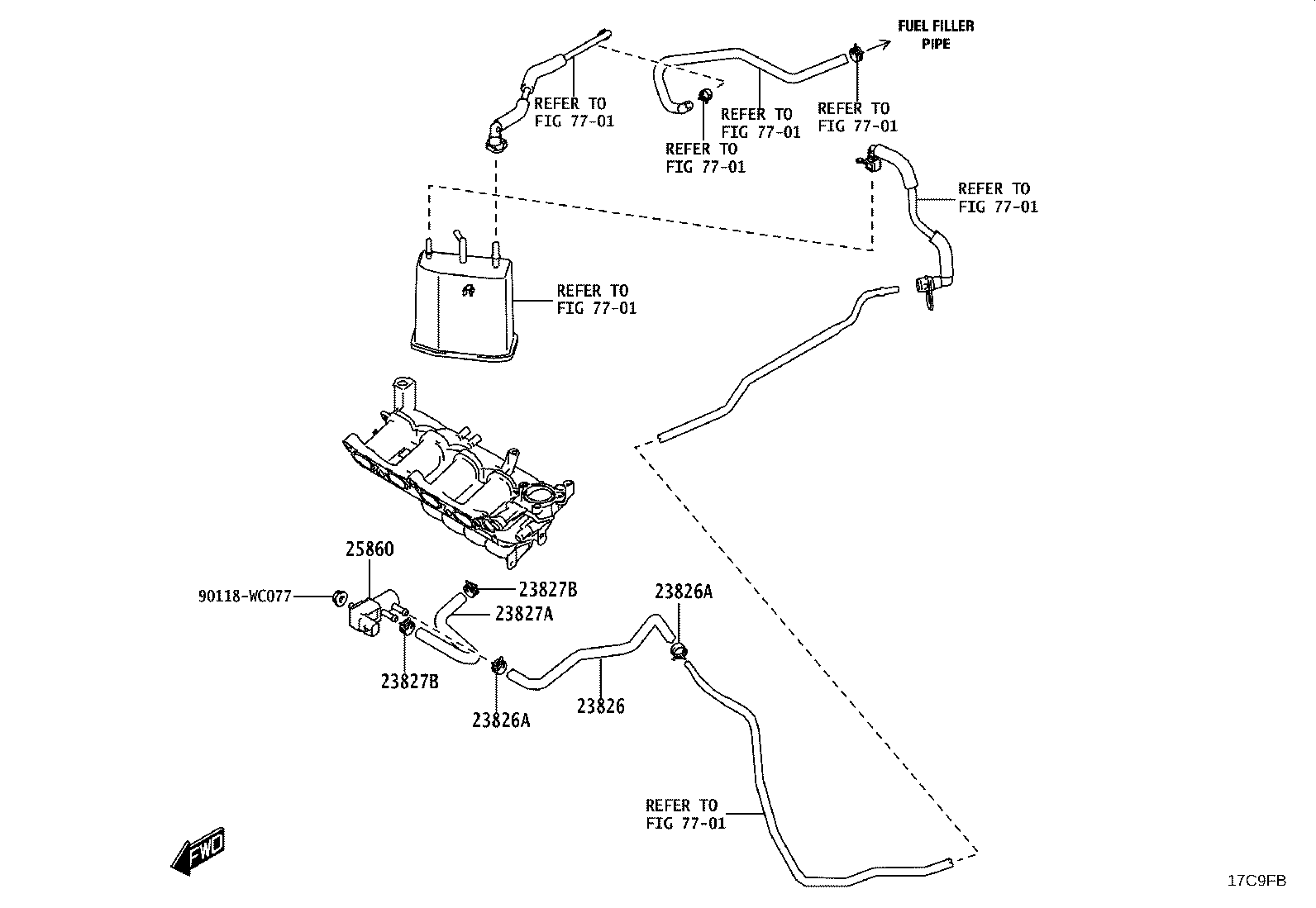

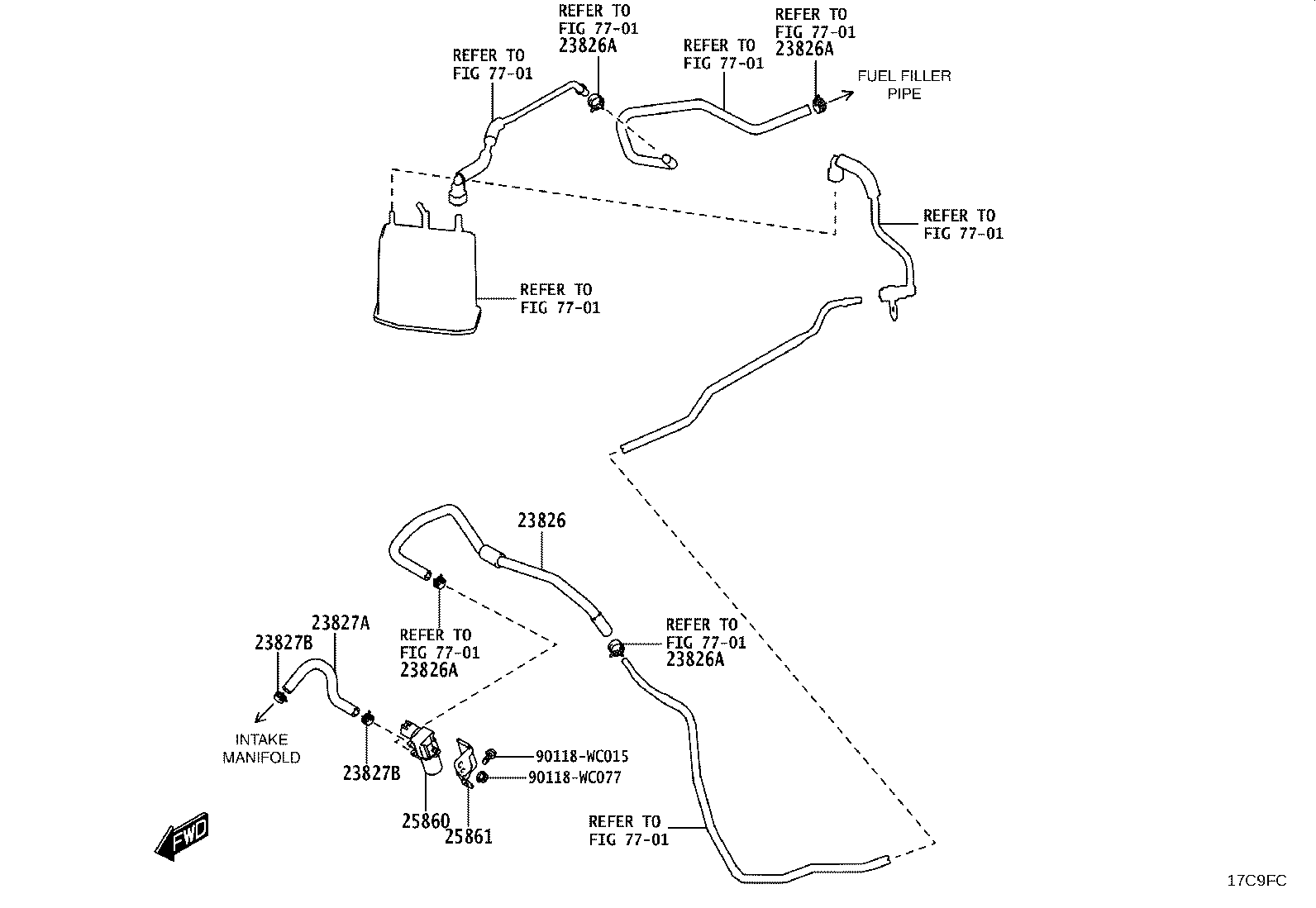

| PNC | Description |
|---|---|
| 17361M | Tube, Air |
| 23211K | Bracket |
| 23285A | Valve, Check, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
