Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

13 part groups · 9 illustrations

Illustrations

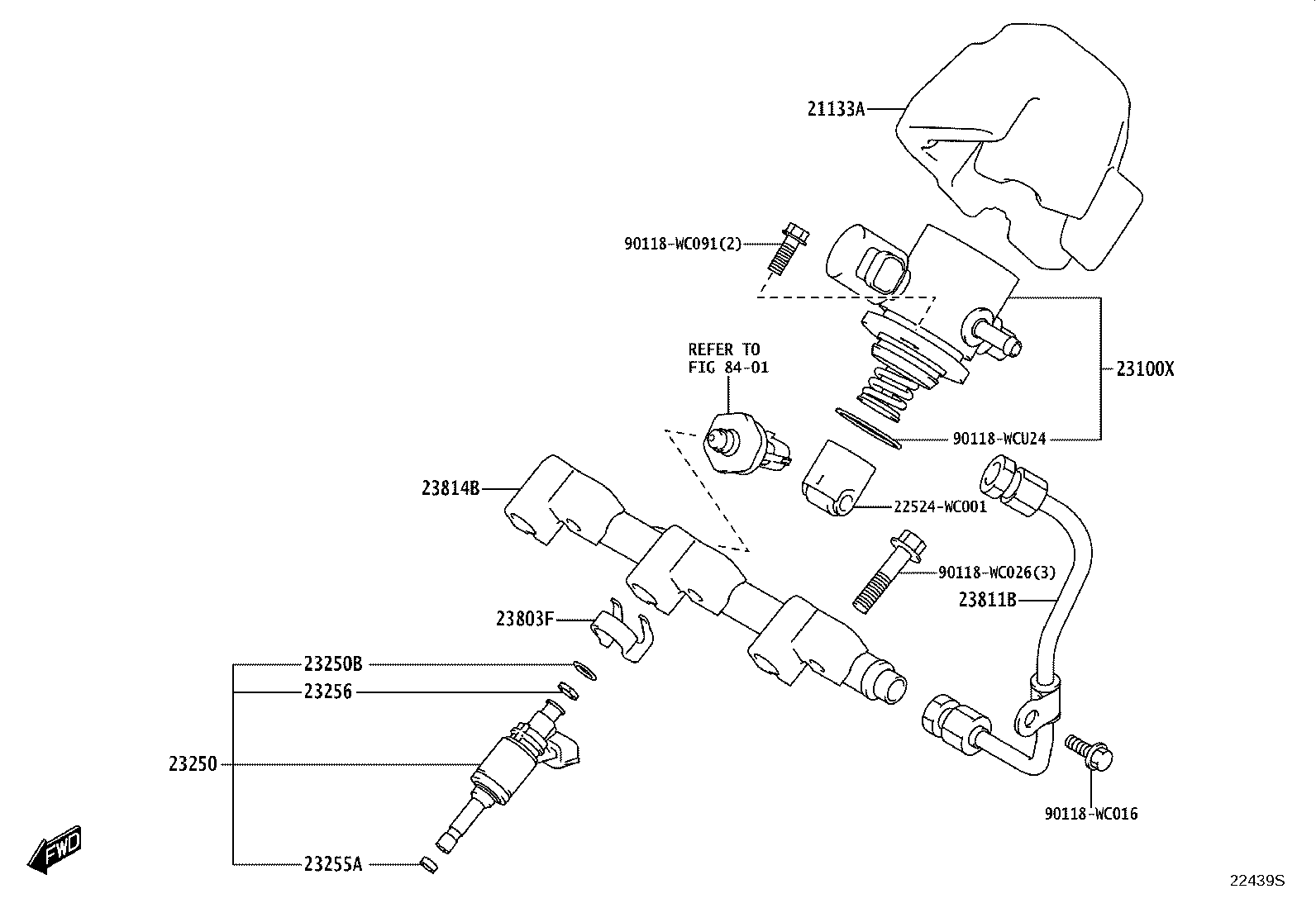

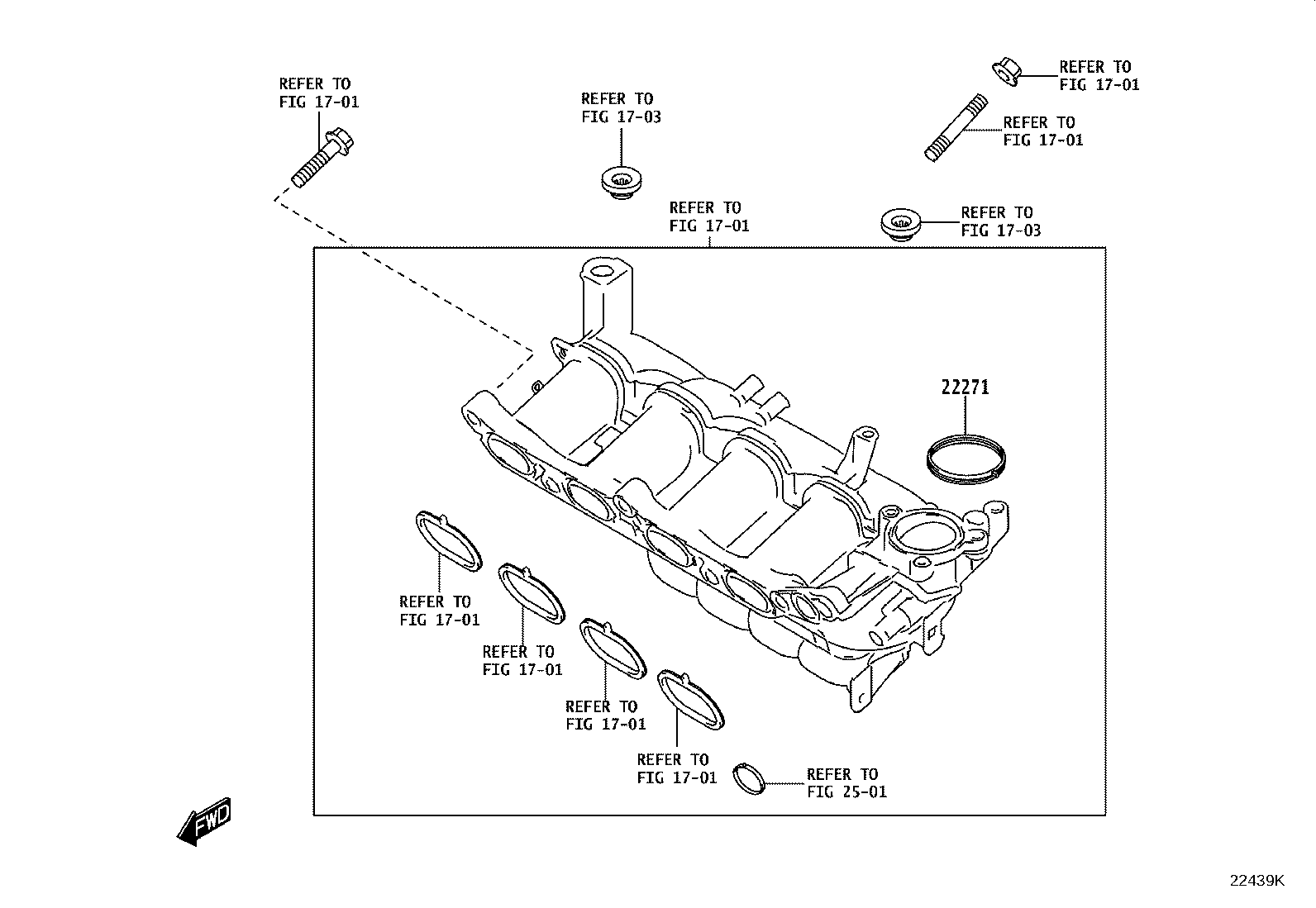

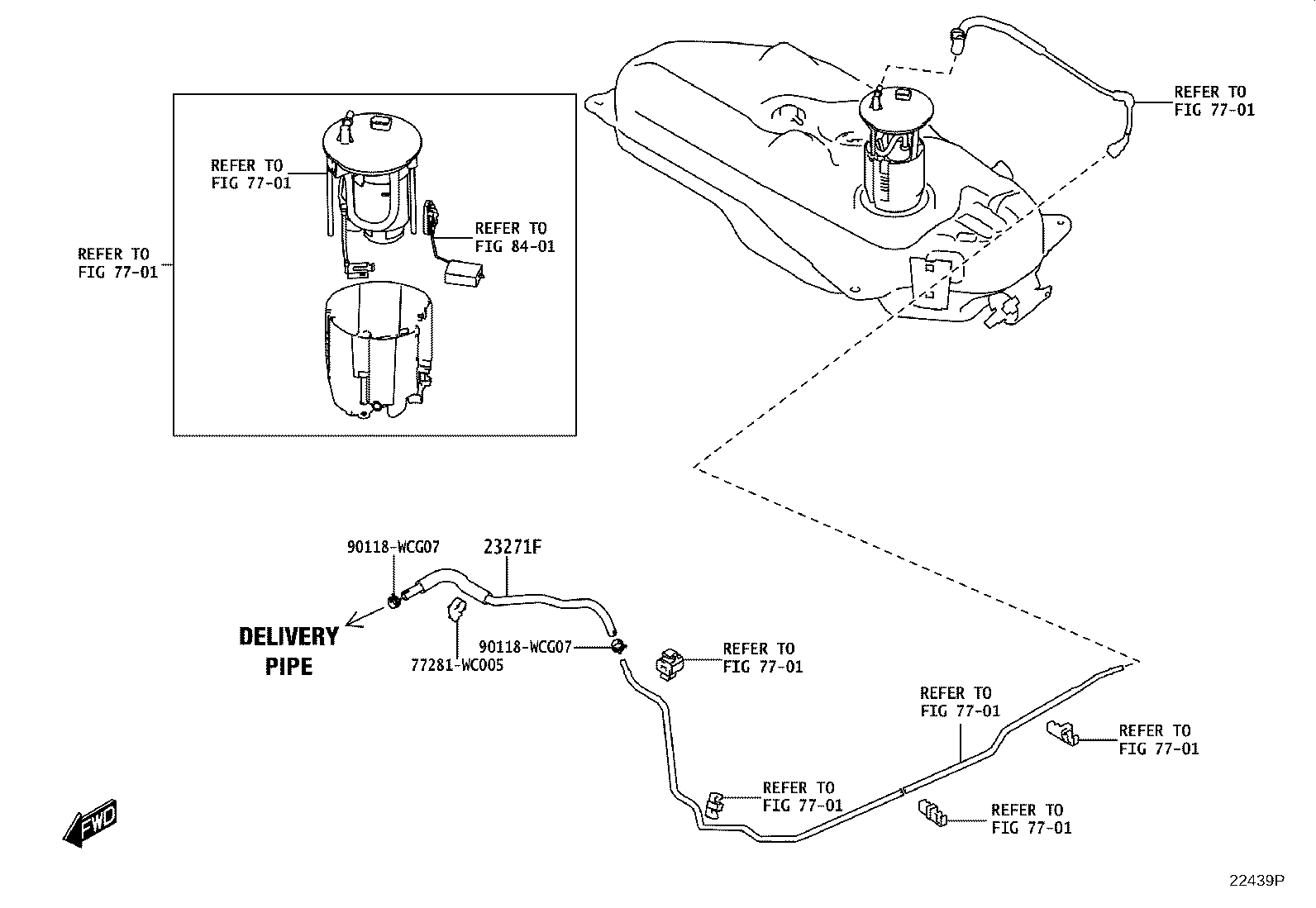

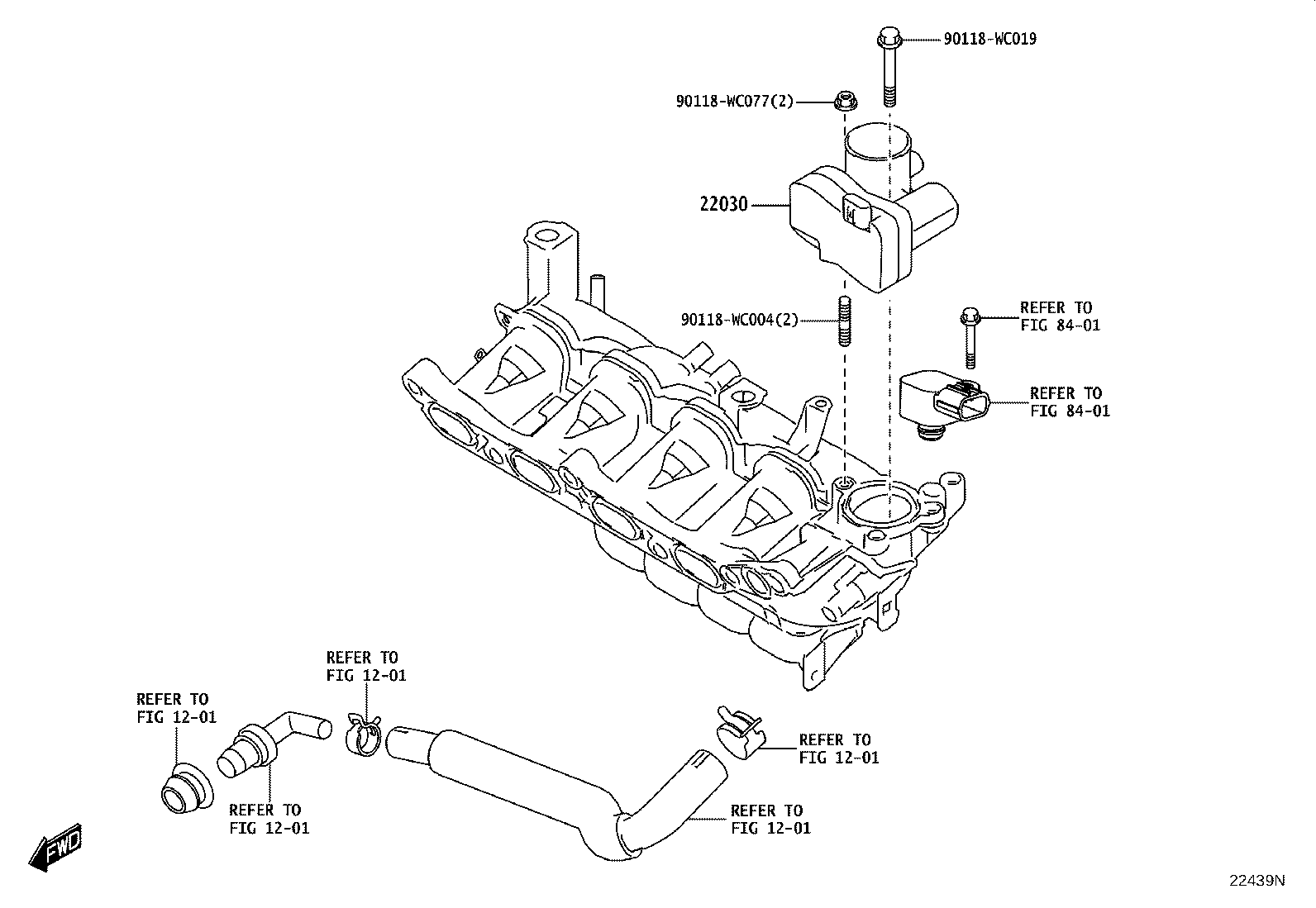

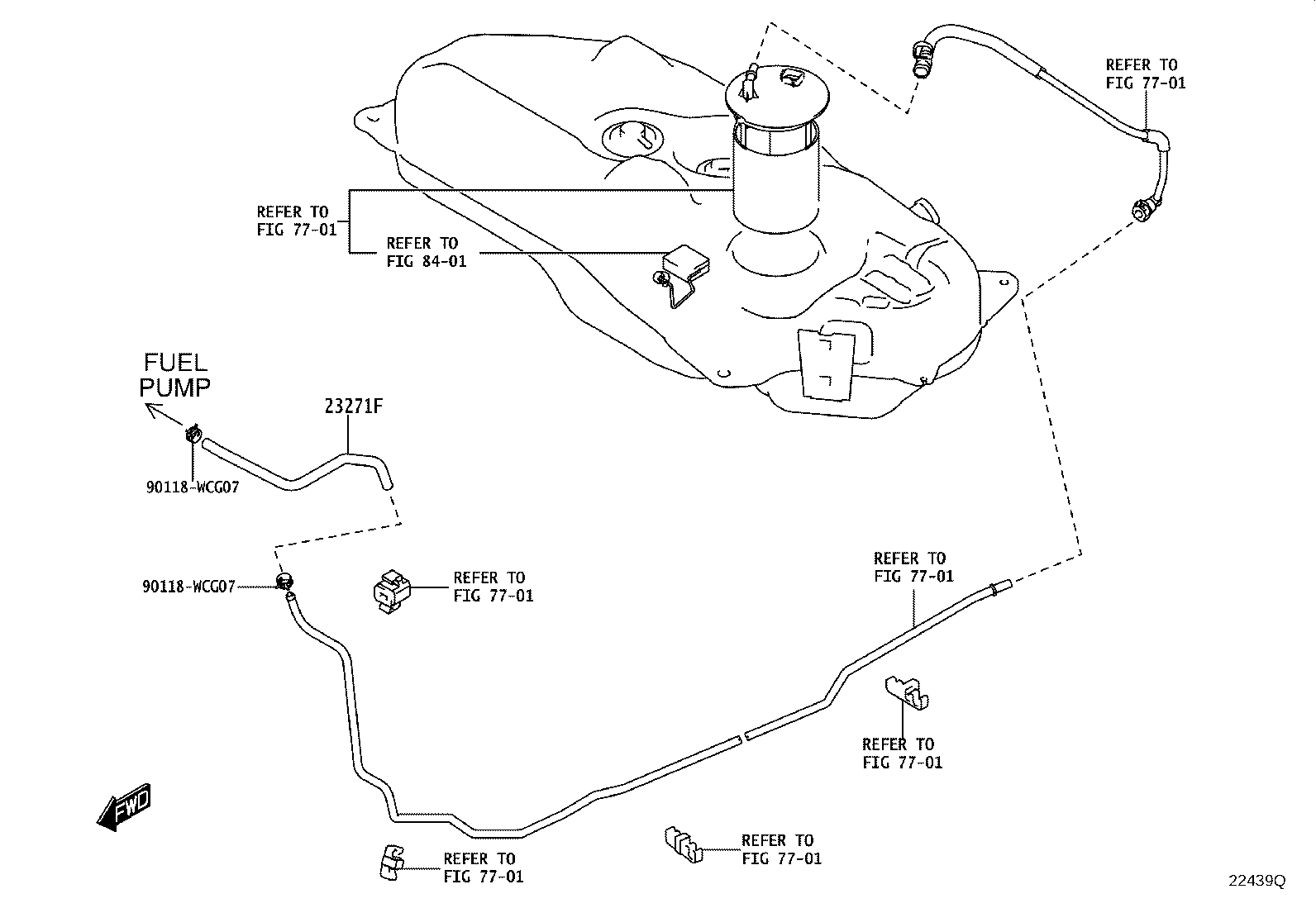

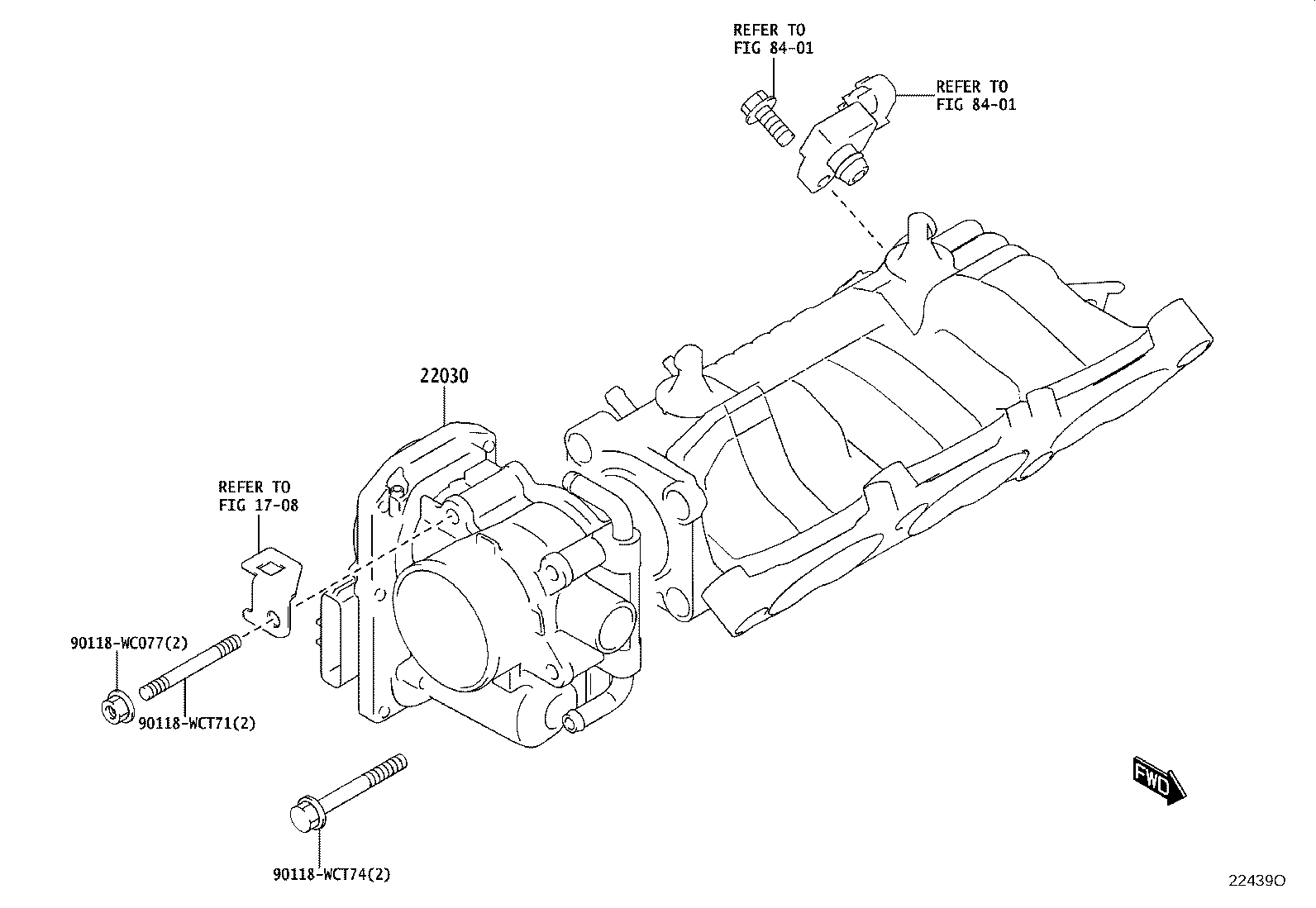

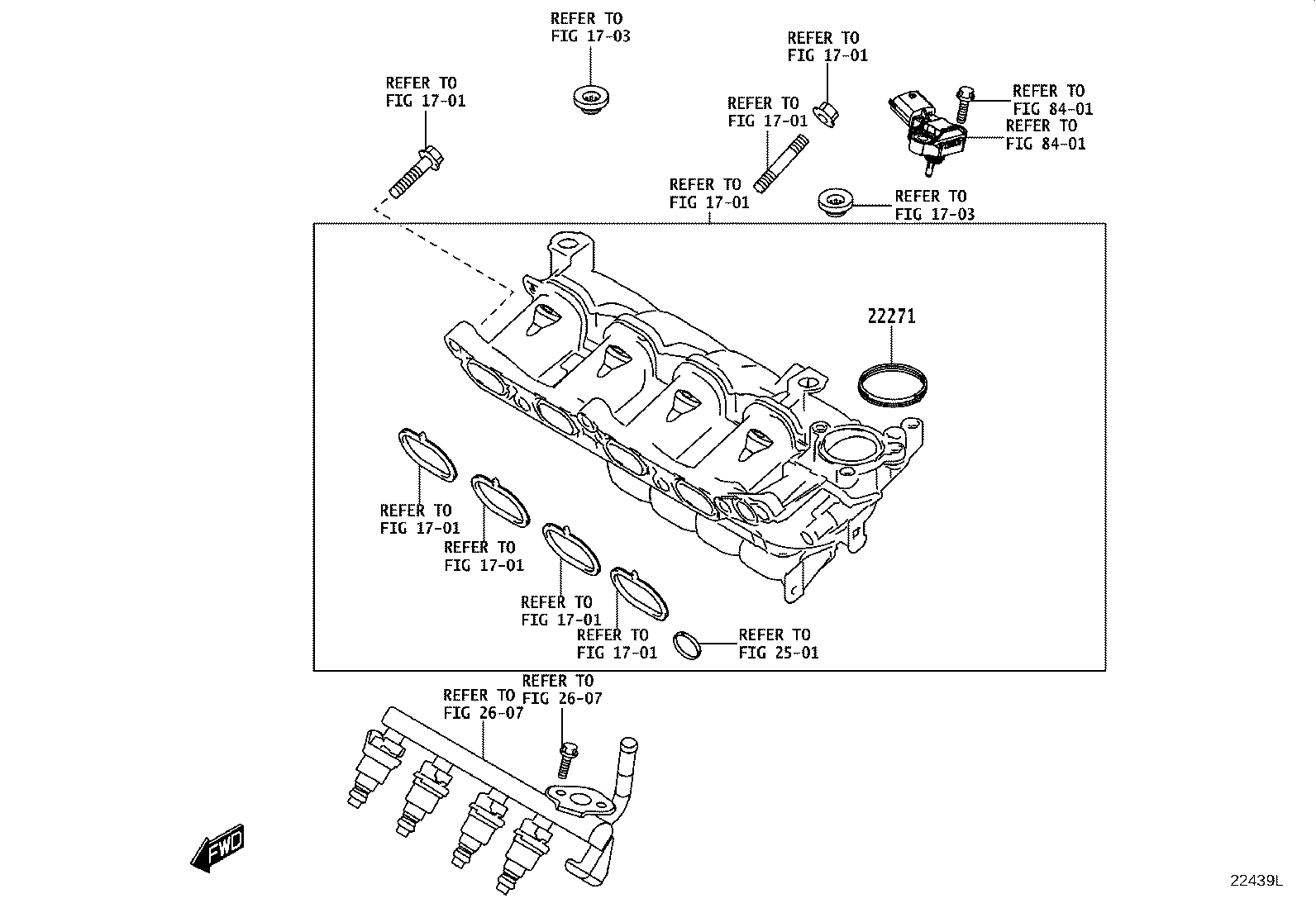

Figure 22439M 22439M 2024-04 → — Figure 22439O 22439O 2024-04 → — Figure 22439Q 22439Q 2024-04 → — Figure 22439S 22439S 2024-04 → — Figure 22439K 22439K 2024-04 → — Figure 22439L 22439L 2024-04 → — Figure 22439N 22439N 2024-04 → — Figure 22439P 22439P 2024-04 → — Figure 22439R 22439R 2024-04 → —

Part groups

PNCDescription
21133A Cover, Dust
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23255A Seal, Fuel Injector
23256 Ring, Fuel Injector Back-up, NO.1
23271F Hose, Fuel
23291 Insulator, Injector Vibration
23803F Clip
23811B Pipe, Fuel, NO.1
23814B Pipe, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
