Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

6 part groups · 2 illustrations

Illustrations

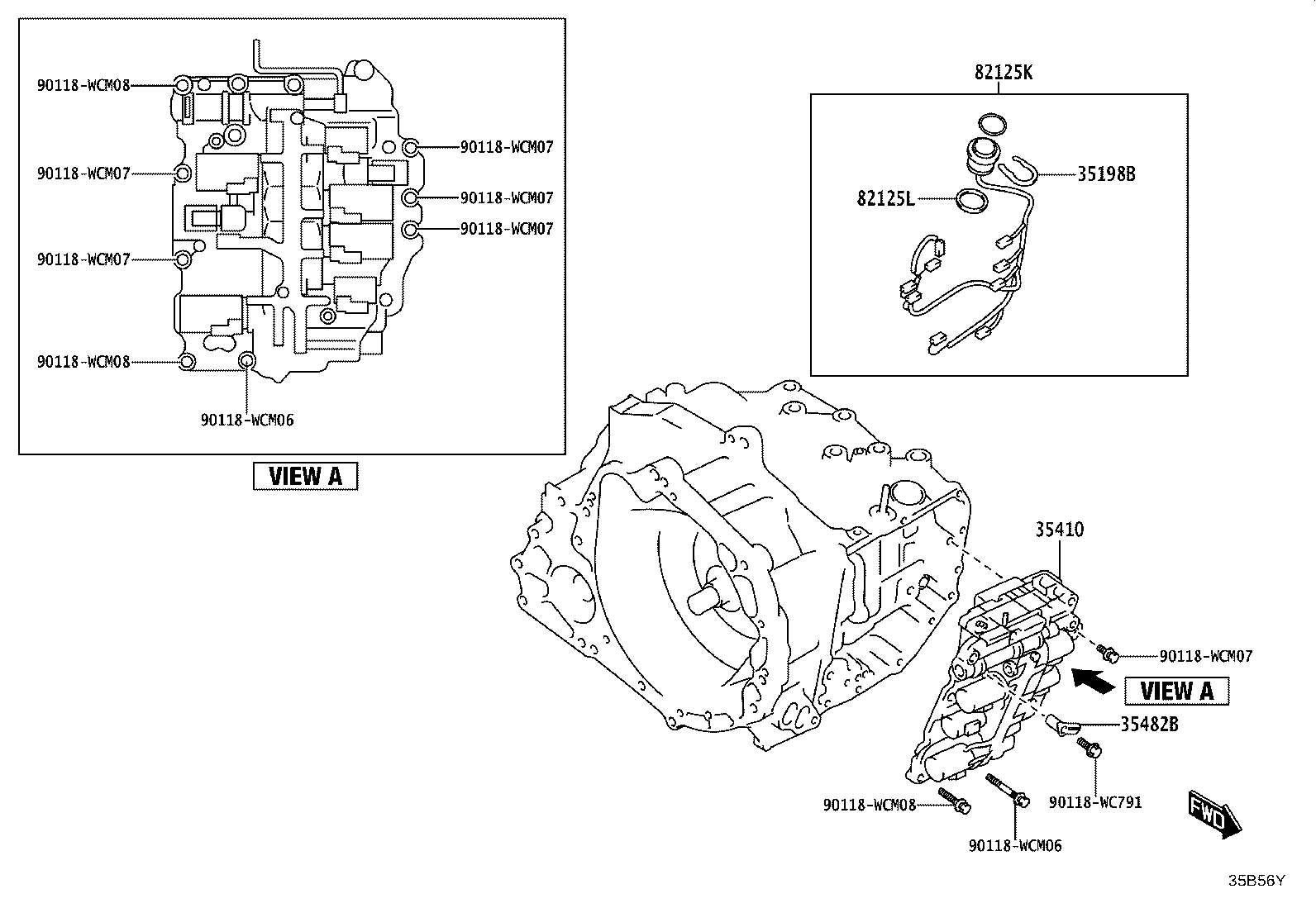

Figure 35B56X 35B56X 2024-04 → — Figure 35B56Y 35B56Y 2024-04 → —

Part groups

PNCDescription
35198B Bracket, Wire Harness Clamp
35303 Strainer Sub-assy, Oil
35410 Body Assy, Transmission Valve
35482B Clamp, Temperature Sensor
82125K Wire, Transmission
82125L Ring, O(FOR TRANSMISSION WIRE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
