Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

3 part groups · 3 illustrations

Illustrations

Figure 47E6FY

47E6FY 2024-04 → —

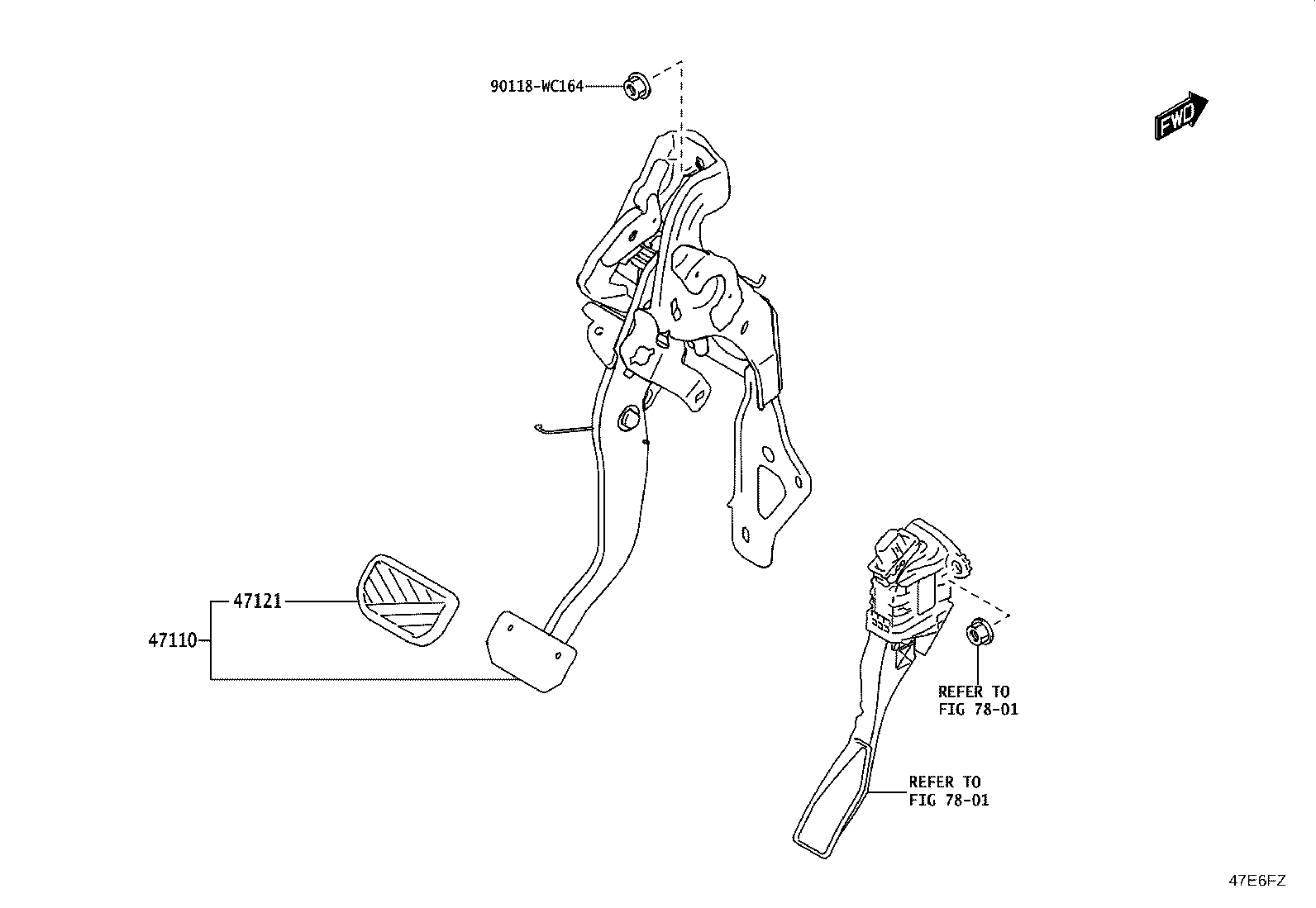

Figure 47E6FZ

47E6FZ 2024-04 → —

Figure 47E6G0

47E6G0 2024-04 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
