Toyota Urban Cruiser Taisor
2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General
Supported model
Data version 2024-04
Instrument Panel & Glove Compartment
45 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|

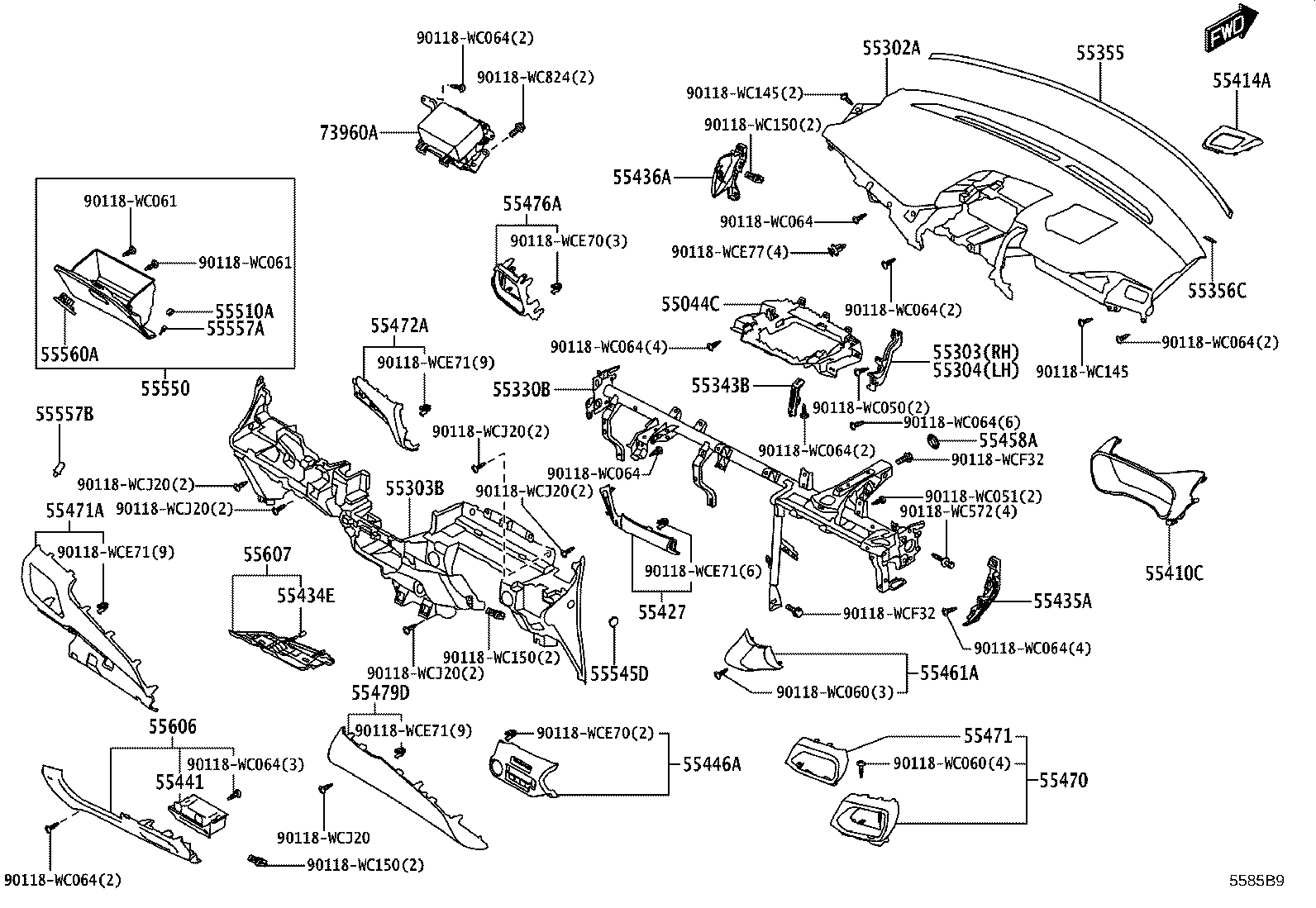

| 55044C | Panel Sub-assy, Instrument Panel Finish |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303 | Stay Sub-assy, Instrument Panel, RH |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55304 | Stay Sub-assy, Instrument Panel, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |

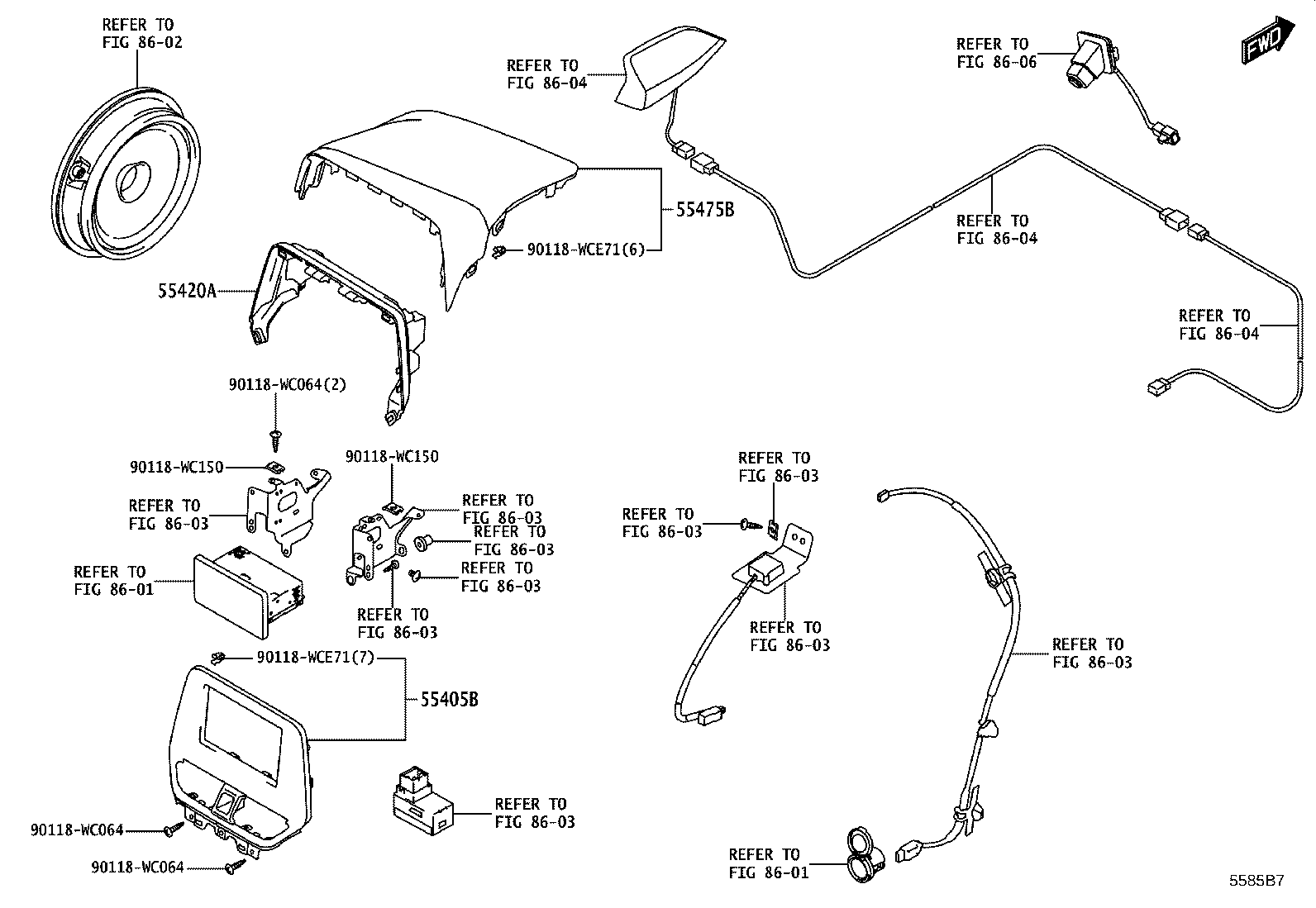

| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55427 | Ornament, Instrument Panel, Center |
| 55434E | Cap |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55441 | Box, Instrument Panel |
| 55446A | Base, Switch Hole, NO.1 |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55461A | Ornament, Instrument Panel |
| 55470 | Garnish Assy, Instrument Cluster Finish Panel |
| 55471 | Moulding, Instrument Cluster, NO.1 |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55472A | Moulding, Instrument Cluster, NO.2 |

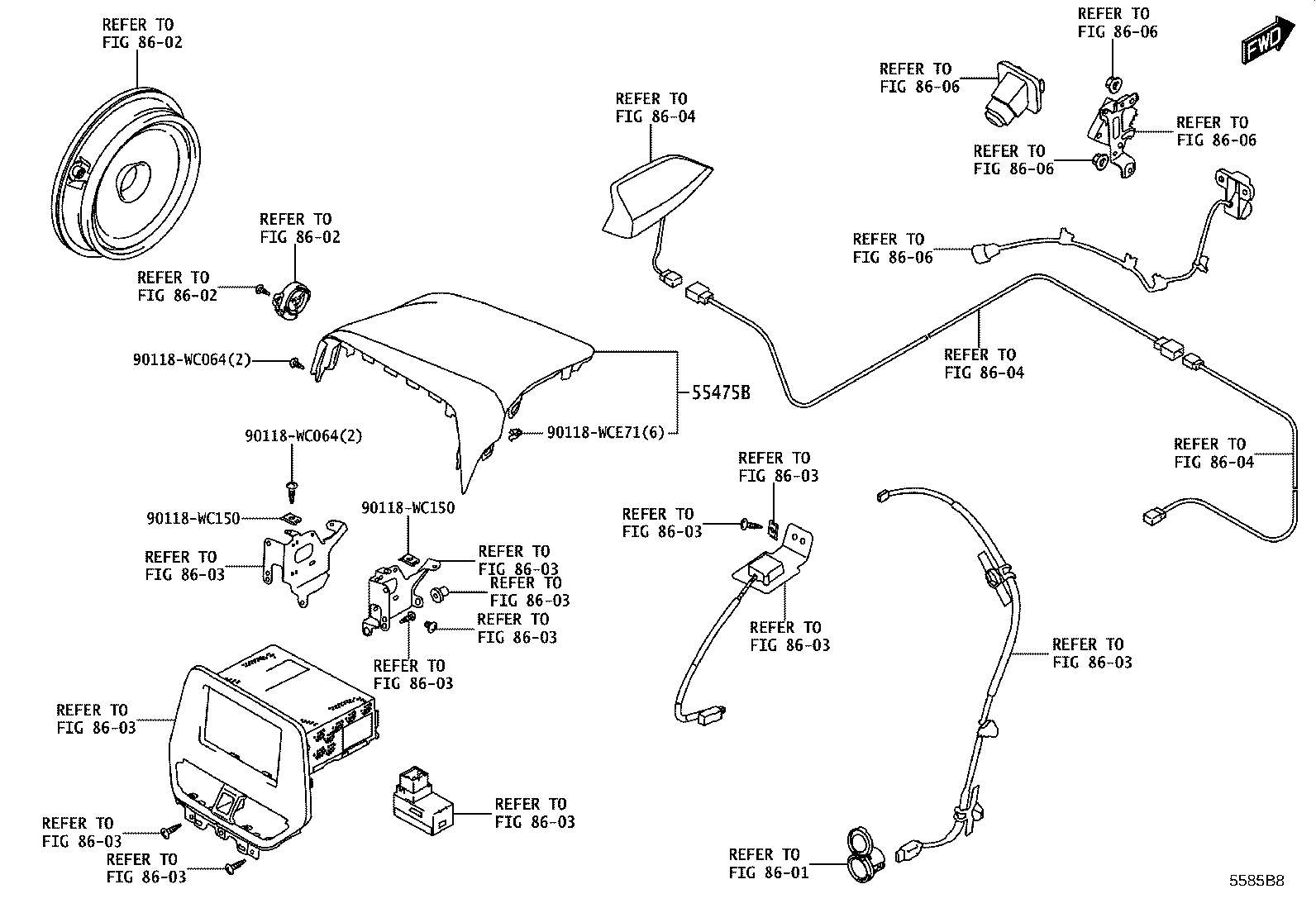

| 55475B | Garnish, Instrument Cluster Finish Panel, Center |
| 55476 | Cover, Cigarette Lighter Hole |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |

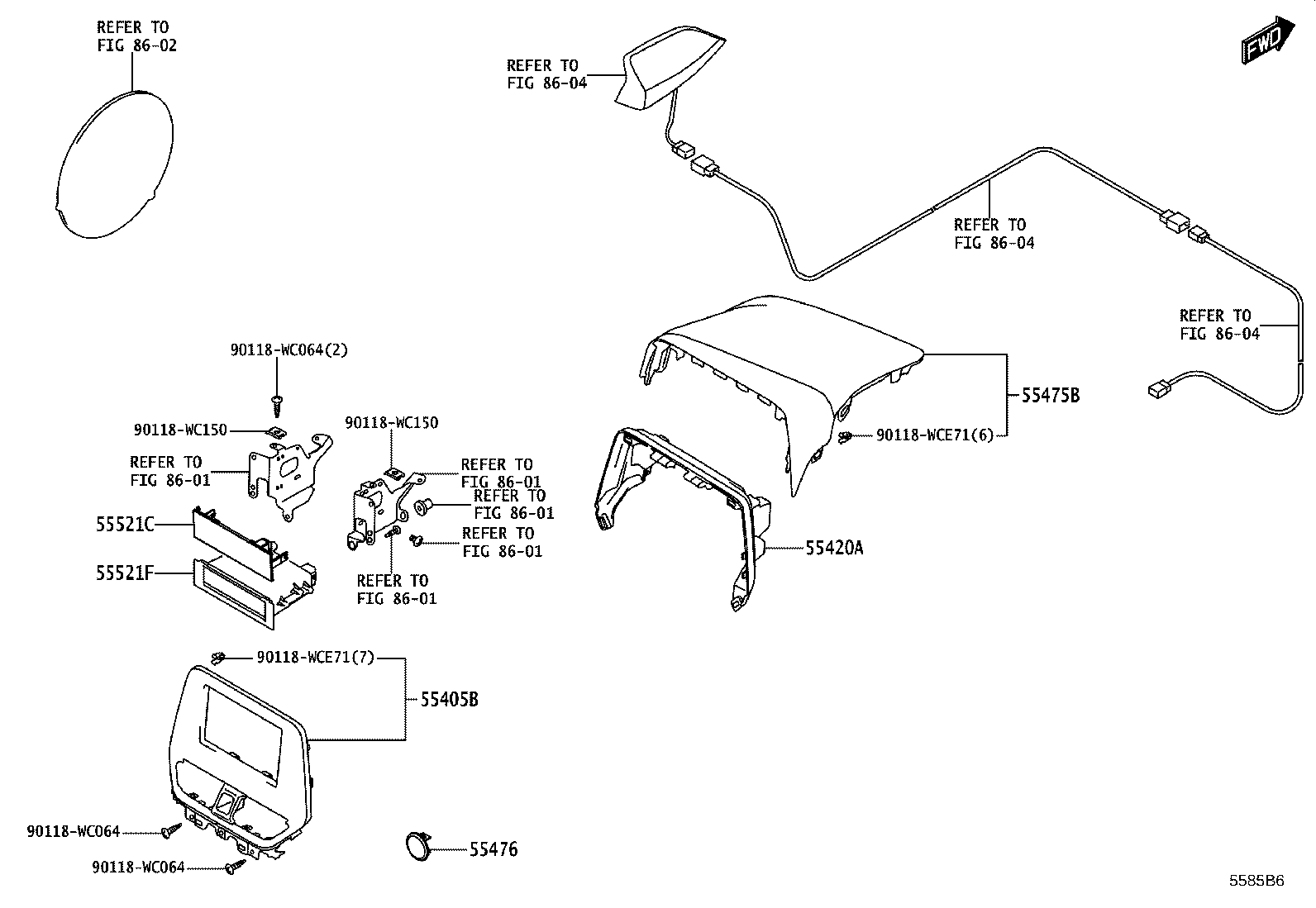

| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |

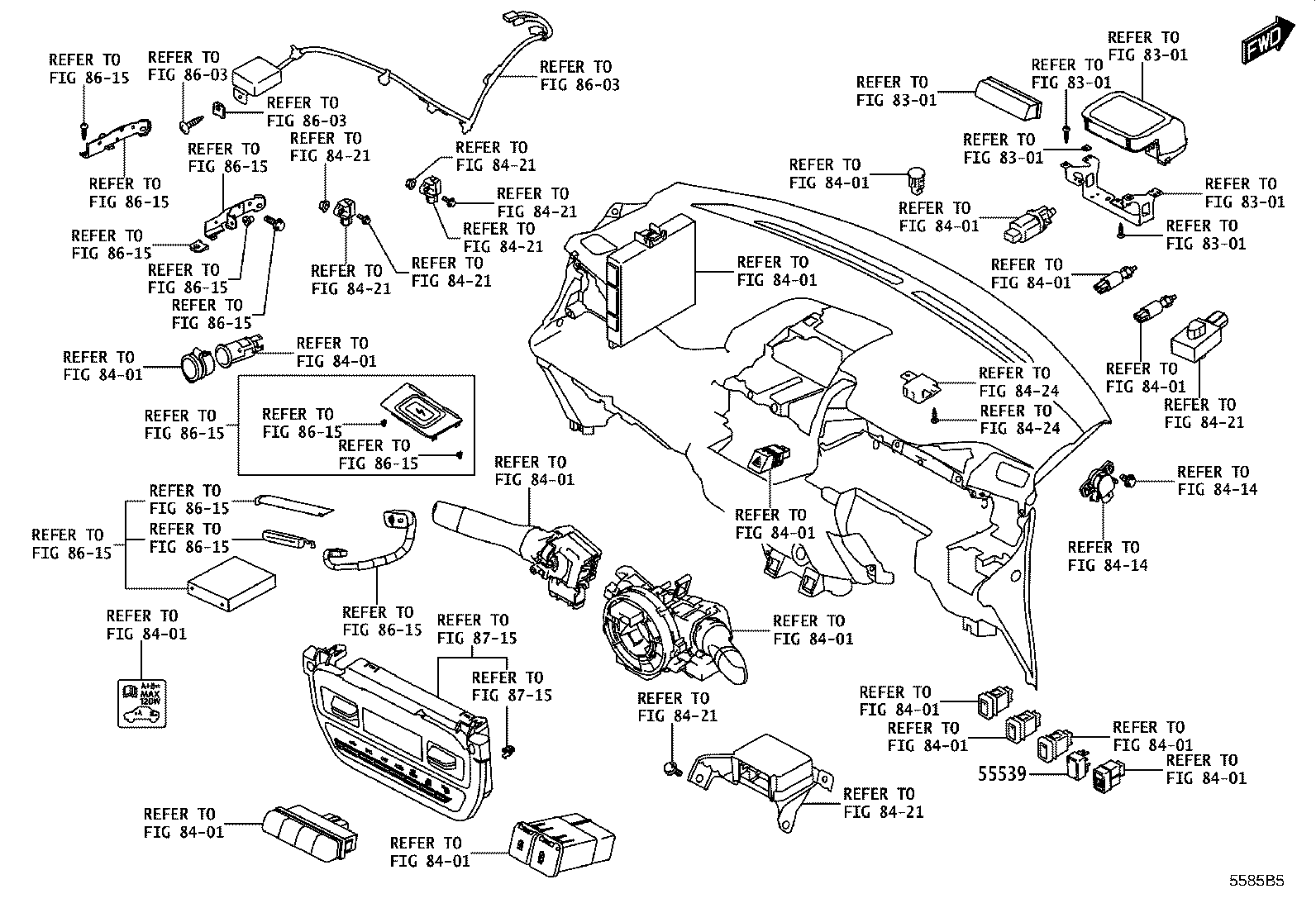

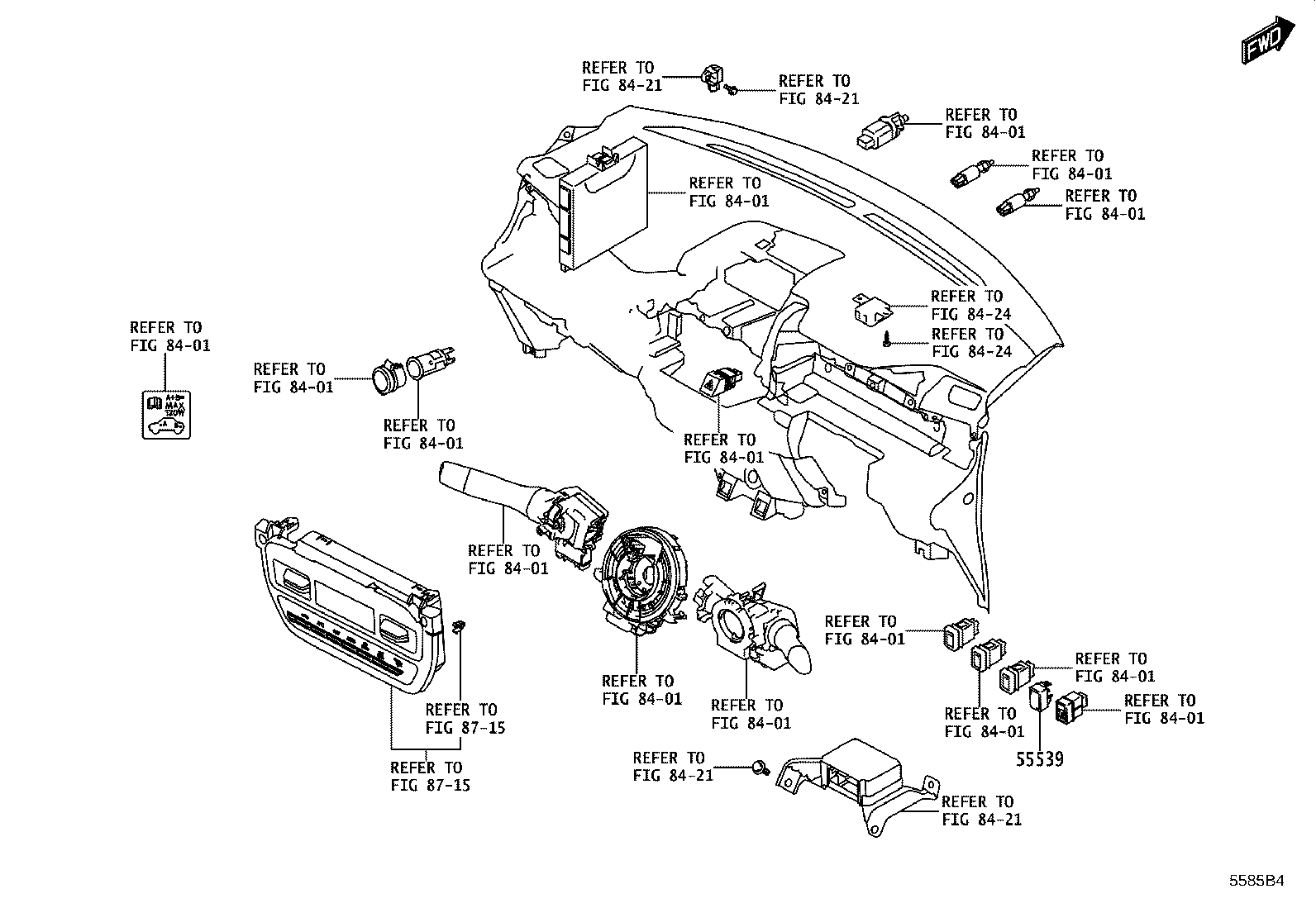

| 55539 | Cover, Spare Switch Hole |
| 55545D | Cover, Instorument Panel Hole, NO.1 |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55557B | Stopper, Glove Compertment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |

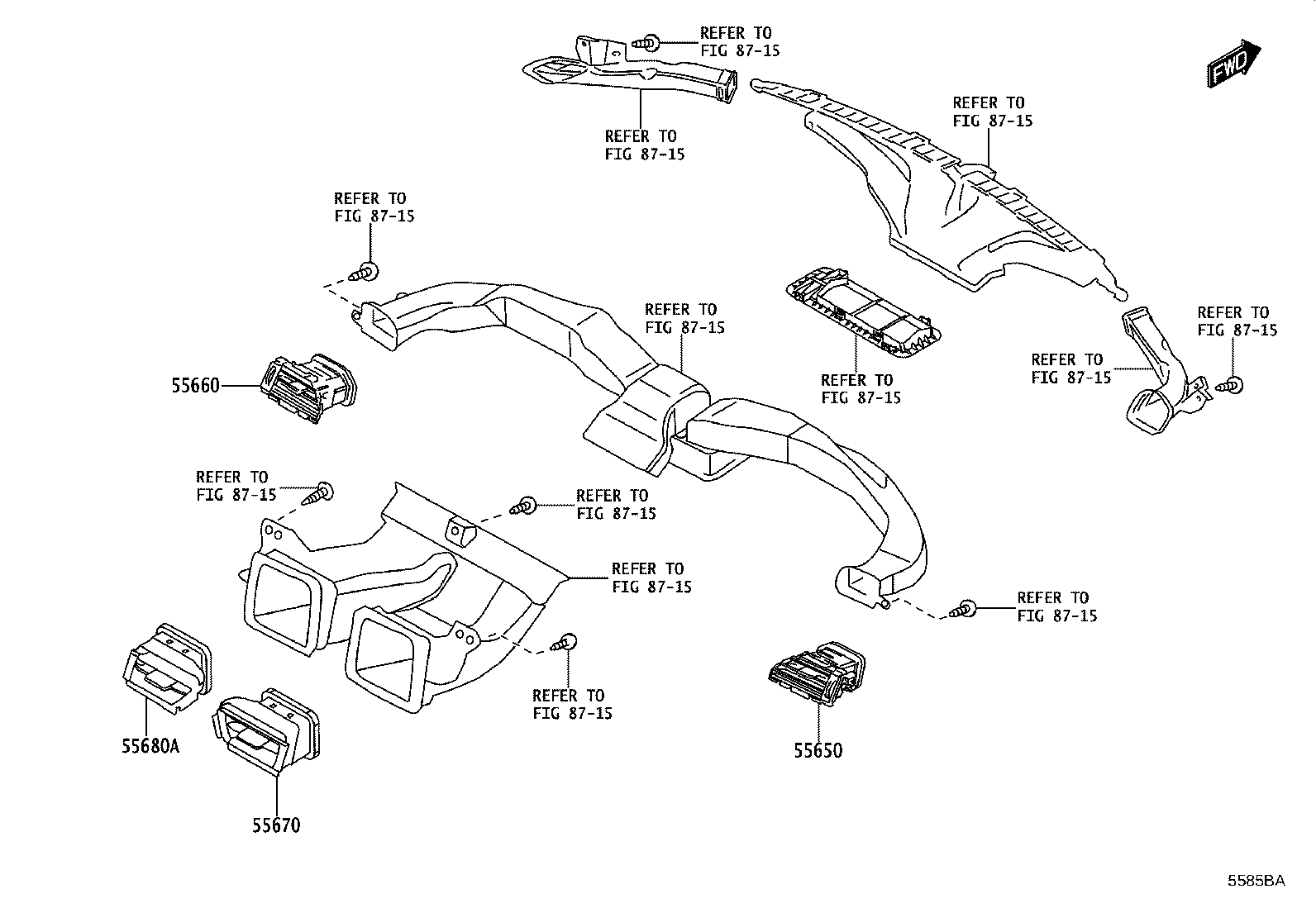

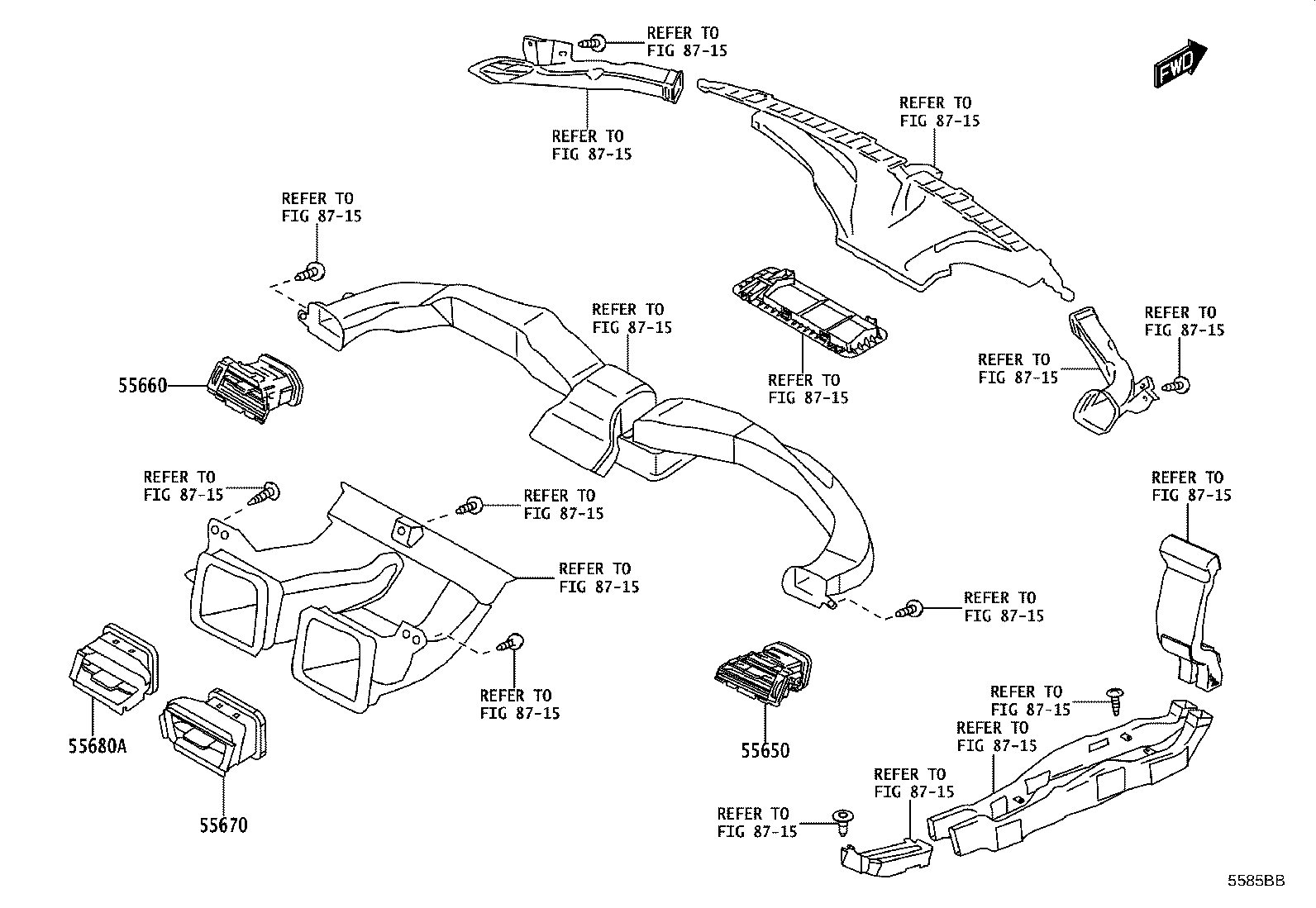

| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
