Toyota Urban Cruiser Taisor
2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General
Supported model
Data version 2024-04

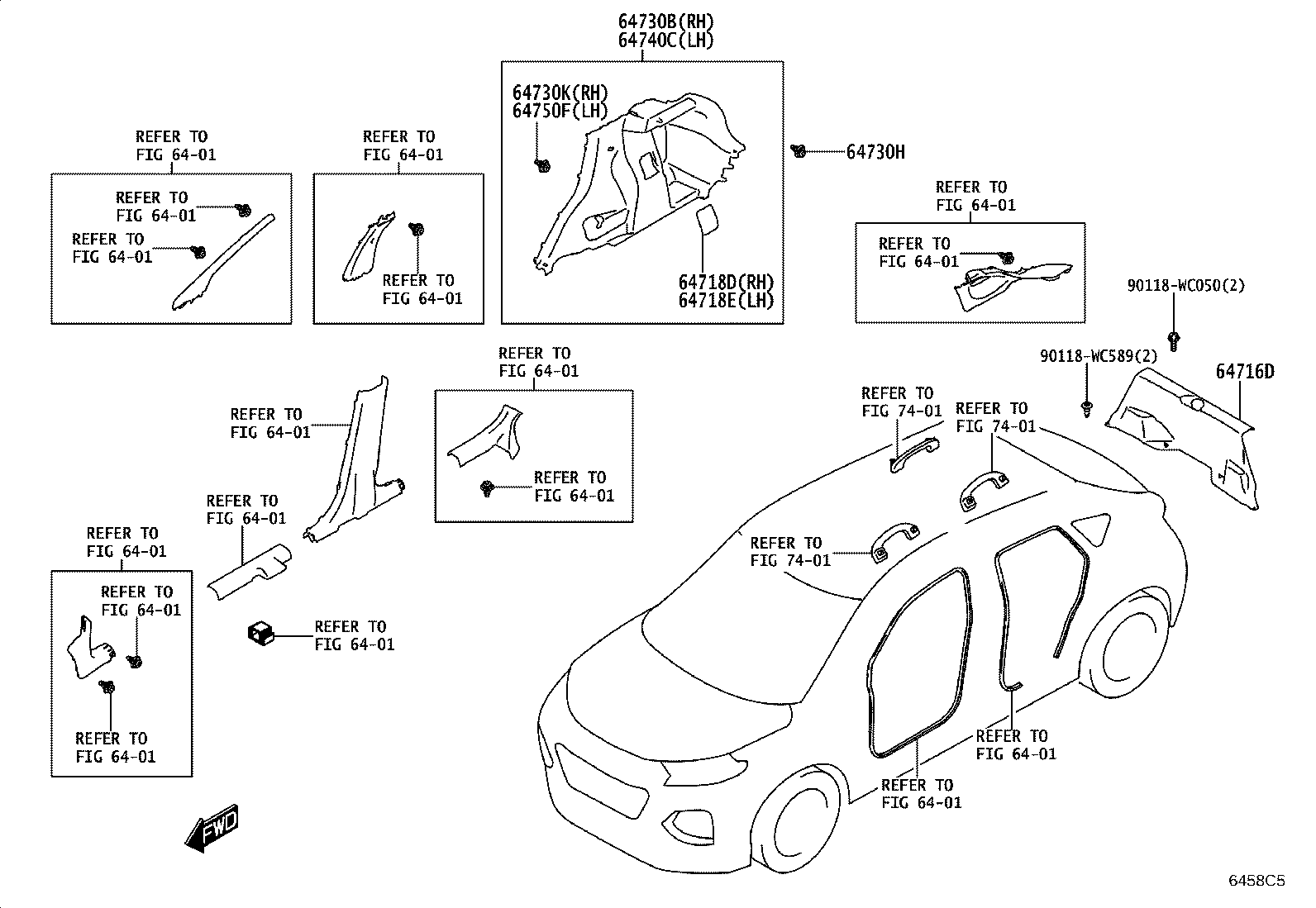

Deck Board & Deck Trim Cover
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64335 | Pad, Package Tray Trim Silencer, Rear |
| 64361 | Hinge, Package Tray Trim, RH |
| 64362 | Hinge, Package Tray Trim, LH |
| 64377 | Cushion, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64711D | Carpet, Luggage Compartment Floor |
| 64716D | Cover, Deck Trim, Rear |
| 64718D | Cover, Deck Trim Service Hole |
| 64718E | Cover, Deck Trim Service Hole, NO.2 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64746A | Cover, Deck Trim Side Lamp Hole |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64770D | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
