Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

19 part groups · 8 illustrations

Illustrations

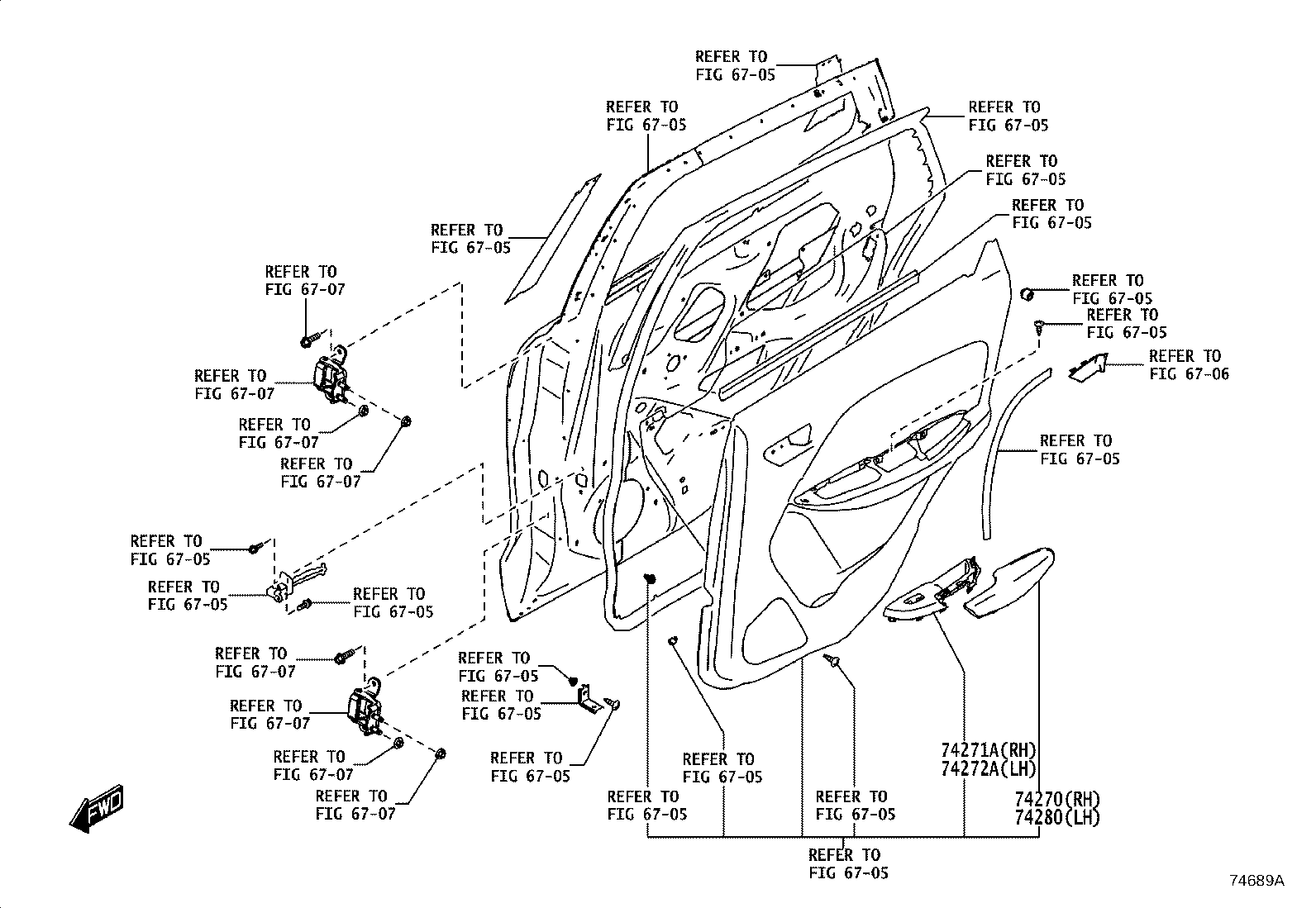

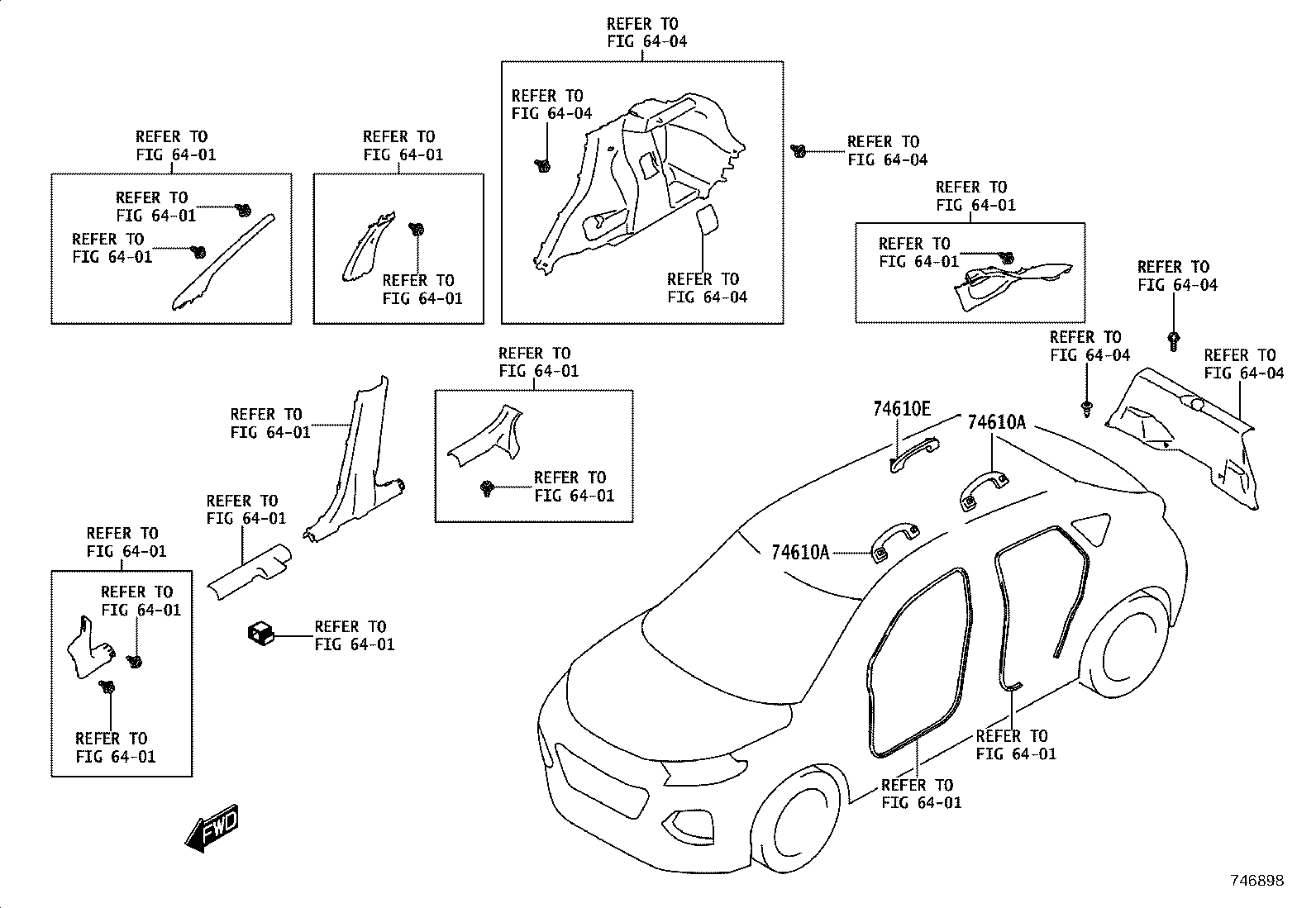

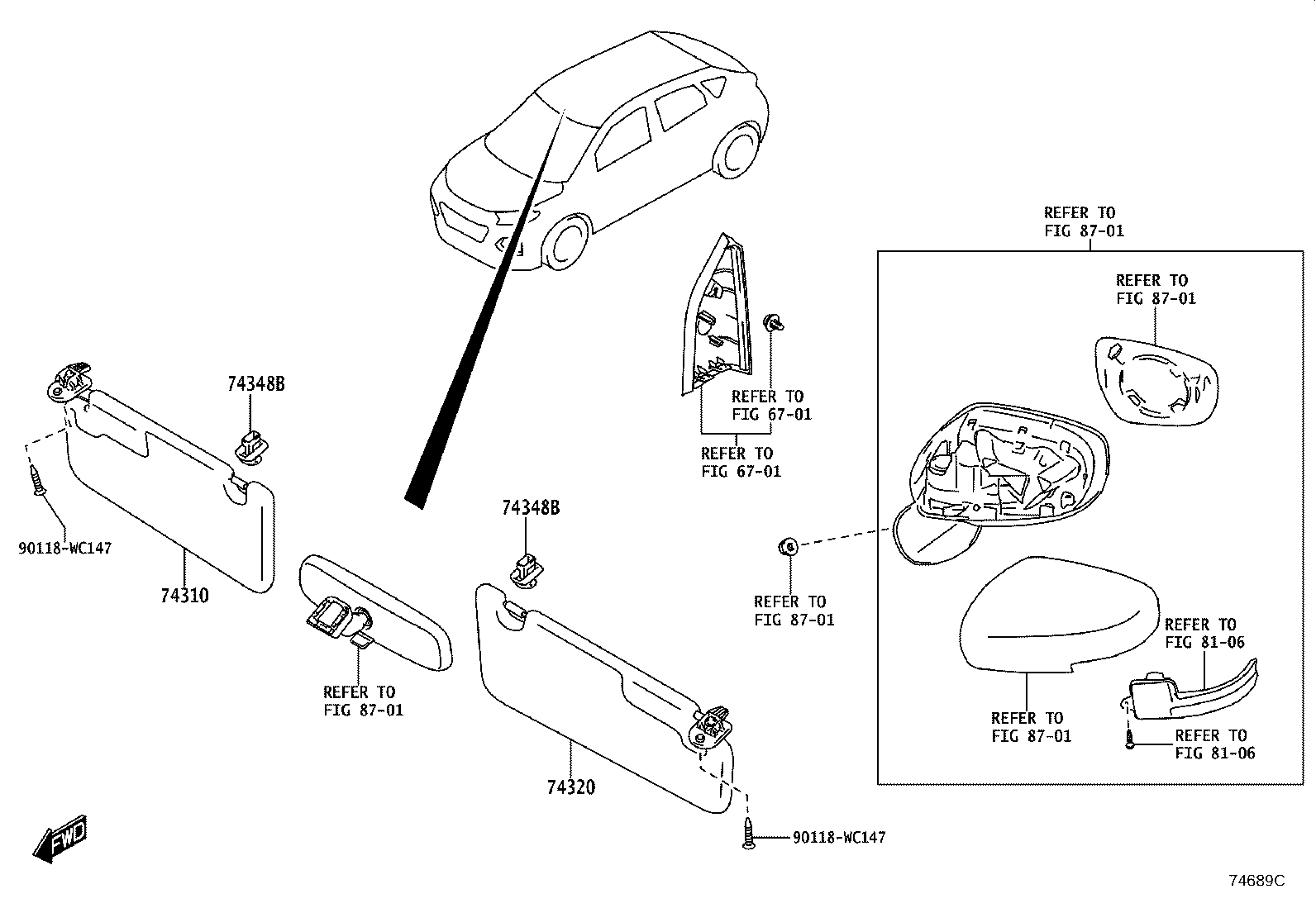

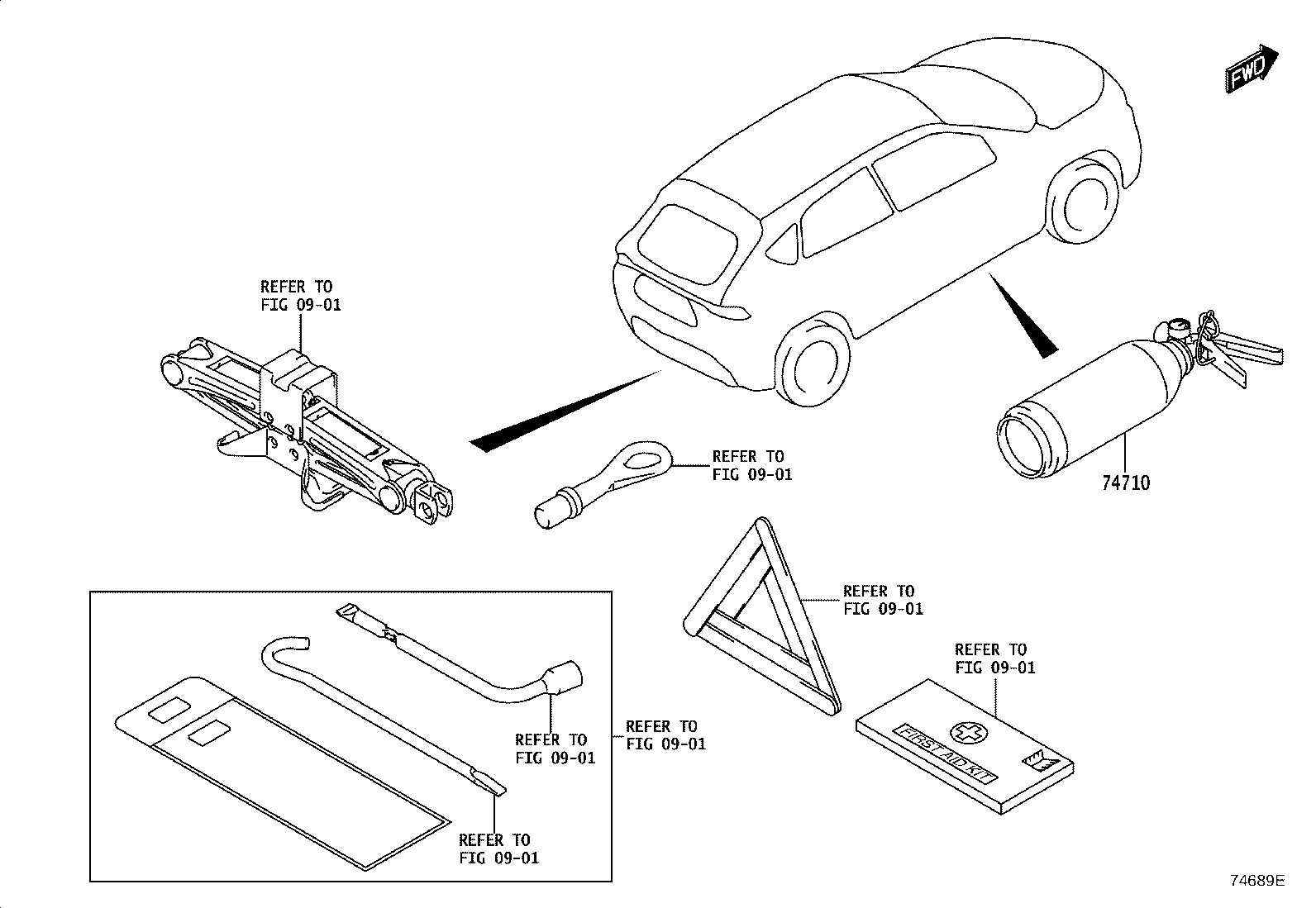

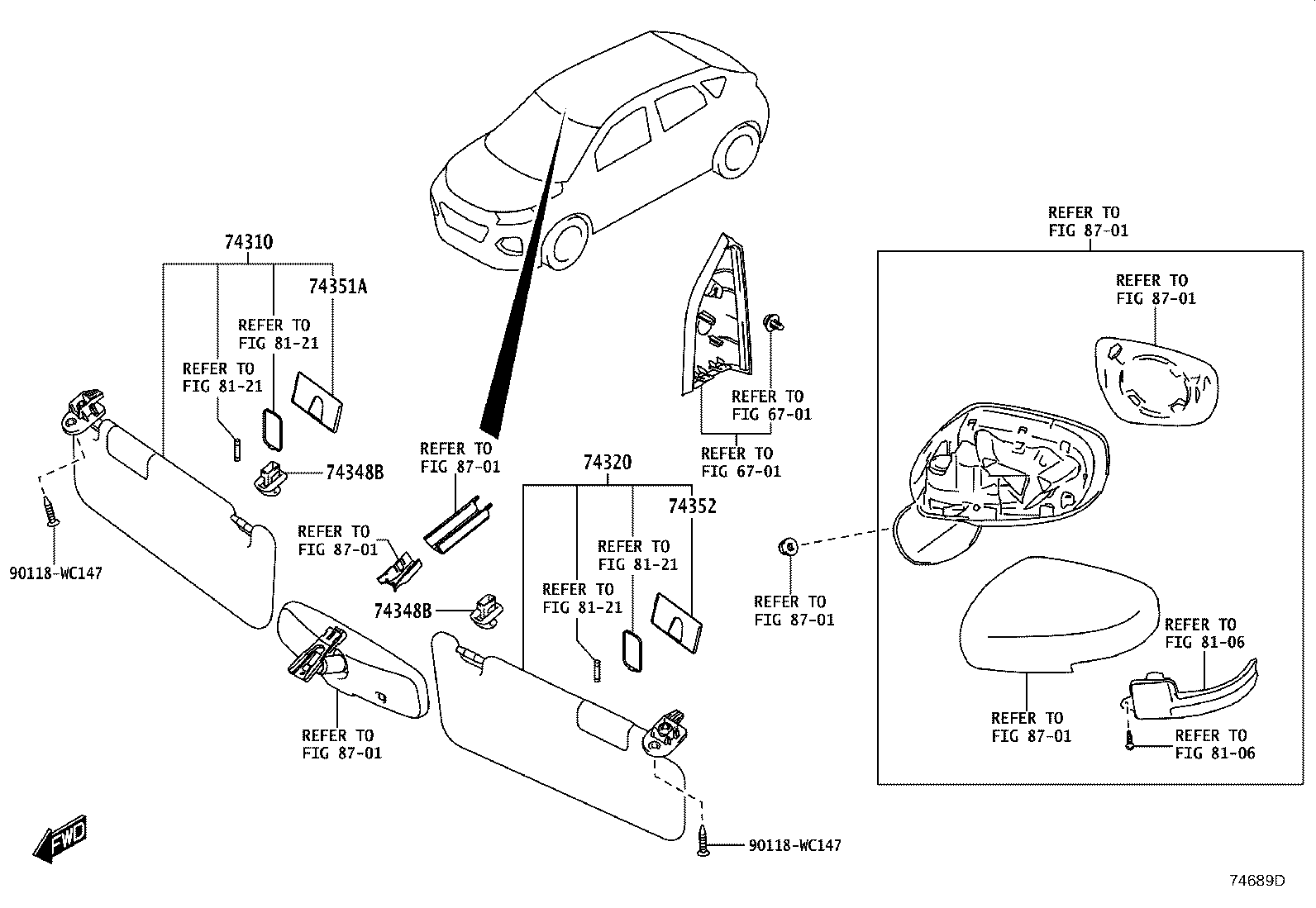

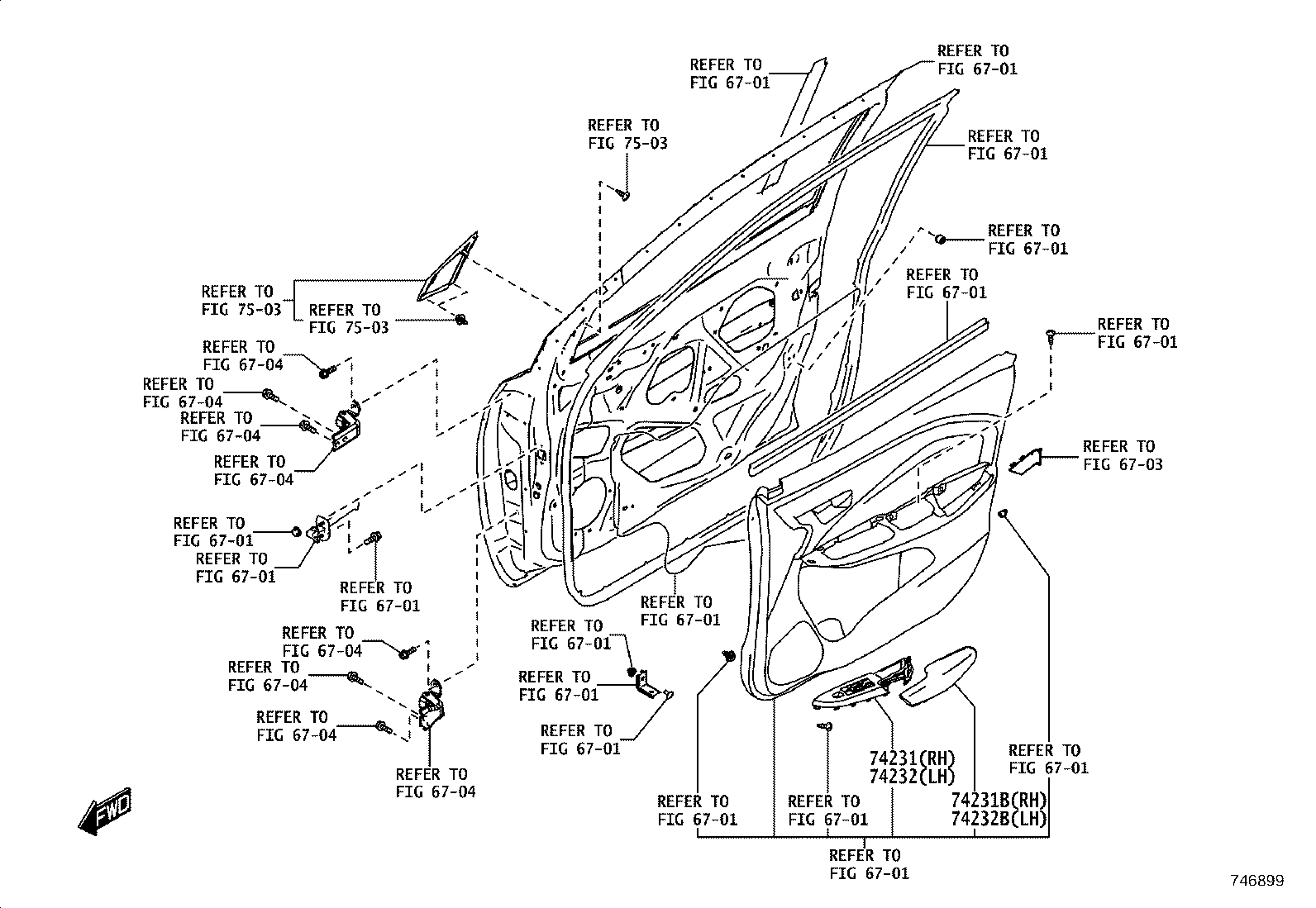

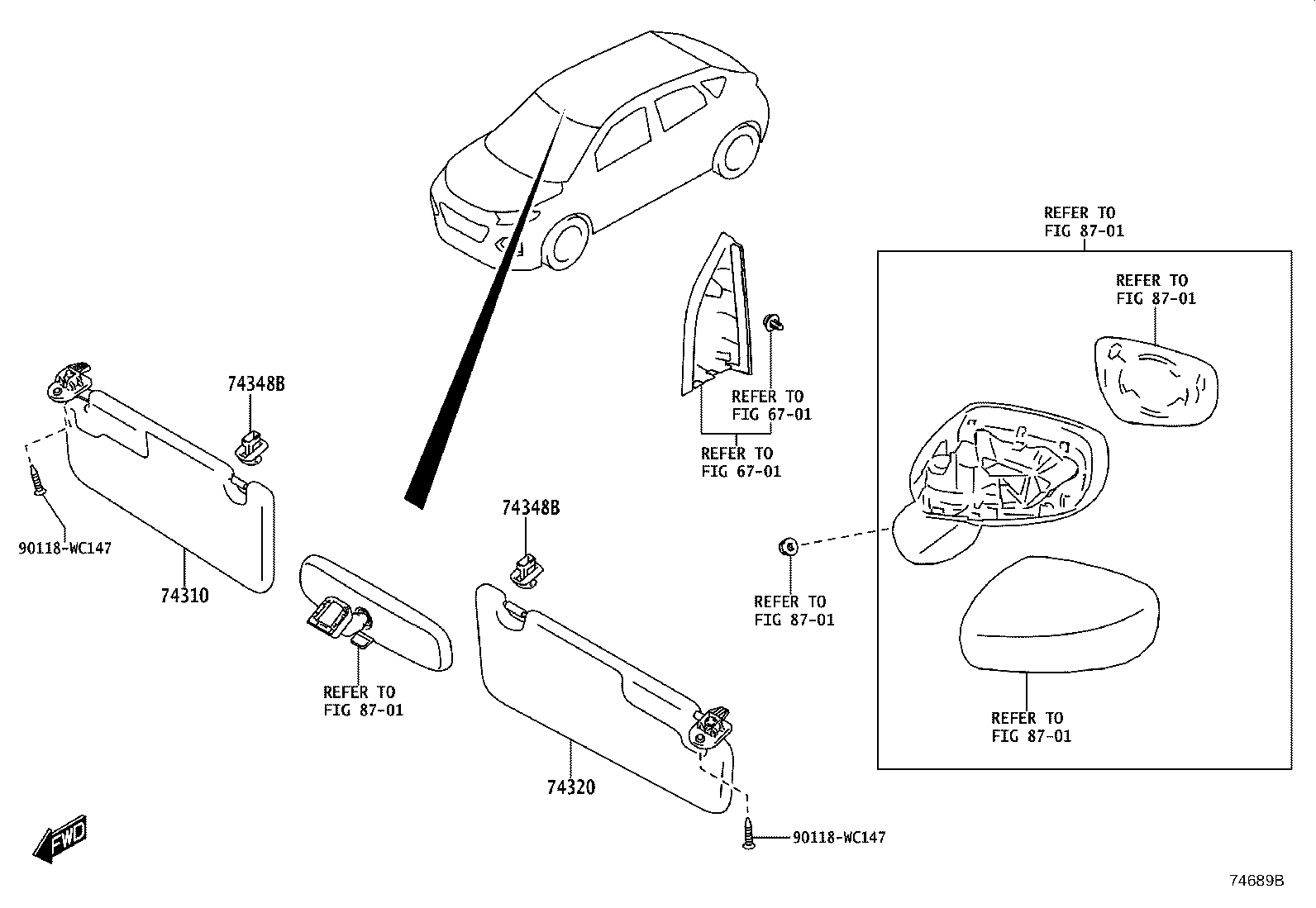

Figure 746897 746897 2024-04 → — Figure 746898 746898 2024-04 → — Figure 746899 746899 2024-04 → — Figure 74689A 74689A 2024-04 → — Figure 74689B 74689B 2024-04 → — Figure 74689C 74689C 2024-04 → — Figure 74689D 74689D 2024-04 → — Figure 74689E 74689E 2024-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74231B Panel, Door Armrest Base, RH
74232 Panel, Front Armrest Base, Upper LH
74232B Panel, Door Armrest Base, LH
74270 Panel Assy, Rear Door Armrest Base, RH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74351A Cover, Visor, NO.1
74352 Cover, Visor, NO.2
74610A Grip Sub-assy, Assist
74610E Grip Assy, Assist
74710 Extinguisher Assy
74711 Bracket Sub-assy, Extinguisher
74712A Bracket, Extinguisher, Upper
74714 Band, Extinguisher
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
