Toyota Urban Cruiser Taisor
2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General
Supported model
Data version 2024-04
Caution Plate (EXTERIOR & INTERIOR)
10 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

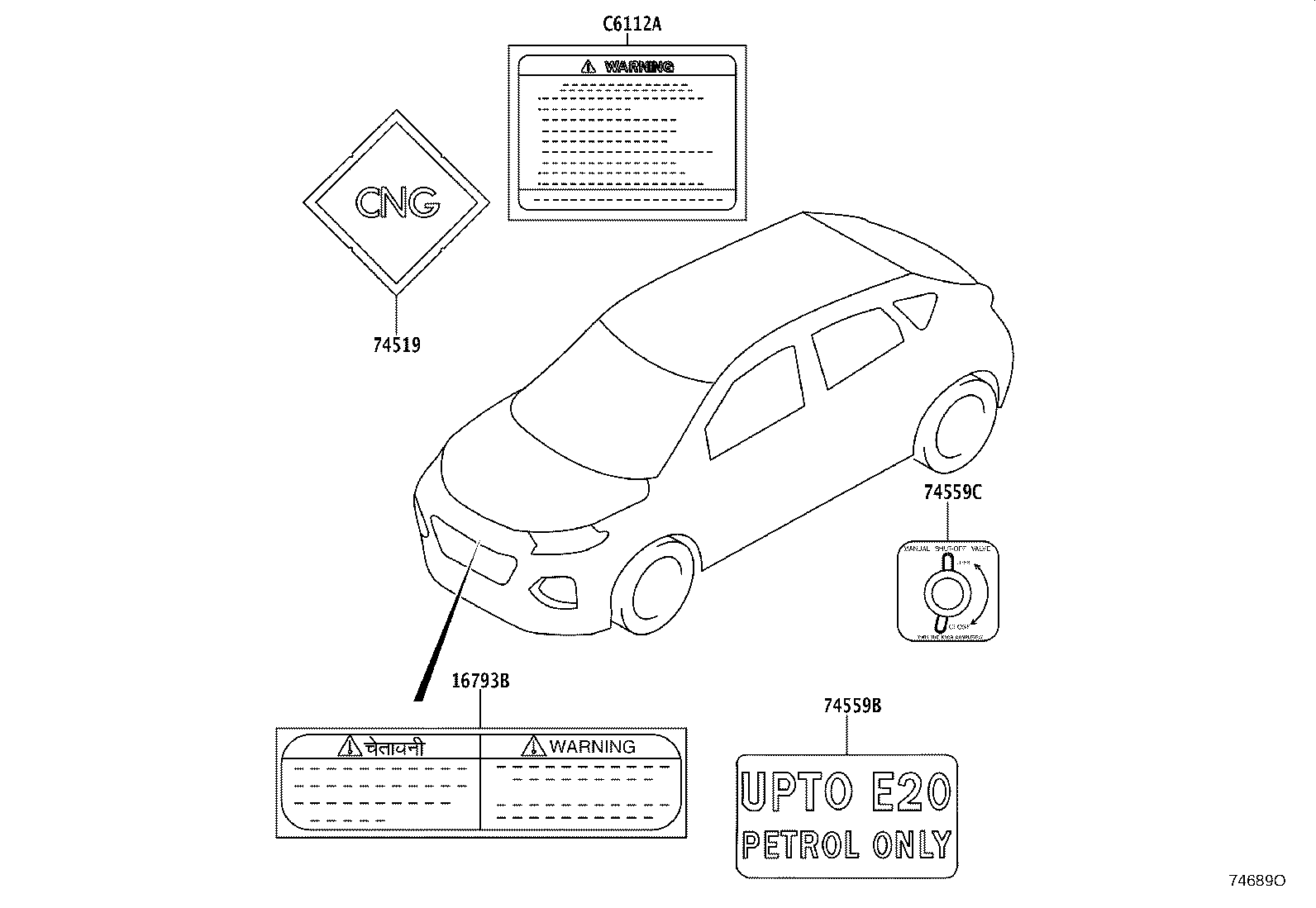

| 16793B | Label, Cooling Fan Information |
| 74519 | Plate, Fuel Caution |

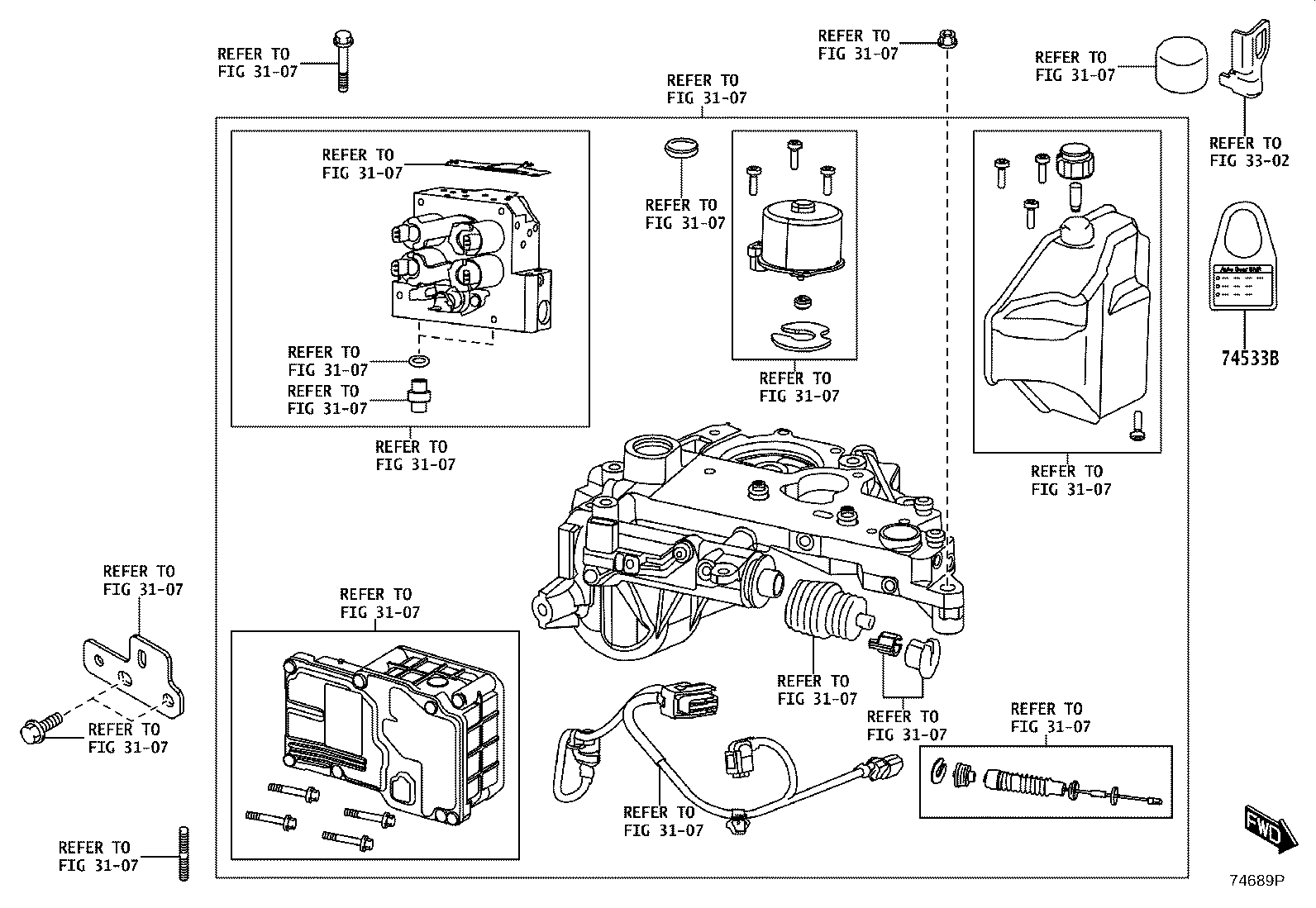

| 74533B | Plate, Shifting Instruction |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74559C | Label, Fuel Information, NO.2 |
| 74572A | Label, Fuel Inlet Operational Information |

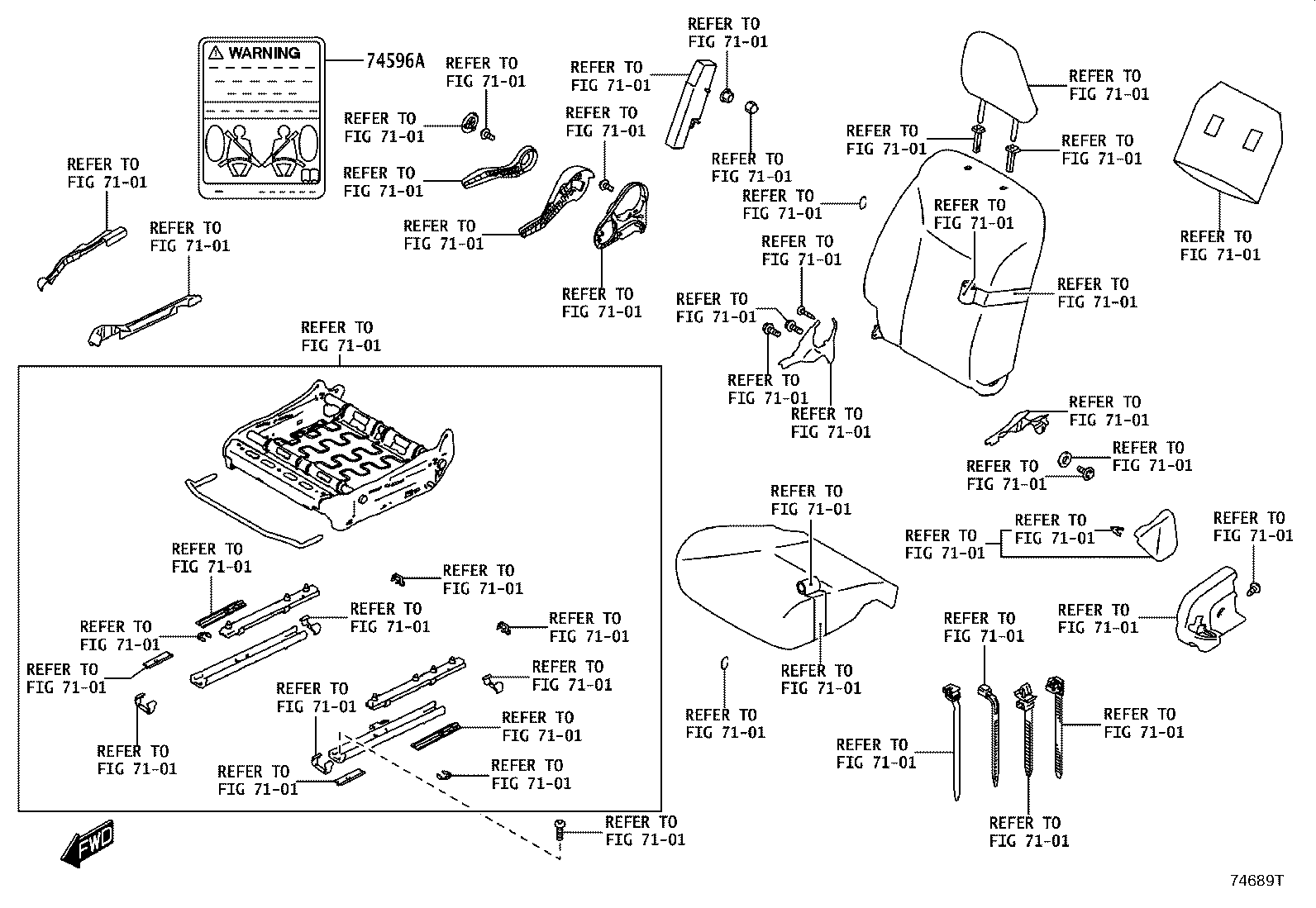

| 74596A | Label, Side Airbag Caution |

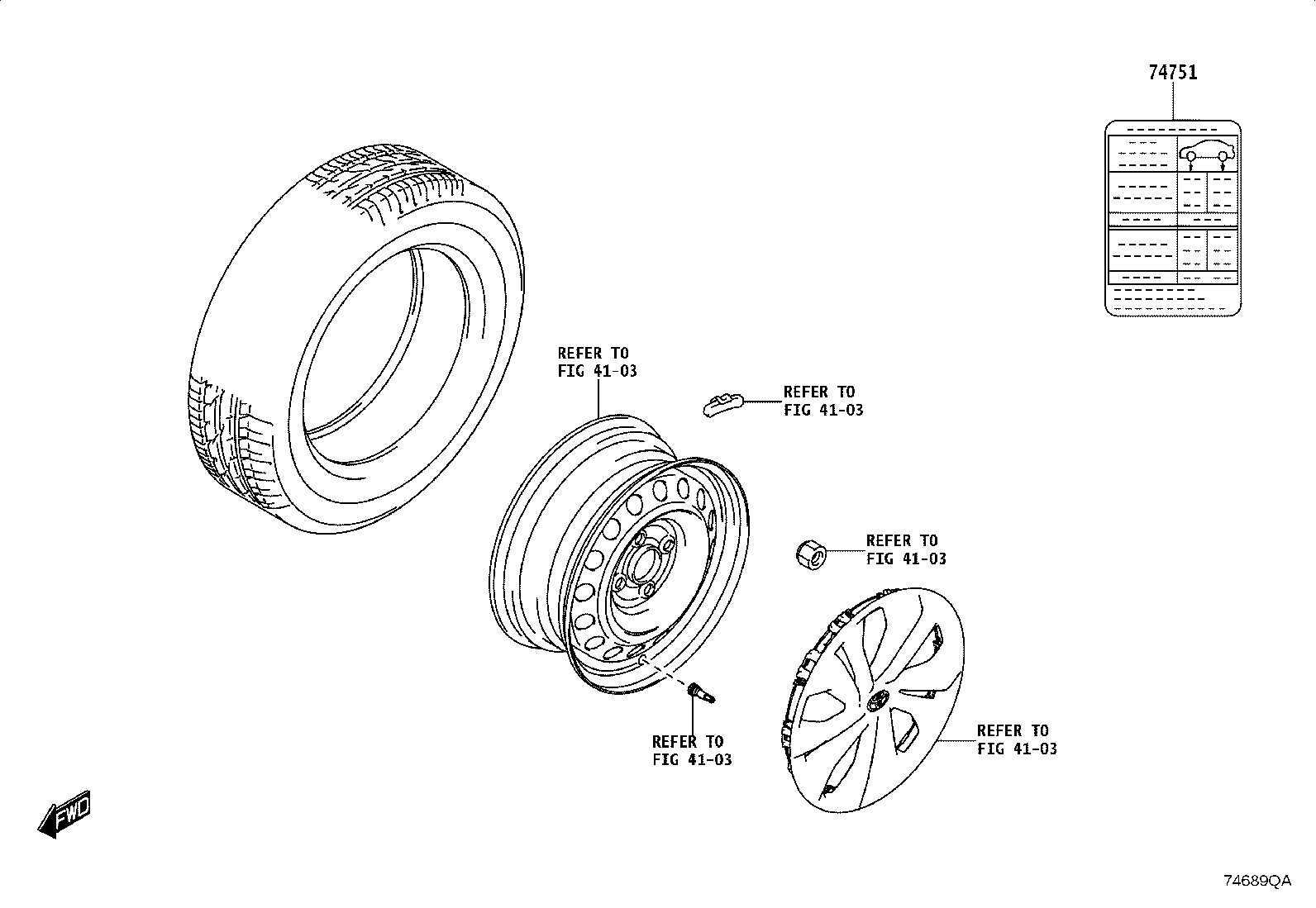

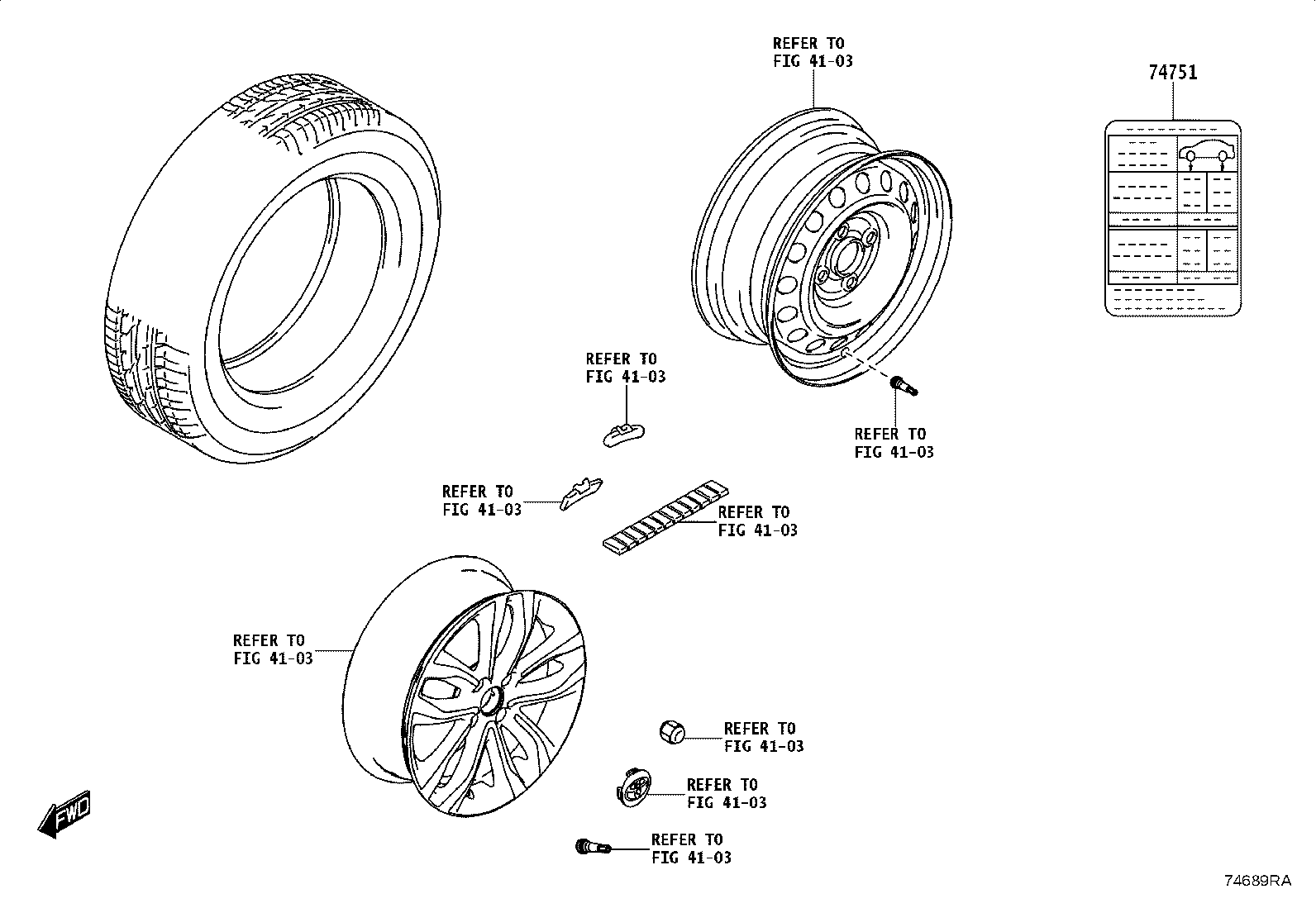

| 74751 | Label, Tire Pressure Information |
| C6112A | Label, Safety Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
