Side Turn Signal Lamp & Outer Mirror Lamp

4 part groups · 3 illustrations

Illustrations

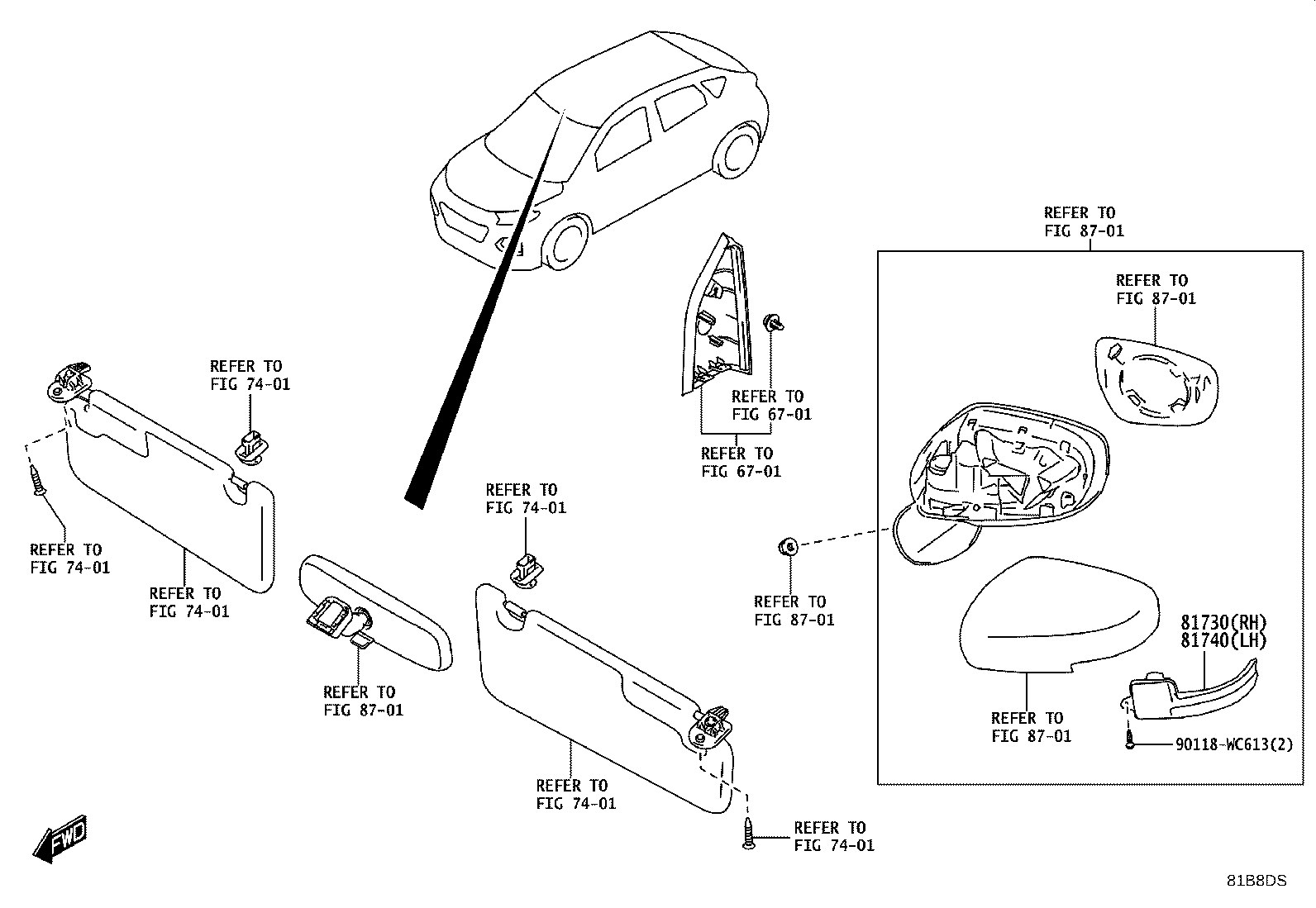

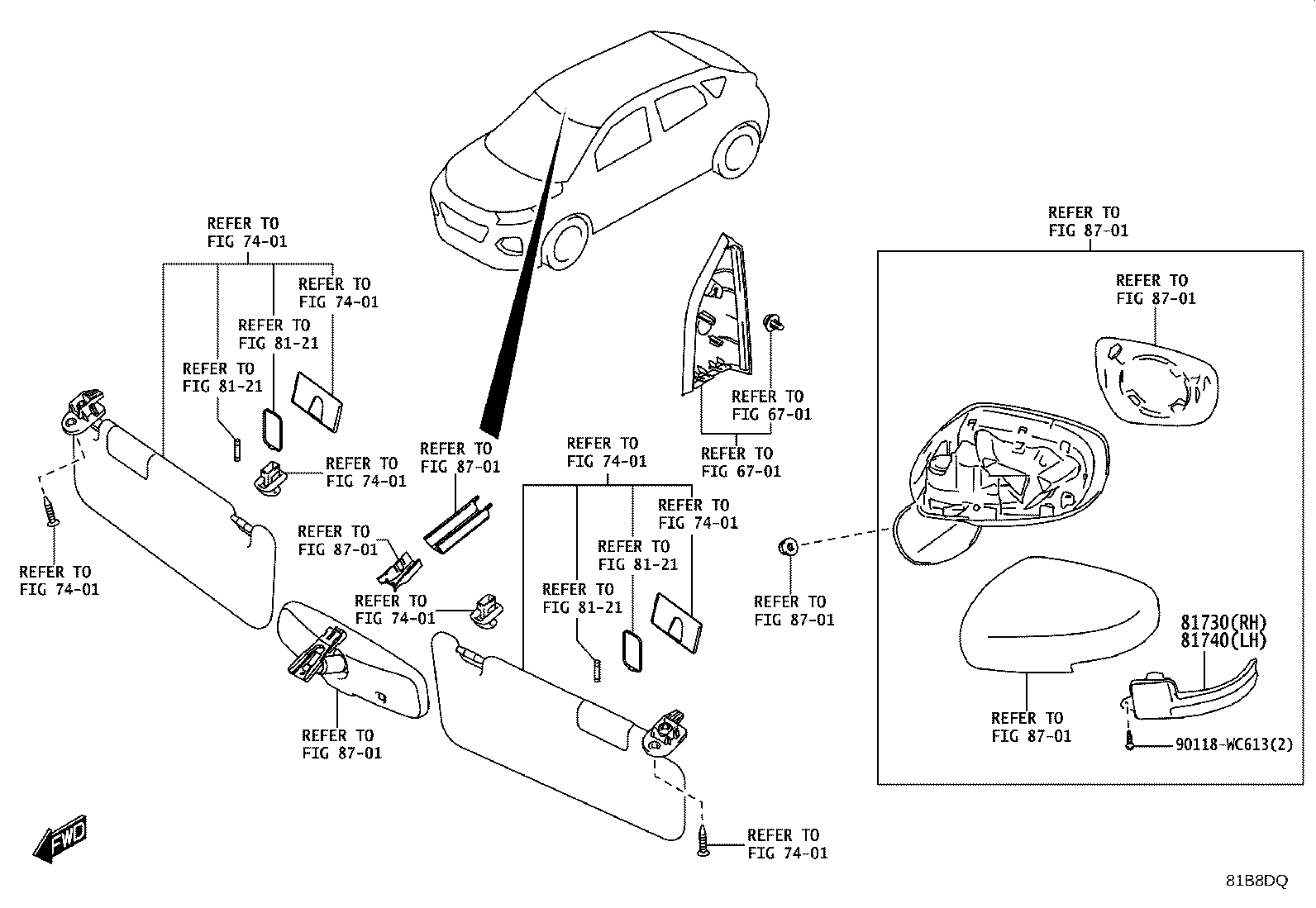

Figure 81B8DR 81B8DR 2024-04 → — Figure 81B8DS 81B8DS 2024-04 → — Figure 81B8DQ 81B8DQ 2024-04 → —

Part groups

PNCDescription
81730 Lamp Assy, Side Turn Signal, RH
81730A Socket Plug(FOR SIDE TURN SIGNAL LAMP)
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81740 Lamp Assy, Side Turn Signal, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
