Toyota Urban Cruiser Taisor
2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General
Supported model
Data version 2024-04

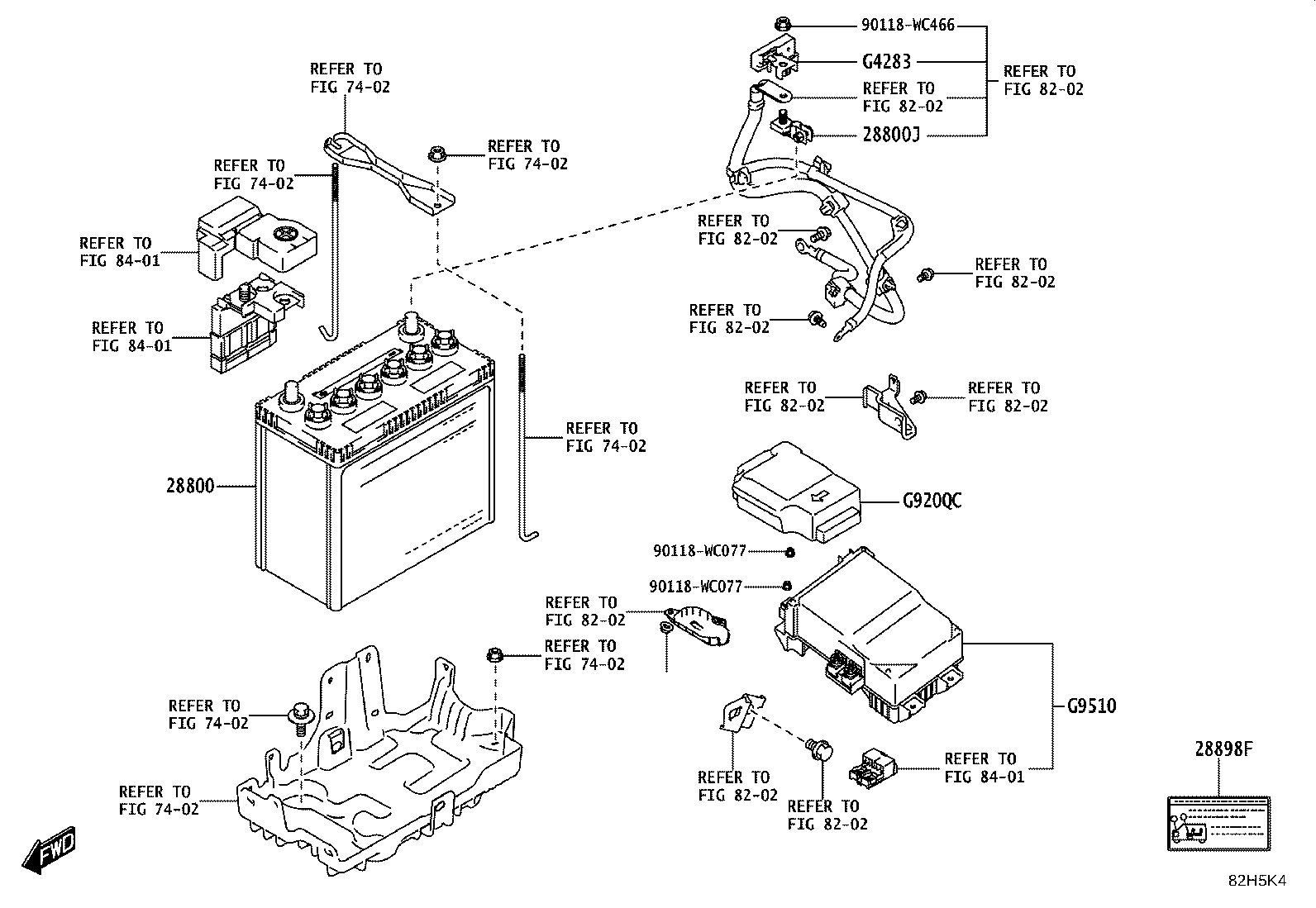

Battery & Battery Cable
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |

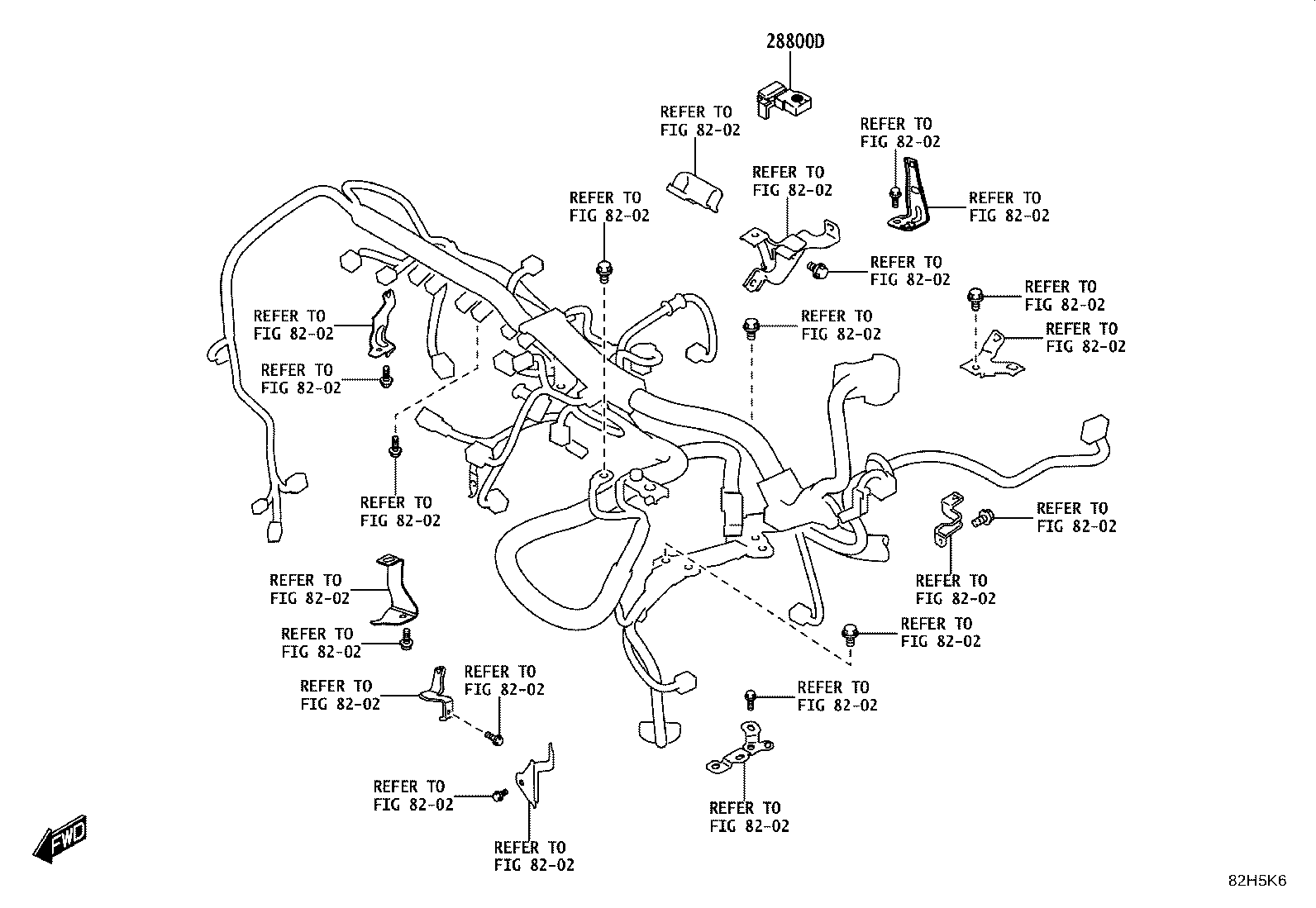

| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28898F | Label, Battery Information |
| 28899 | Insulator, Battery |

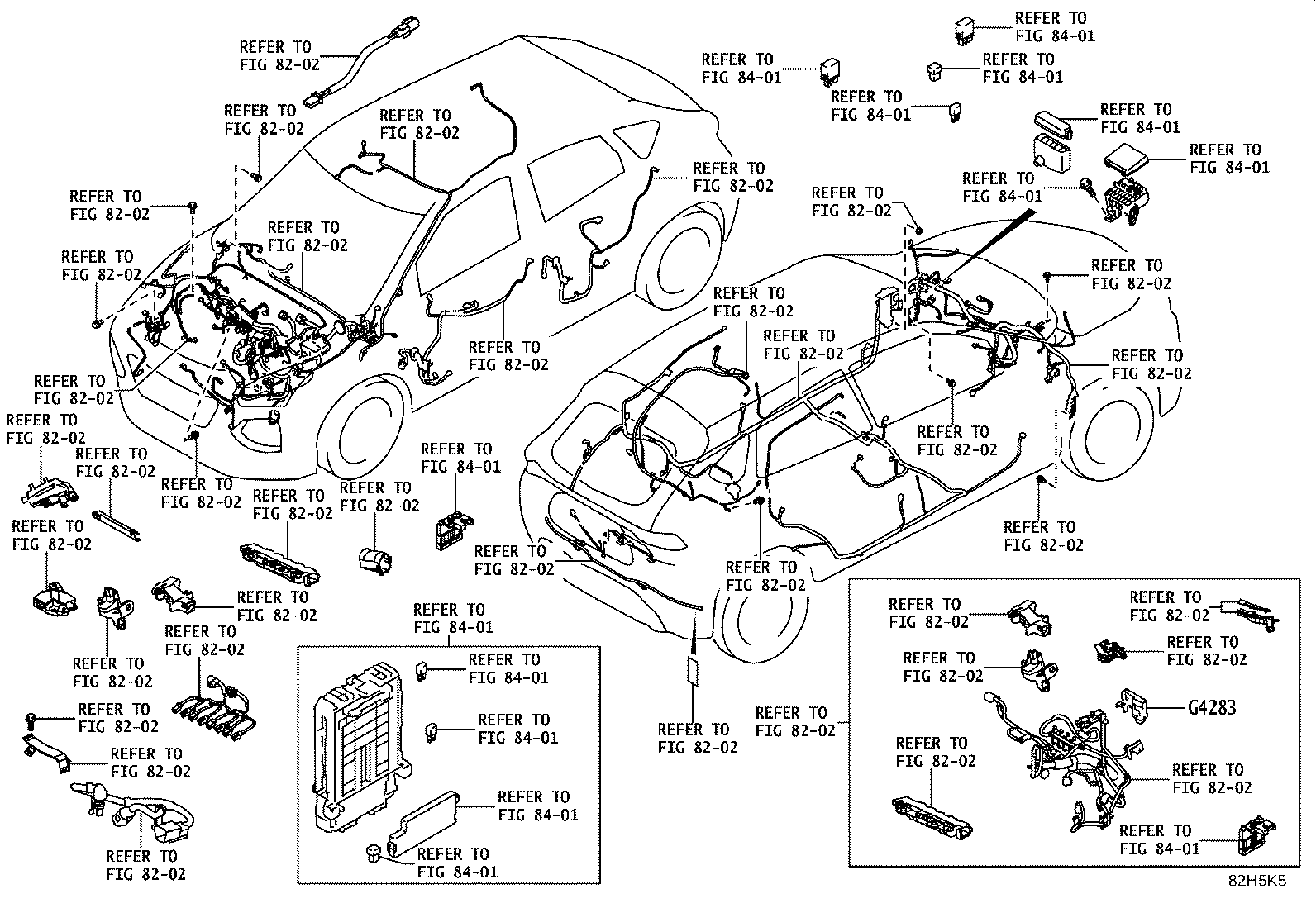

| G4283 | Sensor, Battery Current |
| G920QC | Cover, Battery Pack |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
