Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

6 part groups · 3 illustrations

Illustrations

Figure 83262H

83262H 2024-04 → —

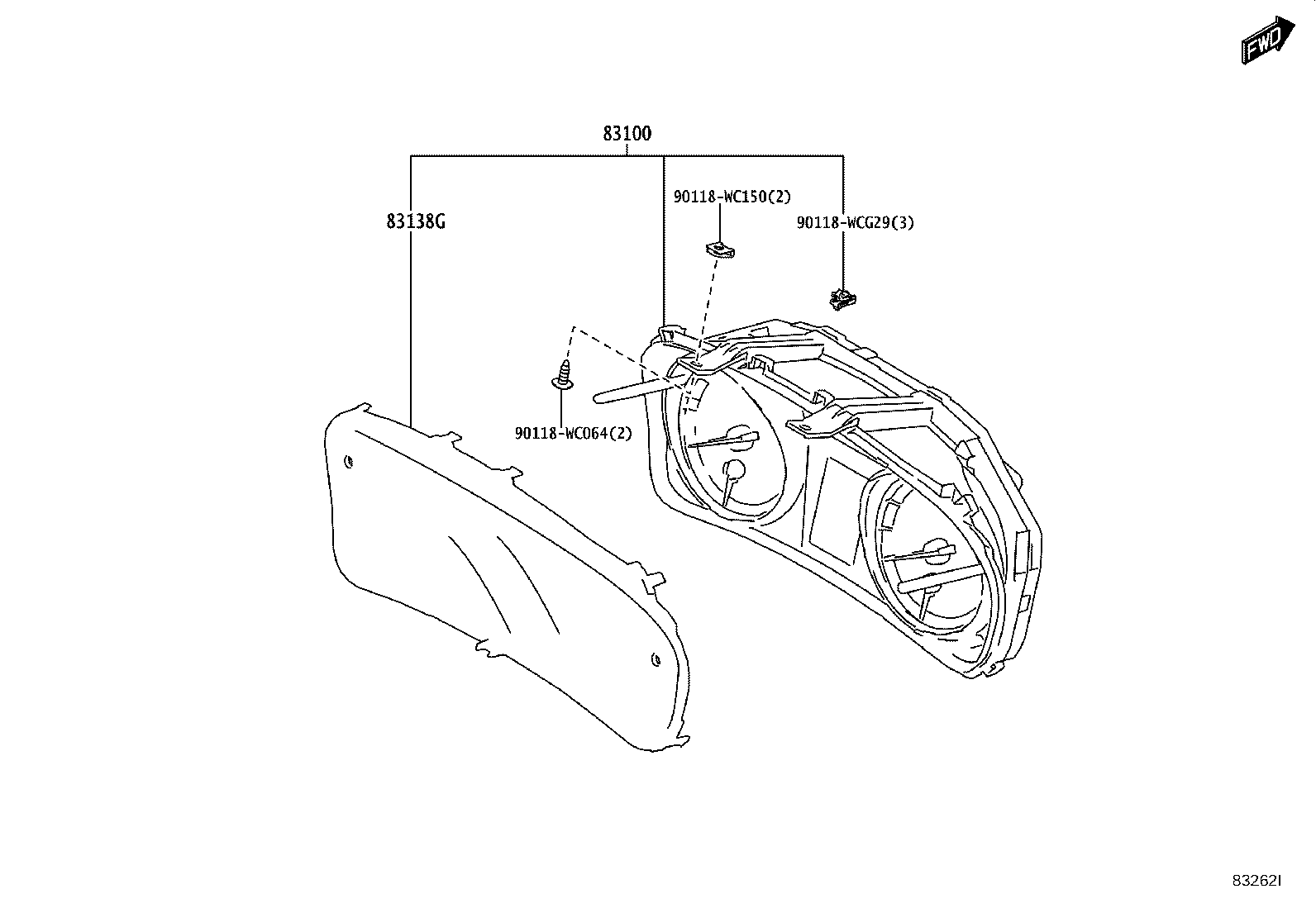

Figure 83262I

83262I 2024-04 → —

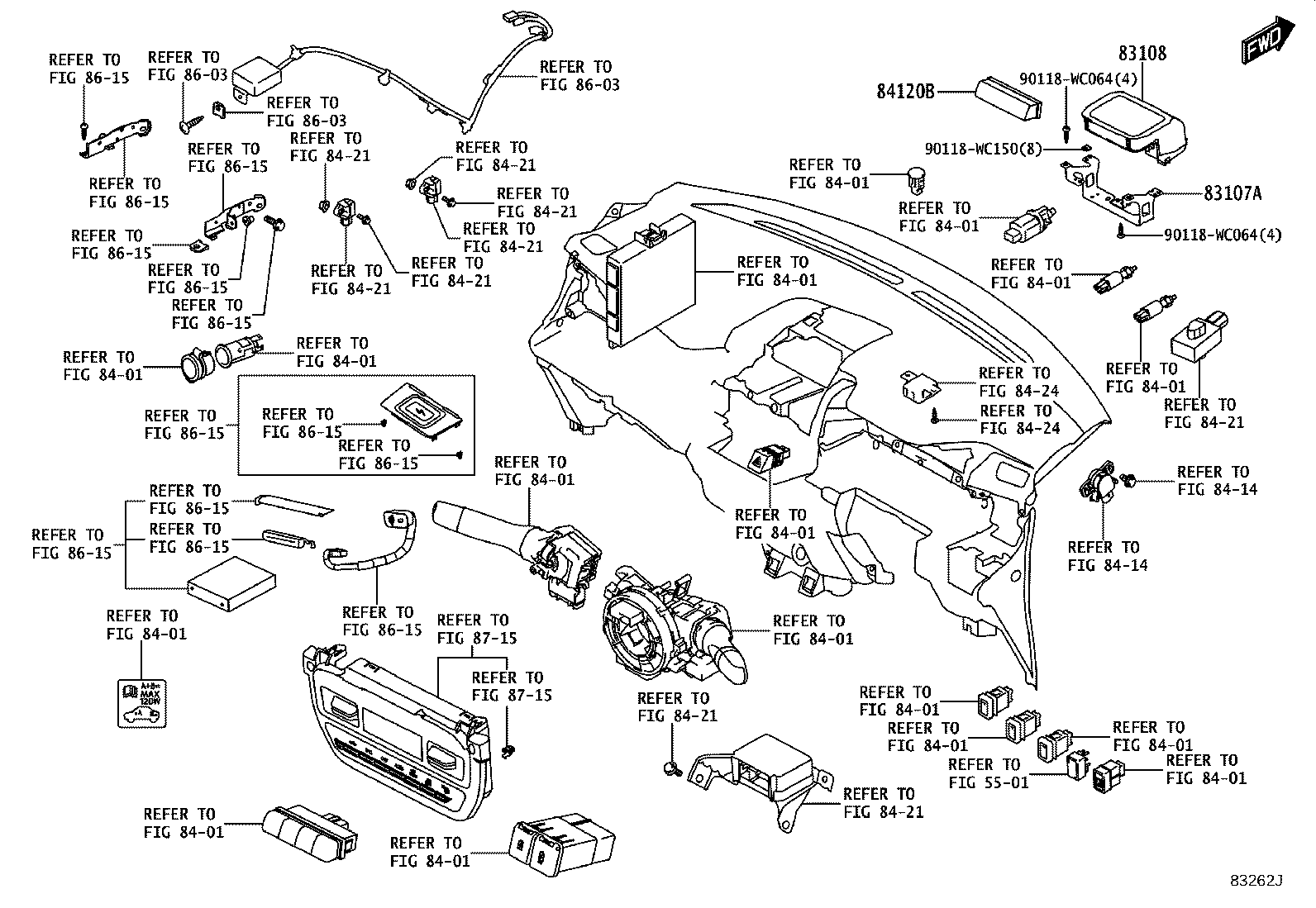

Figure 83262J

83262J 2024-04 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83107A	Bracket Sub-assy, Meter, NO.1
83108	Mirror Sub-assy, Meter
83138G	Glass, Combination Meter
83181A	Sensor, Speedometer
84120B	Cap, Head UP Display Switch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
