Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

3 part groups · 5 illustrations

Illustrations

Figure 84R3U0

84R3U0 2024-04 → —

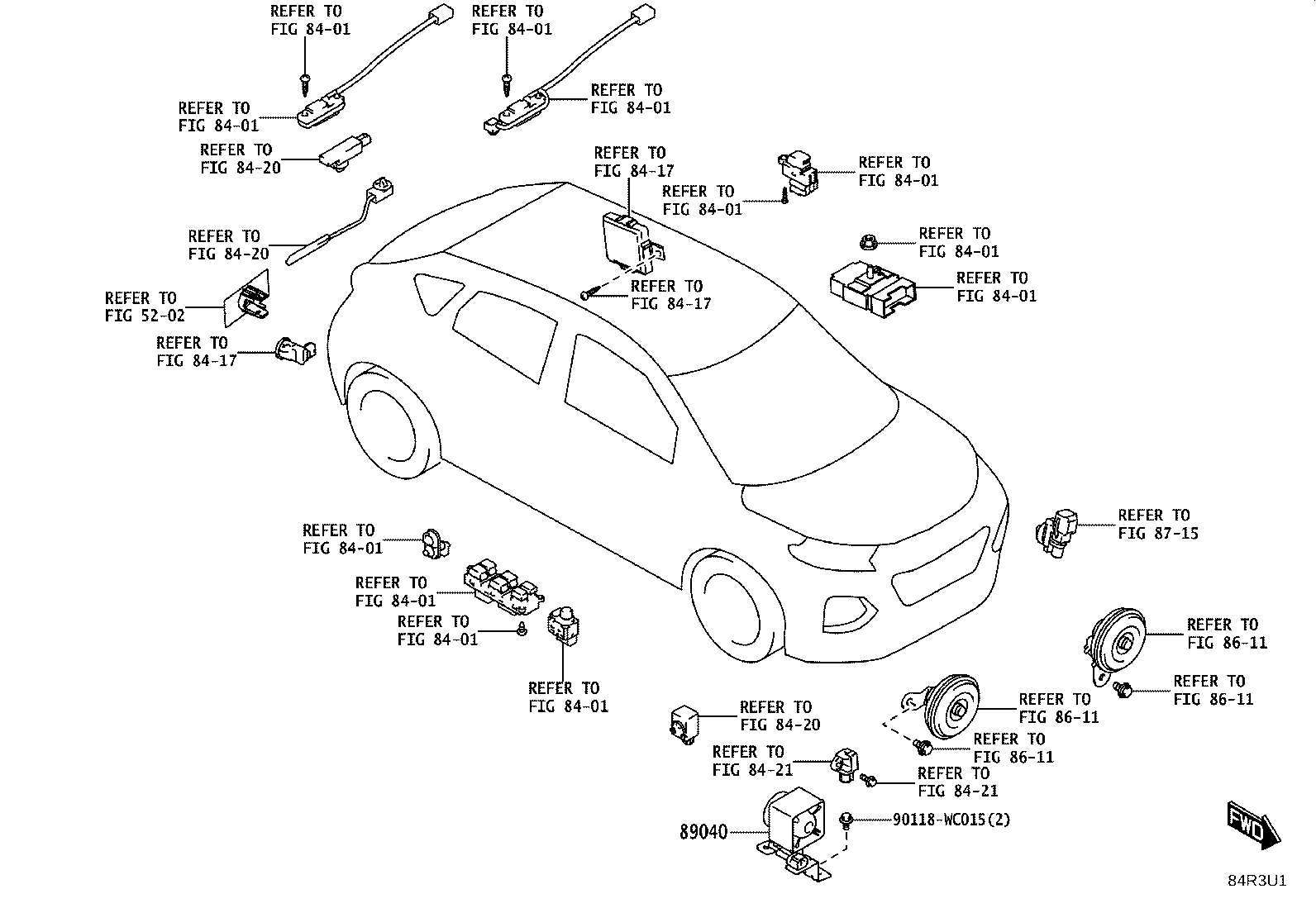

Figure 84R3U1

84R3U1 2024-04 → —

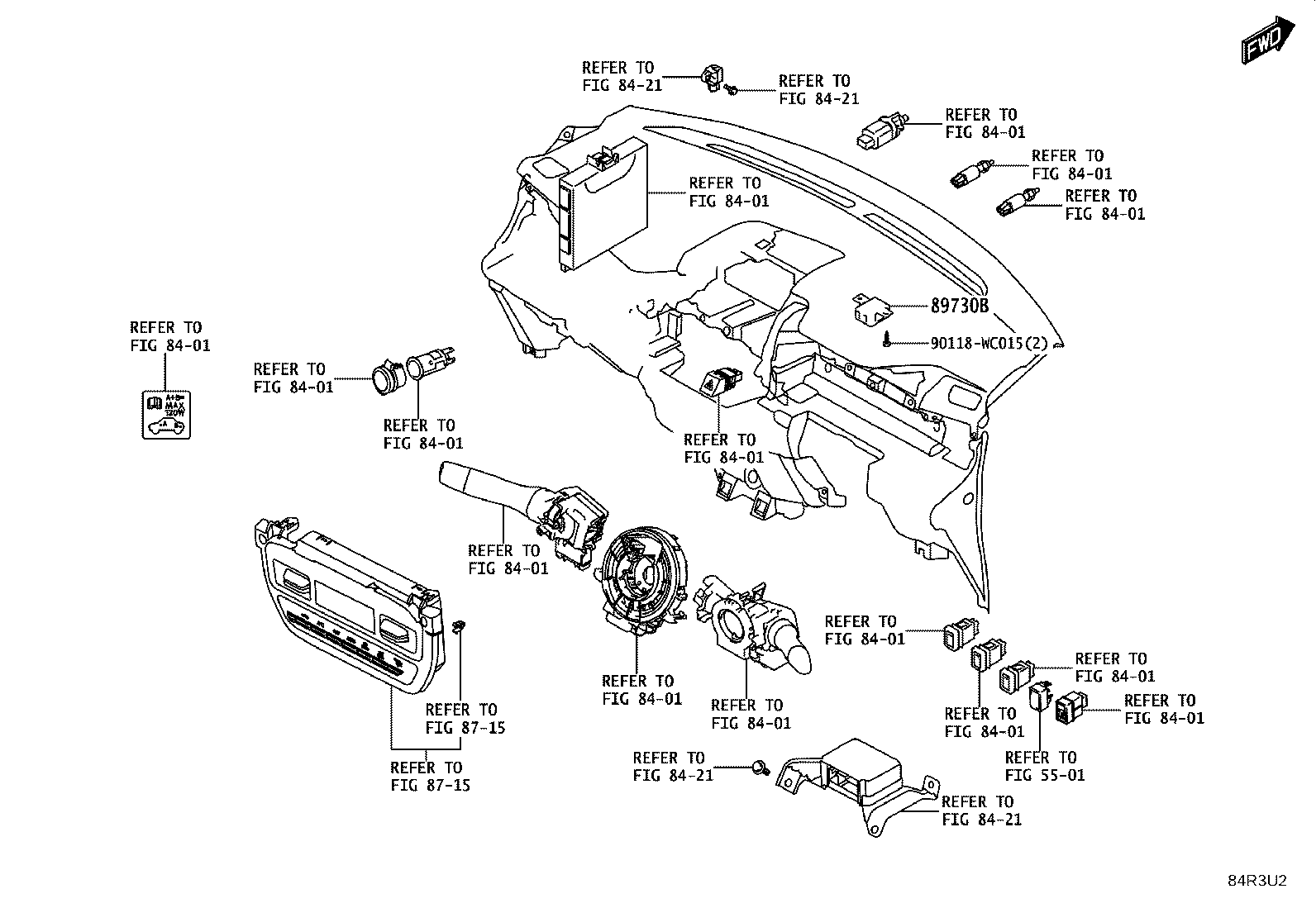

Figure 84R3U2

84R3U2 2024-04 → —

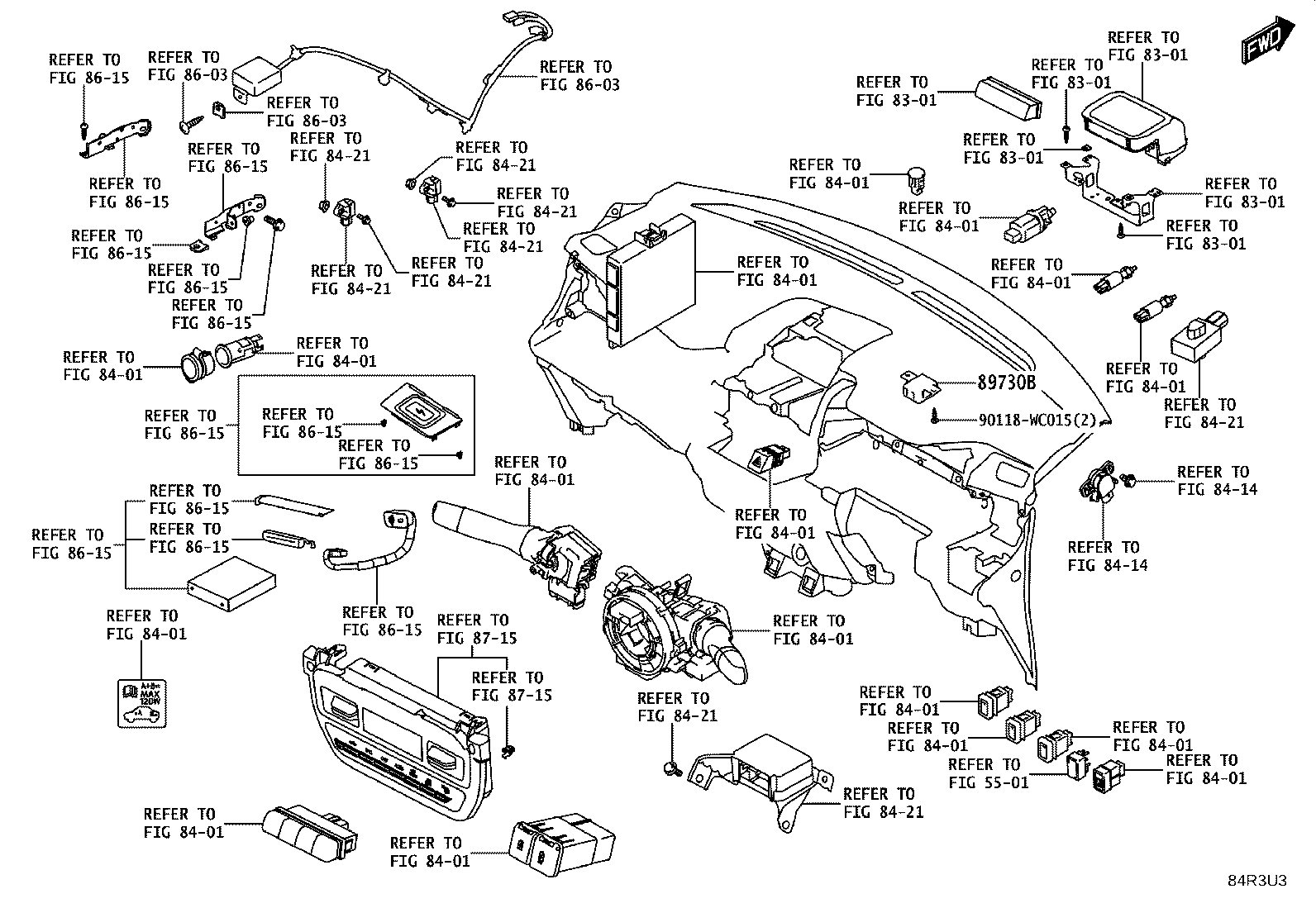

Figure 84R3U3

84R3U3 2024-04 → —

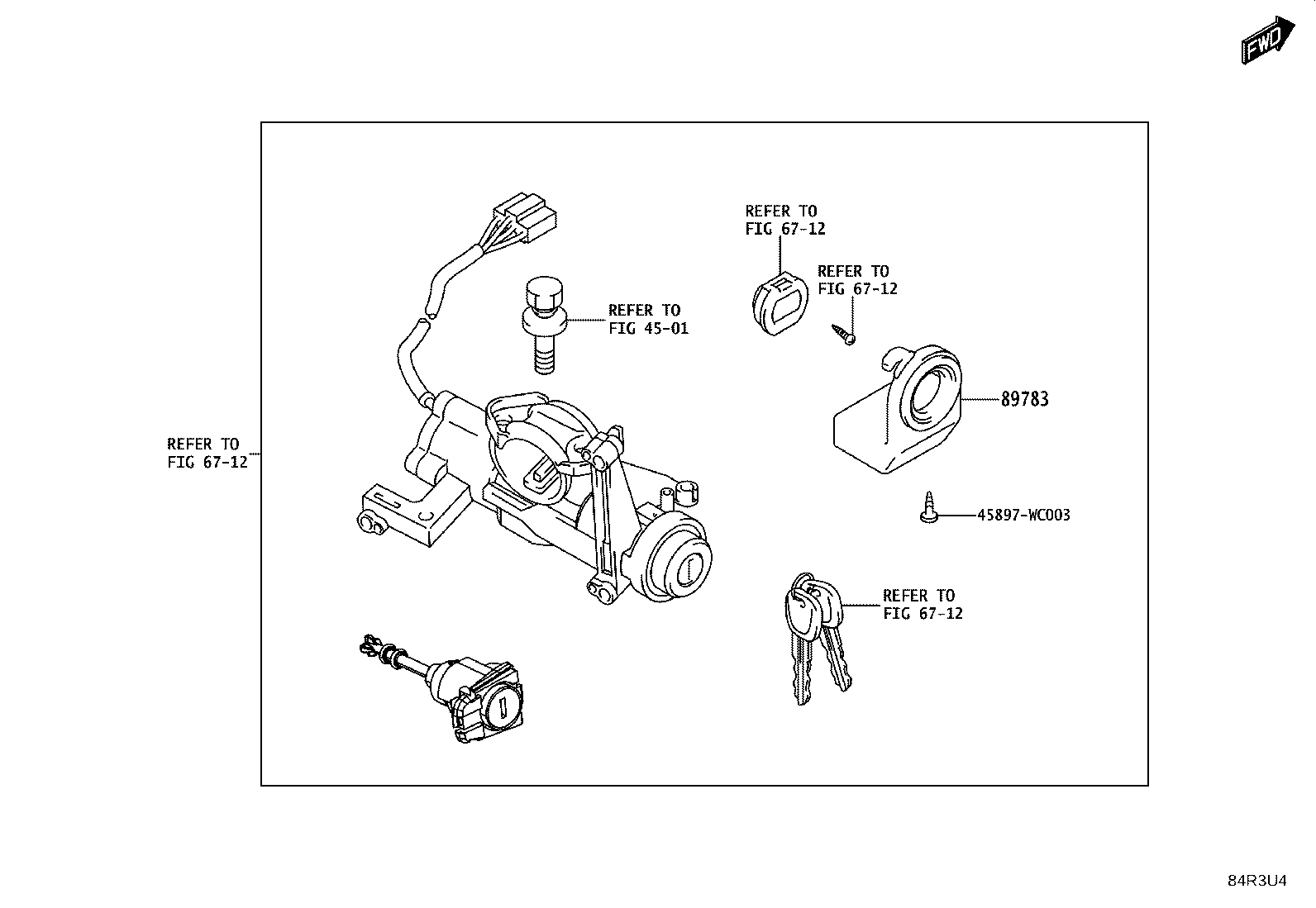

Figure 84R3U4

84R3U4 2024-04 → —

Part groups

PNC	Description
89040	Siren Assy, Theft Warning
89730B	Computer Assy, Theft Warning
89783	Amplifier, Transponder Key

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
