Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 3 illustrations

Illustrations

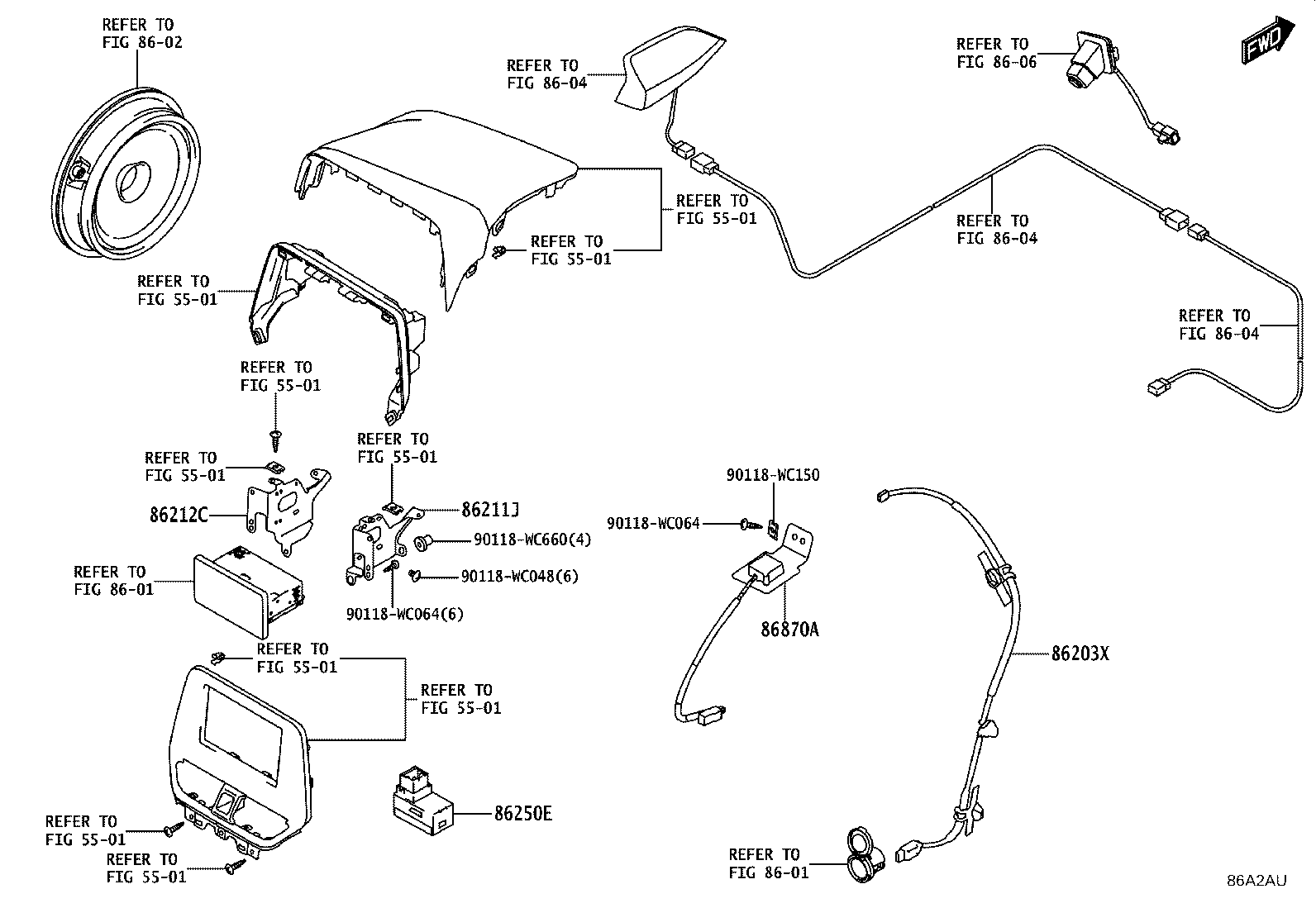

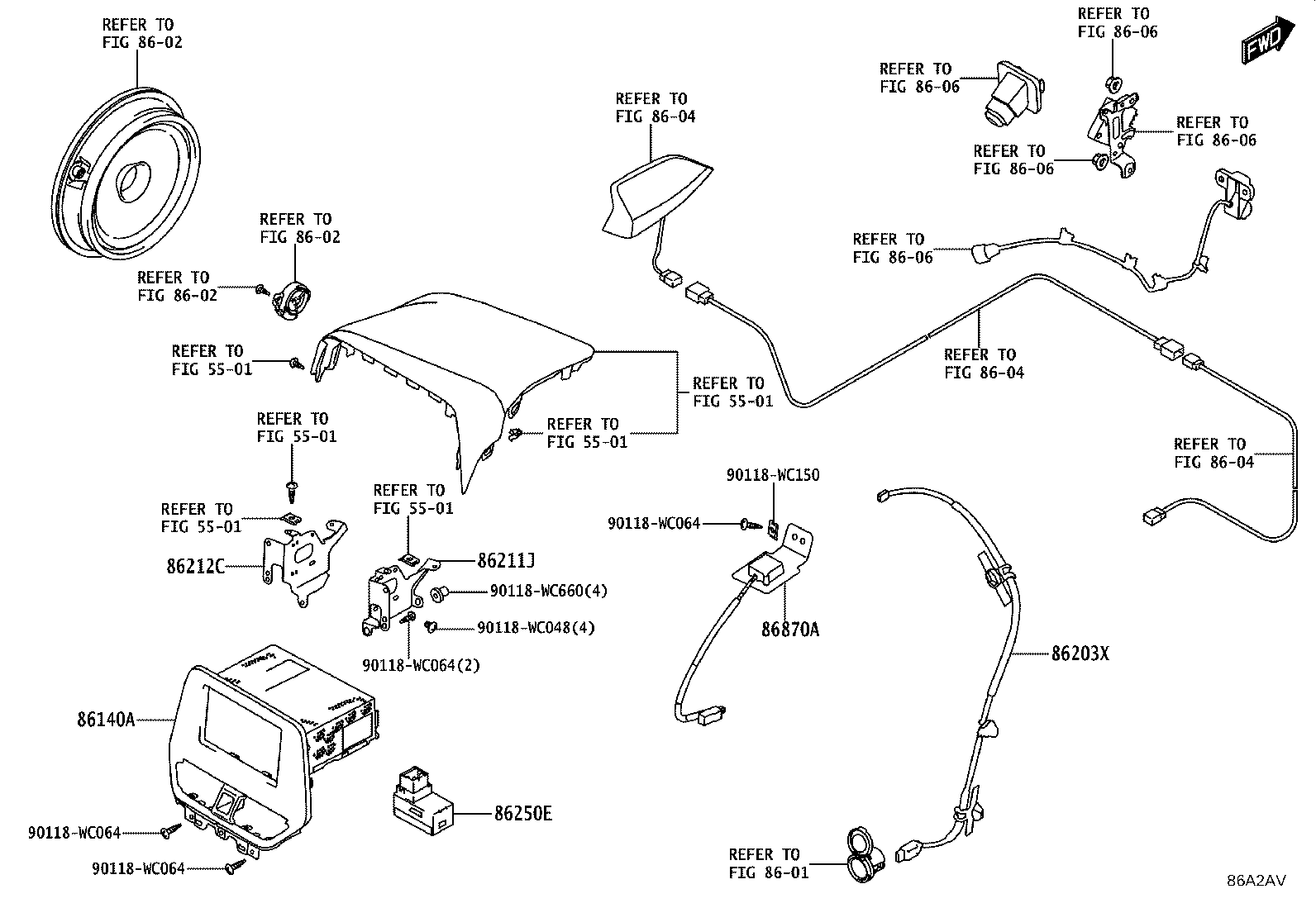

Figure 86A2AS 86A2AS 2024-04 → — Figure 86A2AU 86A2AU 2024-04 → — Figure 86A2AV 86A2AV 2024-04 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86203X Wiring Sub-assy, Radio
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86860 Antenna Assy, Navigation
86870A Antenna Assy, Gps & Vics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
