Factory parts data · Europe

Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 3 illustrations

Illustrations

Figure 86A2AW

86A2AW 2024-04 → —

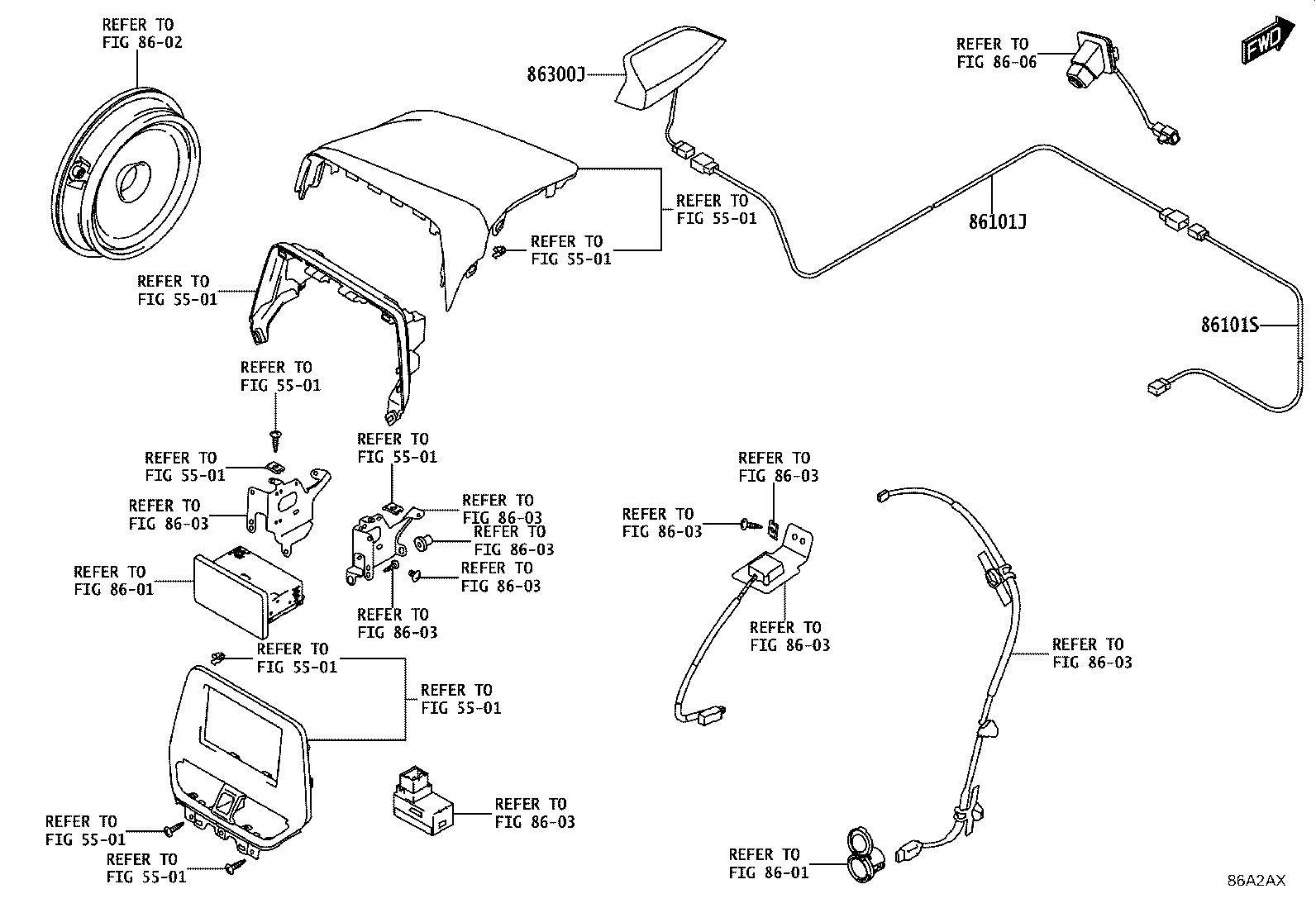

Figure 86A2AX

86A2AX 2024-04 → —

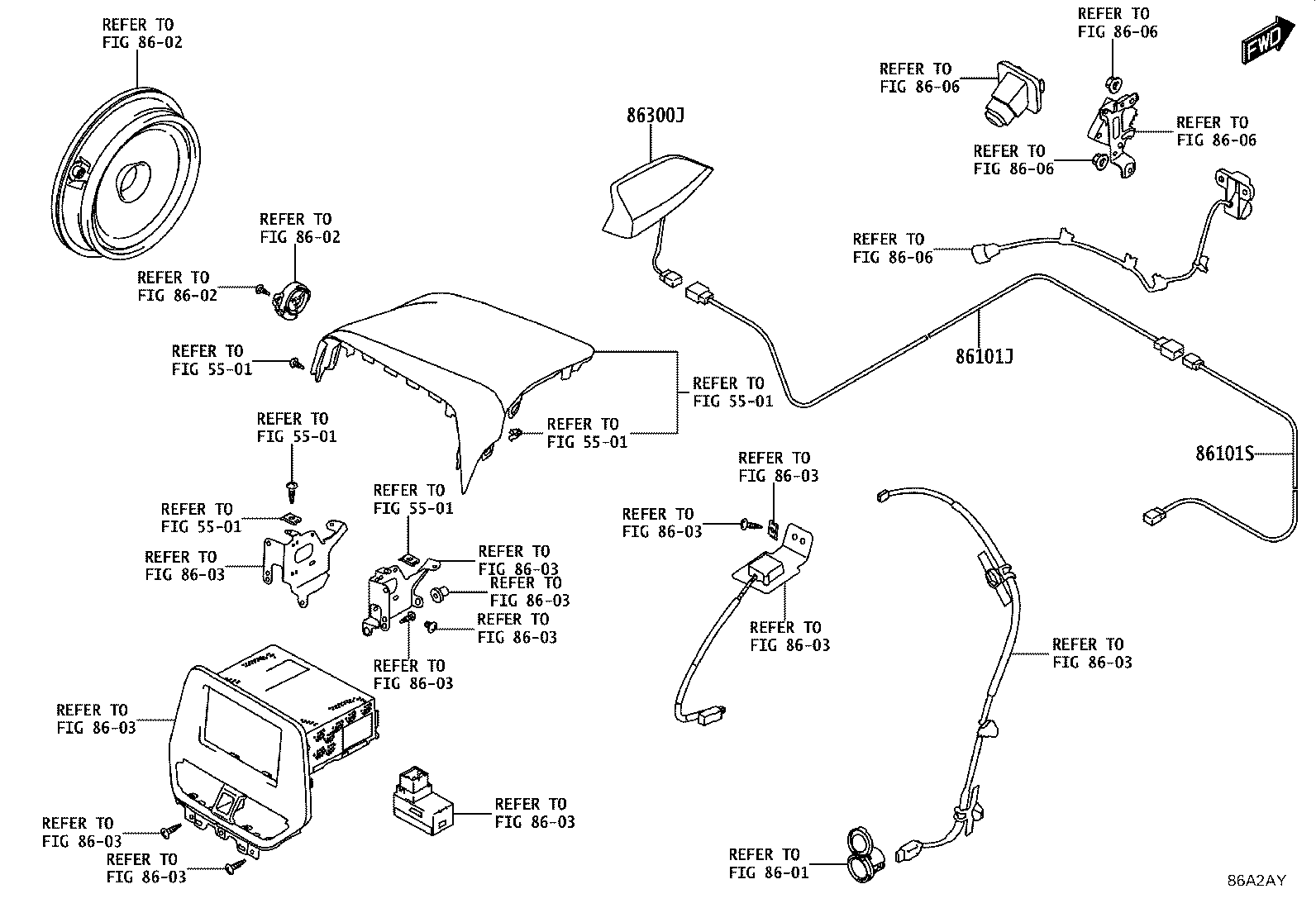

Figure 86A2AY

86A2AY 2024-04 → —

Part groups

PNC	Description
86101J	Cord Sub-assy, Antenna, NO.2
86101S	Cord Sub-assy, Antenna
86300J	Antenna Assy, Roof

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
