Toyota Urban Cruiser Taisor

2024-04 → present · chassis K10T,K12N · catalogue 13E210 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

3 part groups · 2 illustrations

Illustrations

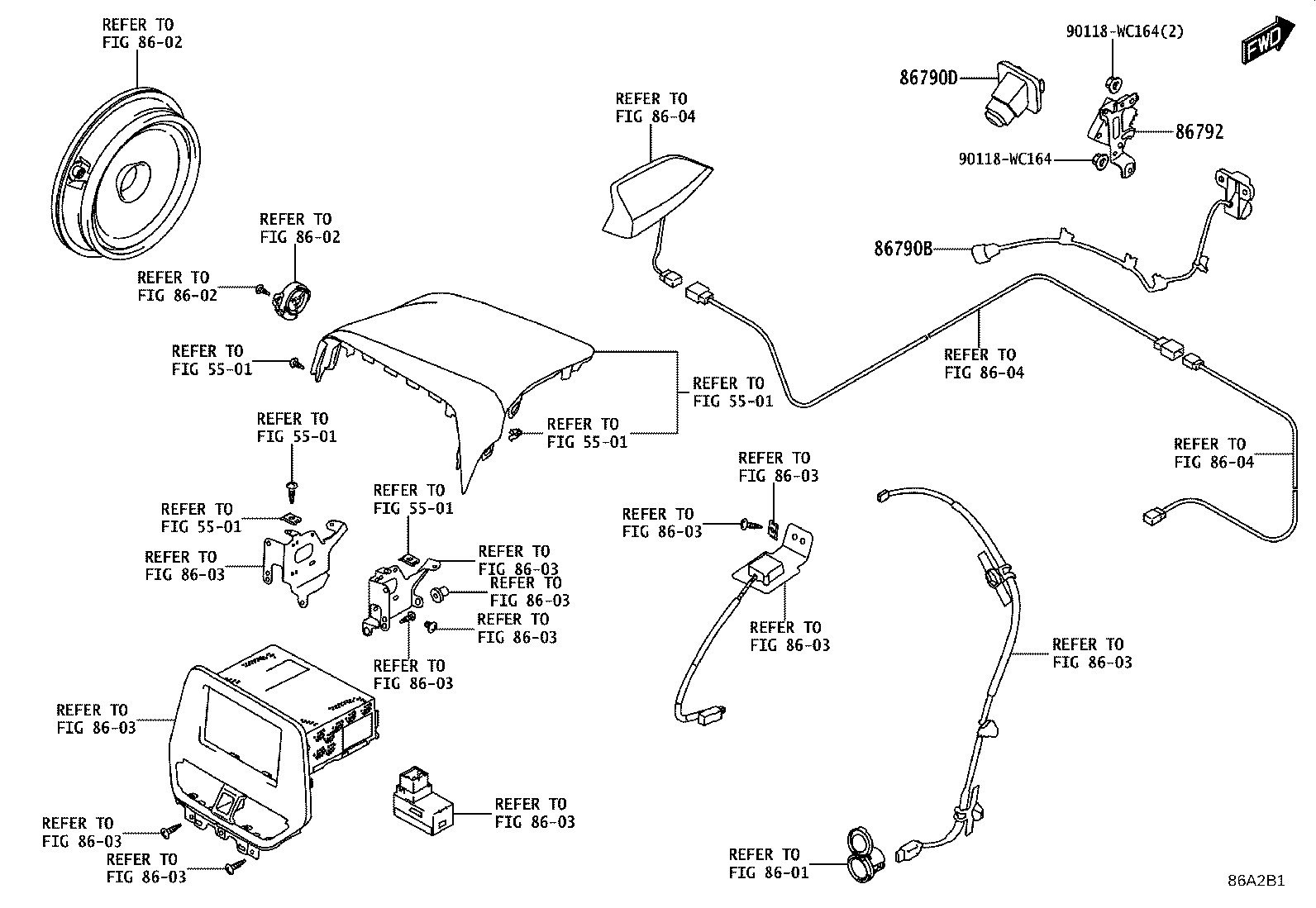

Figure 86A2B0 86A2B0 2024-04 → — Figure 86A2B1 86A2B1 2024-04 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86792 Controller, Television Camera
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
