Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

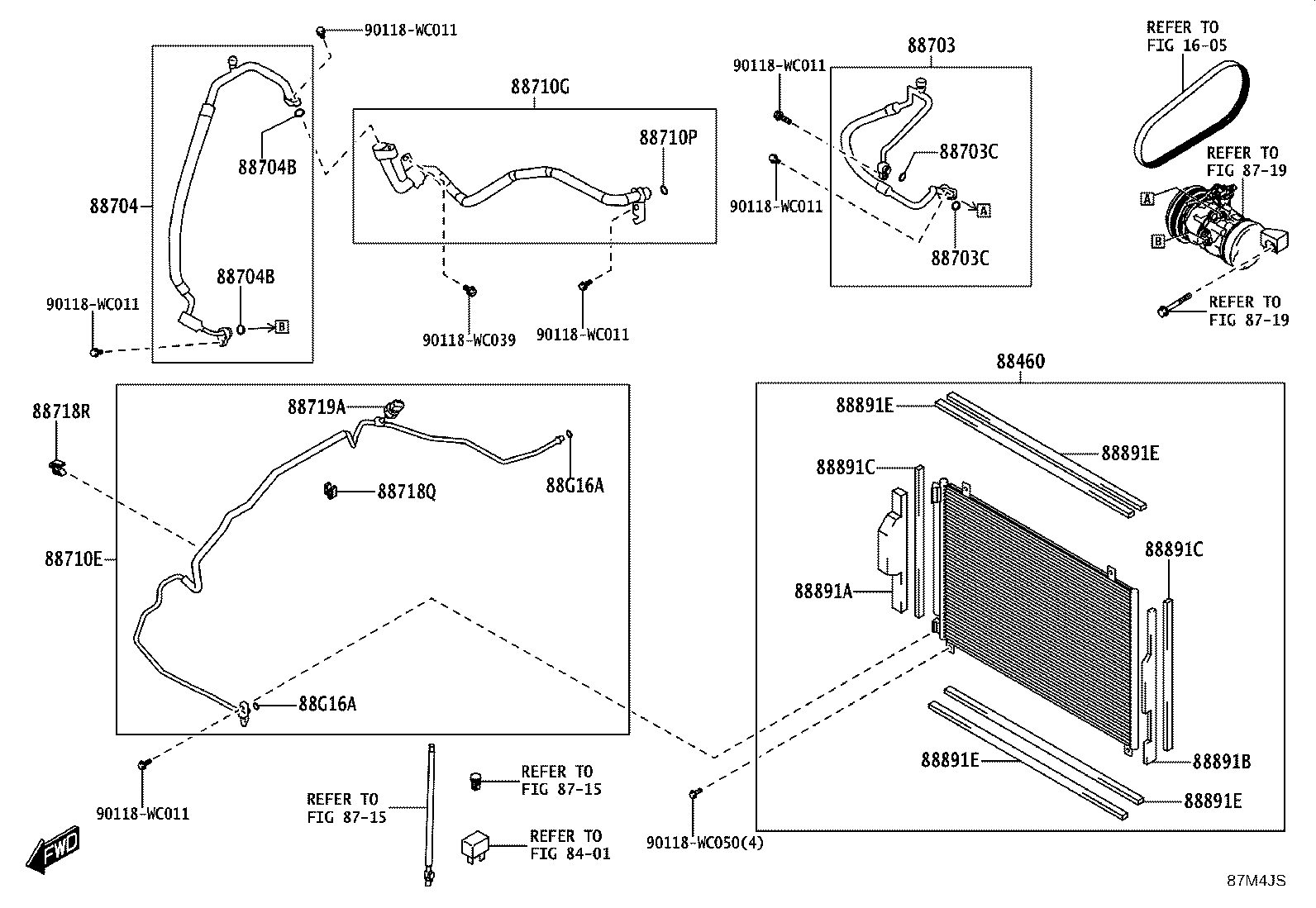

Exploded illustration 87M4JS 8715 — not listed in this catalogue 8715 — not listed in this catalogue 8401 — not listed in this catalogue 1605 — not listed in this catalogue 8719 — not listed in this catalogue 8719 — not listed in this catalogue 88460 — CONDENSER ASSY, COOLER (1 parts) 88891A — PACKING A (FOR COOLER) (1 parts) 88891B — PACKING B (FOR COOLER) (1 parts) 88891C — PACKING C (FOR COOLER) (1 parts) 88891C — PACKING C (FOR COOLER) (1 parts) 88891E — PACKING E (FOR COOLER) (1 parts) 88891E — PACKING E (FOR COOLER) (1 parts) 88891E — PACKING E (FOR COOLER) (1 parts) 88891E — PACKING E (FOR COOLER) (1 parts) 88704 — HOSE SUB-ASSY, SUCTION (1 parts) 88710E — TUBE & ACCESSORY ASSY, AIR CONDITIONER (1 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (1 parts) 88718Q — CLAMP, PIPING (1 parts) 88G16A — RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE) (1 parts) 88G16A — RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE) (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 88703 — HOSE SUB-ASSY, DISCHARGE (1 parts) 88710G — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 (1 parts) 88718R — CLAMP, PIPING (1 parts) 88710P — RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) (1 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (1 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 90118WC050 — not listed in this catalogue 90118WC011 — not listed in this catalogue 90118WC011 — not listed in this catalogue 90118WC011 — not listed in this catalogue 90118WC039 — not listed in this catalogue 90118WC011 — not listed in this catalogue 90118WC011 — not listed in this catalogue 90118WC011 — not listed in this catalogue
87M4JS · 23 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
88460 — Condenser Assy, Cooler
88460-WC006 Condenser Assy, Cooler
2024-04 → —
K15B —
88703 — Hose Sub-assy, Discharge
88711-WC005 Hose Sub-assy, Discharge
2024-04 → —
K15B —
88703C — Ring, O(FOR DISCHARGE HOSE)
90118-WC634 note Ring, O(FOR DISCHARGE HOSE)
2024-04 → —
K15B —
88704 — Hose Sub-assy, Suction
88704-WC016 Hose Sub-assy, Suction
2024-04 → —
K15B —
88704B — Ring, O(FOR SUCTION HOSE)
90118-WC635 note Ring, O(FOR SUCTION HOSE)
2024-04 → —
K15B —
88710E — Tube & Accessory Assy, Air Conditioner
88706-WC016 Tube & Accessory Assy, Air Conditioner
2024-04 → —
K15B —
88710G — Tube & Accessory Assy, Air Conditioner, NO.2
88707-WC002 Tube & Accessory Assy, Air Conditioner, NO.2
2024-04 → —
K15B —
88710P — Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
90118-WC635 note Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
2024-04 → —
K15B —
88718Q — Clamp, Piping
88718-WC001 Clamp, Piping
2024-04 → —
K15B —
88718R — Clamp, Piping
90118-WC243 Clamp, Piping
2024-04 → —
K15B —
88719A — Sensor, Air Conditioner Pressure
88719-WC004 Sensor, Air Conditioner Pressure
2024-04 → —
K15B —
88891A — Packing A (FOR COOLER)
88578-WC024 Packing A (FOR COOLER)
2024-04 → —
K15B —
88891B — Packing B (FOR COOLER)
88578-WC023 Packing B (FOR COOLER)
2024-04 → —
K15B —
88891C — Packing C (FOR COOLER)
88578-WC022 Packing C (FOR COOLER)
2024-04 → —
K15B —
88891E — Packing E (FOR COOLER)
88578-WC021 Packing E (FOR COOLER)
2024-04 → —
K15B —
88G16A — Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
90118-WC633 note Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
2024-04 → —
K15B —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
