Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

5 part groups · 2 illustrations

Illustrations

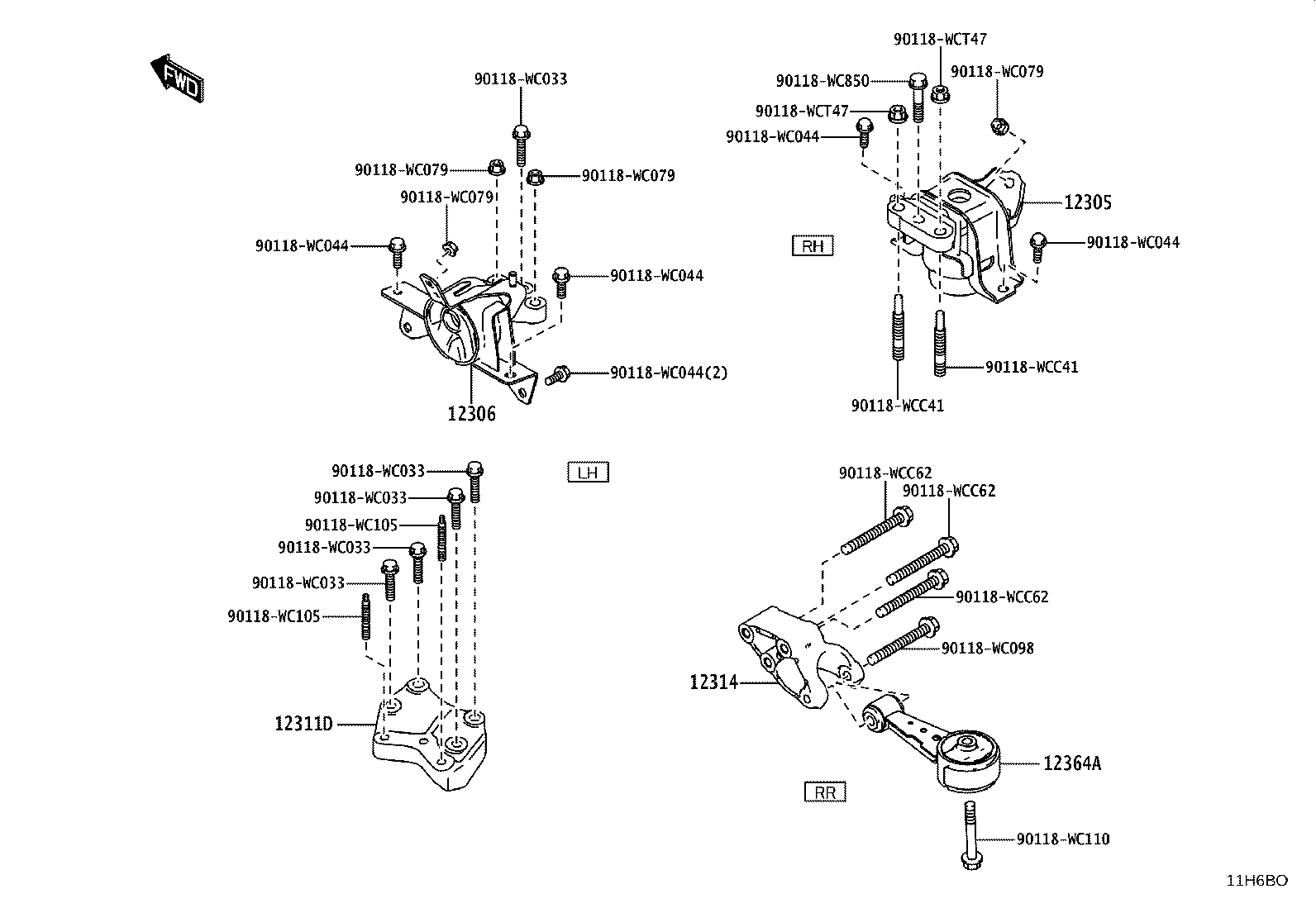

Figure 11H6BN 11H6BN 2024-04 → — Figure 11H6BO 11H6BO 2024-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311D Bracket, Engine Mounting
12314 Bracket, Engine Lateral Control Rod
12364A Rod, Engine Lateral Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
