Toyota Starlet Cross
2024-04 → present · chassis K15B · catalogue 13E310 · General
Supported model
Data version 2024-04
Camshaft & Valve
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11811 | Bearing, Camshaft, NO.1 |
| 13501A | Camshaft Sub-assy, Intake |
| 13502B | Camshaft Sub-assy, Exhaust |

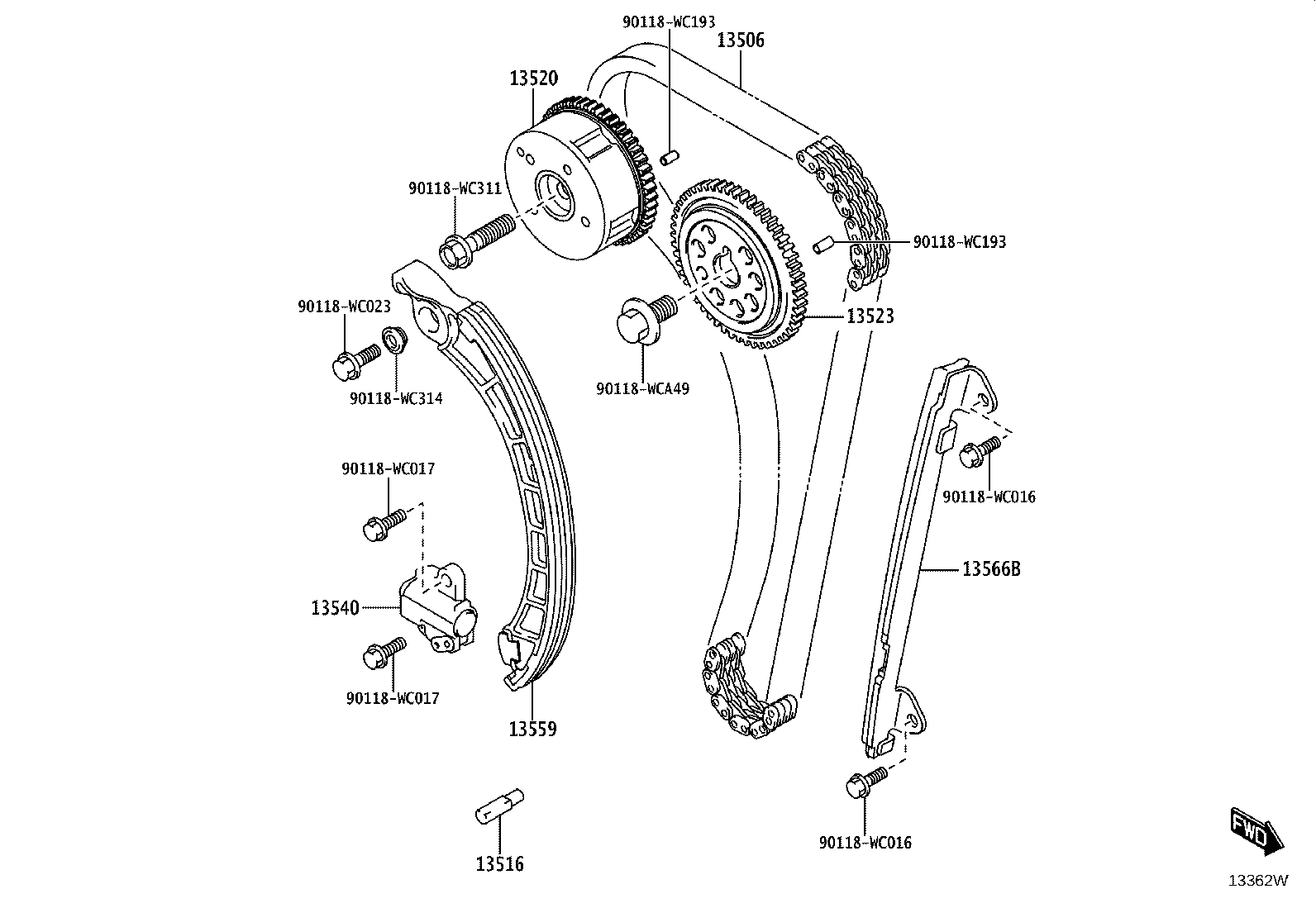

| 13506 | Chain Sub-assy |
| 13516 | Jet, Oil |
| 13520 | Sprocket Assy, Camshaft Timing |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13559 | Slipper, Chain Tensioner |
| 13566B | Guide, Timing Chain |
| 13711 | Valve, Intake |
| 13711E | Seal, Intake Valve Stem Oil |
| 13711M | Spring, Compression(FOR INTAKE VALVE) |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13715H | Spring, Compression(FOR EXHAUST VALVE) |
| 13716 | Cap, Valve Stem |
| 13734A | Seat, Intake Valve Spring |
| 13734B | Seat, Exhaust Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
