Toyota Starlet Cross
2024-04 → present · chassis K15B · catalogue 13E310 · General
Supported model
Data version 2024-04

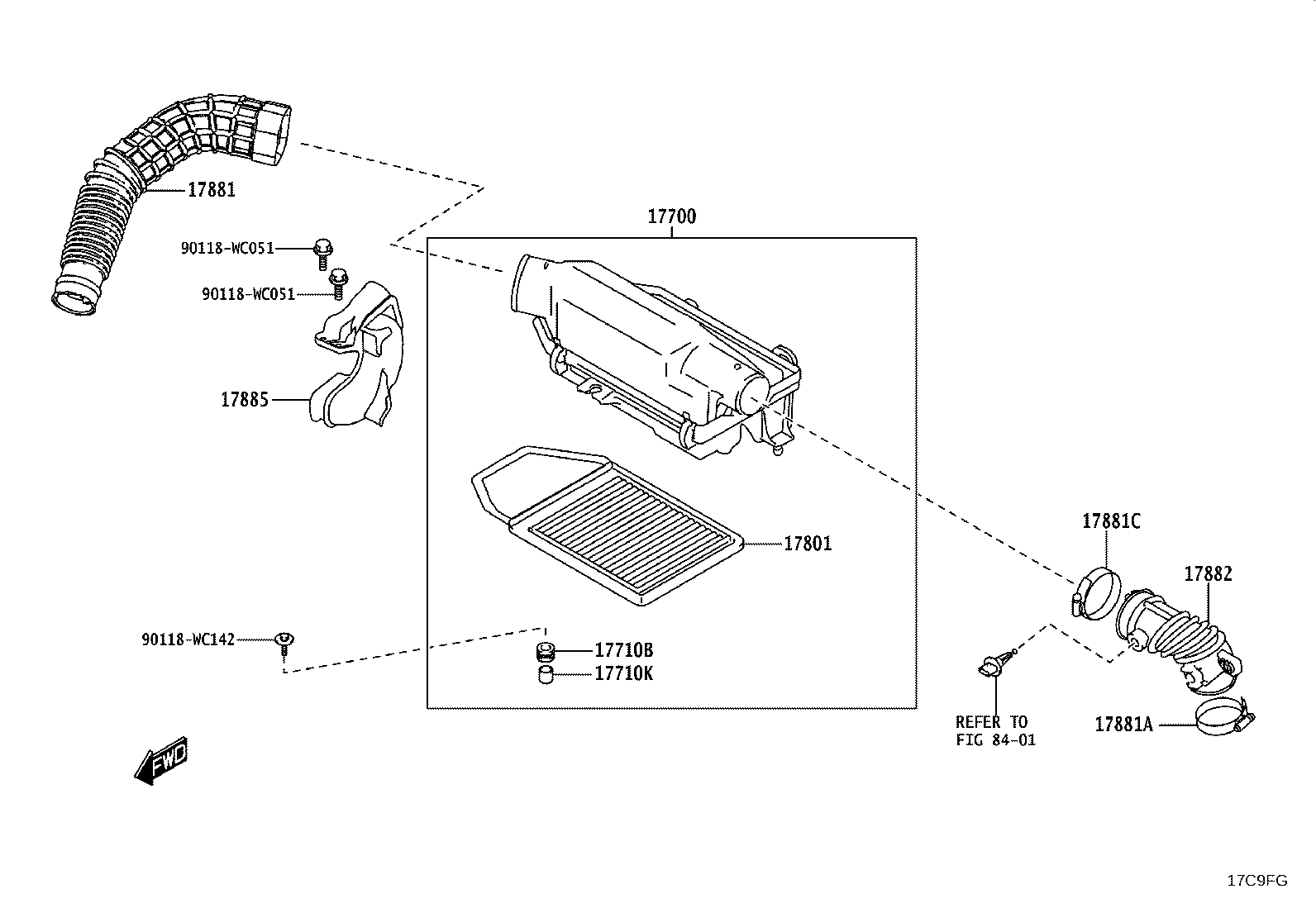

Air Cleaner
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17710B | Grommet |
| 17710K | Collar(FOR AIR CLEANER) |
| 17769 | Support, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17885 | Pipe, Air Cleaner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
