Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

8 part groups · 4 illustrations

Illustrations

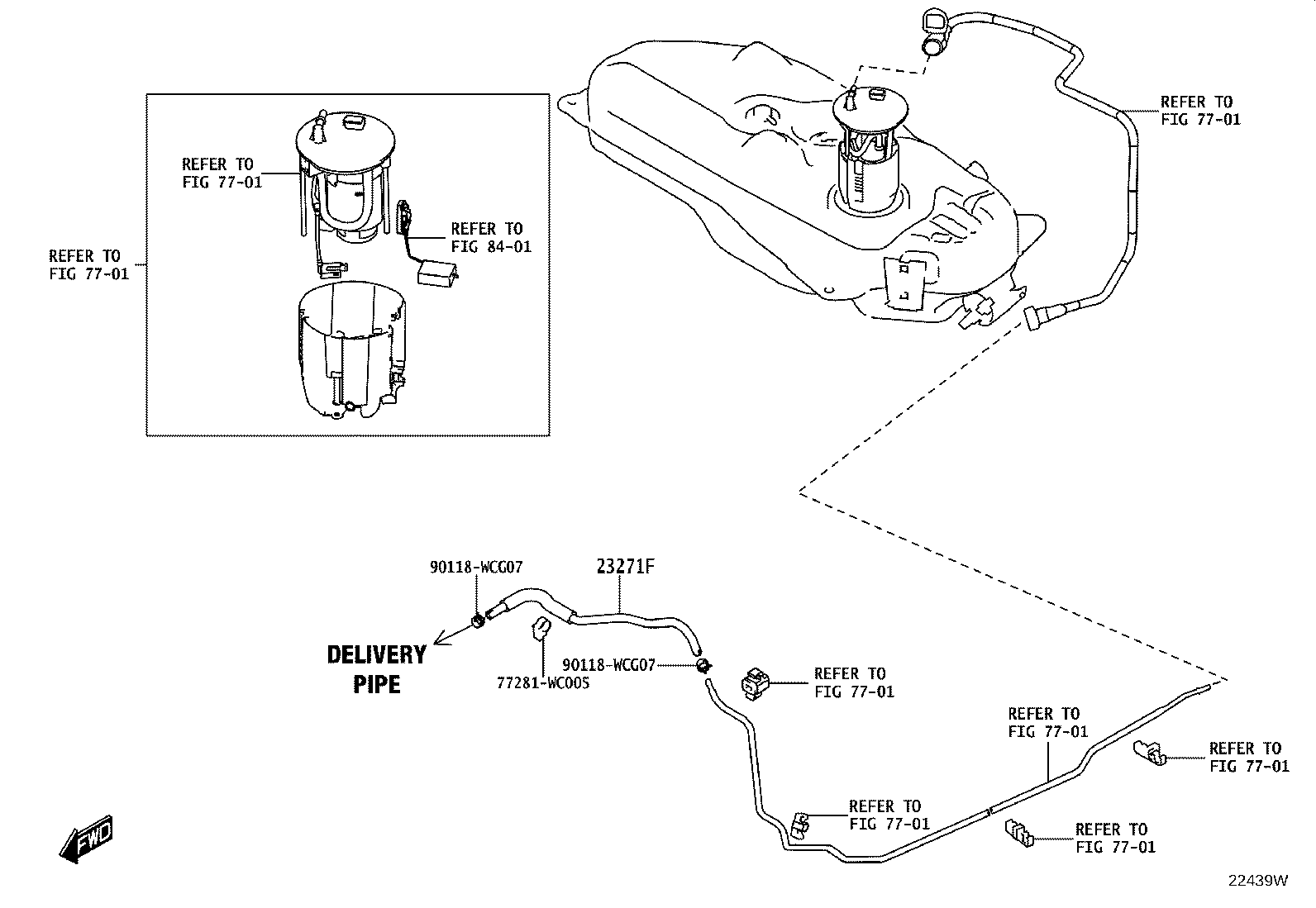

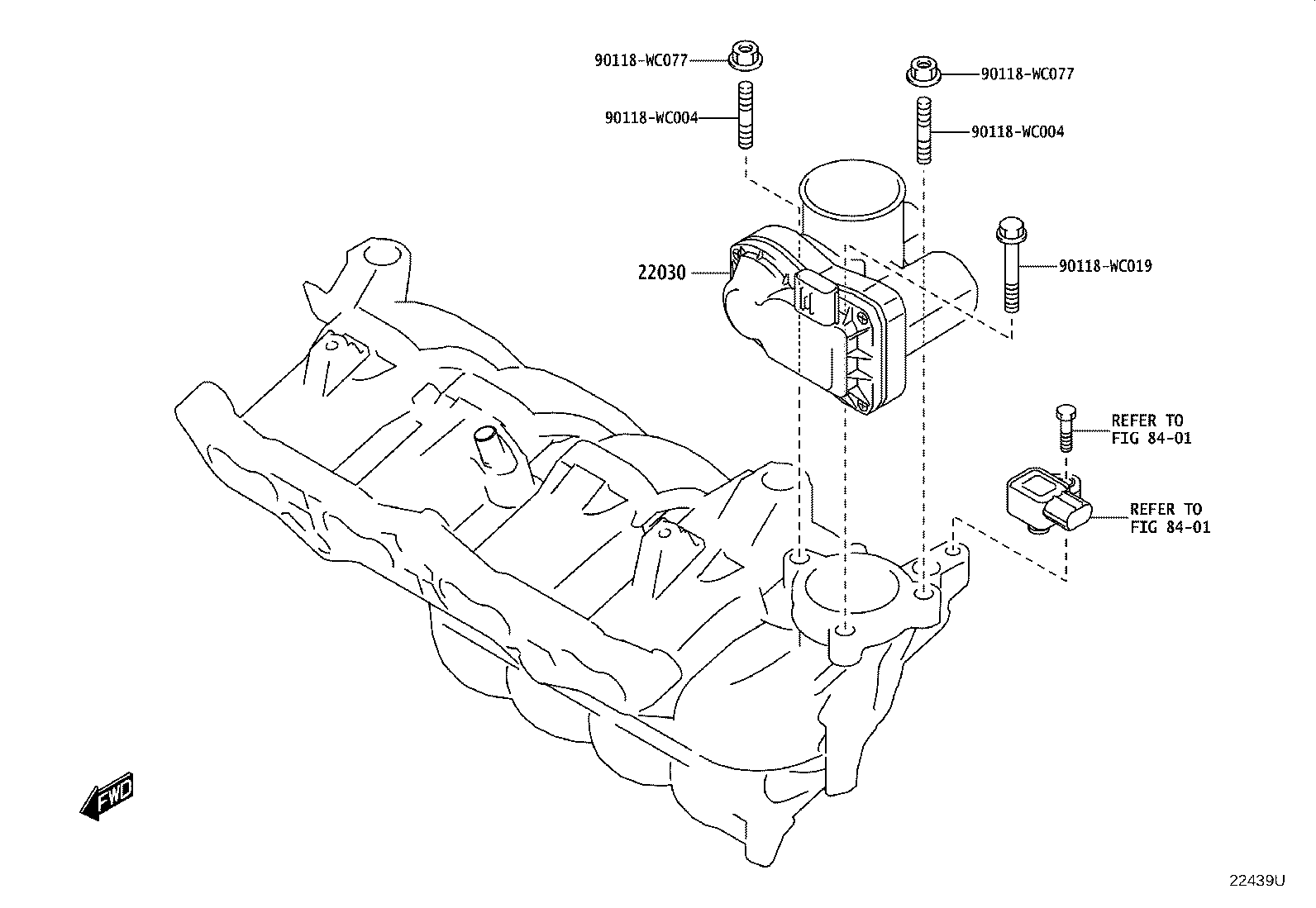

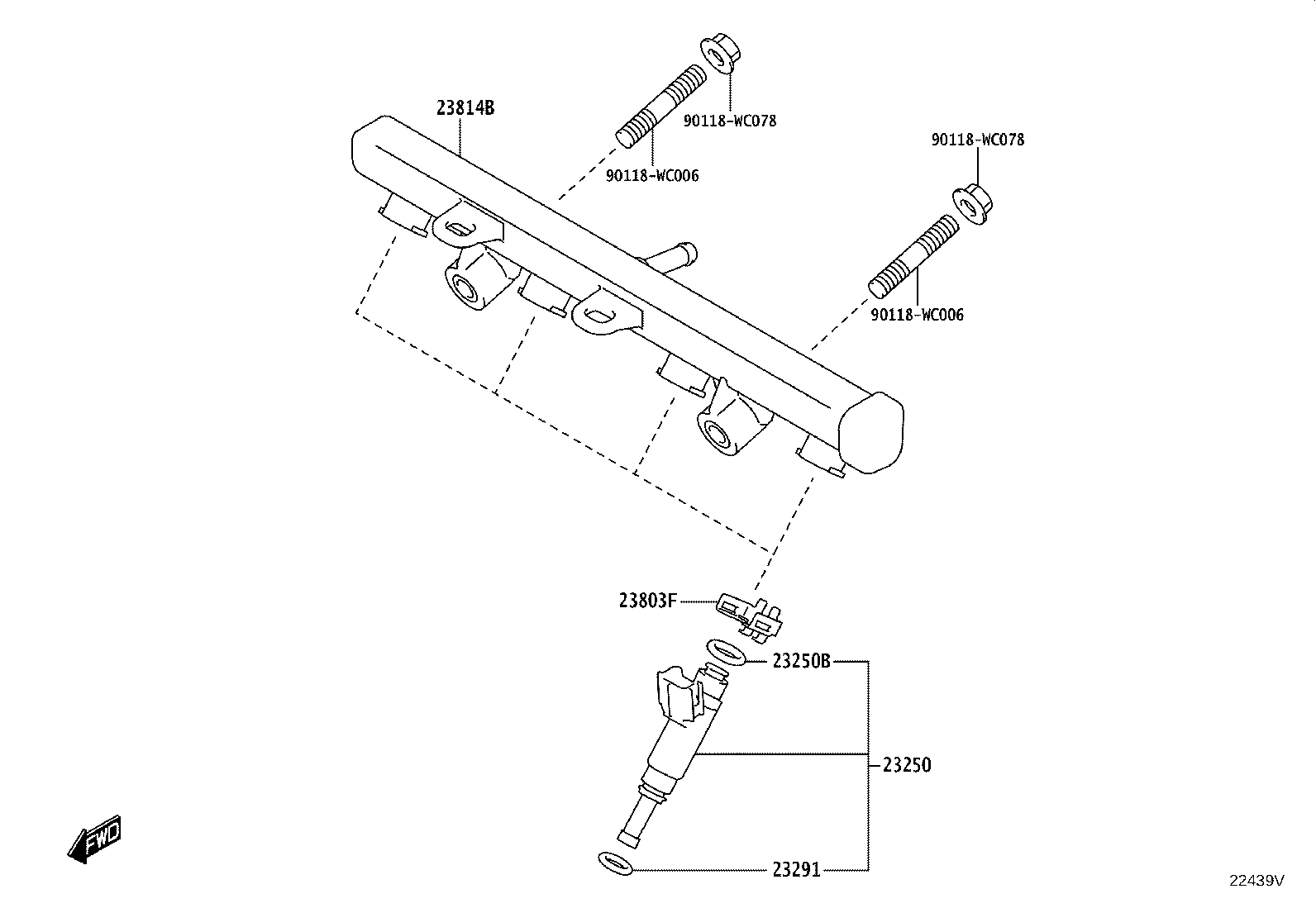

Figure 22439T 22439T 2024-04 → — Figure 22439U 22439U 2024-04 → — Figure 22439V 22439V 2024-04 → — Figure 22439W 22439W 2024-04 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23271F Hose, Fuel
23291 Insulator, Injector Vibration
23803F Clip
23814B Pipe, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
