Toyota Starlet Cross
2024-04 → present · chassis K15B · catalogue 13E310 · General
Supported model
Data version 2024-04
Clutch Pedal & Flexible Hose
12 part groups · 4 illustrations

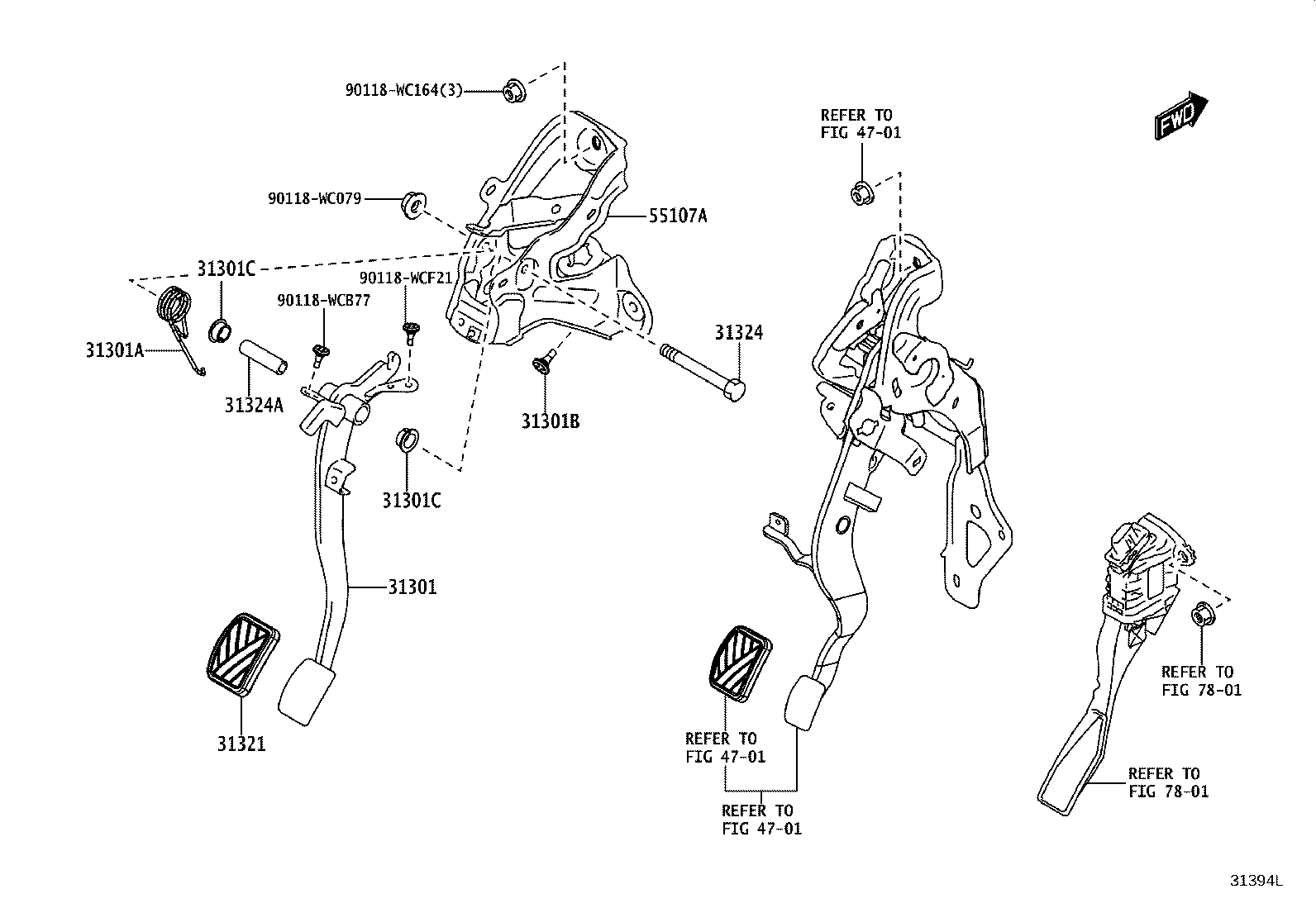

Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |

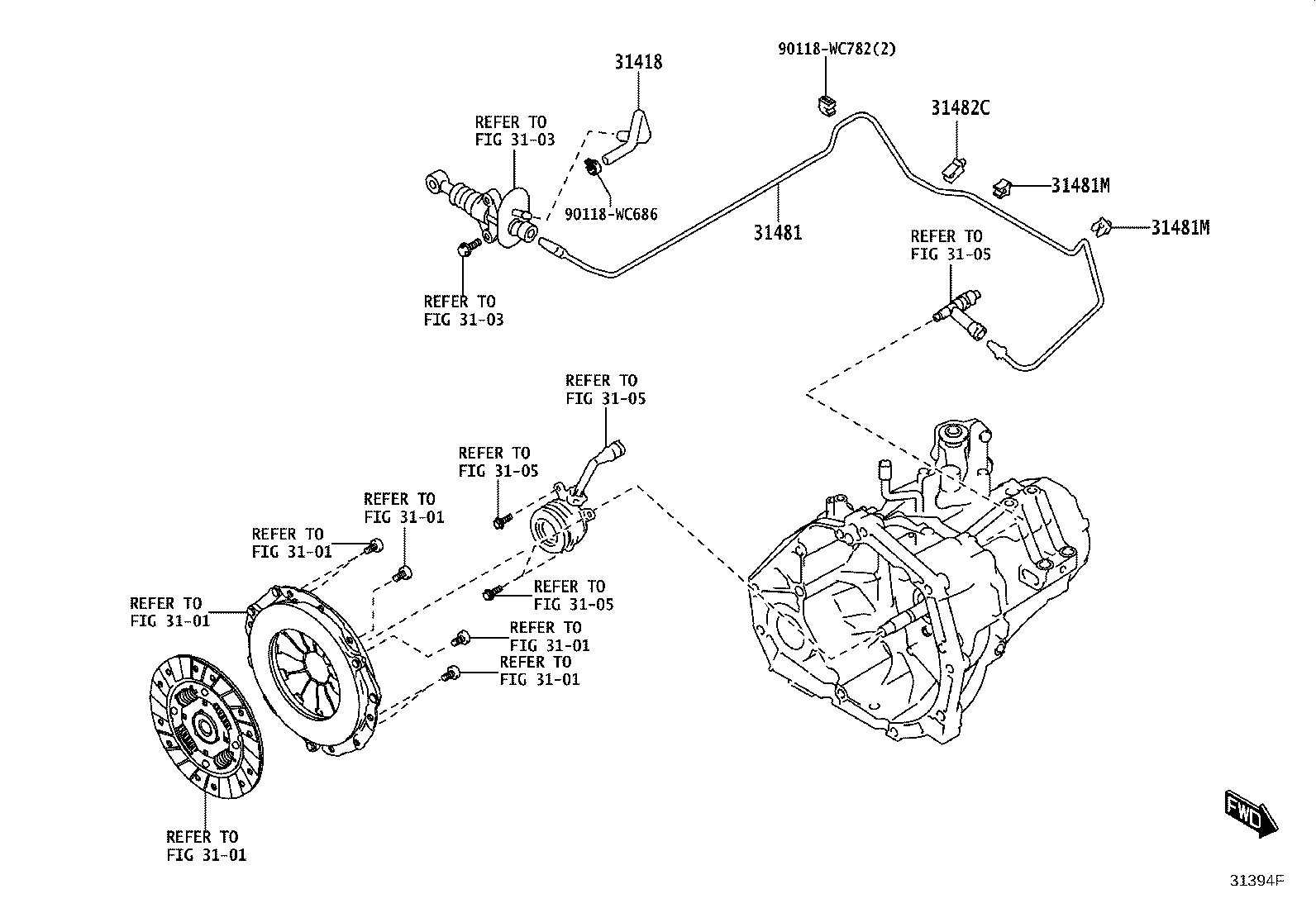

| 31418 | Hose, Clutch |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31482C | Clamp(FOR CLUTCH TUBE) |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
