Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

9 part groups · 2 illustrations

Illustrations

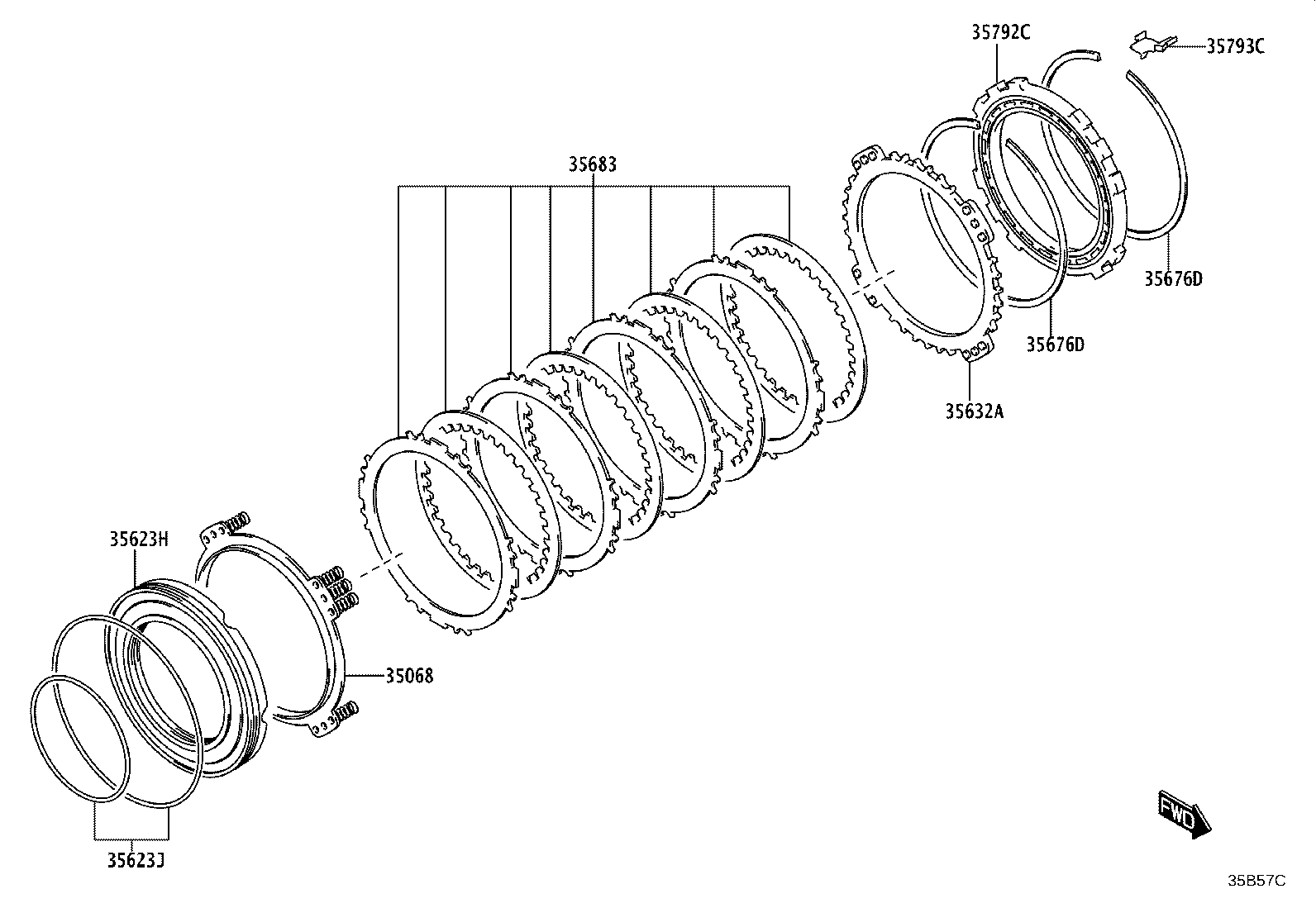

Figure 35B57B 35B57B 2024-04 → — Figure 35B57C 35B57C 2024-04 → —

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35623H Piston, 1ST & Reverse Brake
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35632A Plate, Brake (FOR 1ST & REVERSE BRAKE)
35676D Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
35683 Disc, Brake(FOR 1ST & REVERSE)
35758C Gear, Reduction Drive
35792C Clutch, 1 Way, NO.2
35793C Retainer, 1 Way Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
