Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 8 illustrations

Illustrations

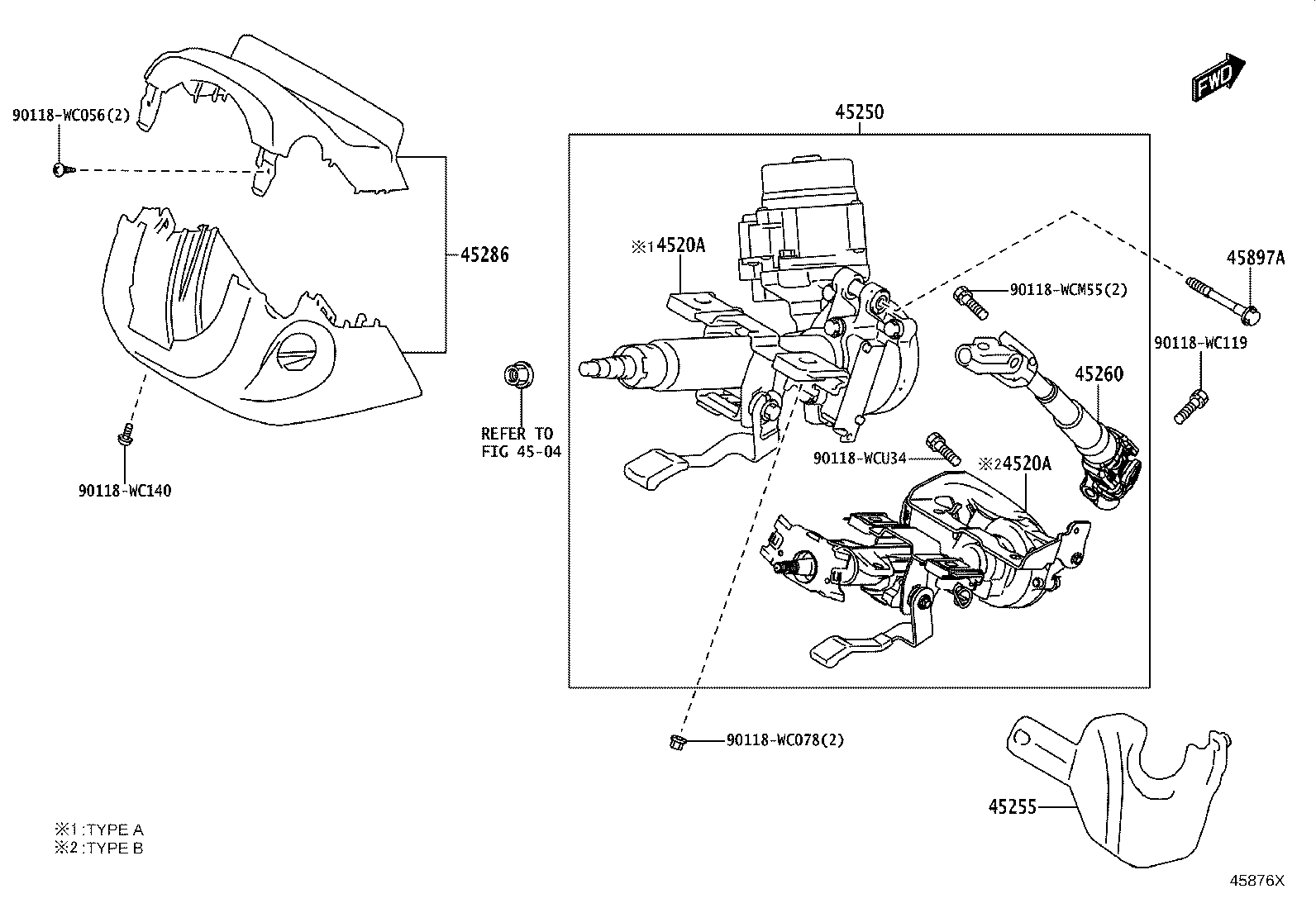

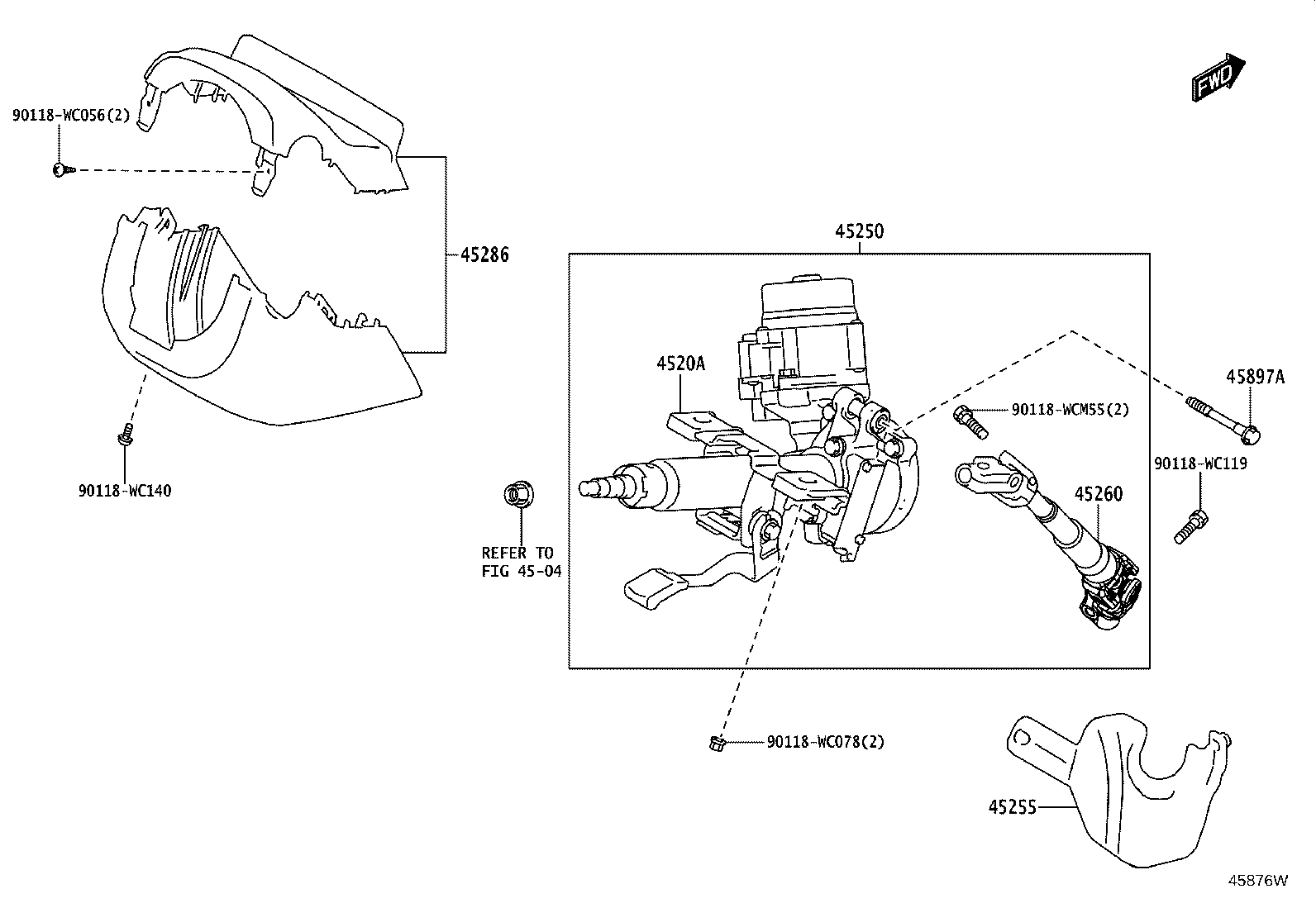

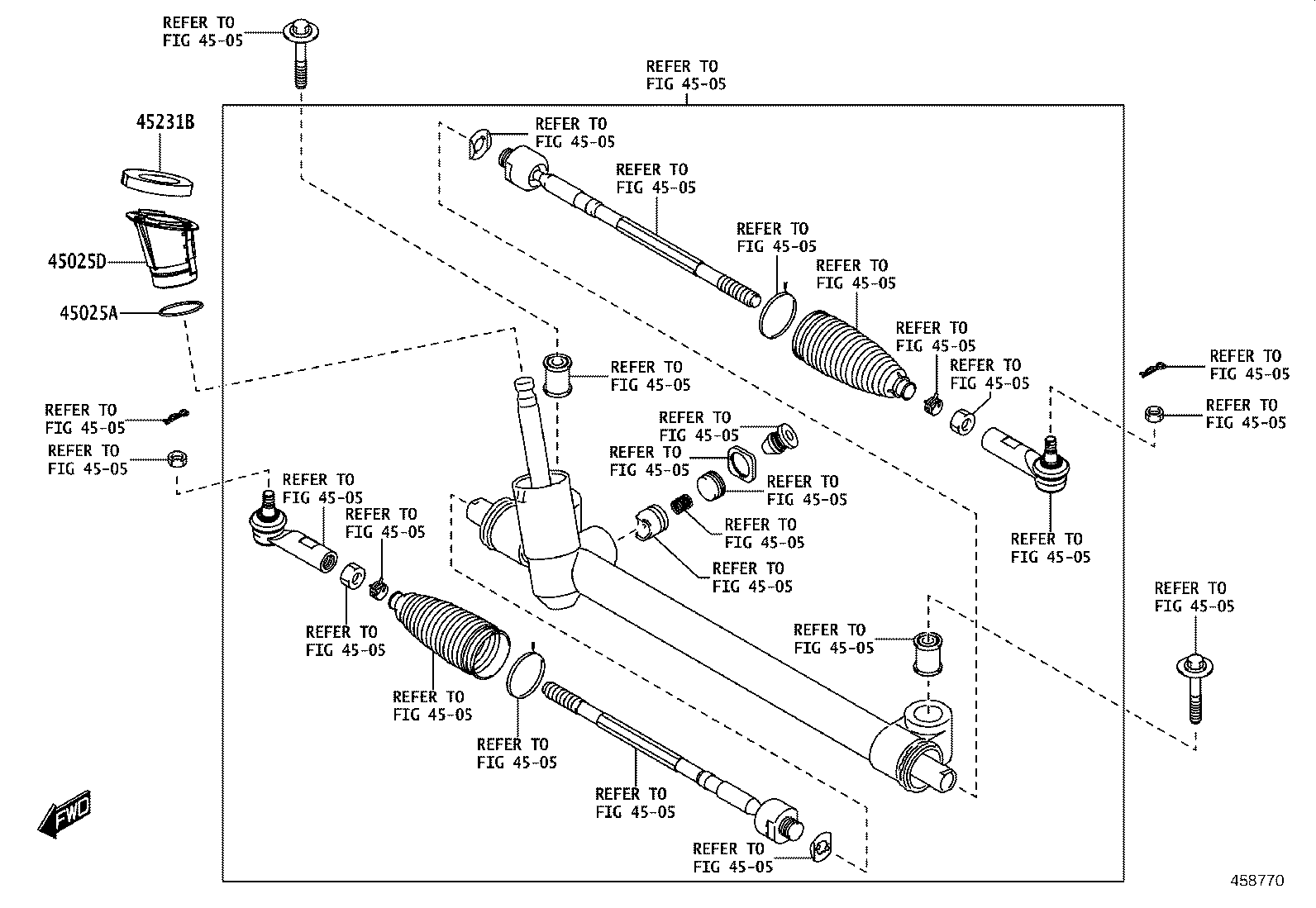

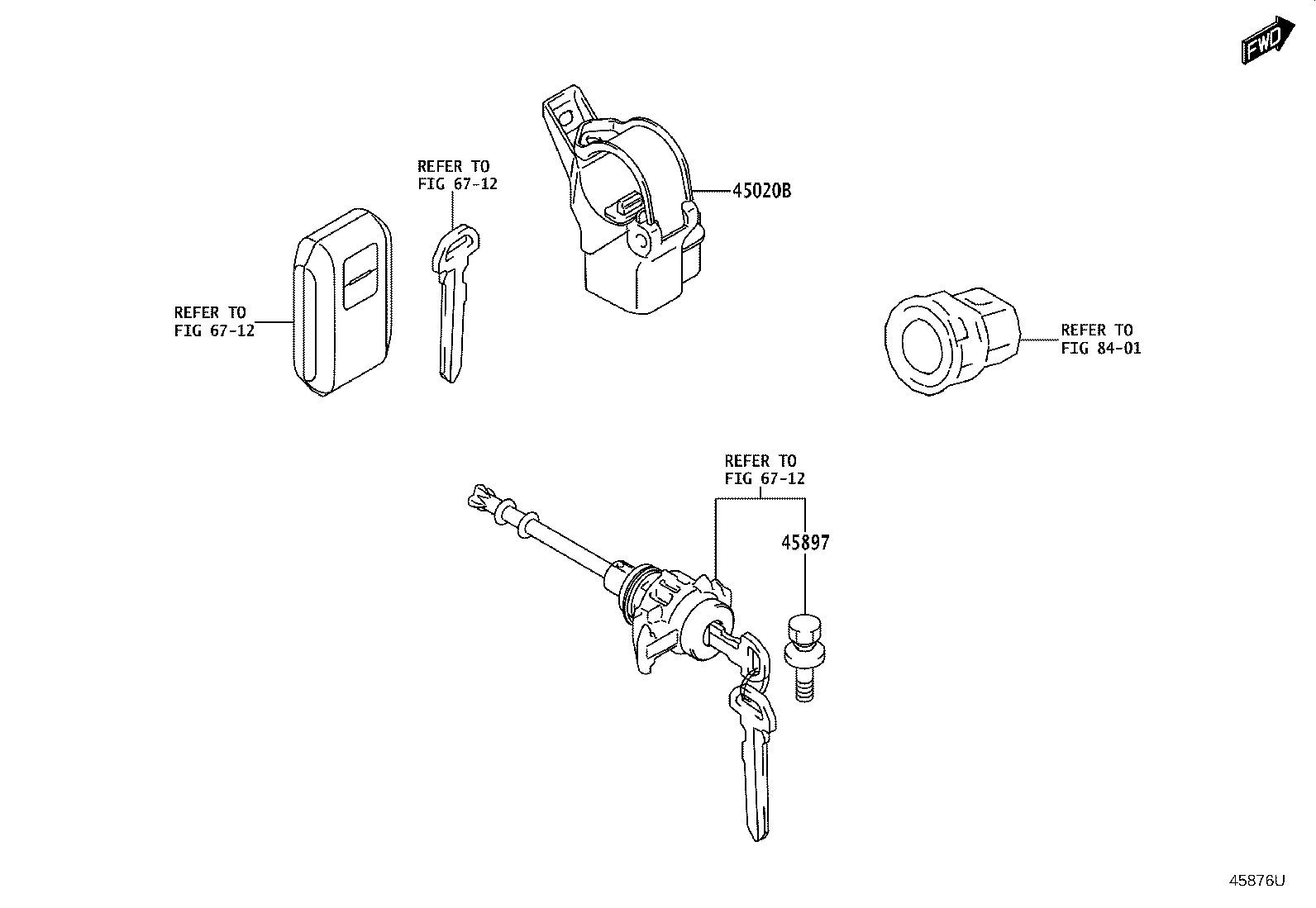

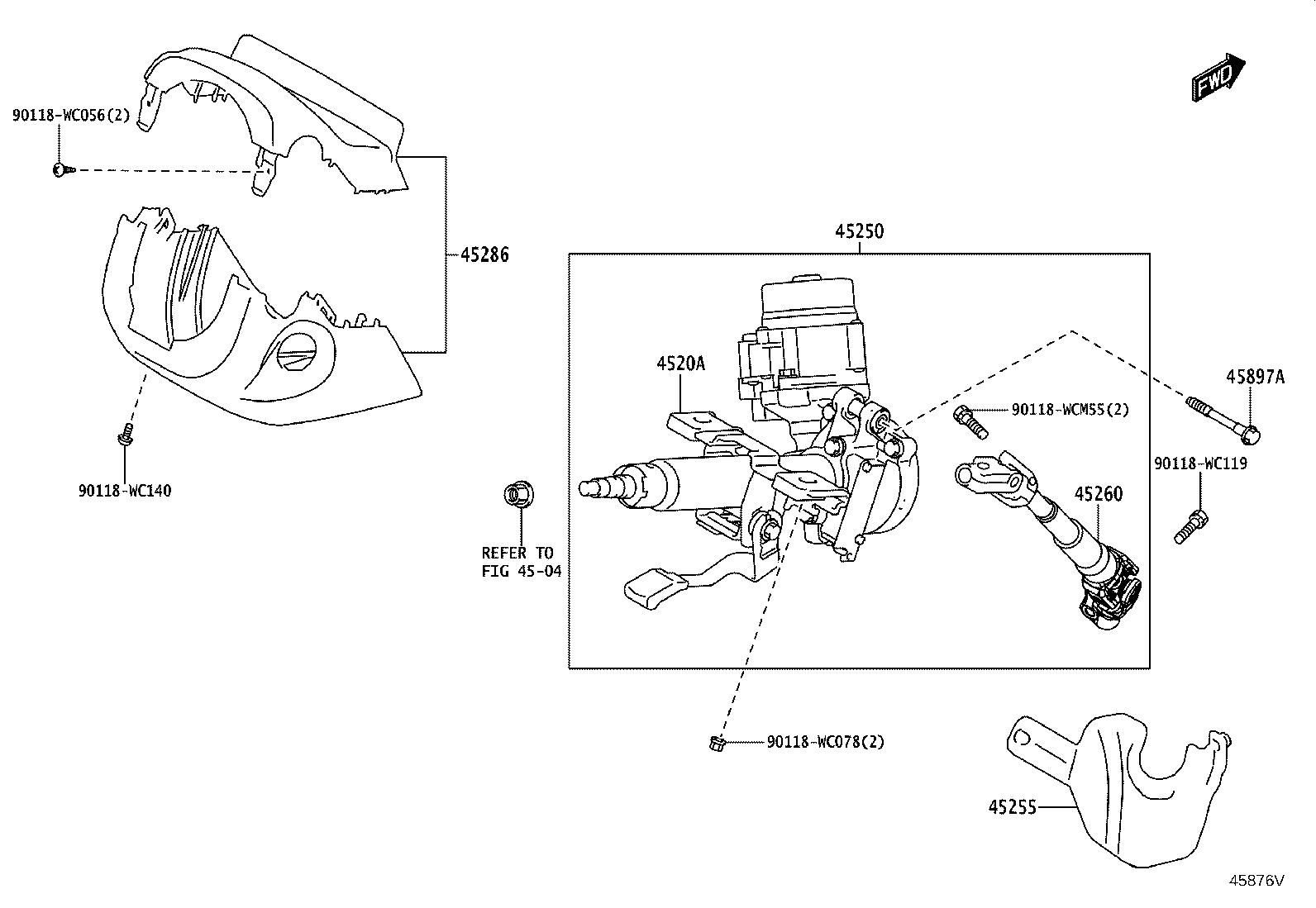

Figure 45876T 45876T 2024-04 → — Figure 45876U 45876U 2024-04 → — Figure 45876V 45876V 2024-04 → — Figure 45876W 45876W 2024-04 → — Figure 45876X 45876X 2024-04 → — Figure 45876Y 45876Y 2024-04 → — Figure 45876Z 45876Z 2024-04 → — Figure 458770 458770 2024-04 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45025A Ring, O(FOR STEERING COLUMN HOLE COVER)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45231B Seal, Dust
45250 Column Assy, Steering
45255 Plate, Steering Column Hole Cover
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
