Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

15 part groups · 2 illustrations

Illustrations

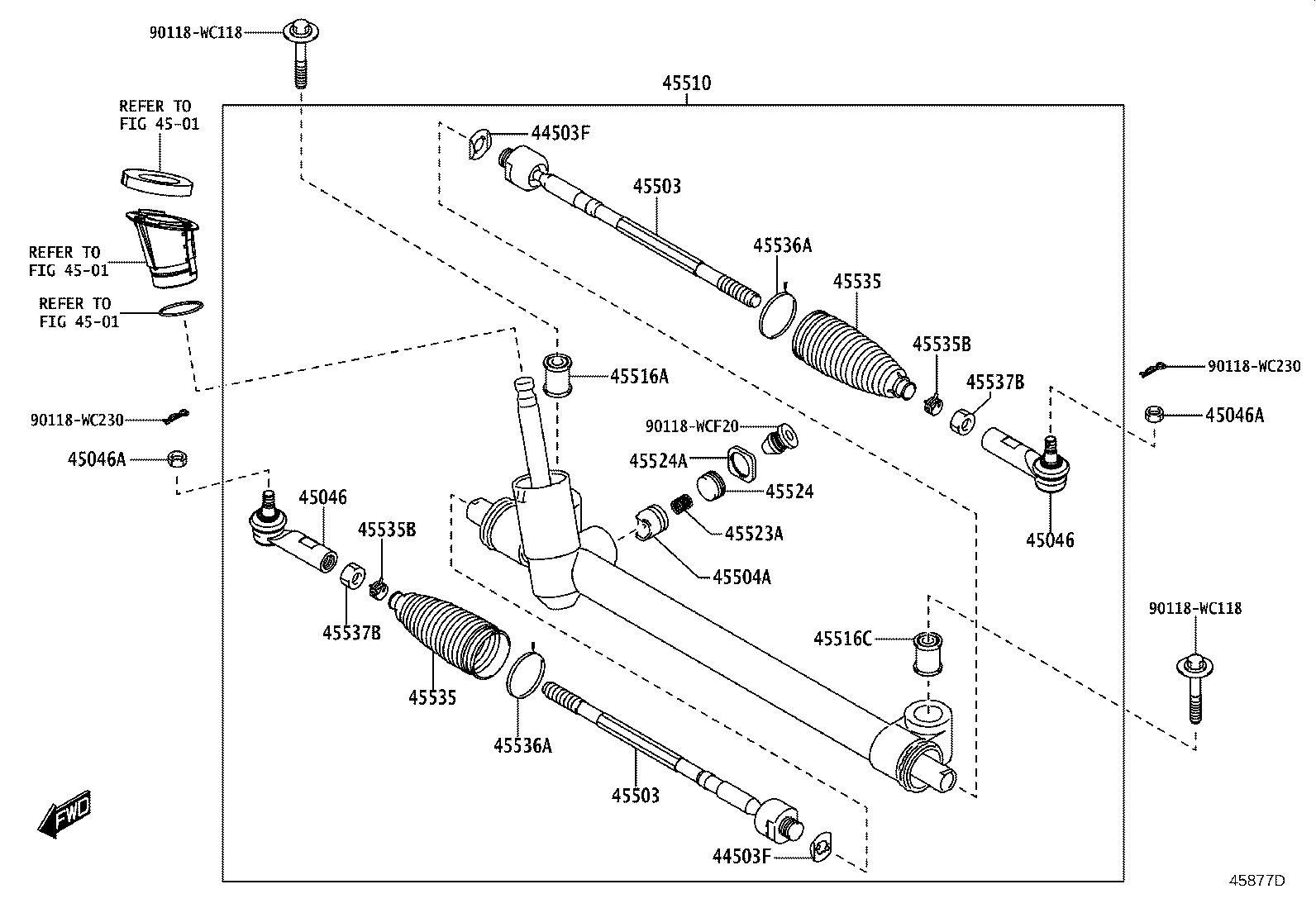

Figure 45877C 45877C 2024-04 → — Figure 45877D 45877D 2024-04 → —

Part groups

PNCDescription
44503F Washer, Claw(FOR POWER STEERING RACK END)
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45503 End Sub-assy, Steering Rack
45504A Guide Sub-assy, Rack
45510 Gear Assy, Steering
45516A Bush, Steering Rack Housing, NO.1
45516C Bush, Steering Rack Housing, NO.2
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45524 Cap, Steering Rack Guide Spring
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45536A Clamp(FOR STEERING RACK BOOT NO.2)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
