Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

3 part groups · 6 illustrations

Illustrations

Figure 47E6G7

47E6G7 2024-04 → —

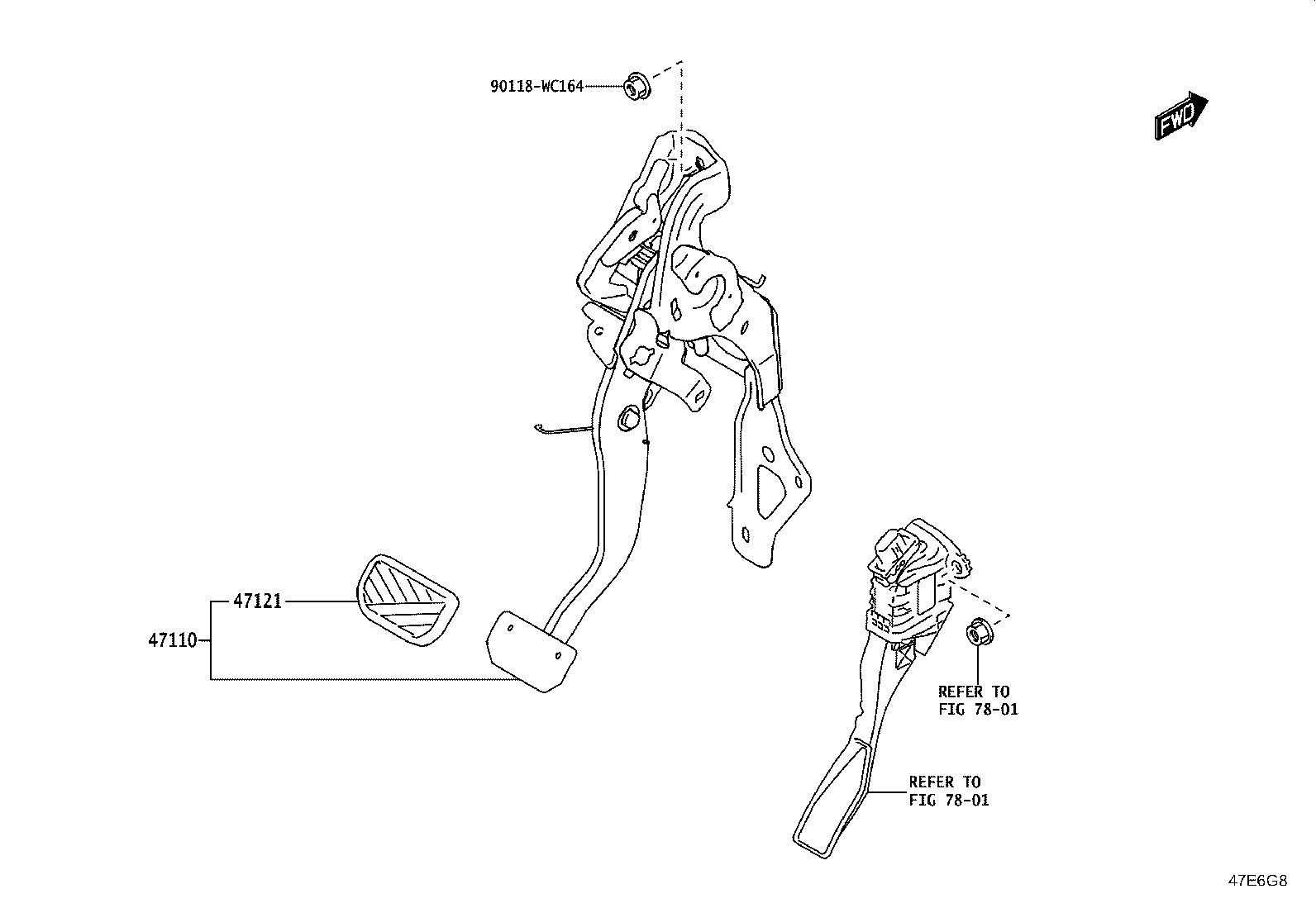

Figure 47E6G8

47E6G8 2024-04 → —

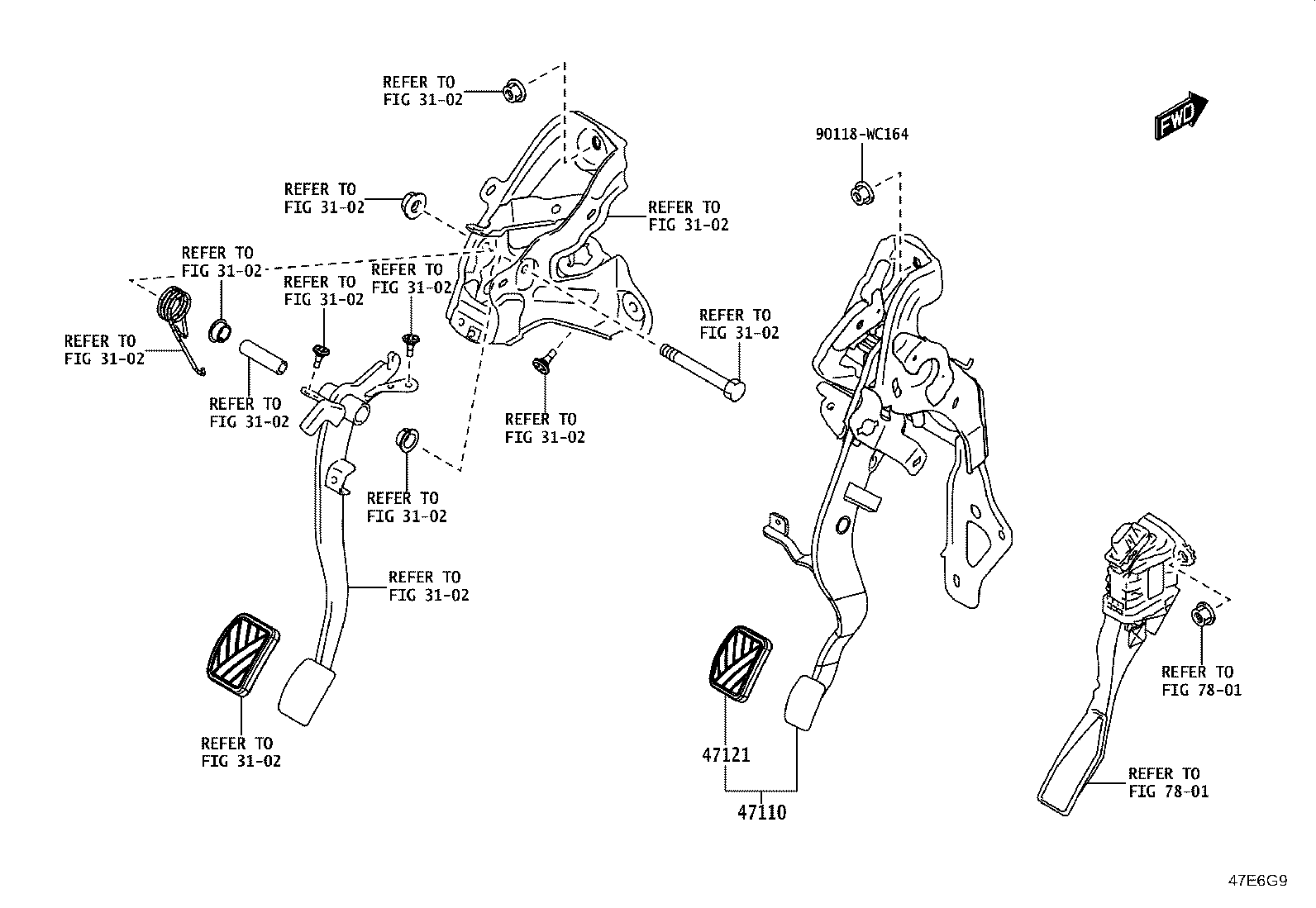

Figure 47E6G9

47E6G9 2024-04 → —

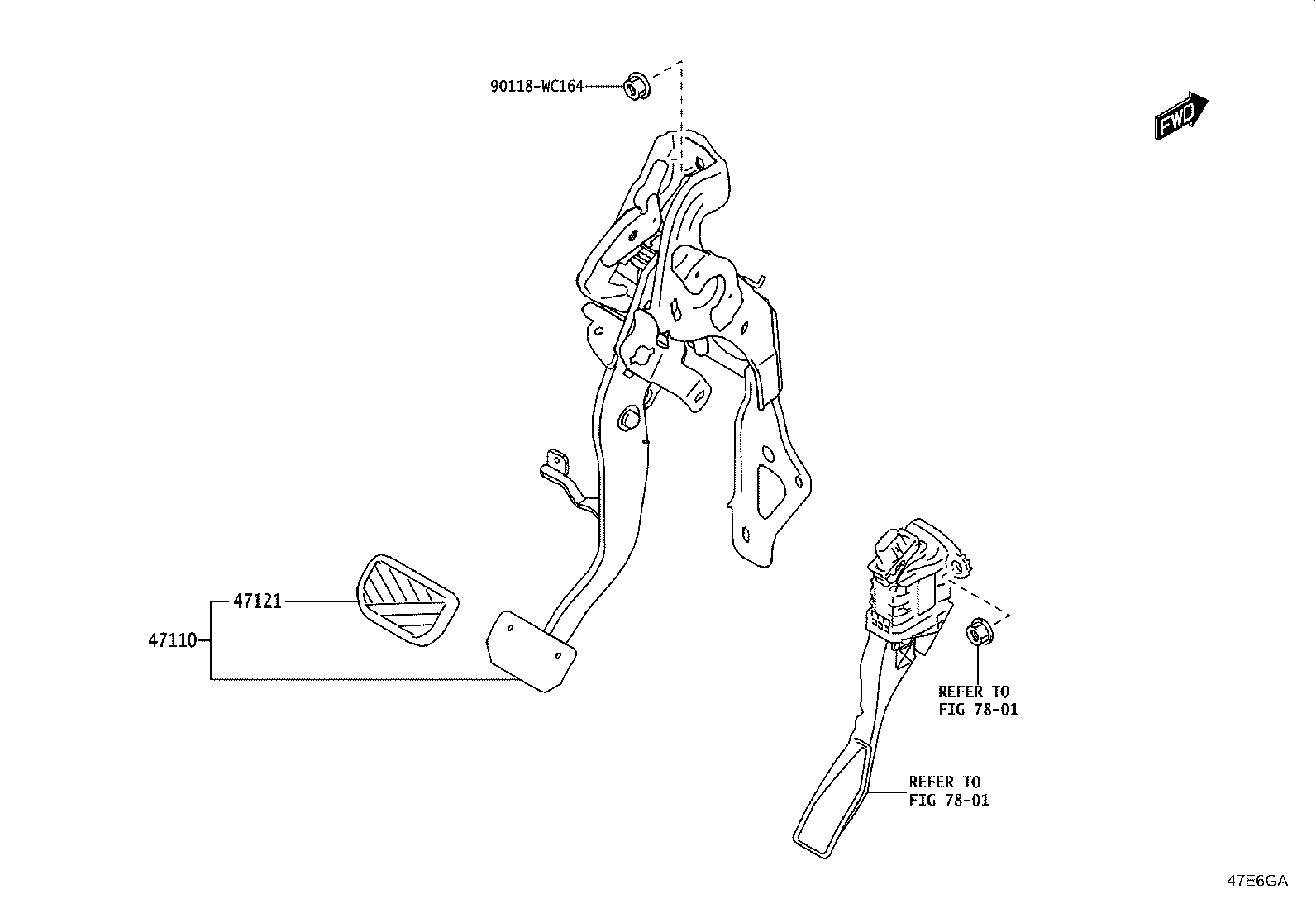

Figure 47E6GA

47E6GA 2024-04 → —

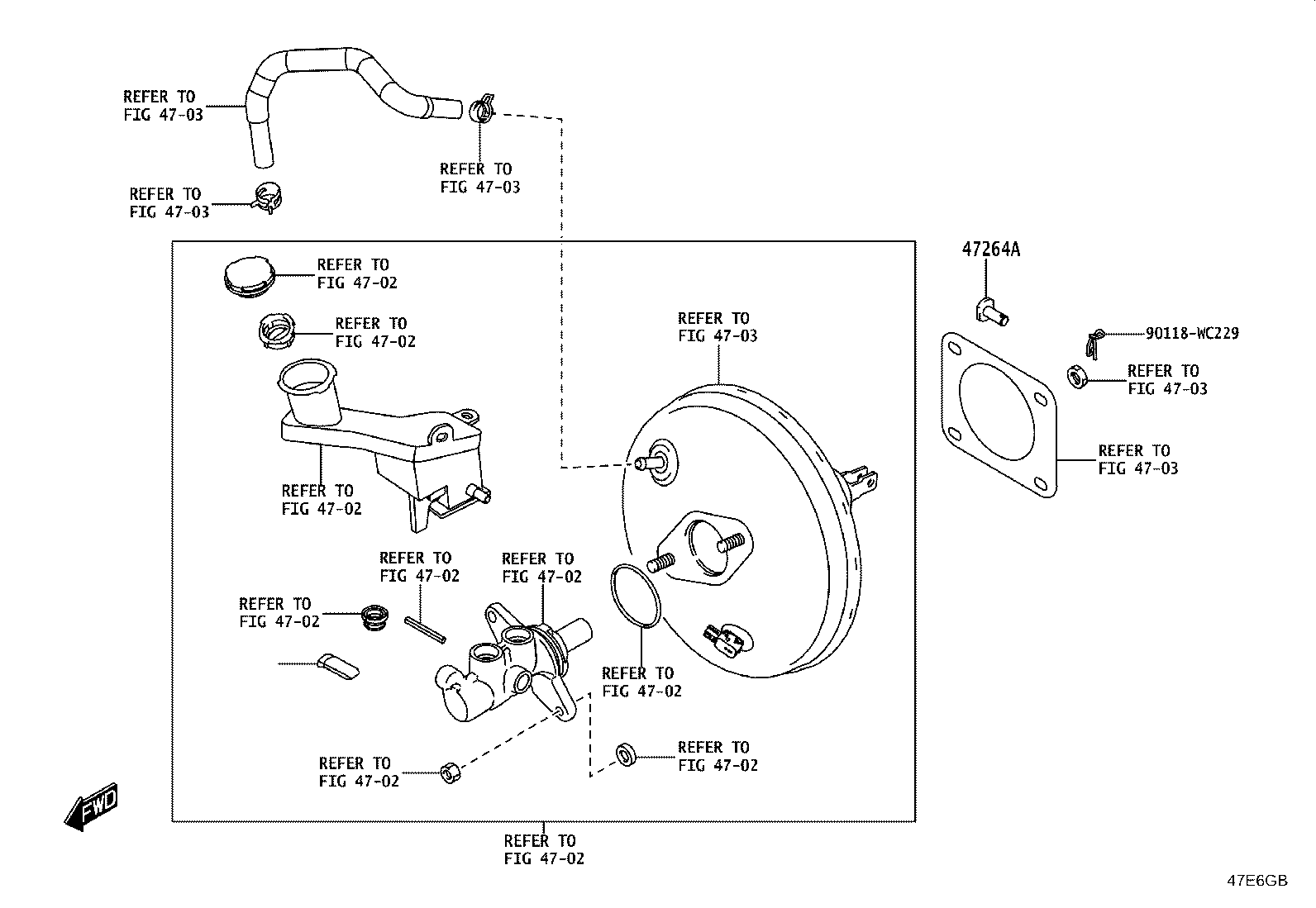

Figure 47E6GB

47E6GB 2024-04 → —

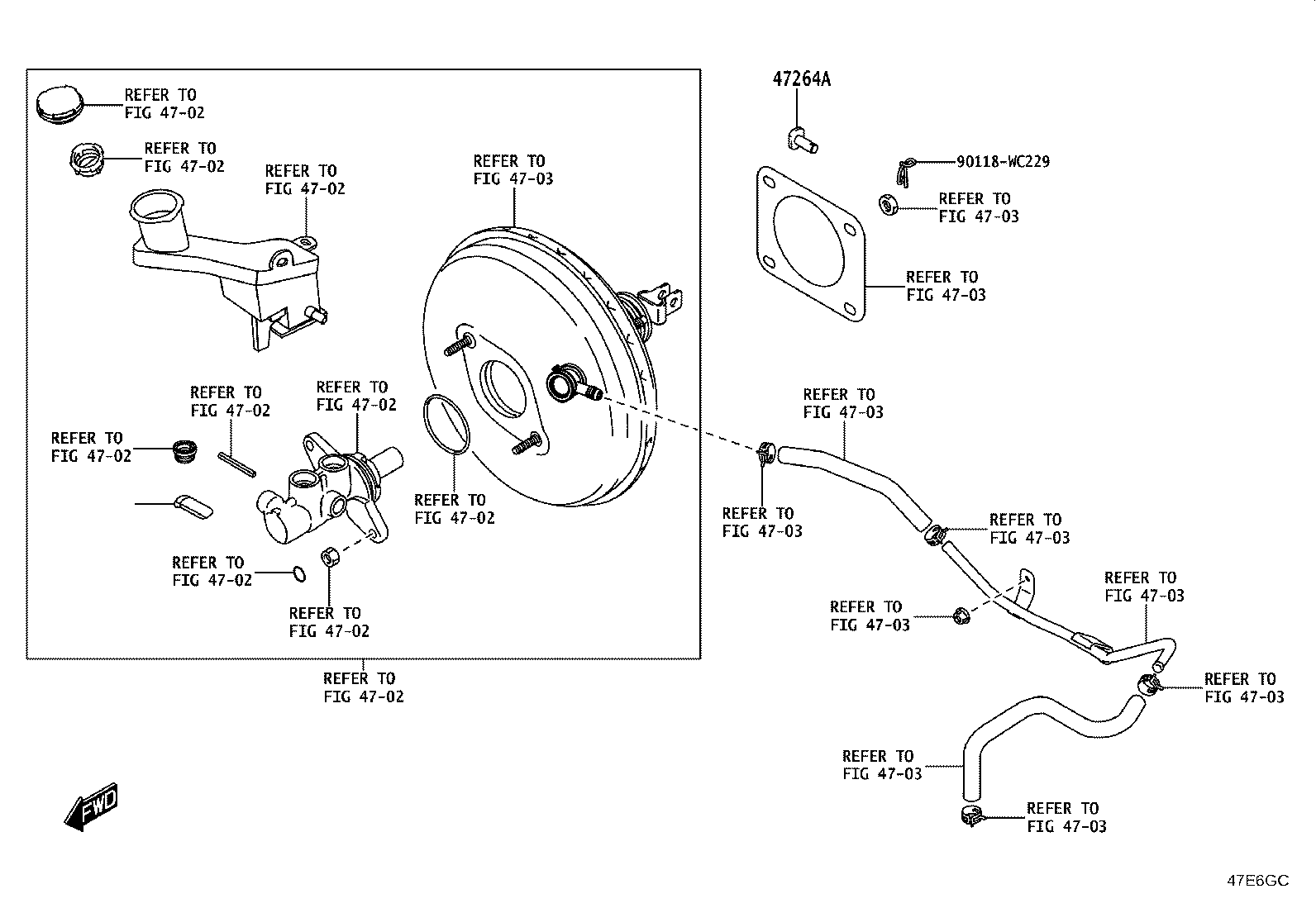

Figure 47E6GC

47E6GC 2024-04 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
