Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

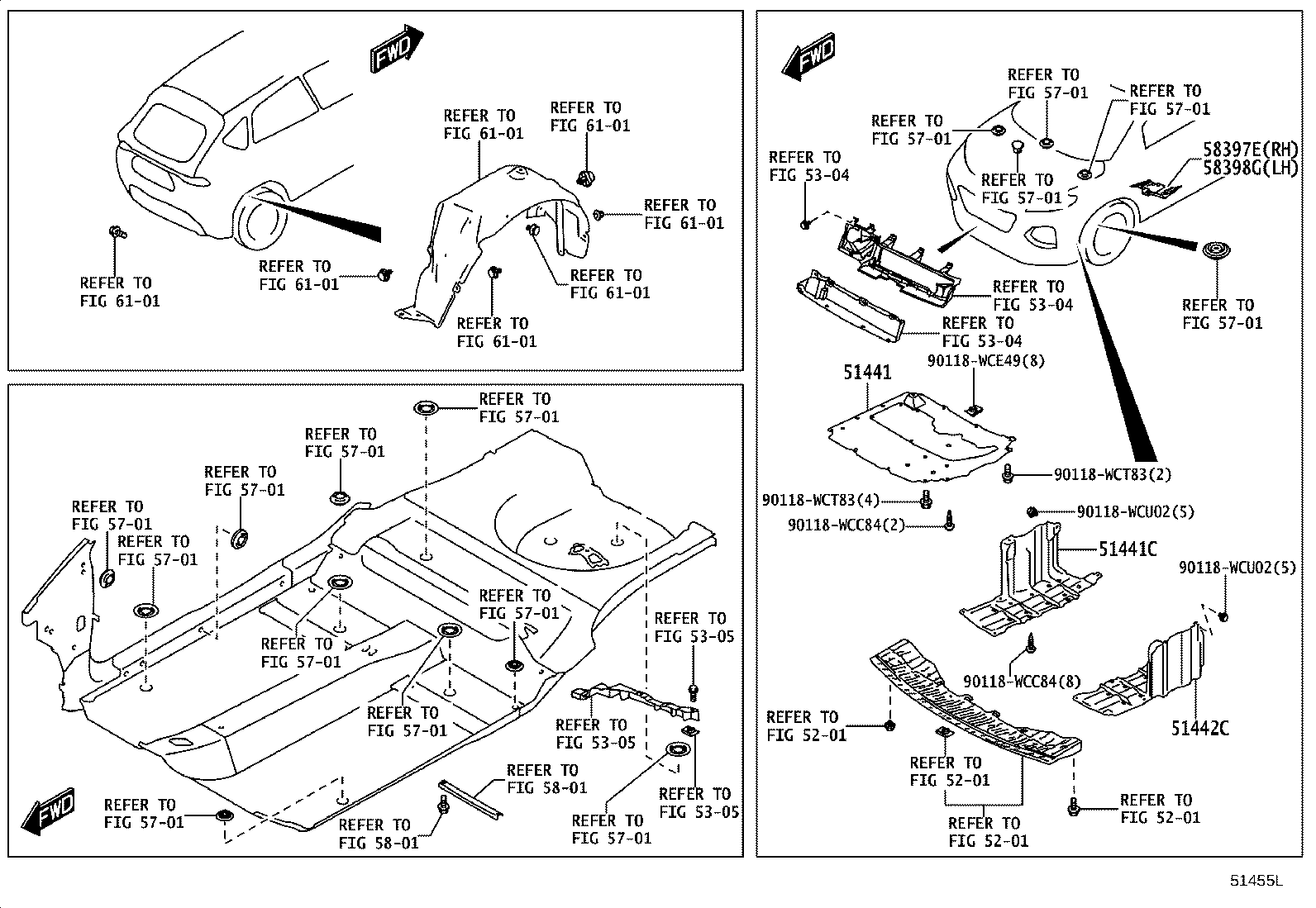

Figure 51455K 51455K 2024-04 → — Figure 51455L 51455L 2024-04 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51201J Cover, Front Suspension Crossmember Hole
51441 Cover, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
58397E Cover, Body Lower Back, RH
58398G Cover, Body Lower Back, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
