Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

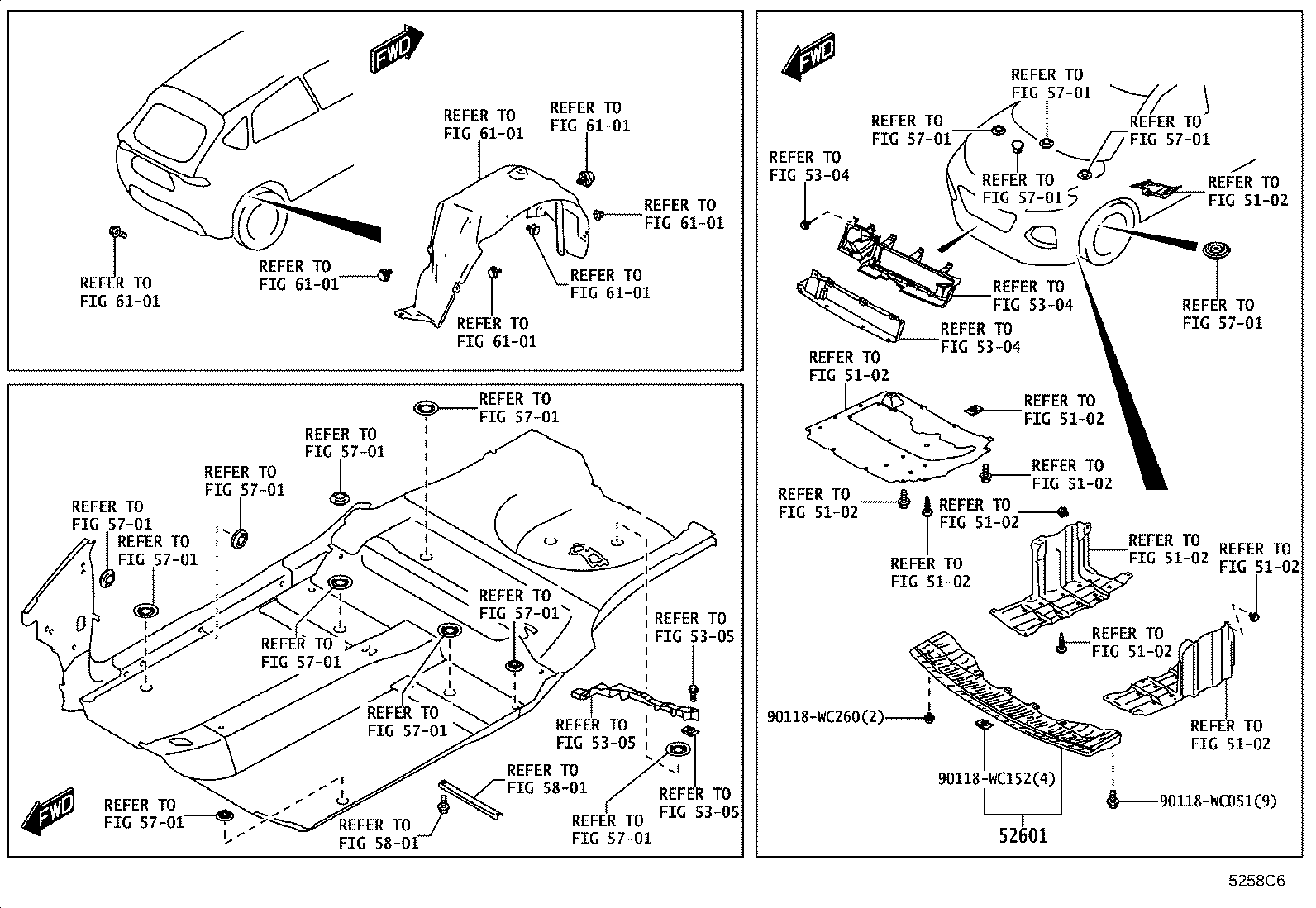

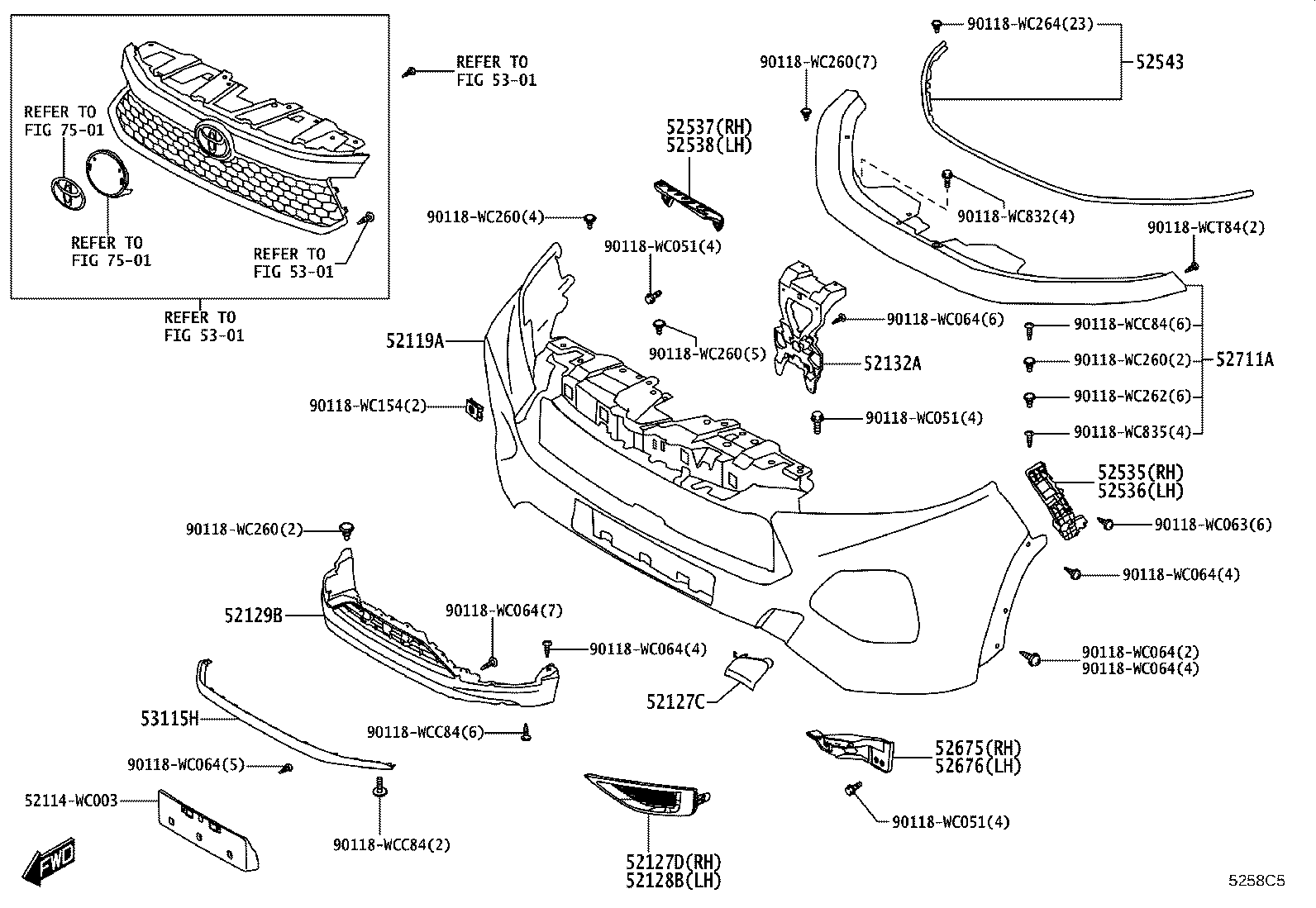

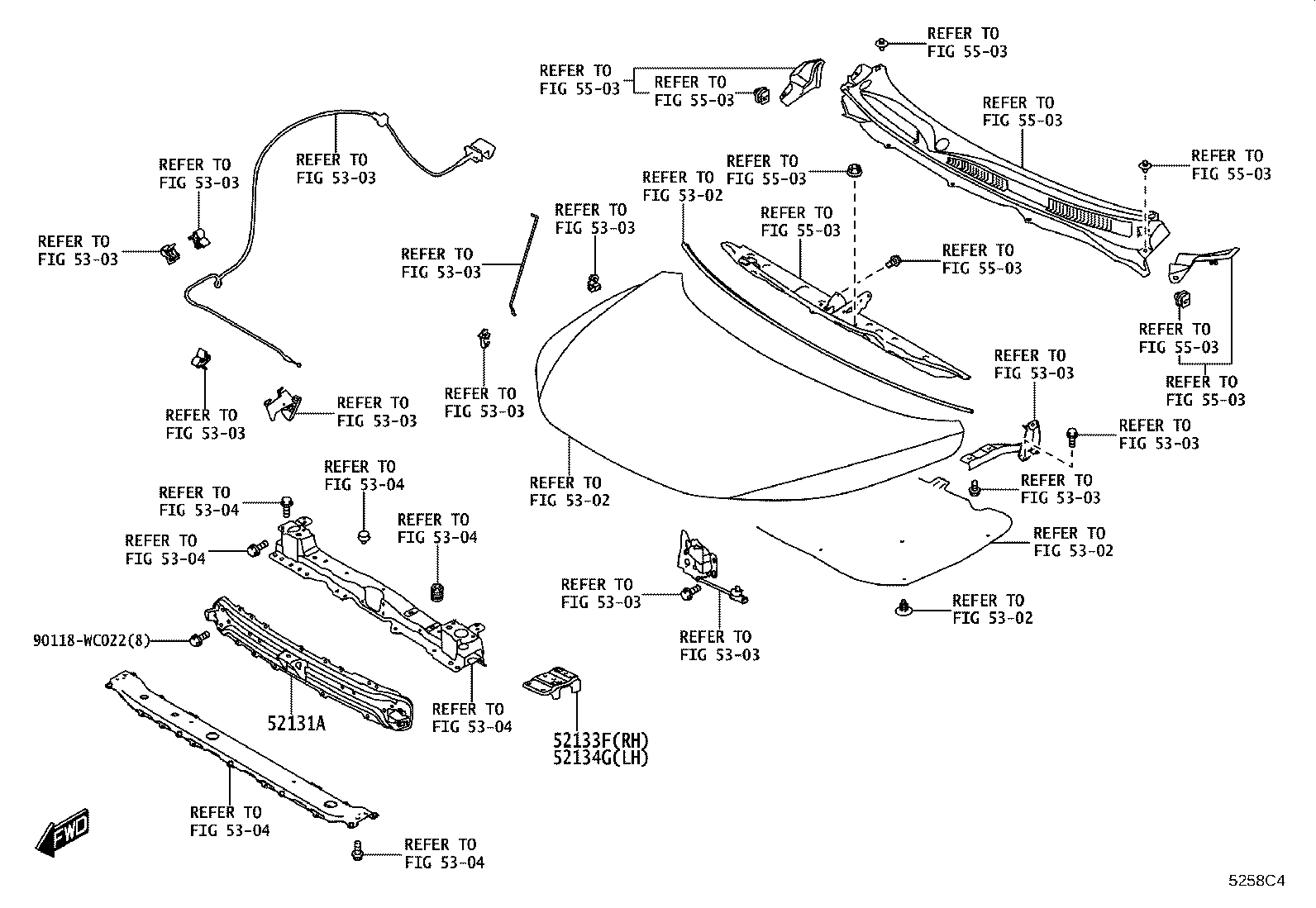

Figure 5258C3 5258C3 2024-04 → — Figure 5258C4 5258C4 2024-04 → — Figure 5258C5 5258C5 2024-04 → — Figure 5258C6 5258C6 2024-04 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52543 Seal, Front Bumper Side, RH
52601 Absorber Sub-assy, Front Bumper Energy
52675 Support, Front Bumper Lower Side, RH
52676 Support, Front Bumper Lower Side, LH
52711A Garnish, Front Bumper
53115H Bracket, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
